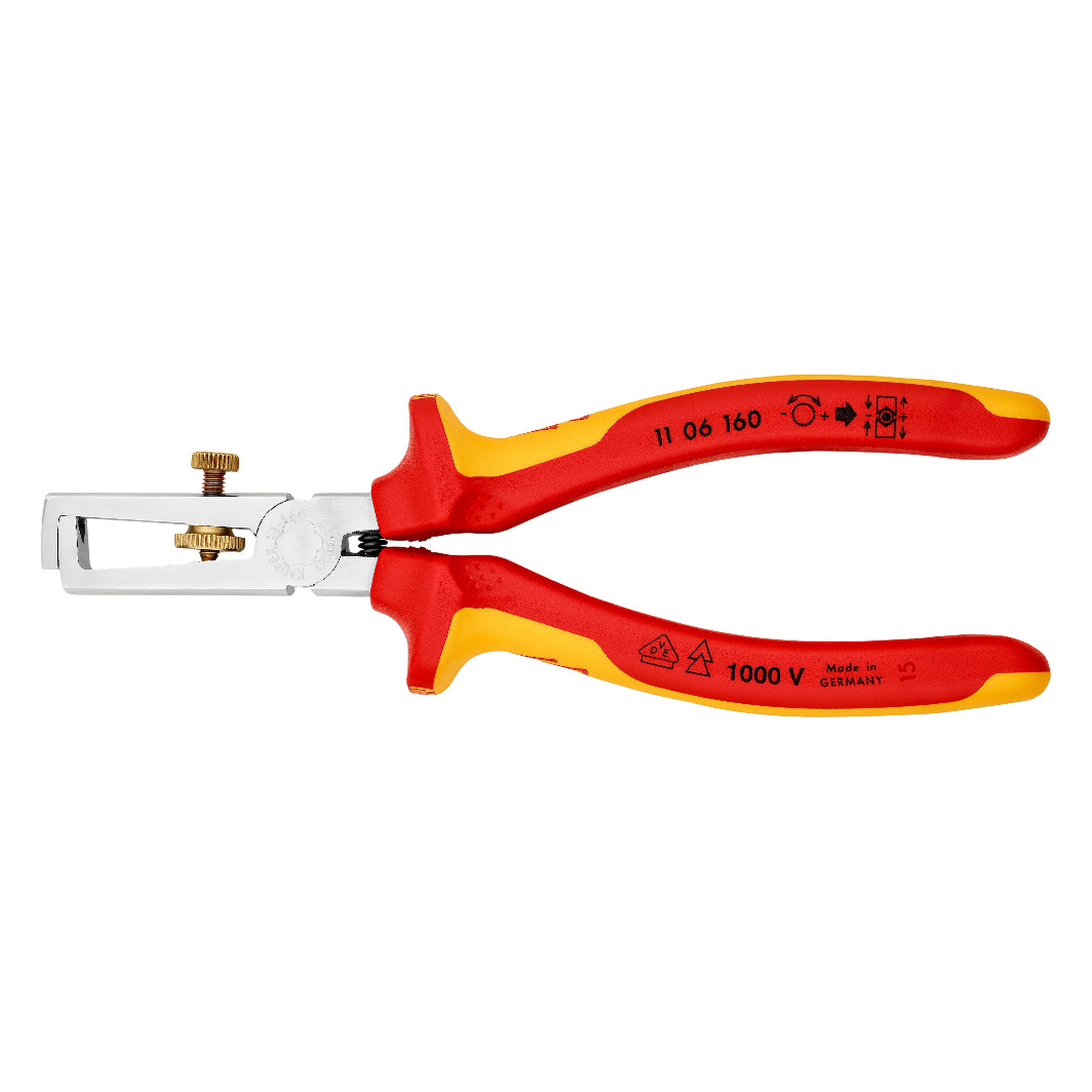

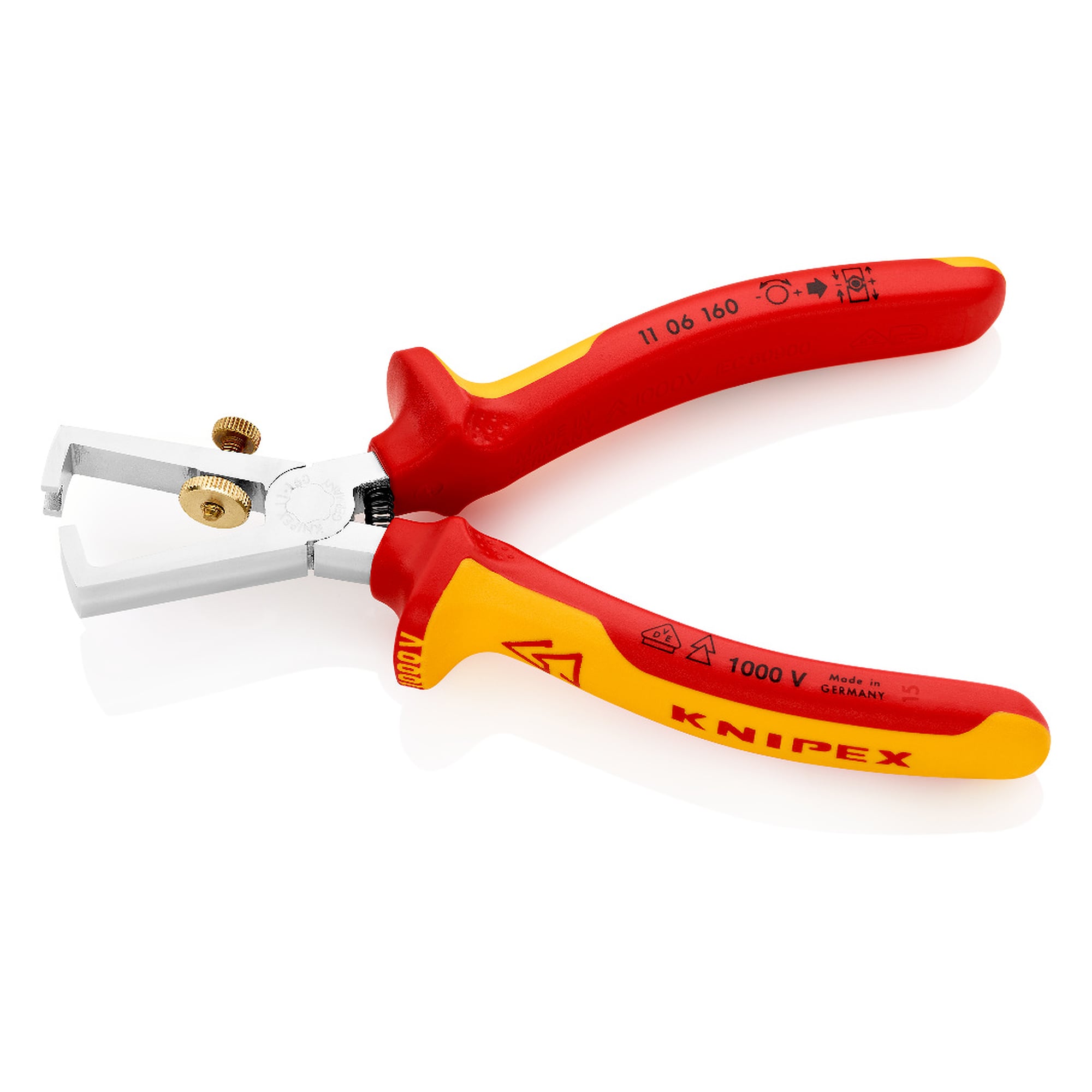

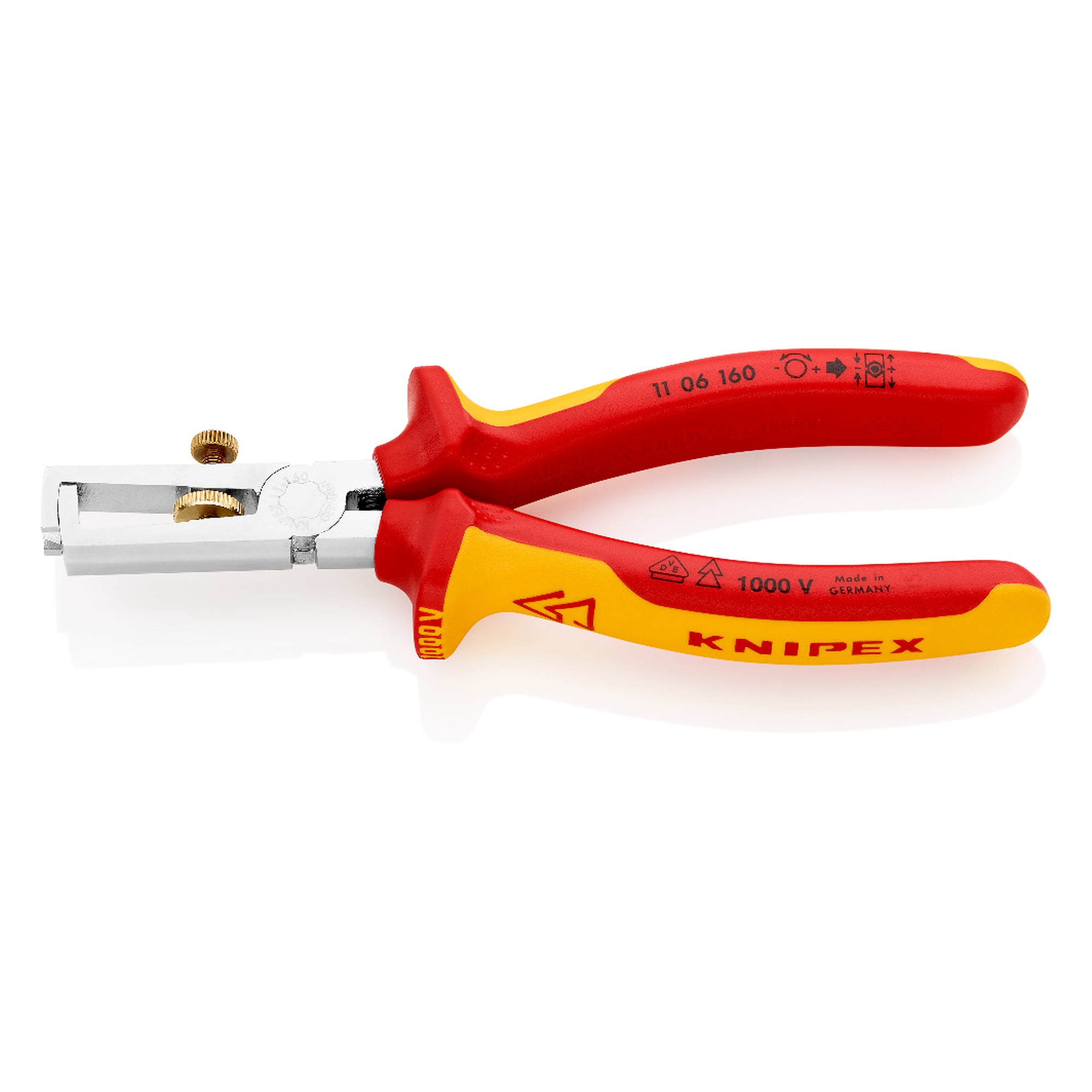

Insulation stripper VDE with opening spring for up to 10 mm², adjustable, 160 mm - Knipex 11 06 160

Anyone preparing cores for terminals and terminal blocks must not nick a single strand while stripping. The 11 06 160 insulation stripper handles single, multi and fine stranded conductors with plastic or rubber insulation up to 5 mm diameter or 10 mm² cross-section and is set exactly to the strand diameter with a knurled screw and lock nut.

Benefits

• One tool for single, multi and fine stranded conductors up to 10 mm² cross-section, matching AWG 8.

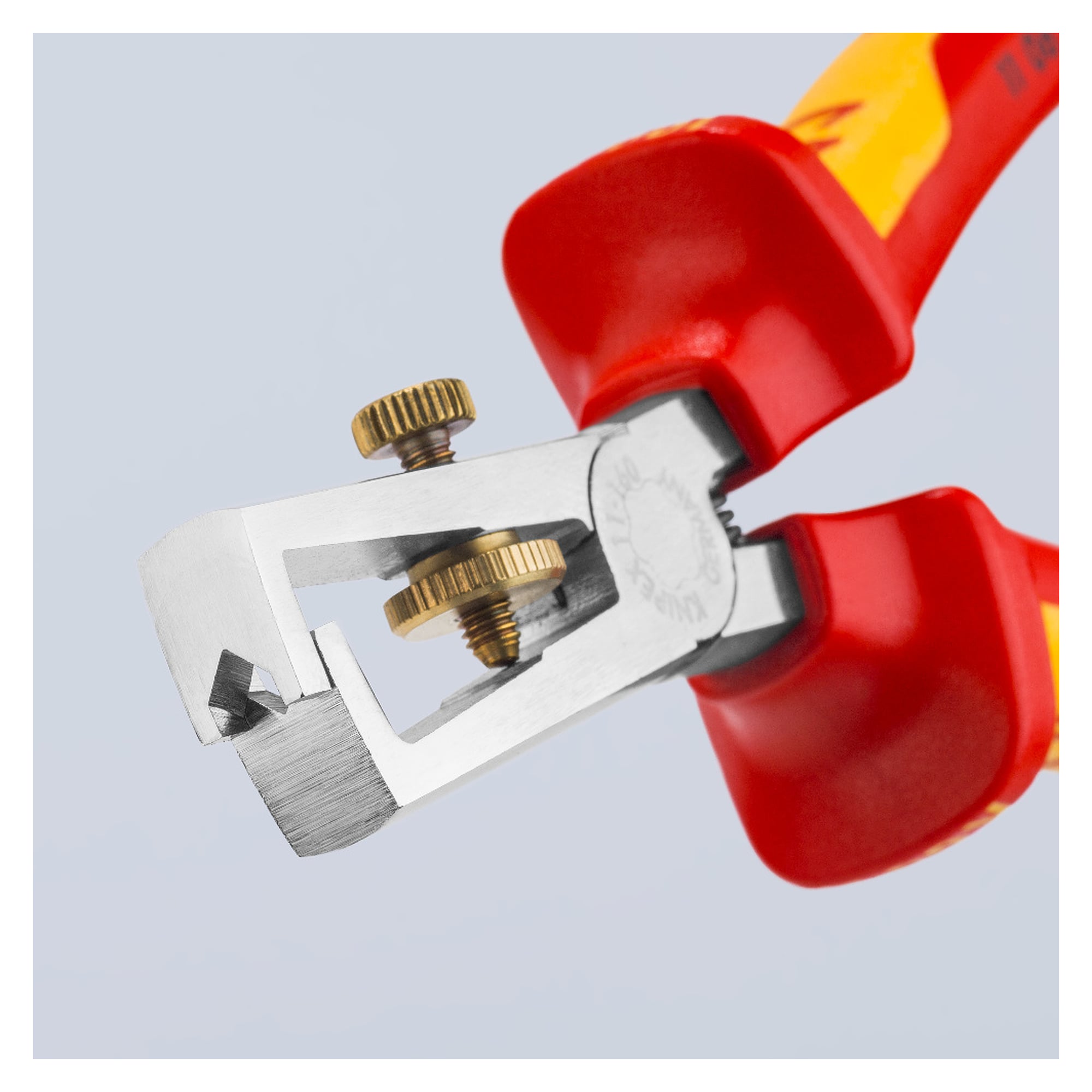

• Easy adjustment to the required strand diameter up to 5.0 mm by knurled screw and lock nut, the setting stays in place during repetitive work.
• The opening spring returns the tool to its starting position after every stroke, saving one hand movement per core.
• Handles insulated with multi-component grips and VDE tested to DIN EN 60900 and IEC 60900, the standards for work up to 1000 V.
• Pliers and head chrome-plated, which protects the tool against moisture on site.
• 160 mm long at 180 g, easy to handle even during longer overhead work.

Technical data

Areas of use

Electrical installation, control cabinet and control system building, service and maintenance. The VDE test to IEC 60900 qualifies the tool for work on live parts up to 1000 V.

Standards and conformity

The handles are VDE tested to DIN EN 60900 and IEC 60900. According to the manufacturer the tool contains no substances of very high concern under REACH. The RoHS directive does not apply.
