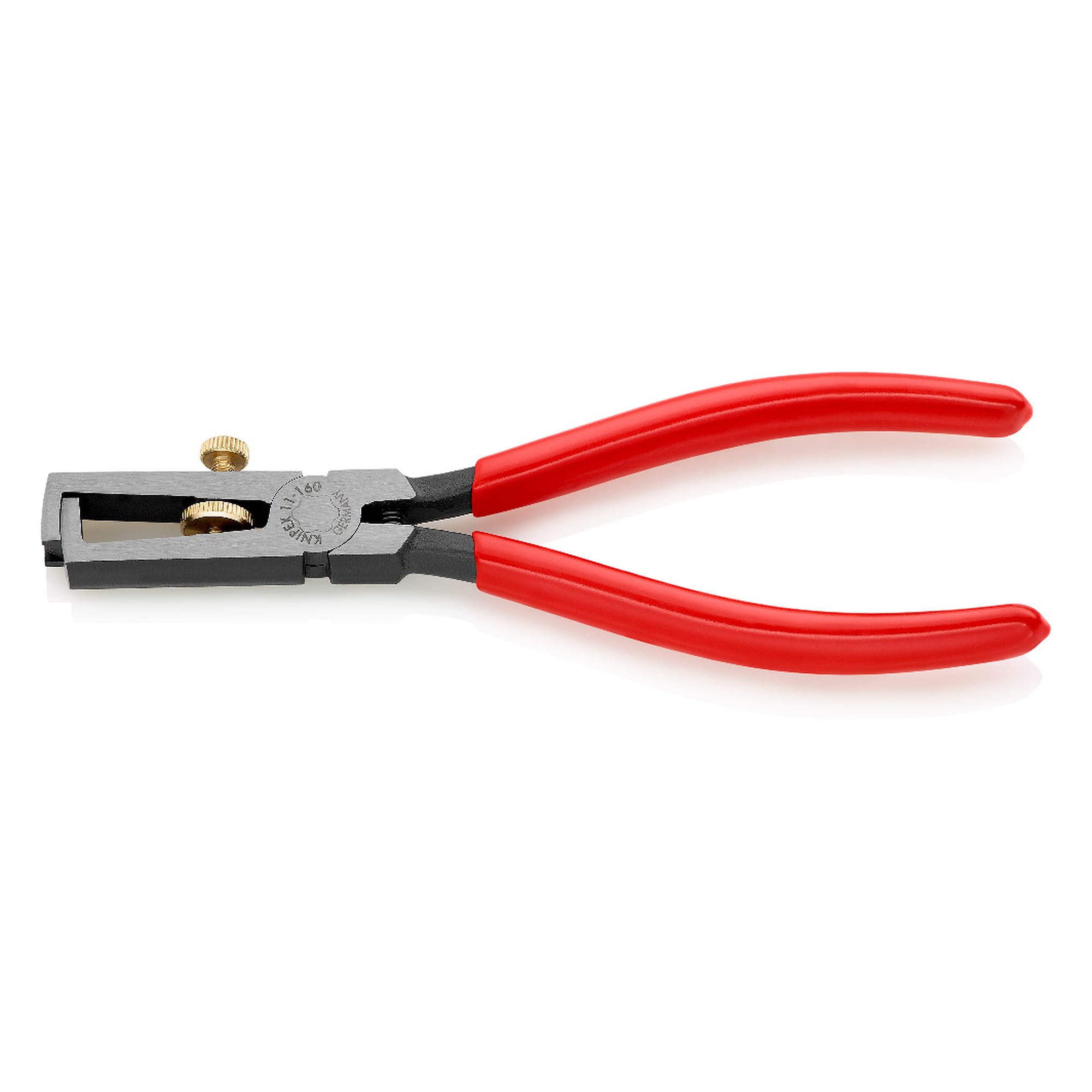

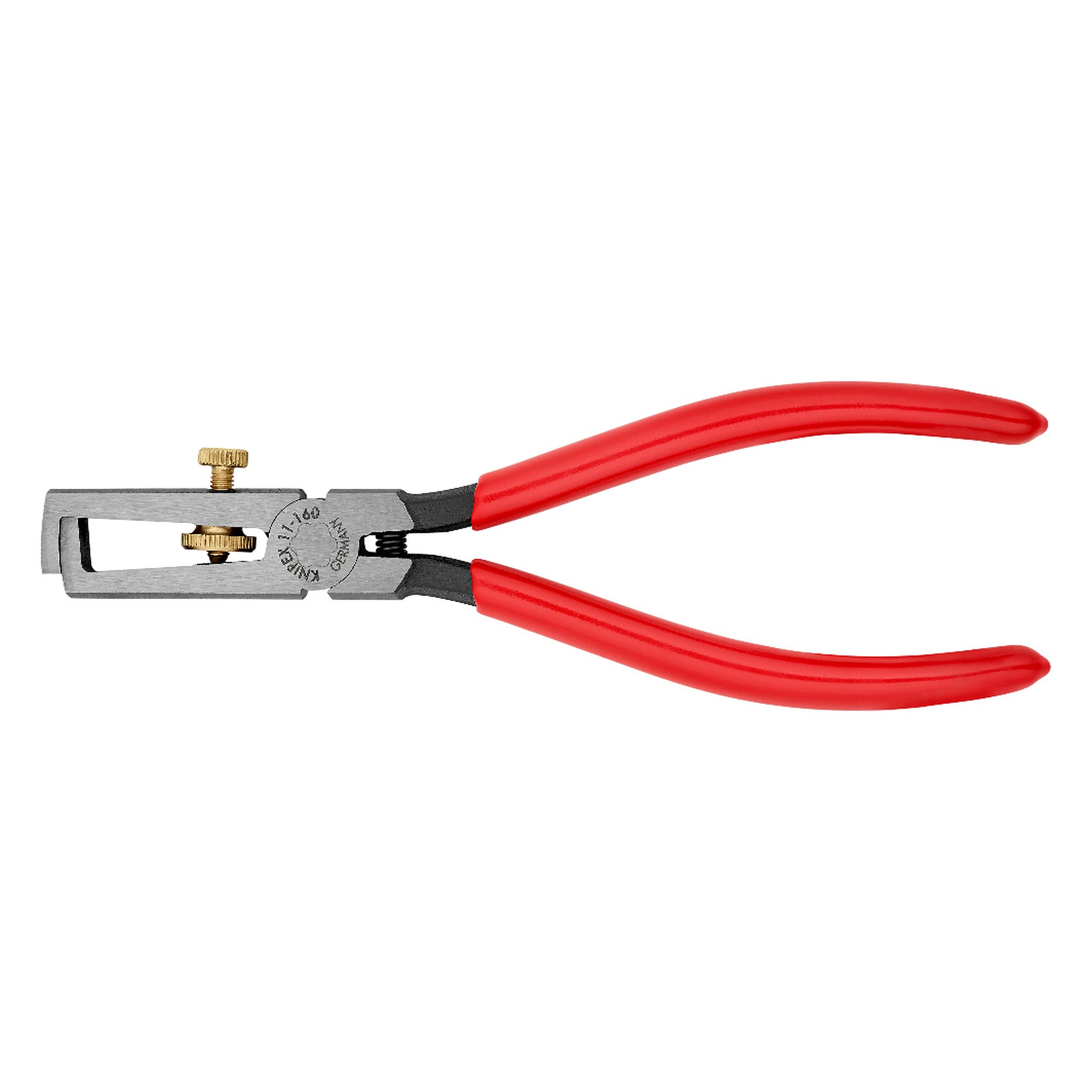

Insulation stripper, universal, with opening spring, up to 10 mm², 160 mm - Knipex 11 01 160

When stripping insulation the setting decides whether the conductor survives untouched. The insulation stripper 11 01 160 is set firmly to the wire or strand diameter at hand with a knurled screw and lock nut, and then treats every core alike, up to Ø 5.0 mm or 10 mm² cross-section.

Benefits

• For single, multiple and fine stranded conductors with plastic or rubber insulation, maximum Ø 5.0 mm or 10 mm² conductor cross-section, equal to AWG 8.

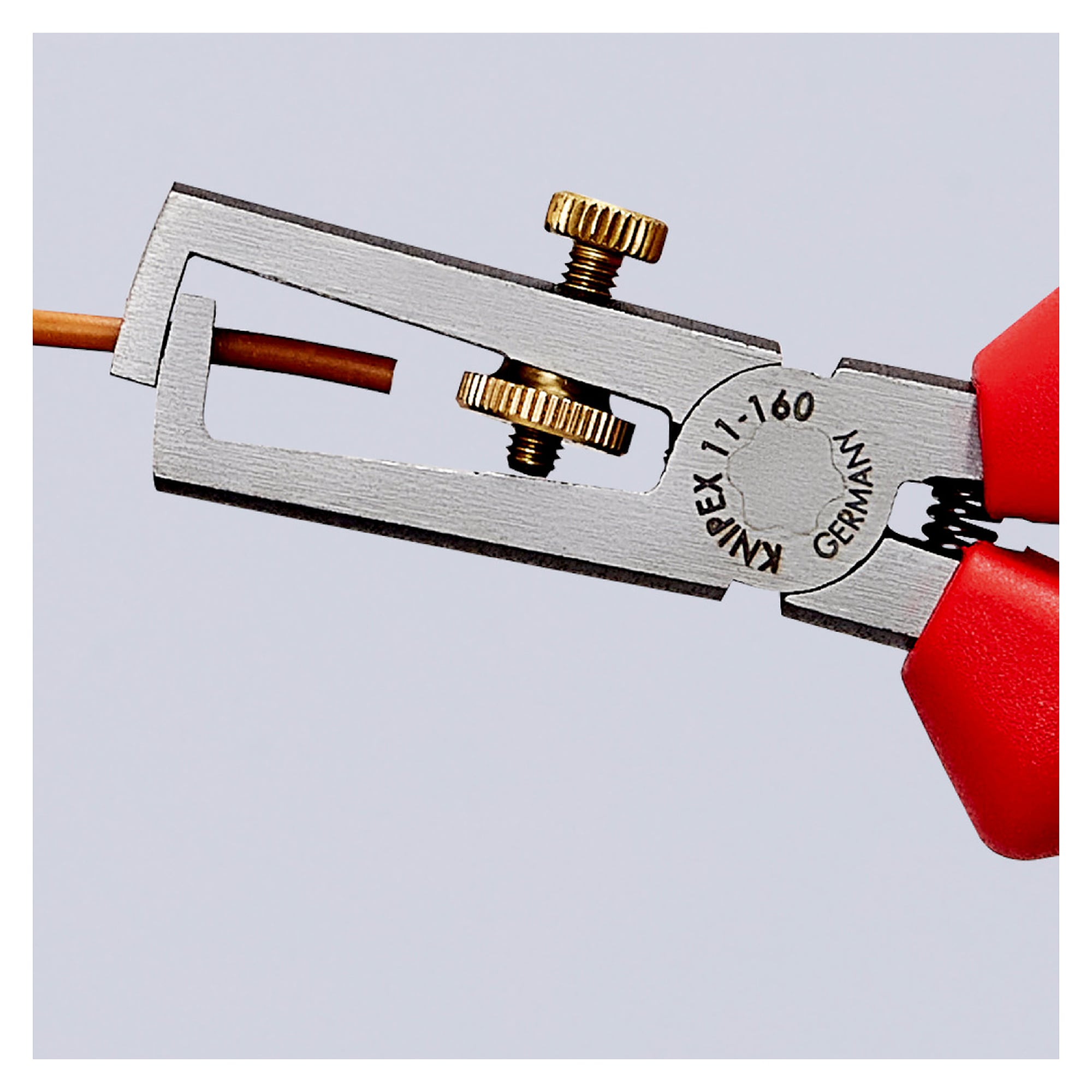

• Easy adjustment to the required solid or stranded wire diameter with knurled screw and lock nut, the setting stays put during work.

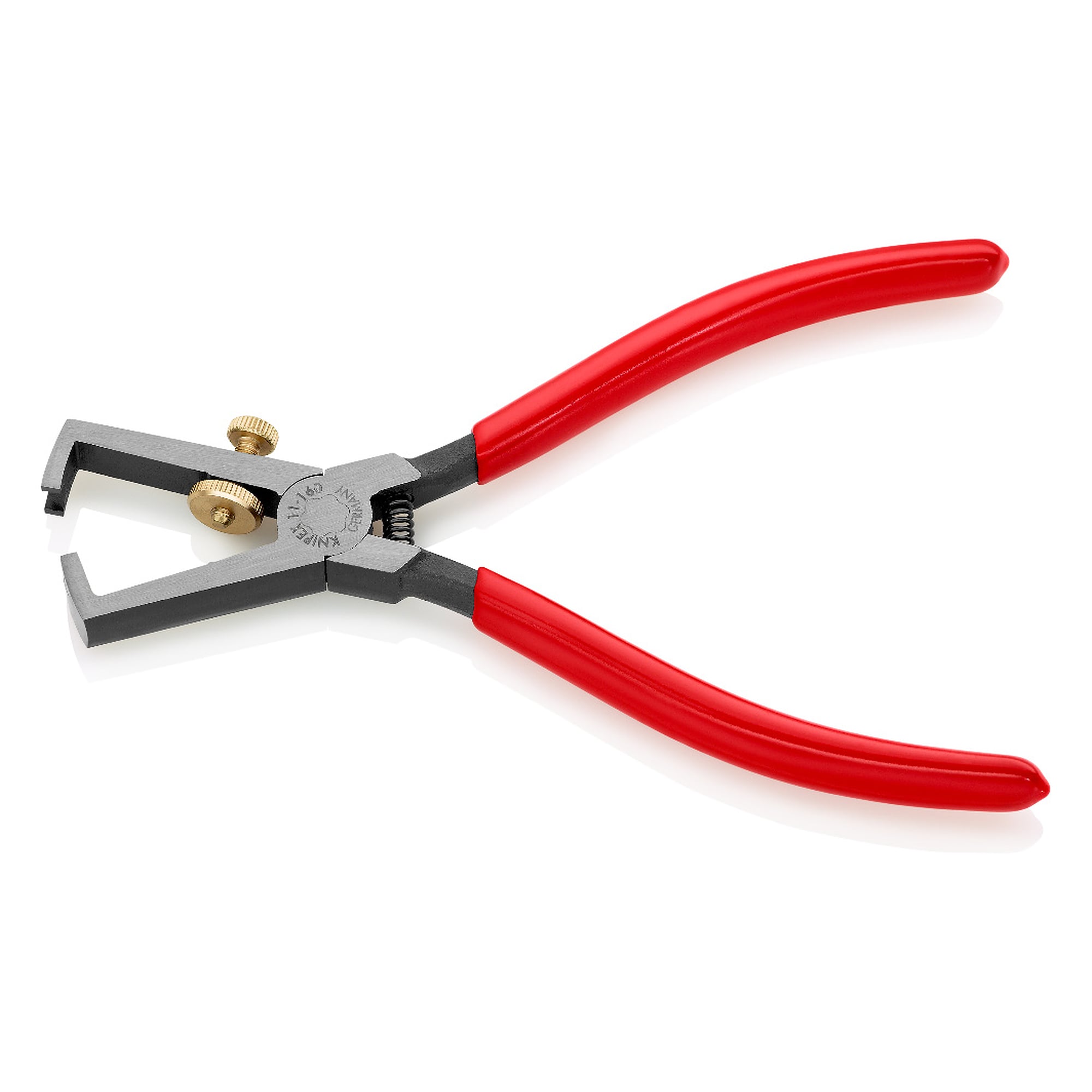

• Opening spring returns the tool to its starting position after every cut, which speeds up repetitive work.
• Slim build, only 12 mm high and 131 g light, comfortable over long stretches of work.
• Black atramentized pliers with polished head and plastic-coated handles.

Technical data

Areas of use

Electrical installation, control cabinet and control system building, service work on wiring harnesses and devices. Worthwhile wherever many cores of the same cross-section are stripped one after another.

Standards and conformity

The manufacturer does not state a tool standard for these pliers. According to the manufacturer they contain no substances of very high concern under REACH, the RoHS directive does not apply.
