EOS/ESD Assessment Kit with Event Meter, Ground and Resistance Testing, Europe Version - Desco 222684

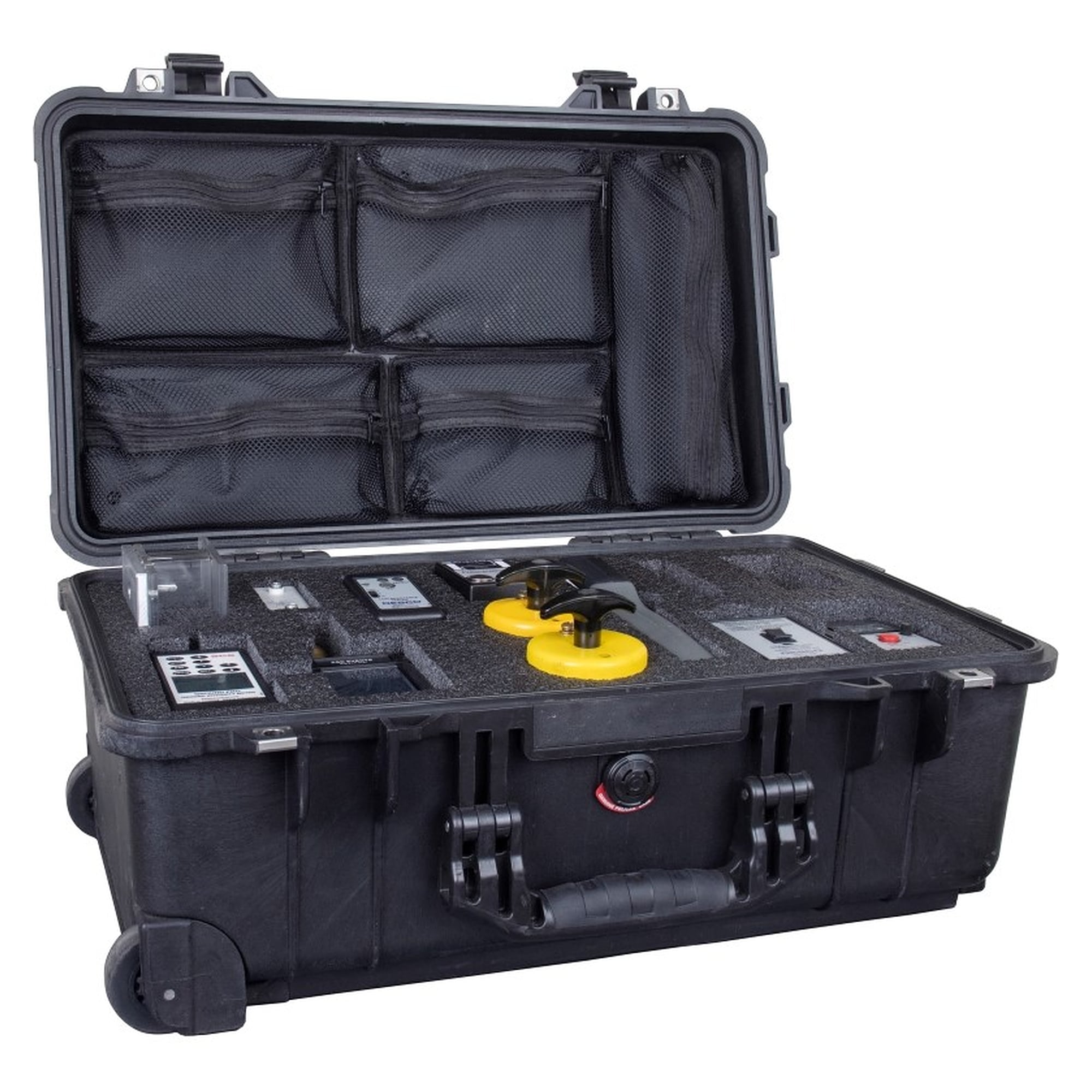

Compliance verification under IEC 61340-5-1 requires you to measure and record the limits of your ESD control programme on a regular basis. The Desco EOS/ESD Assessment Kit brings the instruments for resistance, grounding, ionisation and ESD events together in a carry-on-size Pelican 1510 case and identifies EOS sources, meaning electrical overstress from tools and equipment, as well as ESD generators.

Key benefits

• EM Eye detects, counts and measures ESD events that damage parts, lock up tools or cause parametric errors.
• Ground Pro Meter verifies outlet wiring and measures equipment ground impedance against the ANSI/ESD S6.1 and S20.20 limits.
• Rtt and Rtg resistance testing of worksurfaces, plus floor and footwear testing in combination with a person.
• Ionisation test kit for offset voltage and charge decay, low resistance tester for ground jacks.
• Training paddles to show staff how charges build up and how control products work.

Applications

Internal audits and compliance verification in the EPA, troubleshooting unexplained component failures or tool lock-ups, qualifying new workstations, floors and ionisers, and training ESD coordinators.

Standards

Measurements per IEC 61340-5-1 and ANSI/ESD S20.20 with their test methods, including IEC TS 61340-5-4, IEC 61340-2-3, IEC 61340-4-1, ANSI/ESD STM2.1, STM3.1, S4.1, S7.1, STM97.1 and ESD TR53.
