For fine structures beyond standard magnification the Dino-Lite AM4515T5 works in the 500-550x range. AMR reads the set magnification automatically, so measurements stay correct without recalibrating. Two year manufacturer warranty, shipped from Germany.

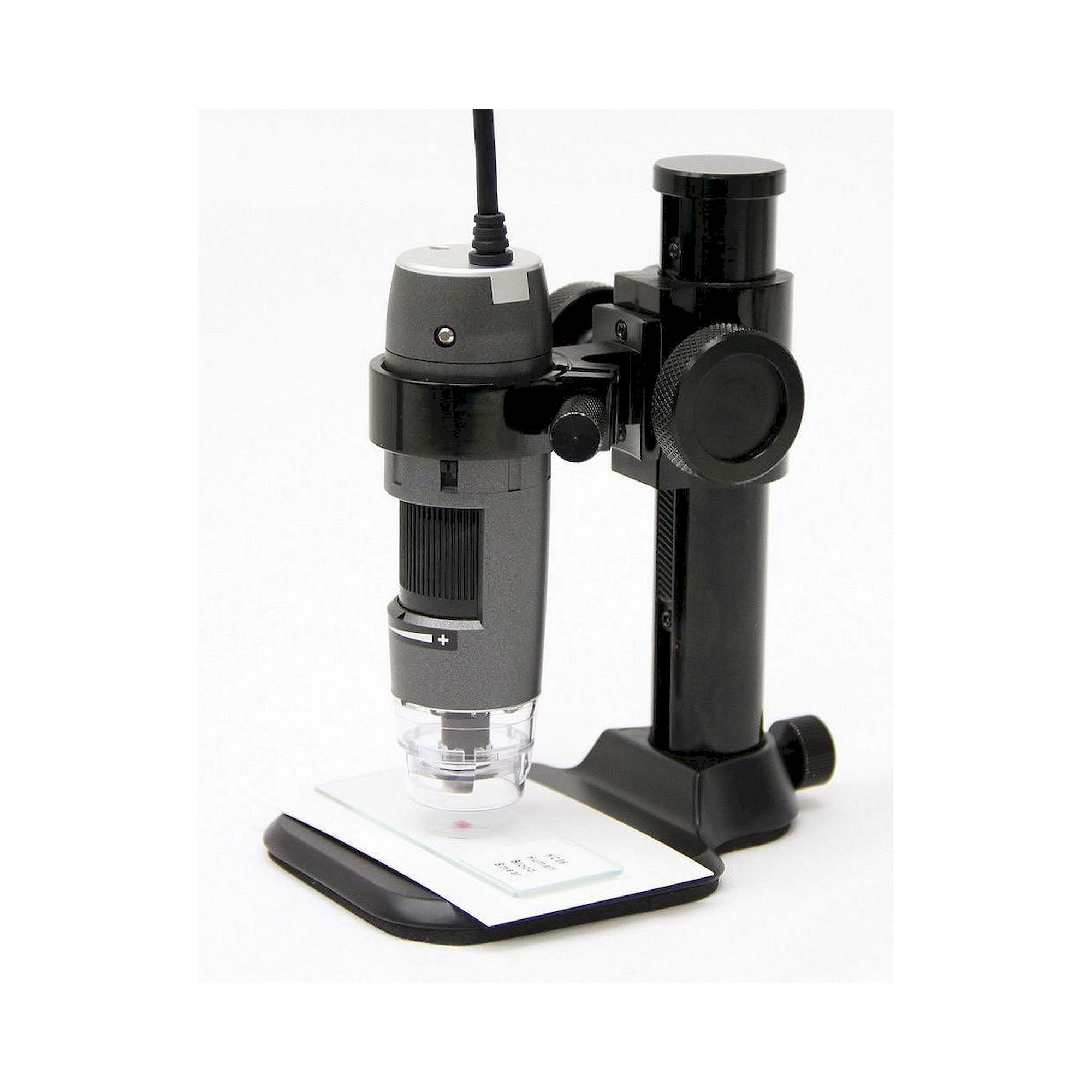

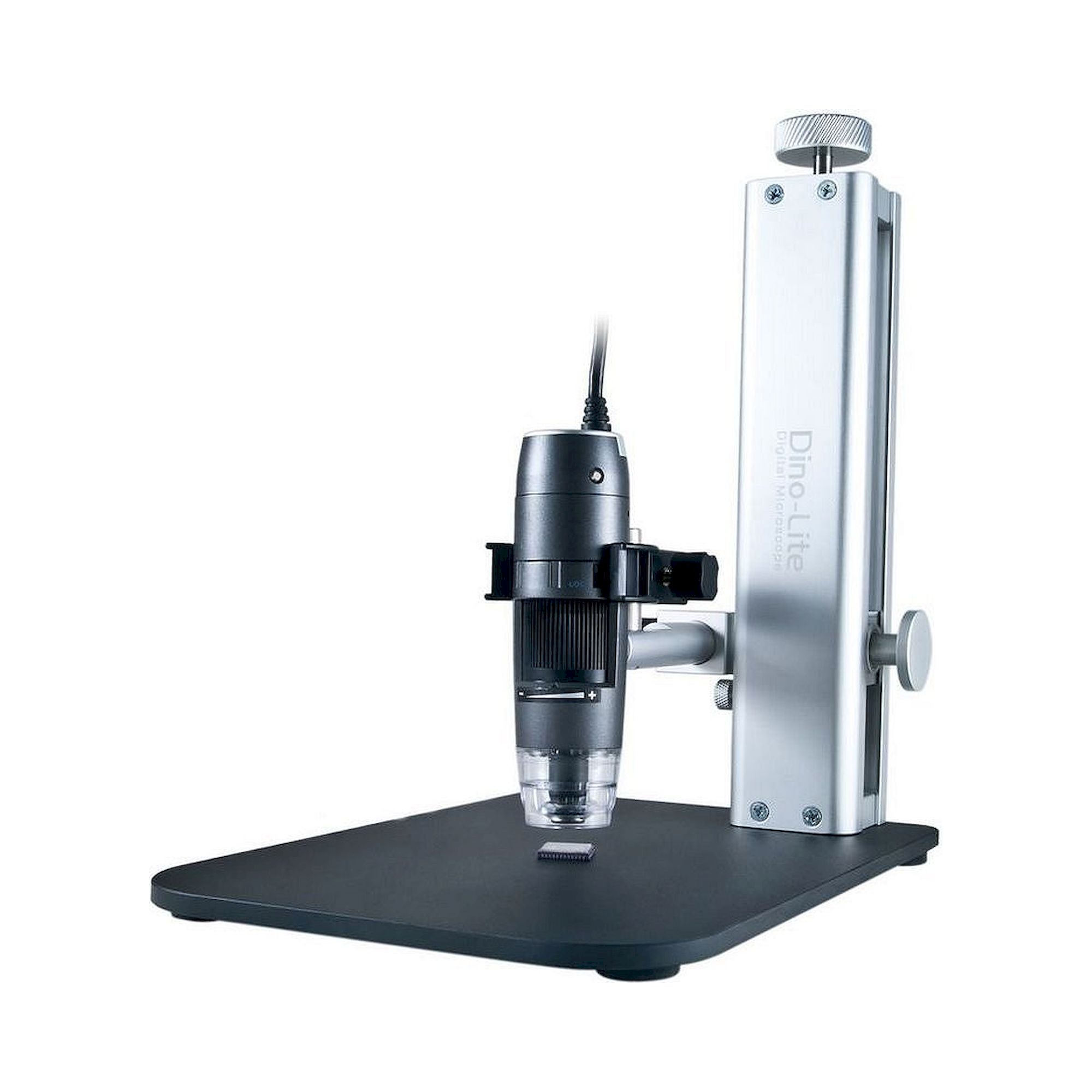

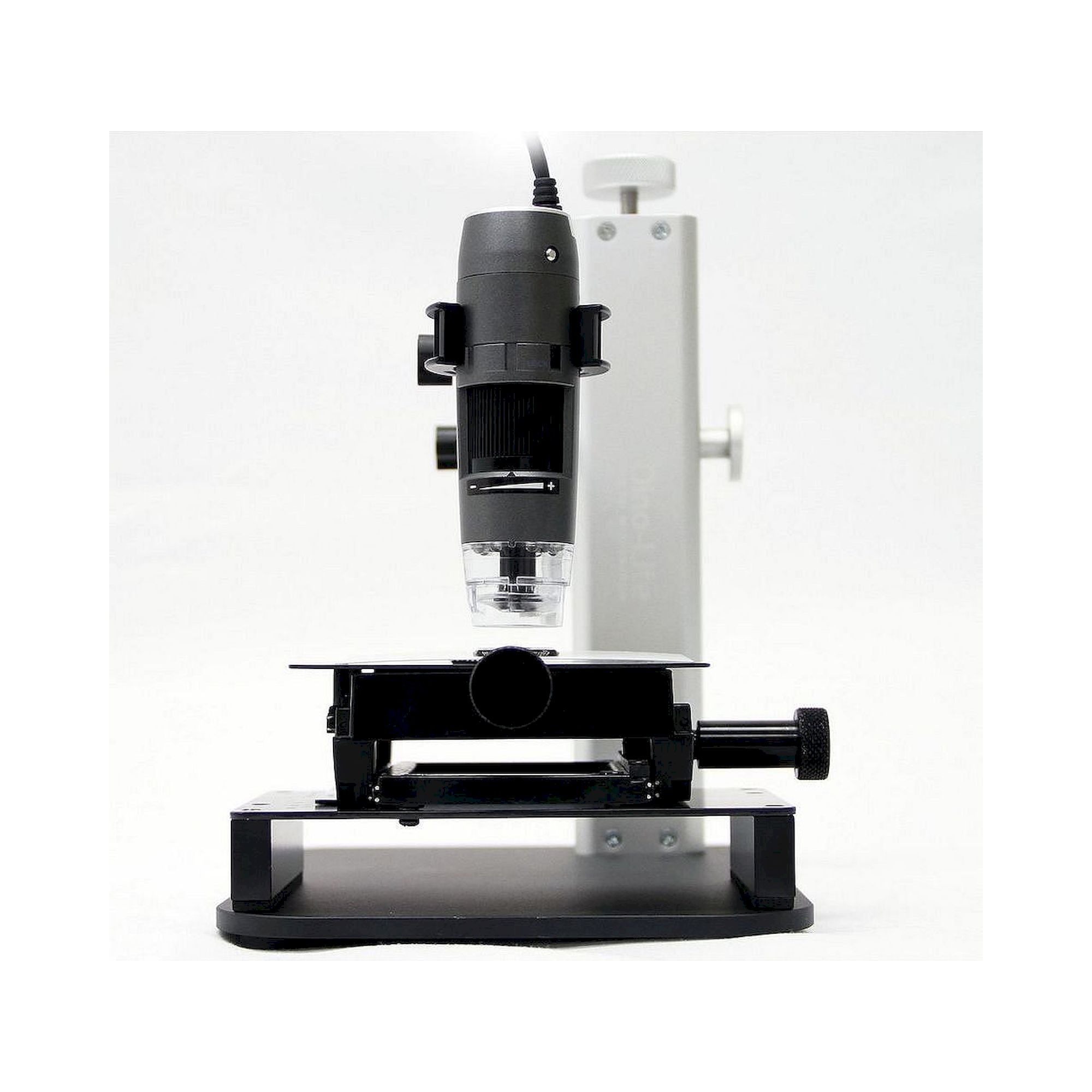

USB Handheld Microscope 1.3 MP 500-550x Fixed Magnification - Dino-Lite AM4515T5
DINO-LITE
Original product
Net price (excl. VAT)
€522.00
Item
AM4515T5
Manufacturer no.
AM4515T5
RoHS 2011/65/EU
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.AM4515T5
EAN4712805478033
Country of originTaiwan
Customs tariff number90118000
ConditionNew
Article
AM4515T5
Frequently Bought Together
-
This Item:
€522.00
-
Wireless-ready USB handheld microscope 1.3 MP 10-330x with polarizer and AMR - Dino-Lite AF4535ZTE
€582.00
-
USB 3.0 digital microscope 5 MP 420-470x with AMR - Dino-Lite AM73515MT4A
€1,062.00
Total price
For fine structures beyond standard magnification the Dino-Lite AM4515T5 works in the 500-550x range.
What it does for you
- A 1.3 MP sensor and a 500-550x magnification range, so overview and detail come from the same device.
- AMR reads the set magnification automatically, so measurements stay correct without recalibrating.
- The MicroTouch trigger on the housing captures the image without shaking the camera.
- Wireless ready: with the WF-10 adapter the microscope runs cable free on tablet and phone.
Technical data
| Property | Value |
|---|---|
| Magnification | 500x ~ 550x |
| Working distance | Standard |
| Macro zoom | No |
| Lens type | Glass with anti-reflection coating |
| Sensor type | CMOS |
| Resolution | 1.3 Megapixel (1280x1024) |
| Frame rate | 30 fps |
| Illumination | White |
| Number of LEDs | 8 |
| LEDs switchable | Yes |
| Polarizer | No |
| Infrared filter | IR cut-filter >650 nm |
| Emission filter | No |
| Diffuser cap | No |
| Magnification readout (AMR) | Yes |

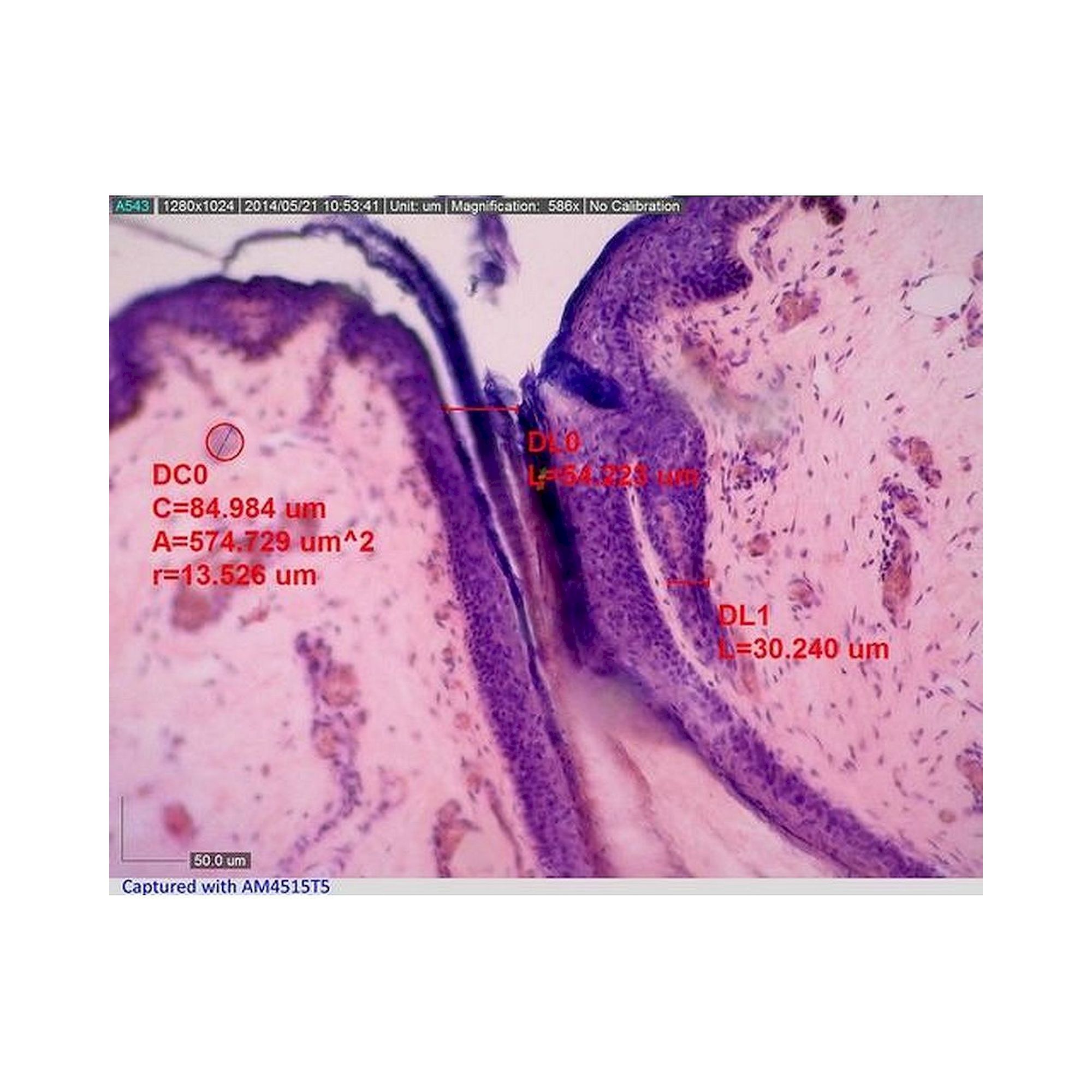

| Measurement | Yes |
| Calibration | Yes |
| MicroTouch sensor | Yes |
| Interface | USB 2.0 |
| Imaging standards | DirectShow, UVC |
| Wi-Fi | Wireless-ready, requires the WF-10 WiFi streamer (optional) |
| Operating system | Windows 7,8,10 & 11, MacOS 10.9 and up |
| Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Housing | Composite/ plastic housing |
| Dimensions | 10.5cm (L) x 3.2cm (D) |
| Weight | 105g |
| Cable length | 1.8m |
| ESD safe | No |
| Country of origin | Taiwan |
| Warranty | 2 years European warranty |
| Regulatory approval | CE, FCC, ROHS |
| Package contents | Microscope, carry pouch, software CD, calibration target, user manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-E- Extension cap |
Typical uses
- Electronics manufacturing and repair: solder joints, BGA edges, tracks, placement errors.
- Materials testing: fracture surfaces, welds, corrosion, microstructure.
- Quality control and incoming inspection: surface defects, burrs, coatings, dimensional checks.
| Certification | RoHS 2011/65/EU |
|---|---|
| ESD version | TEC |
| Manufacturer Nr. | AM4515T5 |
| Manufacturer | Dino-Lite |
| Country of Manufacture | Taiwan |
| EAN | 4712805478033 |
| ESD equipment | USB Mikroskop |
| Weight | 0.105000 |
| HS-Code | 90118000 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment, info@esd.equipment |
| Article authenticity | Original product |
| Condition of article | New |
| Warranty | 2 years |
| Material | ABS plastic |
| Polarizer | No |
| Long Working Distance | No |
| Interface | USB 2.0 |
