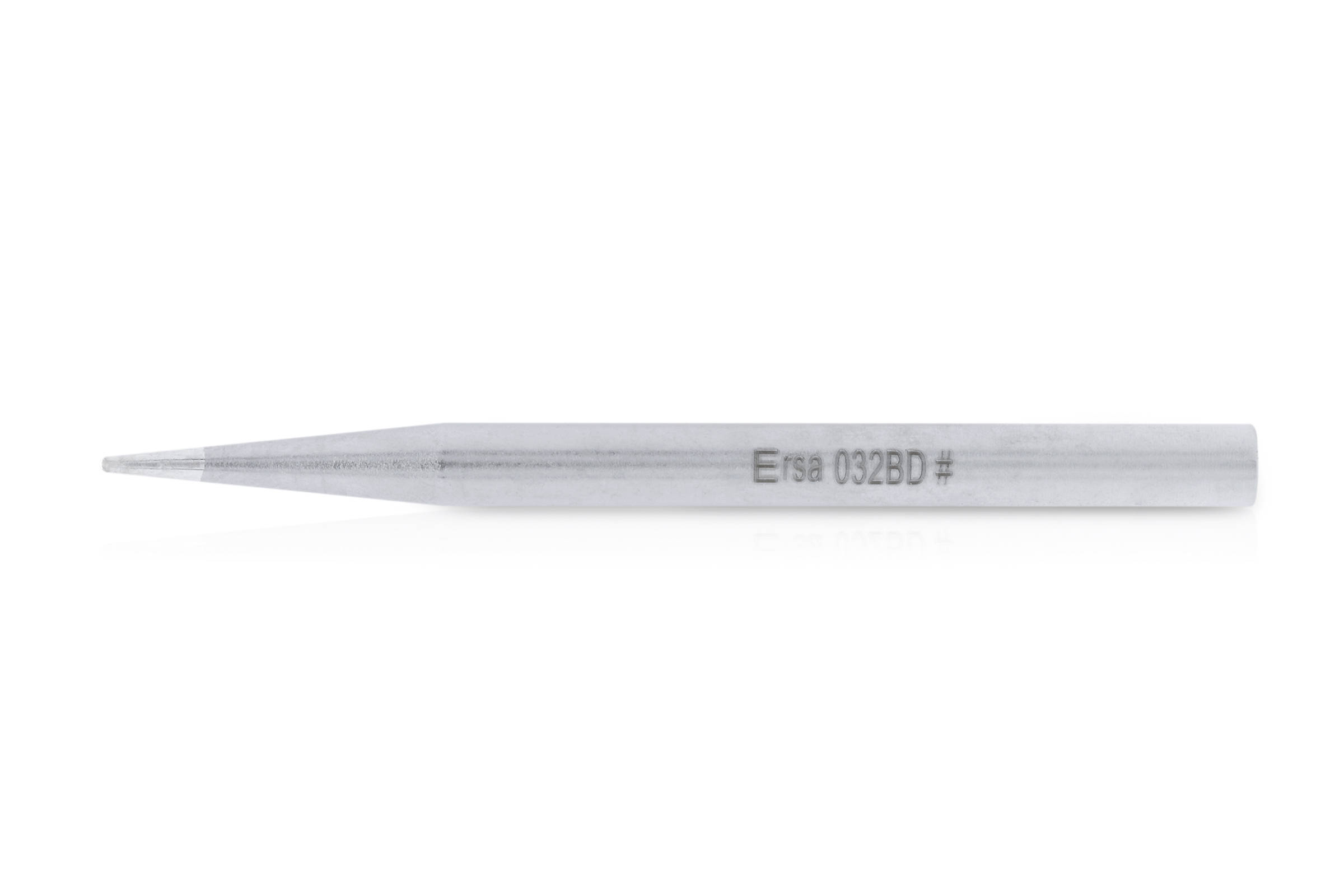

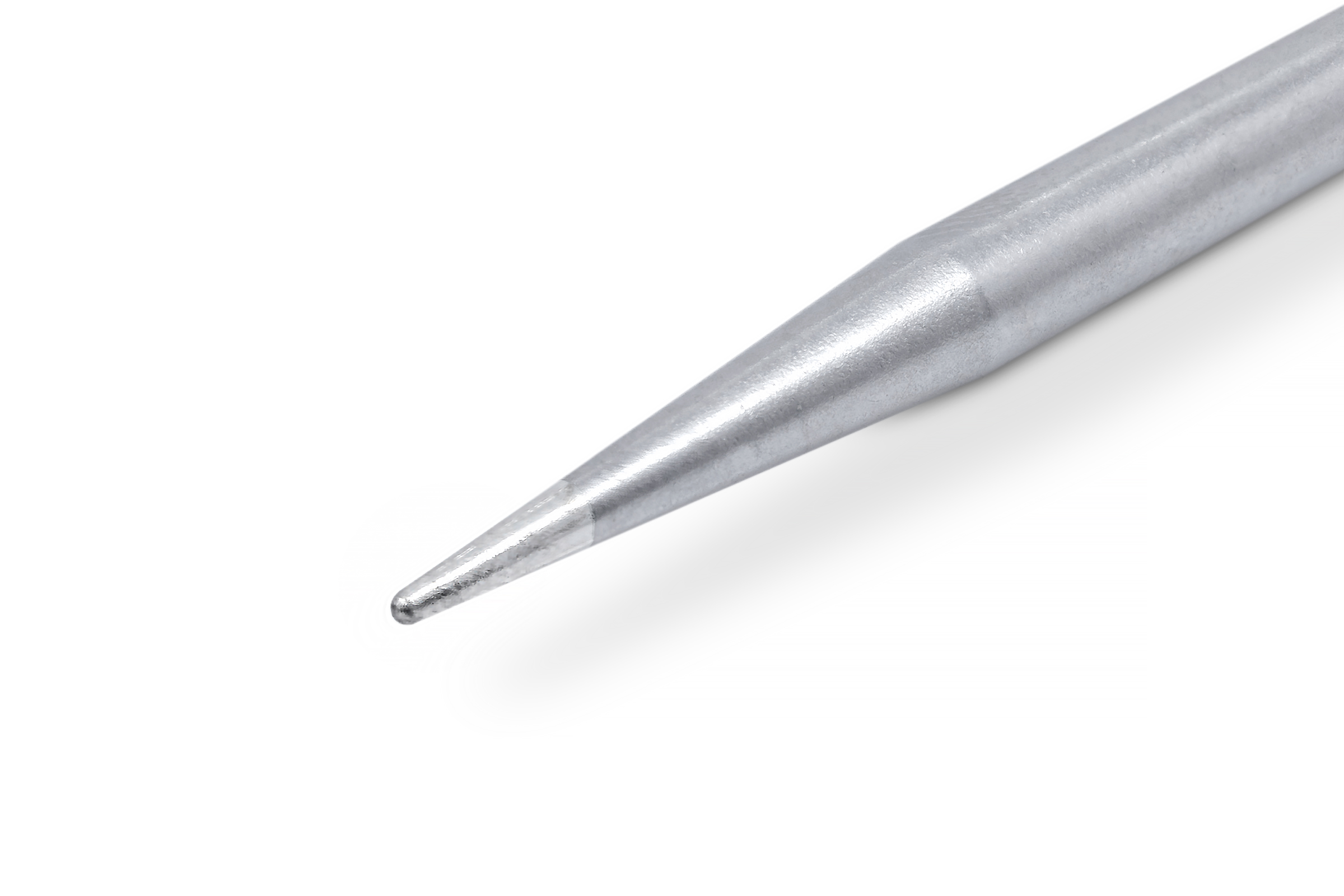

Ersadur Soldering Tip, straight, pencil-shaped, 1.1 mm, for Ersa 30 S - Ersa 0032BD
Permanent Ersadur soldering tip for the ERSA 30 S soldering iron. Straight design, pencil-shaped point, 1.1 mm tip diameter. Iron- and chrome-plated for long continuous operation and efficient heat transfer.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Ersadur permanent soldering tip, straight, pencil-shaped, 1.1 mm diameter, for the ERSA 30 S soldering iron. Ersadur tips are produced to a high standard for continuous operation: a special galvanic process plates them with an iron layer, and an additional chrome layer protects against corrosion and oxidation. Perfect heat transfer protects the soldering iron's heating element from overheating and premature wear.

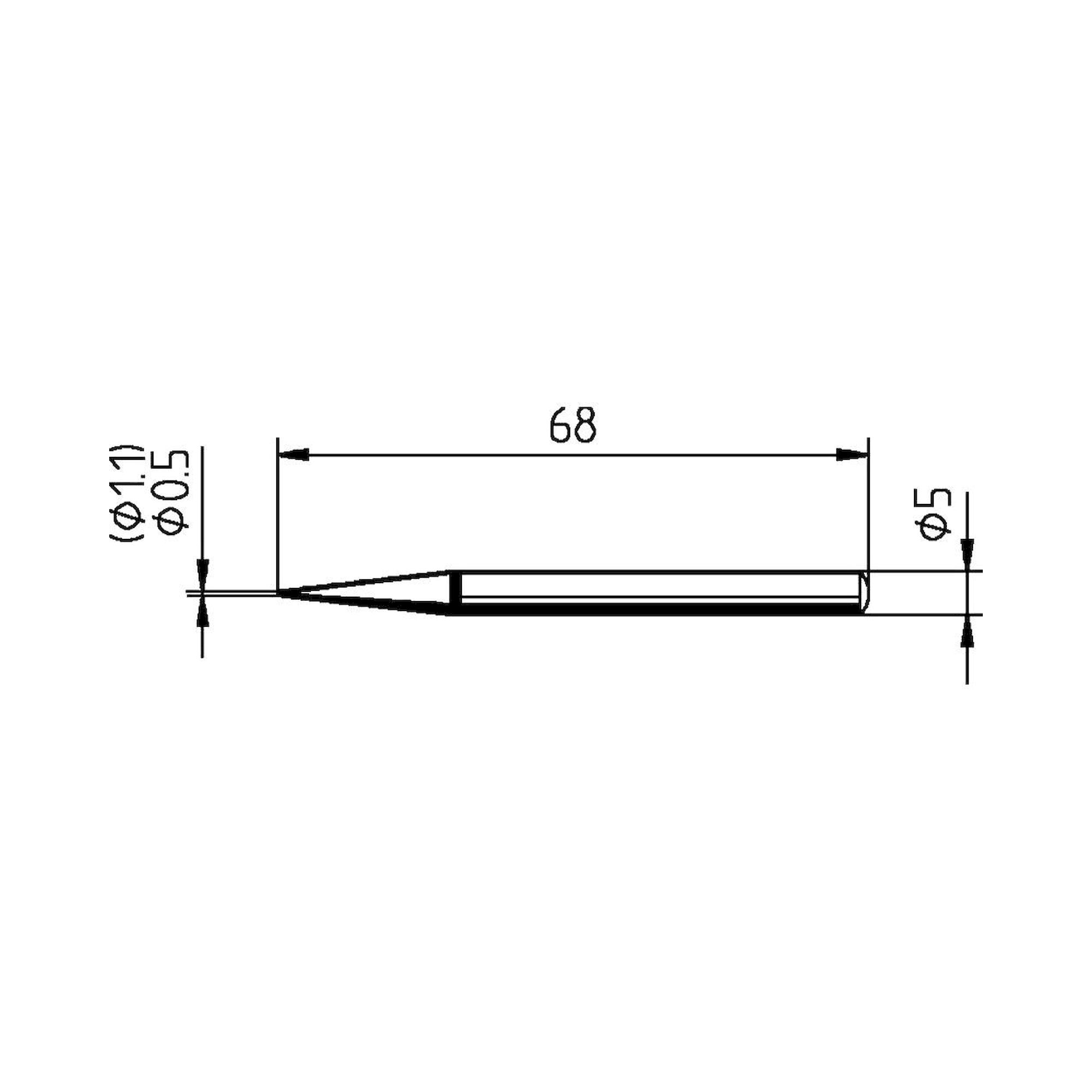

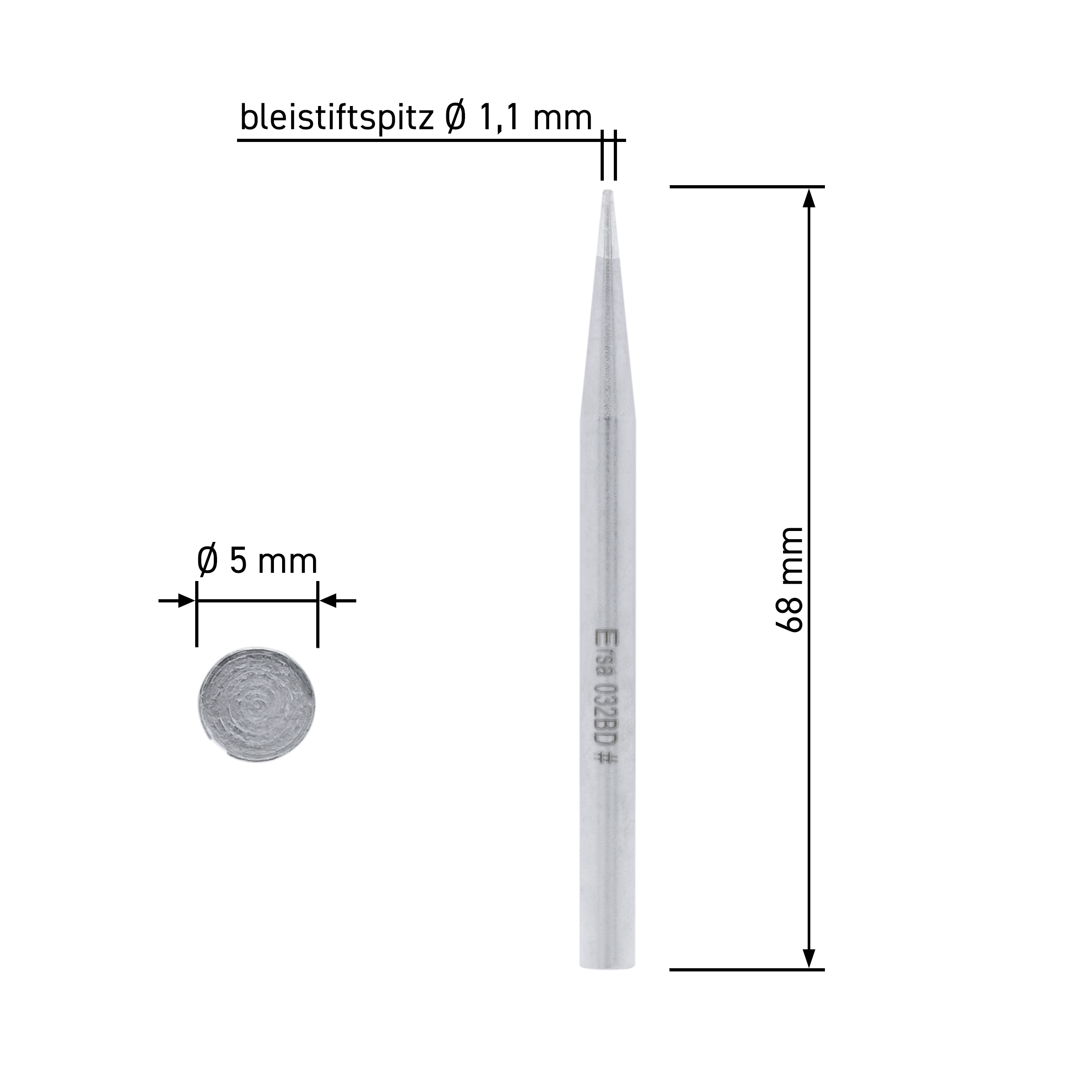

Technical data
| Suitable for | ERSA 30 S |
|---|---|
| Design | straight |
| Coating | permanent tip (Ersadur) |
| Tip shape | pencil-shaped |
| Tip diameter | 1.10 mm |
| Shaft outer diameter | 5.00 mm |
| Overall length | 68 mm |
| Tip series | 0032 |
| RoHS compliant | Yes |
| Weight | 0.01 kg |
| Manufacturer | Ersa |
| Manufacturer Nr. | 0032BD |
| EAN | 4003008052763 |
| GPSR manufacturer information | Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Ausführung | gerade |
| ESD version | TEC |
| ESD equipment | ESD Lötstationen |
| Certification | RoHS 2011/65/EU |
| Tip diameter/width [mm] | 1.1 |
| Soldering tip coating | Dauerlötspitze |
| Soldering tip shape | bleistiftspitze |
| Overall length [mm] | 68 |
| Shank outer diameter [mm] | 5 |
| Series | 032 |
