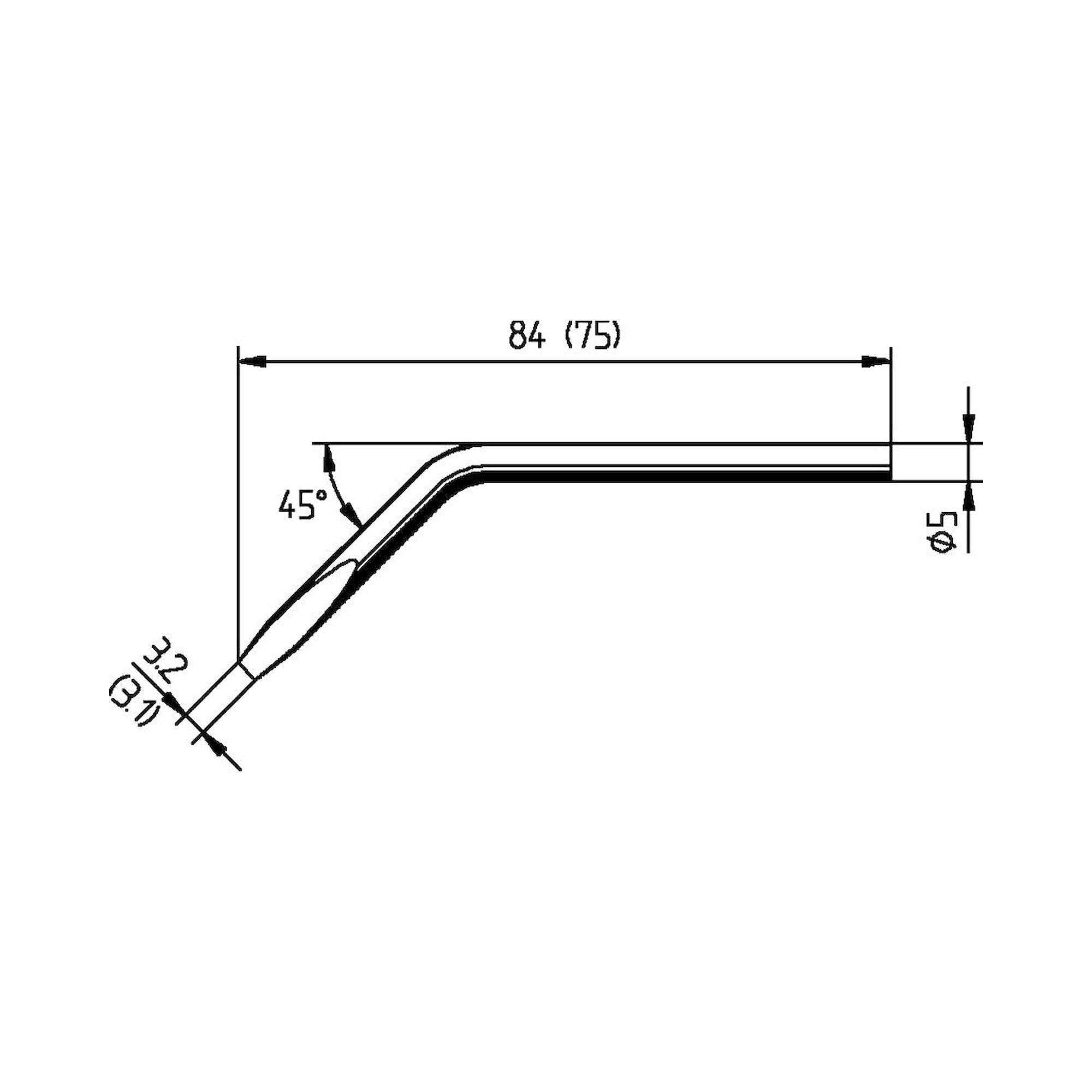

Ersadur Soldering Tip for Ersa 50 S, angled, chisel-shaped, 3.1 mm - Ersa 0052JD
Ersadur soldering tip for the ERSA 50 S soldering iron, angled and chisel-shaped with a 3.1 mm tip width. The iron-plated, chrome-protected long-life tip ensures optimal heat transfer and a long service life in continuous use.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Ersadur soldering tip for the ERSA 50 S soldering iron, angled and chisel-shaped with a 3.1 mm tip width. Ersadur tips are produced to a high standard and built for continuous operation: in a special process they are galvanically iron-plated and protected against corrosion and oxidation by an additional chrome layer. The excellent heat transfer protects the heating element of the soldering iron from overheating and premature wear.
Technical data
| RoHS compliant | Yes |
|---|---|
| Design | angled |
| Tip coating | long-life tip (Ersadur) |
| Tip shape | chisel-shaped |
| Tip diameter / width | 3.1 mm |
| Shaft outer diameter | 5.0 mm |
| Overall length | 84 mm |
| Tip series | 0052 |
| Suitable for | ERSA 50 S soldering iron |
| Weight | 0.1 kg |
| Manufacturer | Ersa |
| Manufacturer Nr. | 0052JD |
| EAN | 4003008052800 |
| GPSR manufacturer information | Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Ausführung | gebogen |
| ESD version | TEC |
| ESD equipment | ESD Lötstationen |
| Certification | RoHS 2011/65/EU |
| Tip diameter/width [mm] | 3.1 |
| Soldering tip coating | Dauerlötspitze |
| Soldering tip shape | meißelförmig |
| Overall length [mm] | 84 |
| Shank outer diameter [mm] | 5 |
| Series | 052 |
