Ersadur Soldering Tip 30 S, angled, chisel-shaped, 3.1 mm - Ersa 0032JD

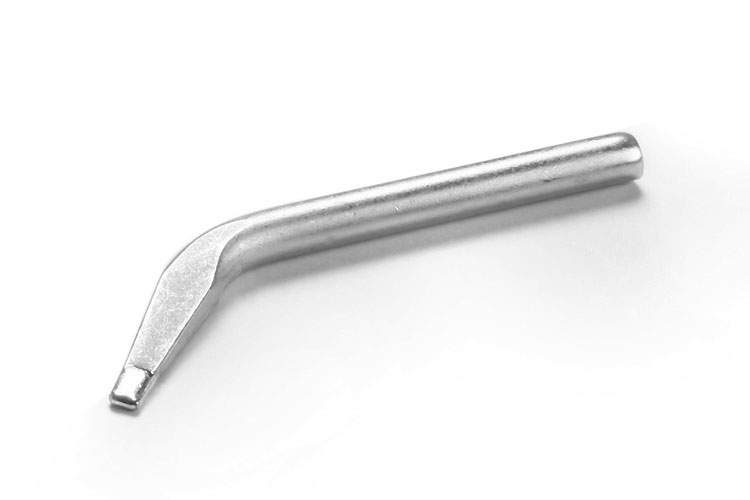

Angled, chisel-shaped Ersadur soldering tip (3.1 mm) for the ERSA 30 S soldering iron. The long-life tip with iron and chrome plating delivers optimal heat transfer and a long service life.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Ersadur soldering tip for the ERSA 30 S soldering iron, angled and chisel-shaped with a 3.1 mm tip width. Ersadur tips are built for continuous operation: an electroplated iron layer plus an additional chrome layer protect against corrosion and oxidation, while excellent heat transfer protects the heating element of the iron from overheating and premature wear.
Technical data
| RoHS compliant | Yes |
|---|---|
| Design | angled |
| Tip coating | permanent (long-life) tip |
| Tip shape | chisel-shaped |
| Tip diameter/width | 5.10 mm |
| Shaft outer diameter | 5.00 mm |
| Total length | 68 mm |
| Tip series | 0032 |
| Compatible with | ERSA 30 S |
| Weight | 0.01 kg |
| Manufacturer | Ersa |
| Manufacturer Nr. | 0032JD |
| EAN | 4003008052749 |
| GPSR manufacturer information | Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Ausführung | gebogen |
| ESD version | TEC |
| ESD equipment | ESD Lötstationen |
| Certification | RoHS 2011/65/EU |
| Tip diameter/width [mm] | 5.1 |
| Soldering tip coating | Dauerlötspitze |
| Soldering tip shape | meißelförmig |
| Overall length [mm] | 68 |
| Shank outer diameter [mm] | 5 |
| Series | 032 |
