Images are for illustration purposes only and may differ from the actual product. Some images have been generated or edited, in whole or in part, using artificial intelligence systems. The technical specifications in the product description are authoritative.
Ersadur long-life soldering tip for the i-Tool soldering iron, straight pencil-point shape with 0.2 mm tip diameter. Iron-plated and chrome-protected for durable soldering with both lead-free and leaded solder.
Ersadur Soldering Tip for i-Tool, Pencil-Point Straight 0.2 mm - Ersa 0102PDLF02
ERSA
Original product
Net price (excl. VAT)
€6.63
Item
ER-0102PDLF02
Manufacturer no.
0102PDLF02
RoHS 2011/65/EU
Konformitätserklärung
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.0102PDLF02
EAN4003008077179
ConditionNew
Article
ER-0102PDLF02
Frequently Bought Together
-
This Item:
€6.63
-
Ersadur-LF long-life soldering tip i-Tool, straight, chisel, 6.5 mm - Ersa 0102CDLF65
€15.15
-
Ersadur Soldering Tip for Ersa 150 S, straight, chisel-shaped, 5.3 mm - Ersa 0152KD
€14.66
Total price
The Ersadur long-life soldering tip 0102PDLF02 is a straight, pencil-point i-Tip with a 0.2 mm tip diameter. Its special intermediate iron coating (Ersadur-LF) is suited to durable soldering with both lead-free and leaded solder. Ersadur tips are galvanically iron-plated and protected against corrosion and oxidation by an additional chrome layer. The excellent heat transfer protects the heating element of the soldering iron from overheating and premature wear.
Compatible with the i-Tool soldering iron (0100CDJ) of the i-CON soldering stations, including:
- 0IC1000A i-CON, 0IC1100A / 0IC1100A0C / 0IC1100V i-CON1
- 0IC1200A i-CON nano
- 0IC1300 i-CON pico, 0IC1310 i-CON pico Plus16
- 0IC2000A / 0IC2000A0C / 0IC2000AIT / 0IC2000AC / 0IC2000AXT i-CON2
- 0IC2200V / 0IC2200V0C / 0IC2200VC / 0IC2200VIT / 0IC2200VXT / 0IC2100VC / 0IC2100VXT i-CON2V
- 0ICV2000AI / 0ICV4000AI / 0ICV4000AIC / 0ICV4000AICX / 0ICV4000AICXV Vario 4
The Ersa 0102 tip series comprises over 40 shapes and sizes from 0.1 mm to 37 mm in width/diameter.

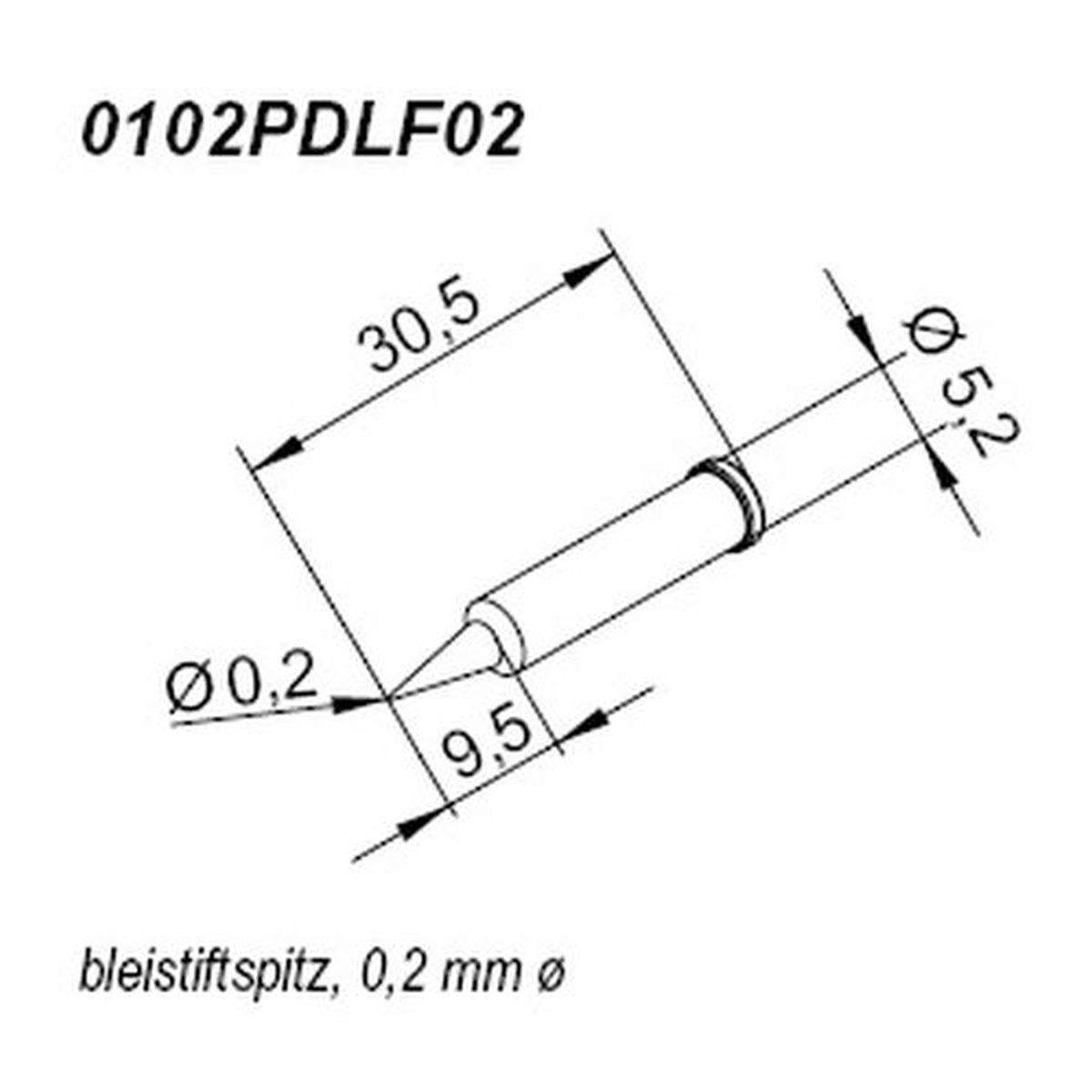

Technical data
| RoHS compliant | Yes |
| Design | straight |
| Tip coating | long-life tip |
| Tip shape | pencil-point |
| Tip diameter/width | 0.20 mm |
| Shaft inner diameter | 3.50 mm |
| Shaft outer diameter | 5.20 mm |
| Overall length | 30 mm |
| Tip series | 102 |
| Net weight | 0.004 kg |
| Certification | RoHS 2011/65/EU |
|---|---|
| Manufacturer Nr. | 0102PDLF02 |
| Manufacturer | Ersa |
| EAN | 4003008077179 |
| Weight | 0.004000 |
| GPSR manufacturer information | Ersa GmbH, Leonhard Karl Str. 24, DE-97877 Wertheim, www.kurtzersa.de |
| Article authenticity | Original product |
| Condition of article | New |
| Ausführung | gerade |
| Series | 102 |
| Position sensing | No |
| Tip diameter/width [mm] | 0.200000 |
| Soldering tip coating | Dauerlötspitze |
| Soldering tip shape | bleistiftspitze |
| Overall length [mm] | 30.500000 |
| Shank outer diameter [mm] | 5.200000 |
| Shank inner diameter [mm] | 3.500000 |
