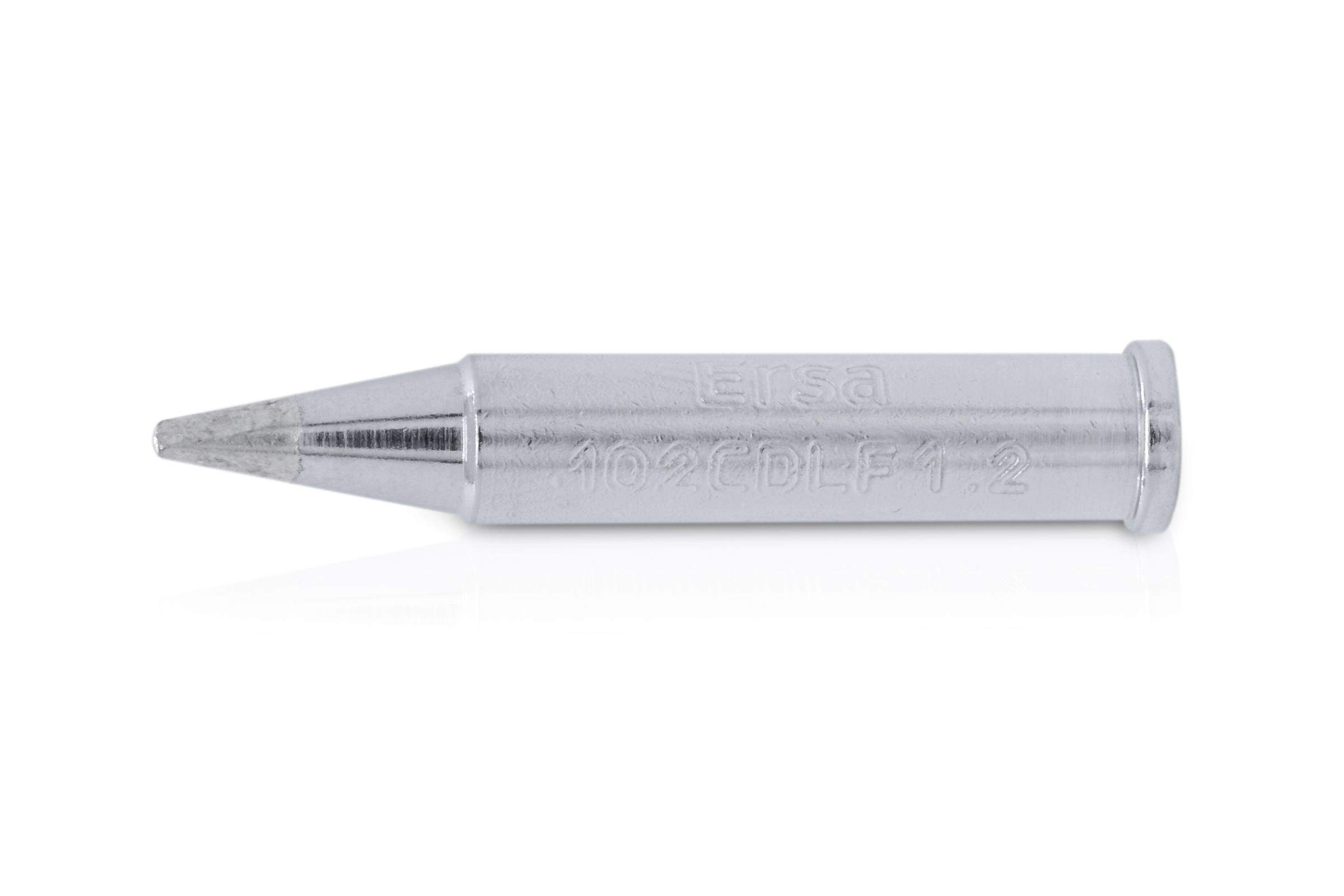

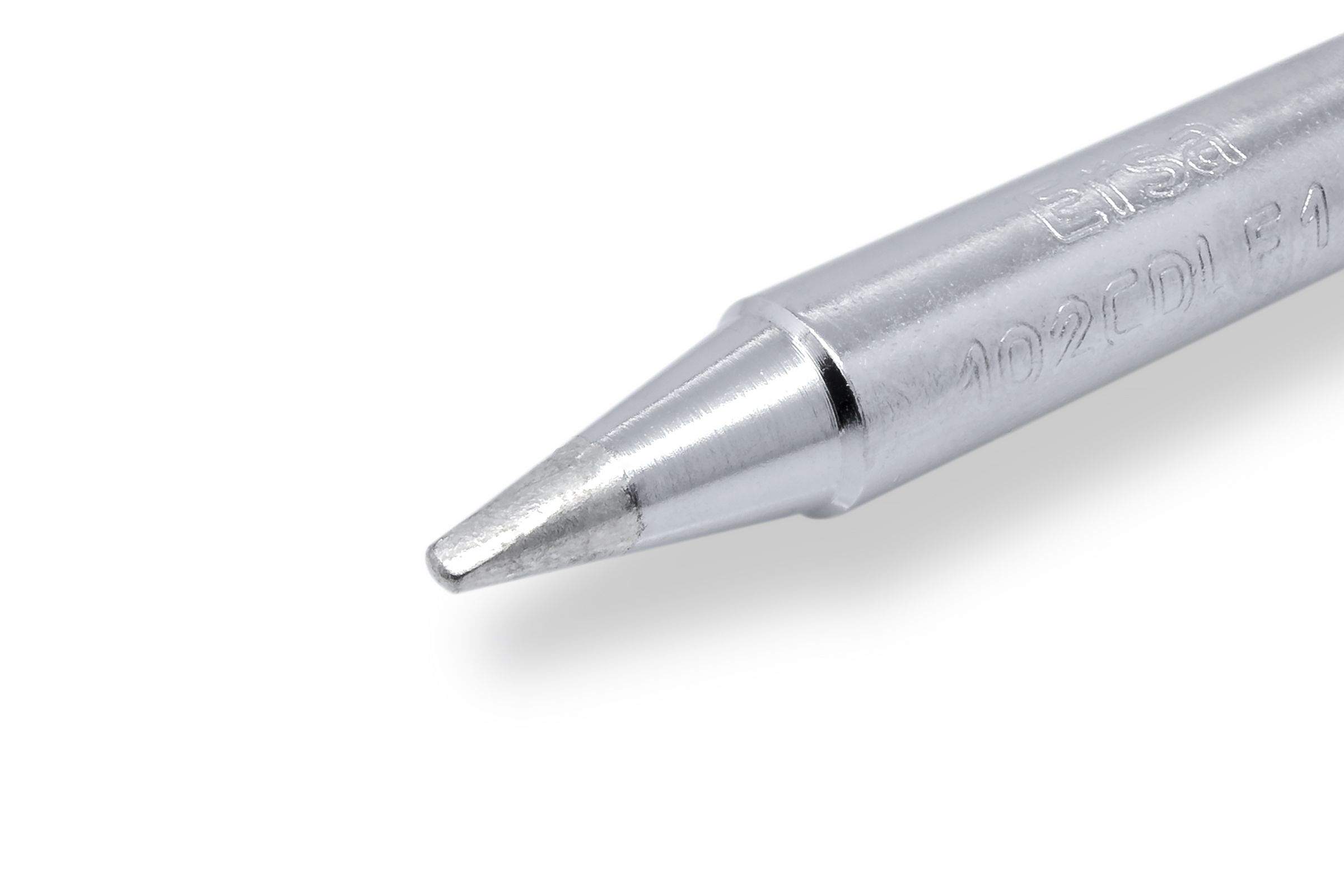

Ersadur-LF Long-Life Soldering Tip, Straight, Chisel, 1.2 mm - Ersa 0102CDLF12
Ersadur-LF long-life soldering tip for the ERSA i-Tool iron, straight with a 1.2 mm chisel face. Galvanic iron and chrome plating protects against corrosion and ensures perfect heat transfer in continuous operation. Compatible with i-CON stations using the i-Tool (0100CDJ).
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Ersadur-LF long-life soldering tip, straight, chisel-shaped, 1.2 mm. Built for continuous use with lead-free and leaded solder, it is electroplated with an iron layer and protected against corrosion and oxidation by an additional chrome layer. Perfect heat transfer protects the iron's heating element from overheating and premature wear.
Fits the i-Tool soldering iron (0100CDJ) of the i-CON soldering station in versions 0IC1000A, 0IC1100A, 0IC1100V, 0IC2000A, 0IC2000AIT, 0IC2000AC, 0IC2000AXT, 0IC2200V, 0IC2200VC, 0IC2200VIT, 0IC2200VXT, 0IC2100VC and 0IC2100VXT. ERSA offers a comprehensive range of soldering and desoldering tips for ERSA i-Tool, i-Tool Pico and i-Tool Nano.

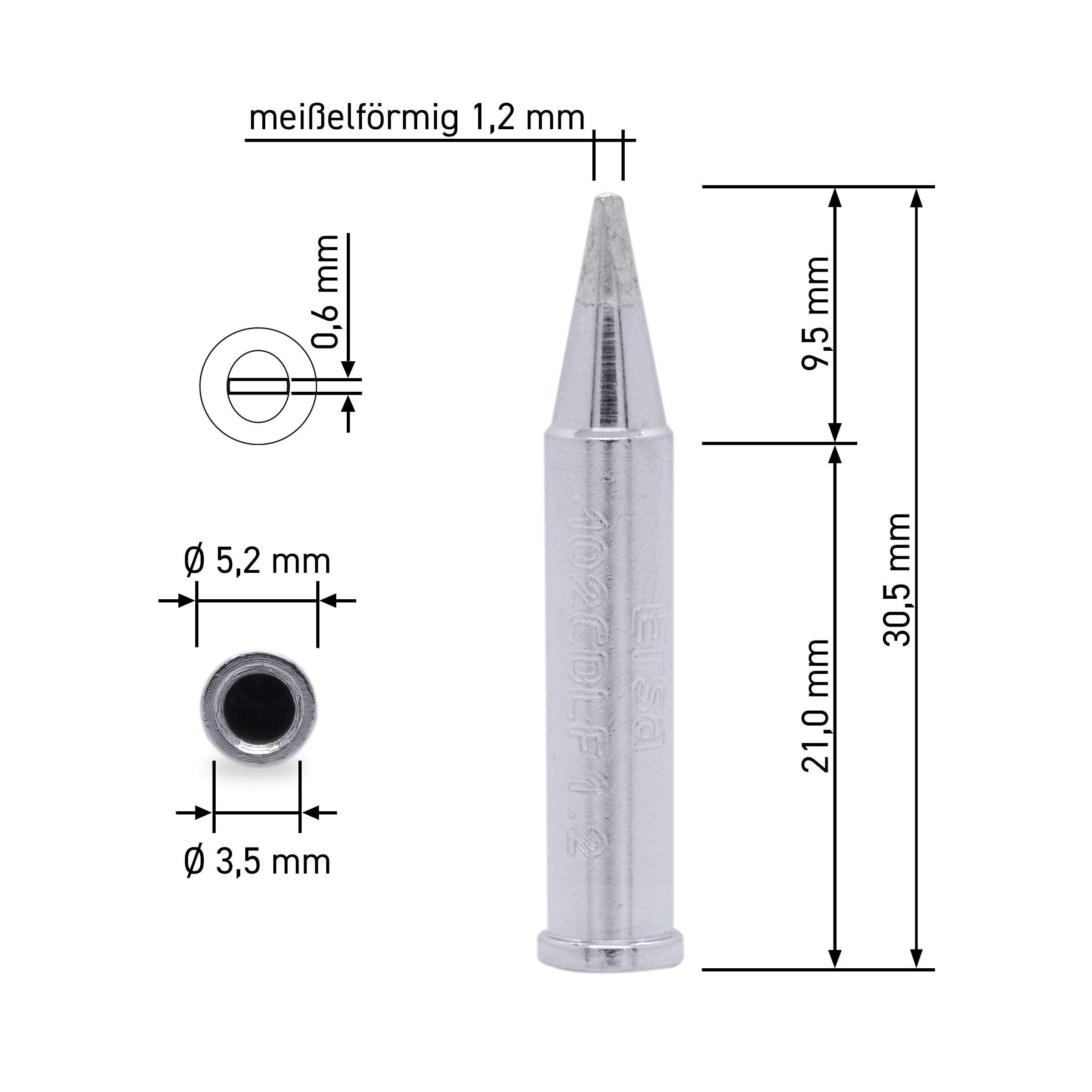

Technical data
| RoHS compliant | Yes |
|---|---|
| Version | Straight |
| Coating | Long-life tip (Ersadur-LF) |
| Tip shape | Chisel-shaped |
| Tip diameter/width | 1.20 mm |
| Shaft inner diameter | 3.50 mm |
| Shaft outer diameter | 5.20 mm |
| Overall length | 30 mm |
| Tip series | 102 |
| Weight | 0.01 kg |
| Manufacturer | Ersa |
| Manufacturer Nr. | 0102CDLF12 |
| EAN | 4003008077087 |
| GPSR manufacturer information | Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Ausführung | gerade |
| ESD version | TEC |
| ESD equipment | ESD Lötstationen |
| Certification | RoHS 2011/65/EU |
| Tip diameter/width [mm] | 1.2 |
| Soldering tip coating | Dauerlötspitze |
| Soldering tip shape | meißelförmig |
| Overall length [mm] | 30.5 |
| Shank outer diameter [mm] | 5.2 |
| Shank inner diameter [mm] | 3.5 |
| Series | 102 |
Downloads
Datasheet
Declaration of Conformity
