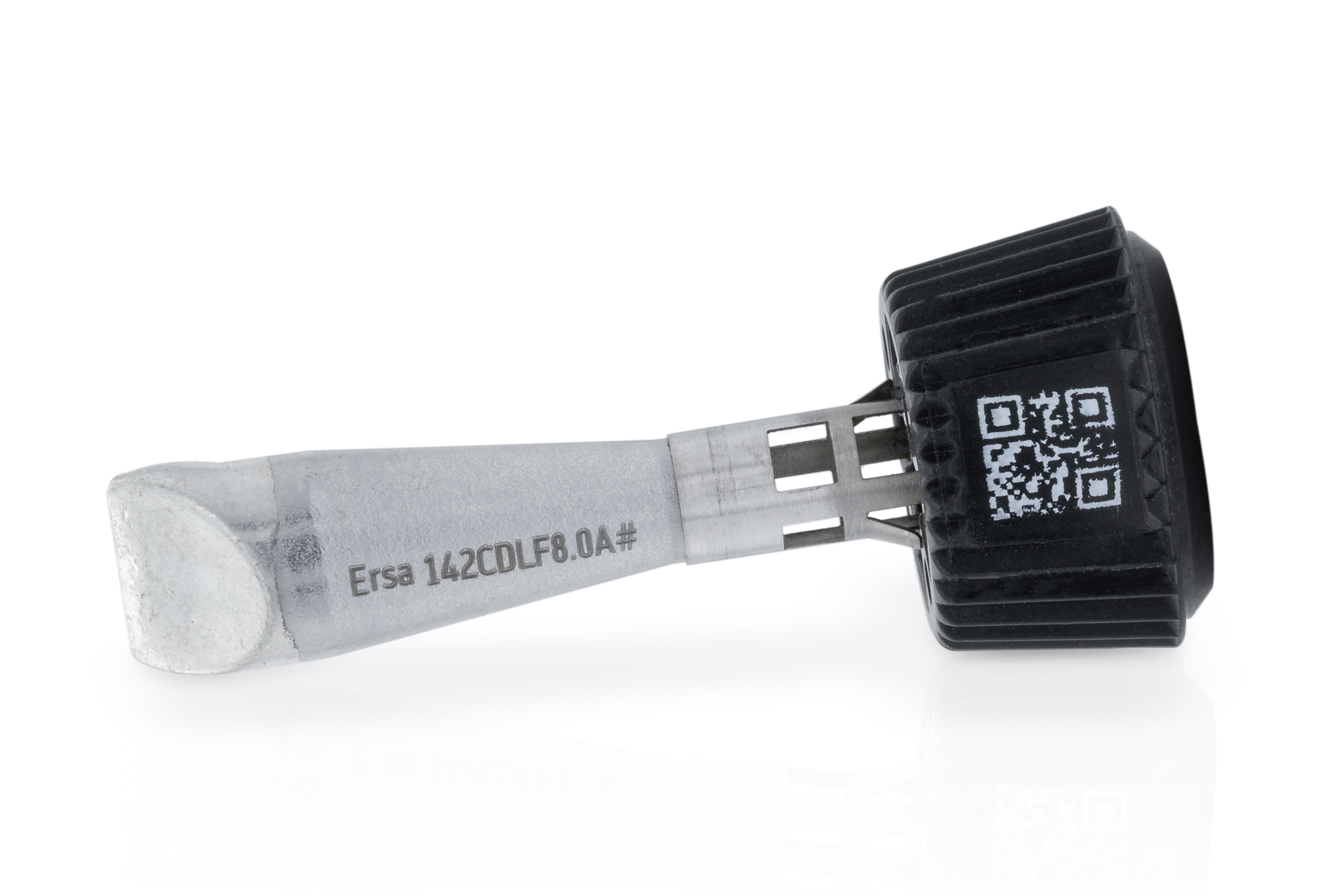

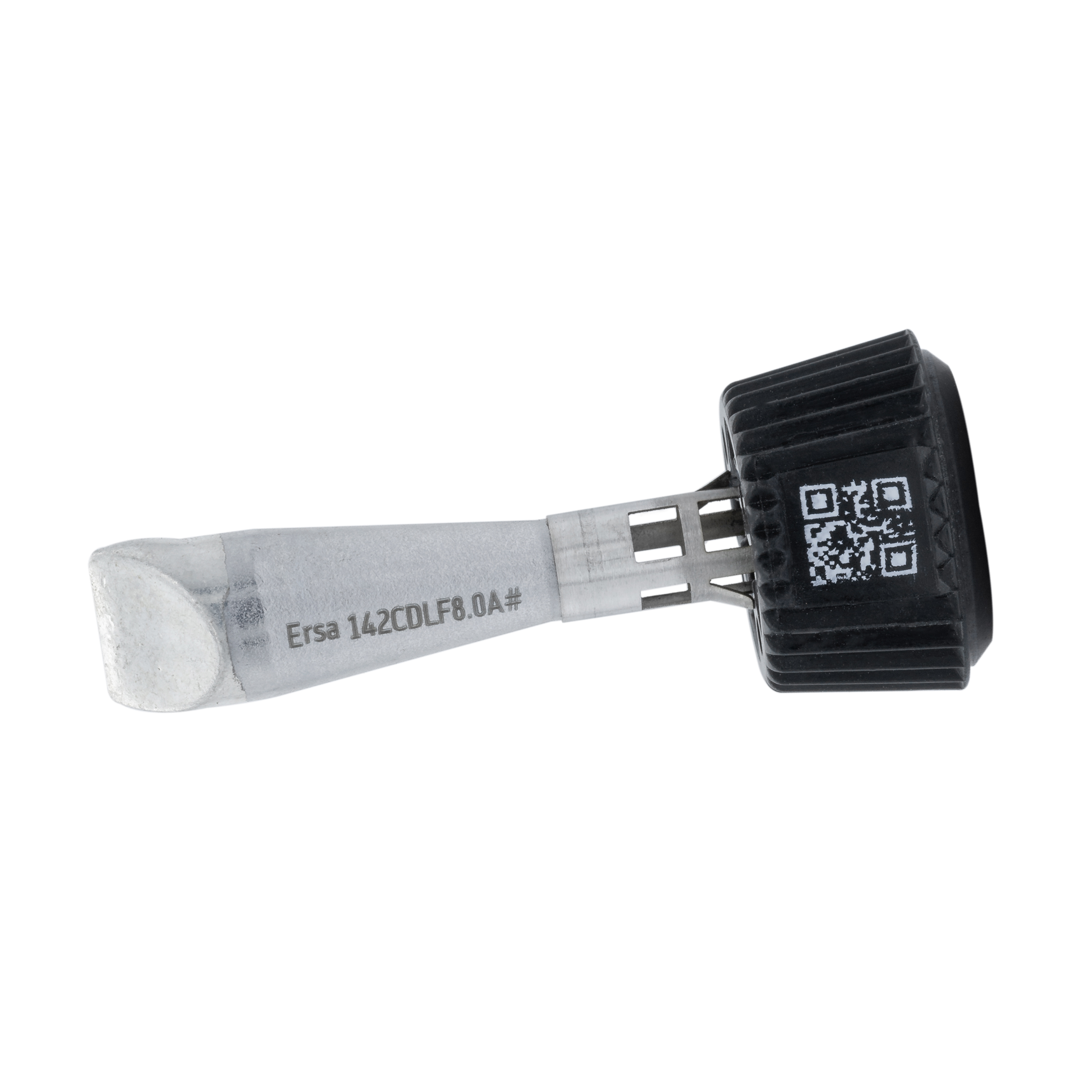

At 8.0 mm this is the widest chisel geometry in series 142, the size for ground planes, shield cans and heavy stranded wire where narrow tips simply cannot replace the heat fast enough. The asymmetric grind keeps the whole face on the work even with the iron tilted. ERSADUR long-life tip for i-Tool MK2, i-Tool TRACE and i-Con TRACE.
Ersadur Lötspitze i-Tool MK2 & Trace, meißelförmig asymmetrisch 8,0 mm - Ersa 0142CDLF80A
ERSA
Original product
Net price (excl. VAT)
€16.76
Item
ER-0142CDLF80A
Manufacturer no.
0142CDLF80A
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.0142CDLF80A
ConditionNew
Article
ER-0142CDLF80A
Frequently Bought Together
Ground planes, shield cans and stranded wire of several square millimetres pull away more heat than a narrow tip can supply. The joint stays cold, the setpoint gets turned up, and the assembly pays for it. An 8.0 mm chisel face multiplies the heat transfer area compared with the 2.4 mm standard shape, which lets you work at a lower setpoint.
Features
- 8.0 mm chisel geometry, the largest contact area in series 142.

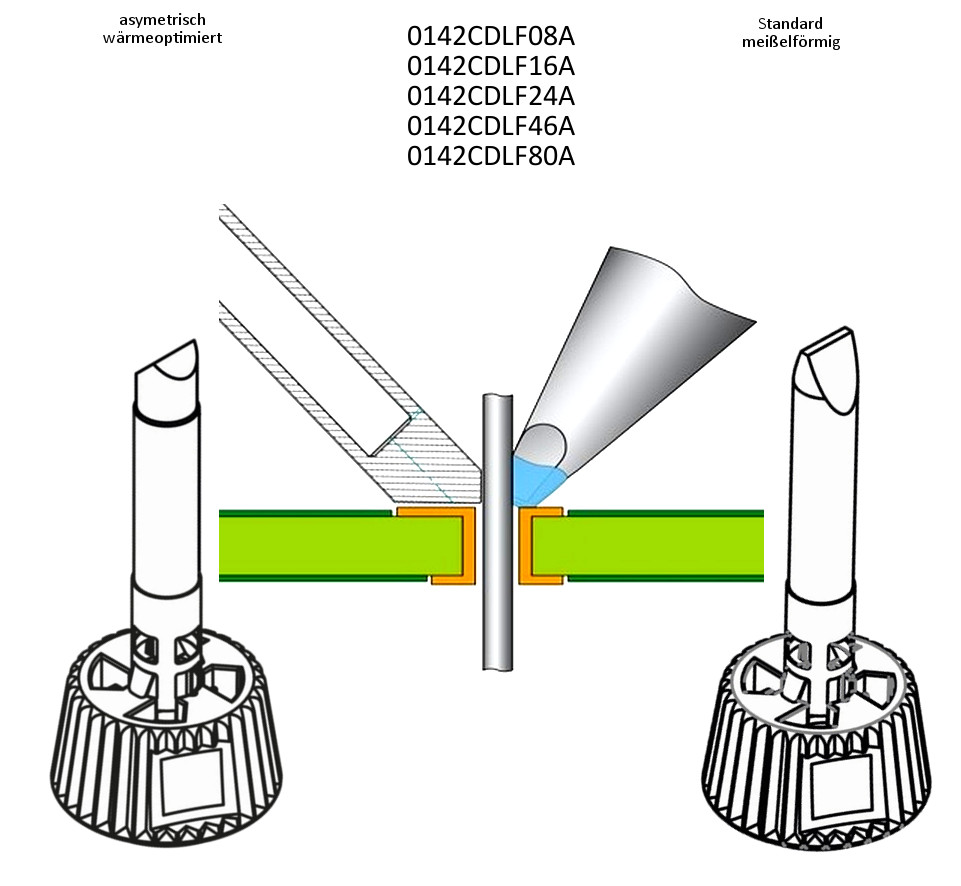

- Asymmetric grind so the face still seats fully when the iron is angled.
- Large solder reservoir at the working face, useful for tinning wire and copper areas.
- ERSADUR long-life tip, galvanic iron plating plus a chrome layer against corrosion and oxidation.
- Series 142 shank, 7.70 mm outside and 5.30 mm inside, hot change via the bayonet fitting.
- RoHS compliant.
Technical data
| Manufacturer part number | 0142CDLF80A |
| Tip series | 142 |
| Tip shape | chisel, asymmetric |

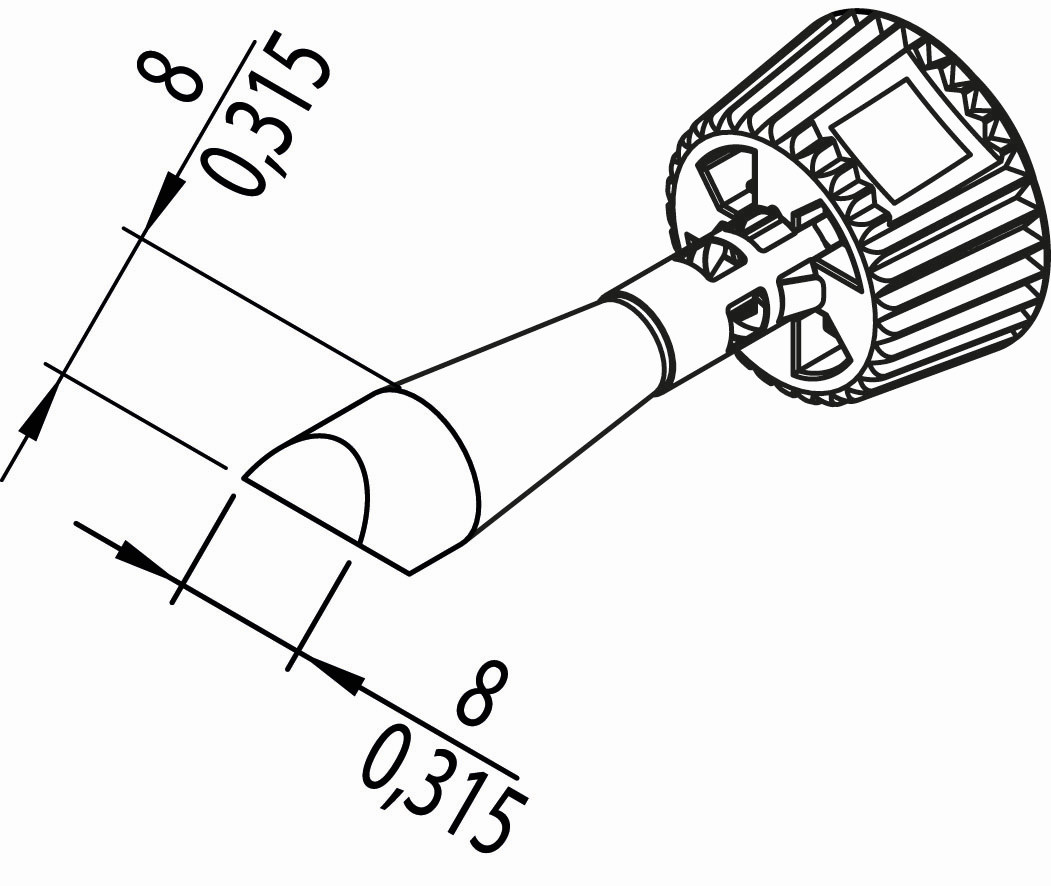

| Tip width | 8.0 mm |
| Plating | ERSADUR long-life tip |
| Shank outside diameter | 7.70 mm |
| Shank inside diameter | 5.30 mm |
| Overall length, series 142 | 41 to 51 mm depending on shape |
| Weight | 0.01 kg |
| RoHS compliant | yes |
Application
Tinning and attaching stranded wire, solder lugs, ground connections and shield housings, plus busbars and large pads on multilayer boards. For ordinary through-hole assembly the 2.4 mm shape remains the more economical option.
Compatibility
For the i-Tool MK2 and the i-Tool TRACE and i-Con TRACE irons only. A tip this size draws on the power reserve of the iron, so run the station within its intended power profile.
| Manufacturer Nr. | 0142CDLF80A |
|---|---|
| Manufacturer | Ersa |
| GPSR manufacturer information | Bräunlich GmbH Am Heideberg 26, DE 06886 Lutherstadt Wittenberg, www.braeunlich-gmbh.com |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
