Freestanding, height-adjustable X-Y PCB holder table for positioning assemblies and substrates up to 3 mm thick. Antistatic design with smooth, jerk-free guide rails and mounting holes for accessories.

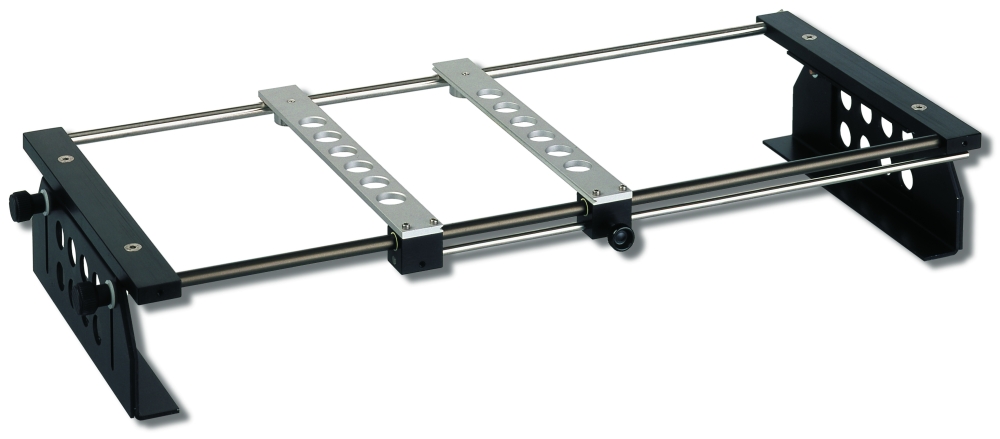

X-Y PCB Holder Table, Height-Adjustable, Antistatic - Ersa 0IR5500-01
ERSA
Original product
Net price (excl. VAT)
€756.00
Item
ER-0IR5500-01
Manufacturer no.
0IR5500-01
RoHS 2011/65/EU
Konformitätserklärung
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.0IR5500-01
EAN4003008072990
Country of originGermany
ConditionNew
Article
ER-0IR5500-01
Frequently Bought Together
-
This Item:
€756.00
-
MLF 32 Print Stencil for Dip & Print Station 0PR100 - Ersa 0PR100-S002
€398.00
-
Heating Head 60x60 mm for HR 600/3 P and HR 600 XL - Ersa 0HR667
€6,195.00
Total price
The Ersa 0IR5500-01 X-Y PCB holder table is a freestanding, height-adjustable support table for securely positioning printed circuit boards and assemblies. Smooth, jerk-free guide rails allow precise movement in the X and Y directions, while mounting holes accept additional accessories. The antistatic design protects sensitive components.
Technical data
| Design | Freestanding XY PCB table for holding assemblies |
| Suitable for | All substrates up to 3 mm thickness |
| Guide rails | Smooth, jerk-free |
| Mounting | Mounting holes for accessories |
| Height adjustment | 35 mm |
| Maximum PCB size | 380 x 280 mm |
| Dimensions (W x D x H) | 680 x 280 x 105 mm |
| Weight | 3.35 kg |
| Version | Antistatic |
| RoHS compliant | Yes |
| Certification | RoHS 2011/65/EU |
|---|---|
| Manufacturer Nr. | 0IR5500-01 |
| Manufacturer | Ersa |
| Country of Manufacture | Germany |
| EAN | 4003008072990 |
| Weight | 3.350000 |
| GPSR manufacturer information | Ersa GmbH, Leonhard Karl Str. 24, DE-97877 Wertheim, www.kurtzersa.de |
| Article authenticity | Original product |
| Condition of article | New |
| Position sensing | No |
