Independent 130 Gas Soldering Iron Basic Set, 130 W, Piezo - Ersa 0G13400041
Cordless butane gas soldering iron set for mains-independent work, with infinitely adjustable output equivalent to 25 - 130 W. The built-in piezo ignition and standard butane gas make it ideal for service, installation, maintenance and repair tasks. Complete kit in a plastic case with iron, a second soldering tip and a cleaning sponge.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

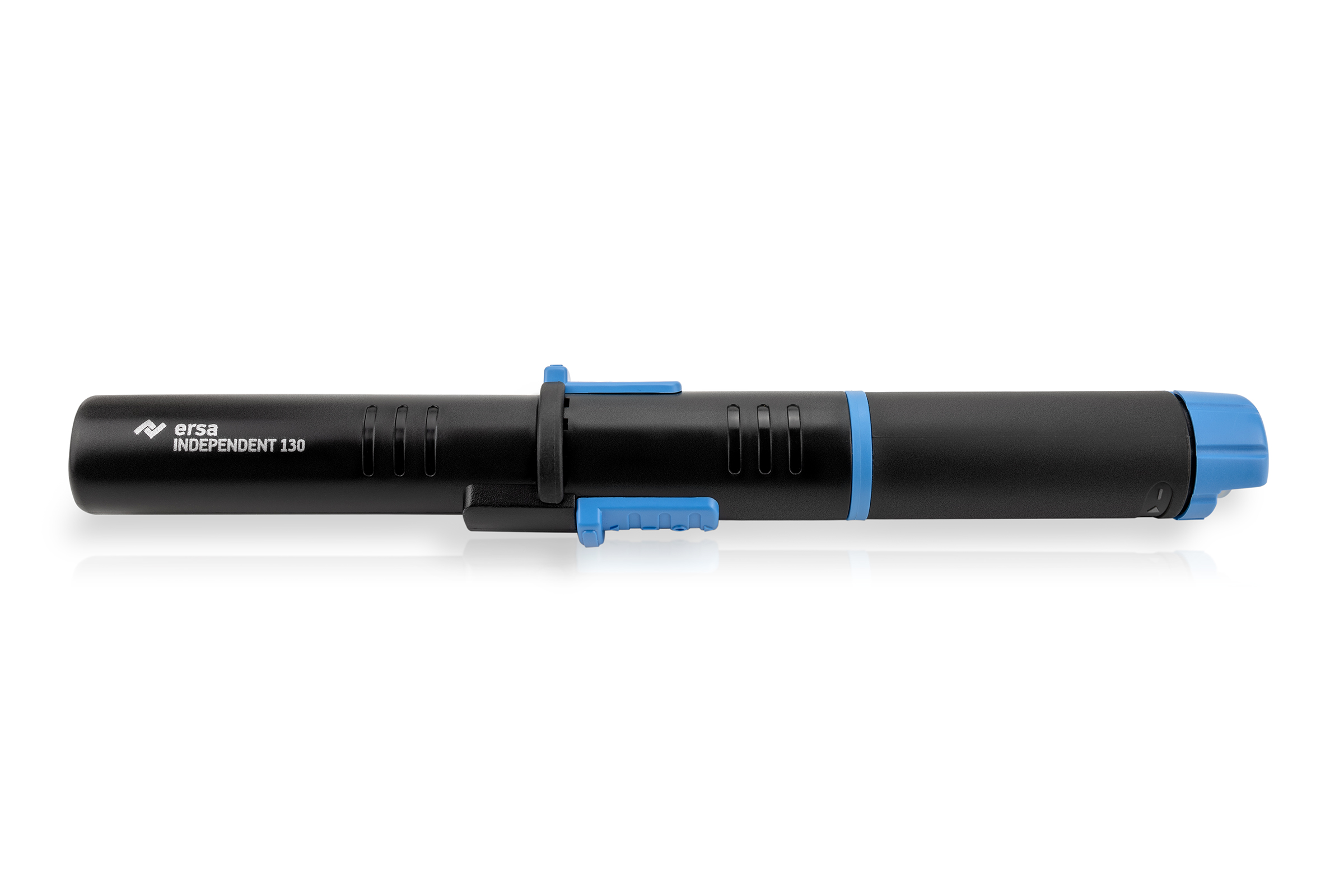

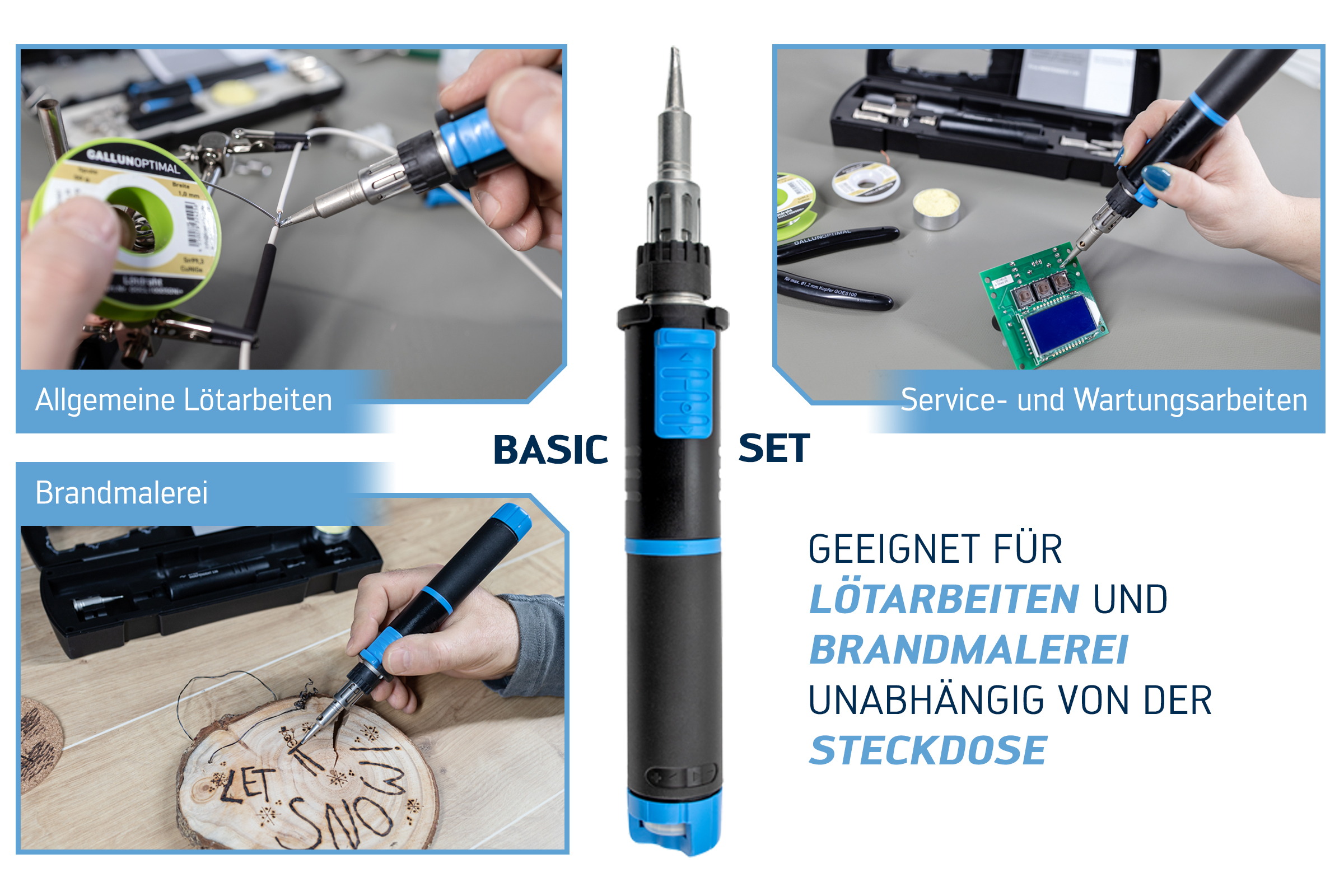

The Ersa Independent 130 is the "large" gas soldering iron from Ersa for demanding soldering tasks wherever no mains supply is available. With an infinitely adjustable output of 25 to 130 W (comparable to electric soldering irons) and a wide range of soldering tips, it is highly versatile for service, installation, maintenance and repair work. The integrated piezo ignition and operation with standard butane lighter gas ensure very easy handling and high reliability. Operating time per gas filling is approximately 120 minutes and the maximum tip temperature is around 580 °C.

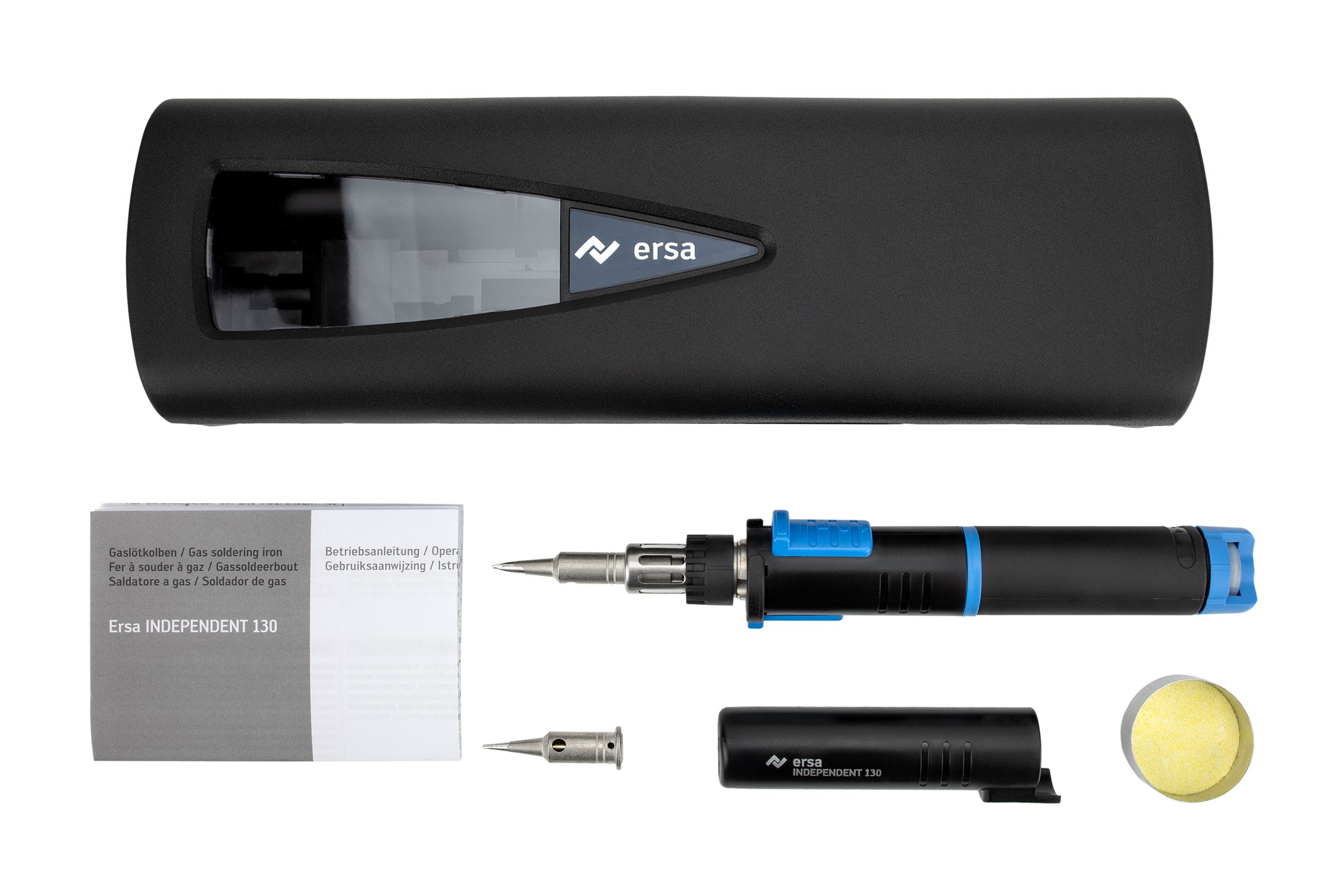

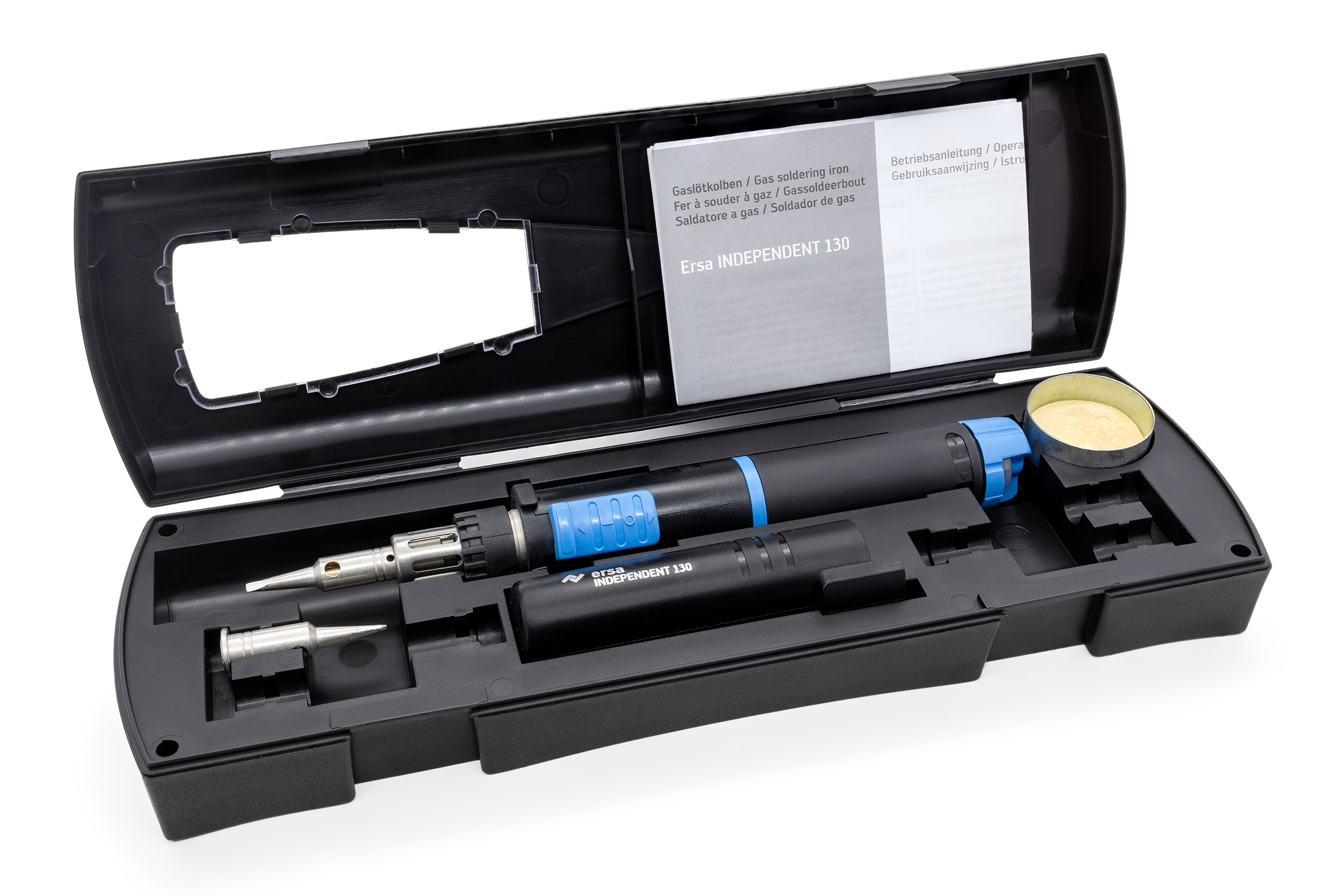

The "Basic Set" contains a gas soldering iron with a pre-mounted soldering tip (0G132KN, 2.4 mm chisel shape), an additional soldering tip and a sponge container with cleaning sponge (0006G) - all supplied in a practical plastic case. Gas soldering iron dimensions: 3.5 cm diameter, 23 cm length.
Technical data
| RoHS compliant | Yes |
|---|---|
| Rated power | 130 W (infinitely adjustable 25 - 130 W) |
| Heat-up time | approx. 50 seconds |
| Max. tip temperature | approx. 580 °C |
| Tip design | straight |
| Tip diameter | 2.40 mm |
| Tip shape | chisel |
| Tip coating | long-life (permanent) tip |
| Operating mode | gas (butane) |
| Ignition | piezo |
| Operating time per gas filling | approx. 120 minutes |
| Replacement iron | 0G130KN |
| Soldering tip series | G132 series |
| Antistatic version | No |
| Weight | approx. 0.37 kg |

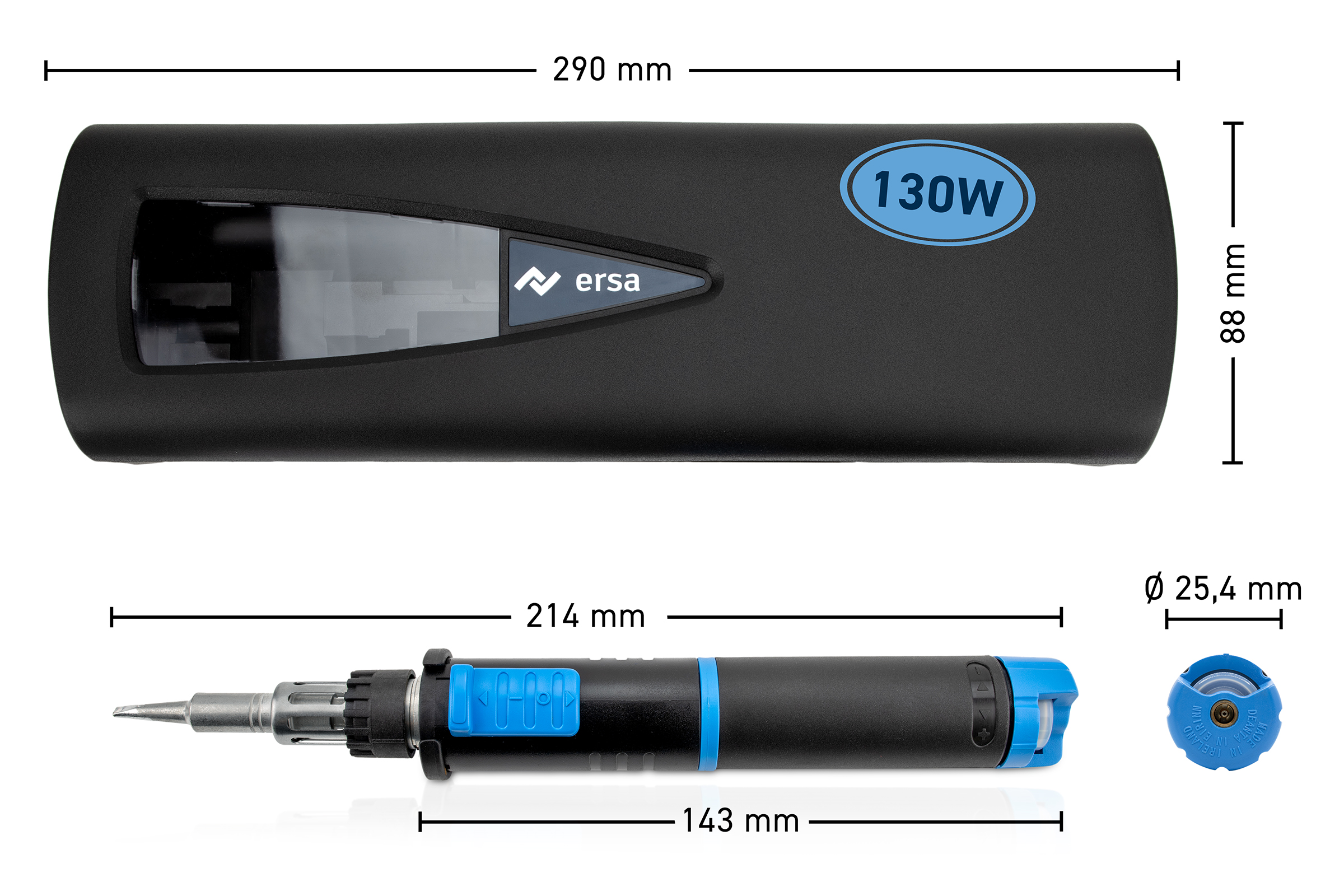

| Iron dimensions | 3.5 cm diameter, 23 cm length |
| Manufacturer | Ersa |
| Manufacturer Nr. | 0G13400041 |
| EAN | 4003008061543 |
| GPSR manufacturer information | Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Ausführung | gerade |
| ESD version | TEC |
| ESD equipment | ESD Lötstationen |
| Certification | RoHS 2011/65/EU |
| Power (W) | 130 W |
| Tip diameter/width [mm] | 2.4 |
| Soldering tip coating | Dauerlötspitze |
| Soldering tip shape | meißelförmig |
| Heat-up time [s] | 50 |
| Temperature (max.) | bis 580 °C |
