i-CON1 MK2 ESD Profi-Lötstation - Special Edition - 50-450°C mit 150W Lötkolben i-TOOL MK2 Tip’N’Turn - Spitzenwechsel antistatisch, Auto-Standby mit - Ersa 0IC1105A00075-S1

Lead free joints on ground planes need power in reserve, while the fine parts next to them need a steady temperature. The Ersa i-CON1 MK2 Special Edition covers both with 150 W at the i-TOOL MK2 iron and a working range of 50 to 450 °C, reaching 350 °C in 9 seconds.

What this version offers

• i-TOOL MK2 iron with a 150 W micro high performance heating element and a 9 second heat-up to 350 °C.
• Working range of 50 to 450 °C, so low process temperatures can be dialled in as well.
• Two long-life tips included, a 1.6 mm chisel and a 0.5 mm pencil point, both with the Tip'n'Turn bayonet.
• Automatic standby through built-in motion sensing, after which the station draws about 15 W.
• Three programmable temperature presets and One Touch operation on a large multifunction display.
• Fully ESD safe design, VDE and CE approved, manufactured in Germany.

Technical data

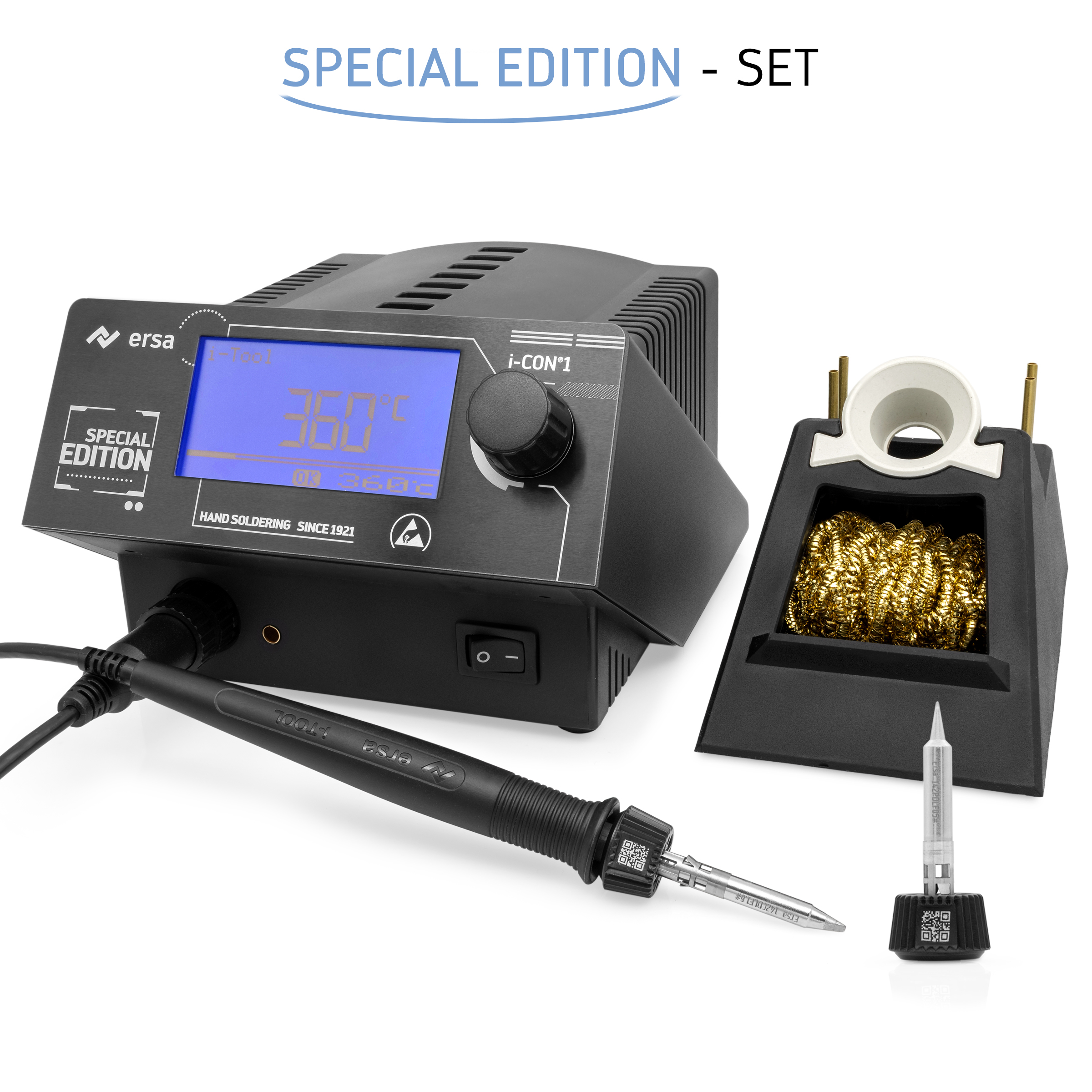

Scope of delivery

• Control station 0IC1135A
• i-TOOL MK2 iron 150 W, 0105CDJ
• Tip'n'Turn long-life chisel tip 1.6 mm, 0142CDLF16
• Tip'n'Turn long-life pencil tip 0.5 mm, 0142PDLF05
• Stand 0A59

Use and compatibility

The station fits development, test and repair work on ESD sensitive assemblies. Every series 142 tip can be used and is changed through the bayonet without tools. The 0A59 stand is designed for the i-TOOL MK2 and the i-TOOL NANO MK2.
