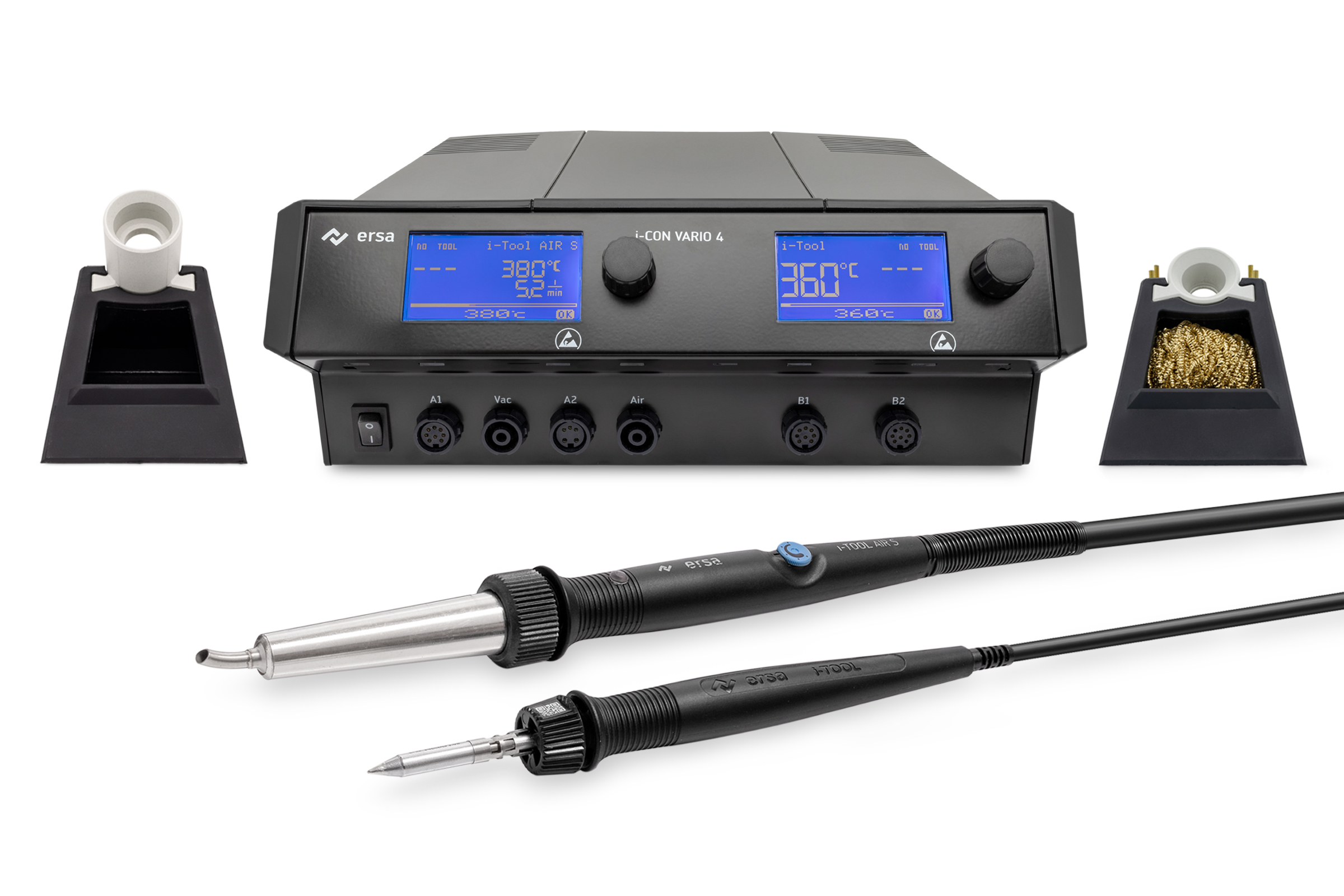

i-CON Vario 4 MK2 ESD 4-Channel Soldering and Hot Air Station with Vacuum, 500 W - Ersa 0ICV4005AI
Four-channel soldering and desoldering station with vacuum for professional electronics manufacturing. Includes the i-Tool AIR S hot air pencil (200 W) and the i-Tool soldering iron (150 W), ideal for use in ESD-protected areas.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

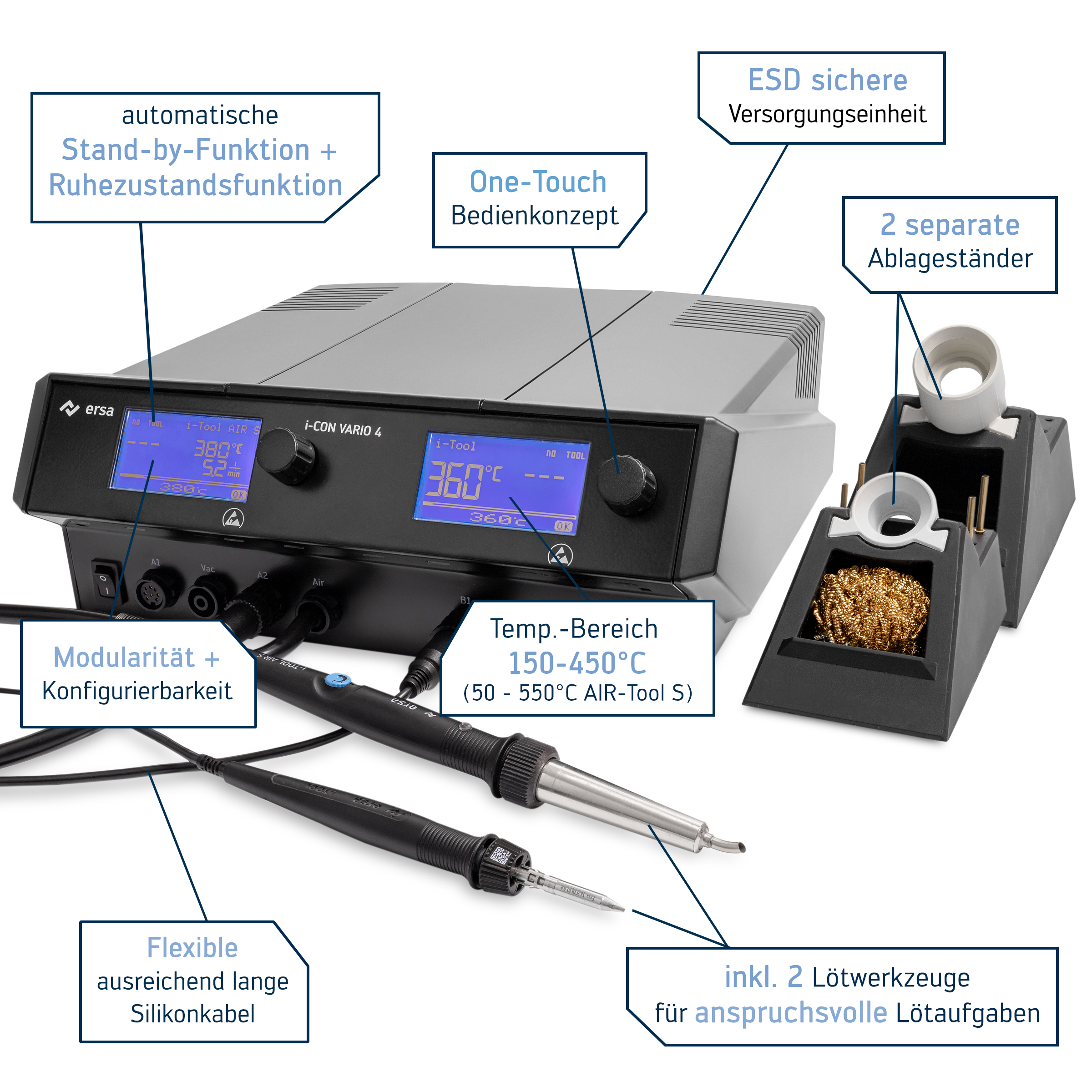

The Ersa i-CON VARIO 4 MK2 is the flagship of the i-CON family and meets the highest demands for professional soldering and desoldering. The four-channel station provides up to four soldering tools at once and bundles all functions, including air and vacuum generation, in a single central supply unit with the familiar, easy i-Op operation. The station is ideally suited for use in ESD-protected areas.
Features
- Contactless energy transfer with the ergonomic i-Tool AIR S hot air pencil (200 W); air flow adjustable directly on the handpiece, motion and IR sensor
- Efficient soldering with the powerful 150 W i-Tool and Tip'N'Turn bayonet quick-change (20-25 % more performance versus a screw connection)

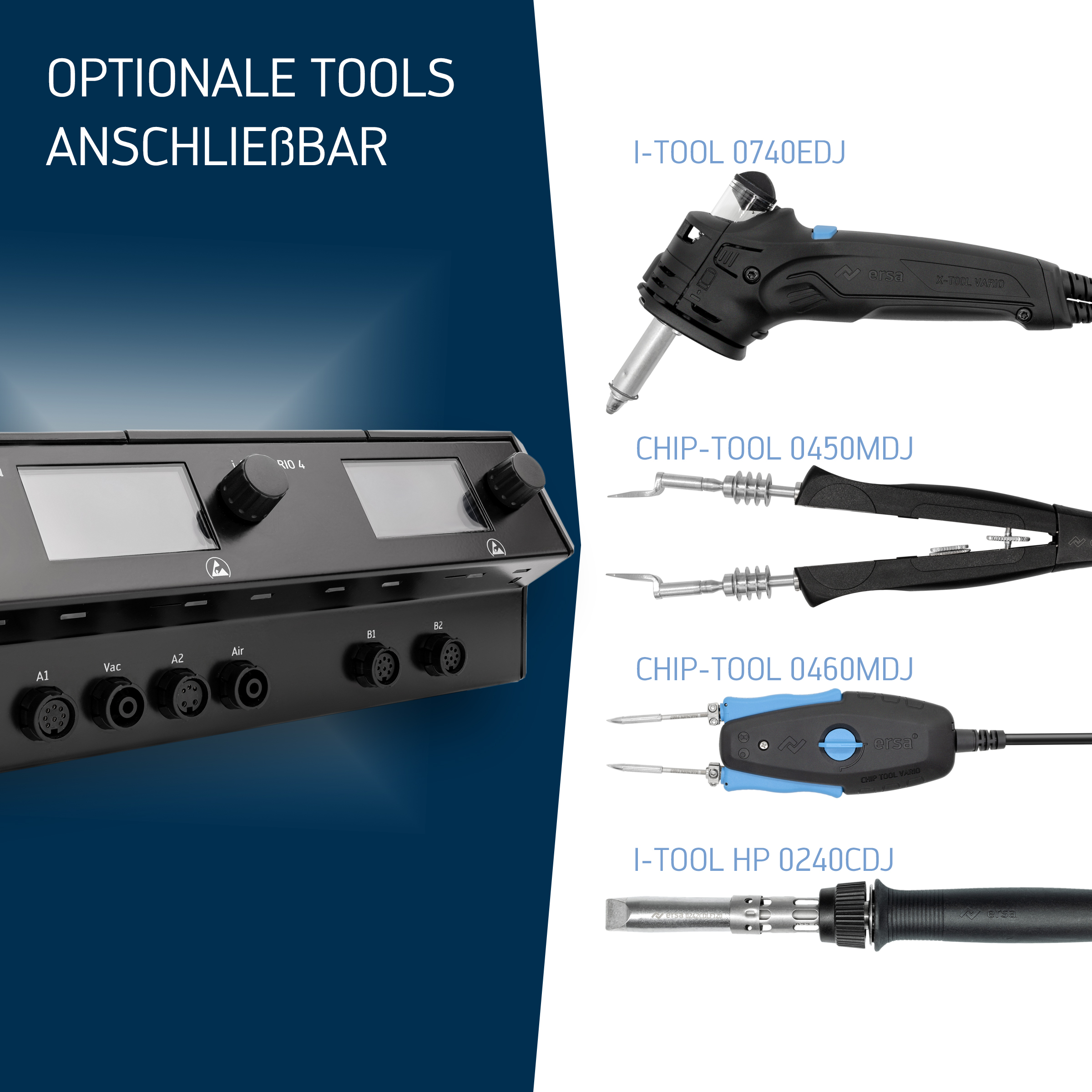

- Optional connection of further Ersa soldering tools such as Chip Tool VARIO (80 W) or X-Tool (120 W)

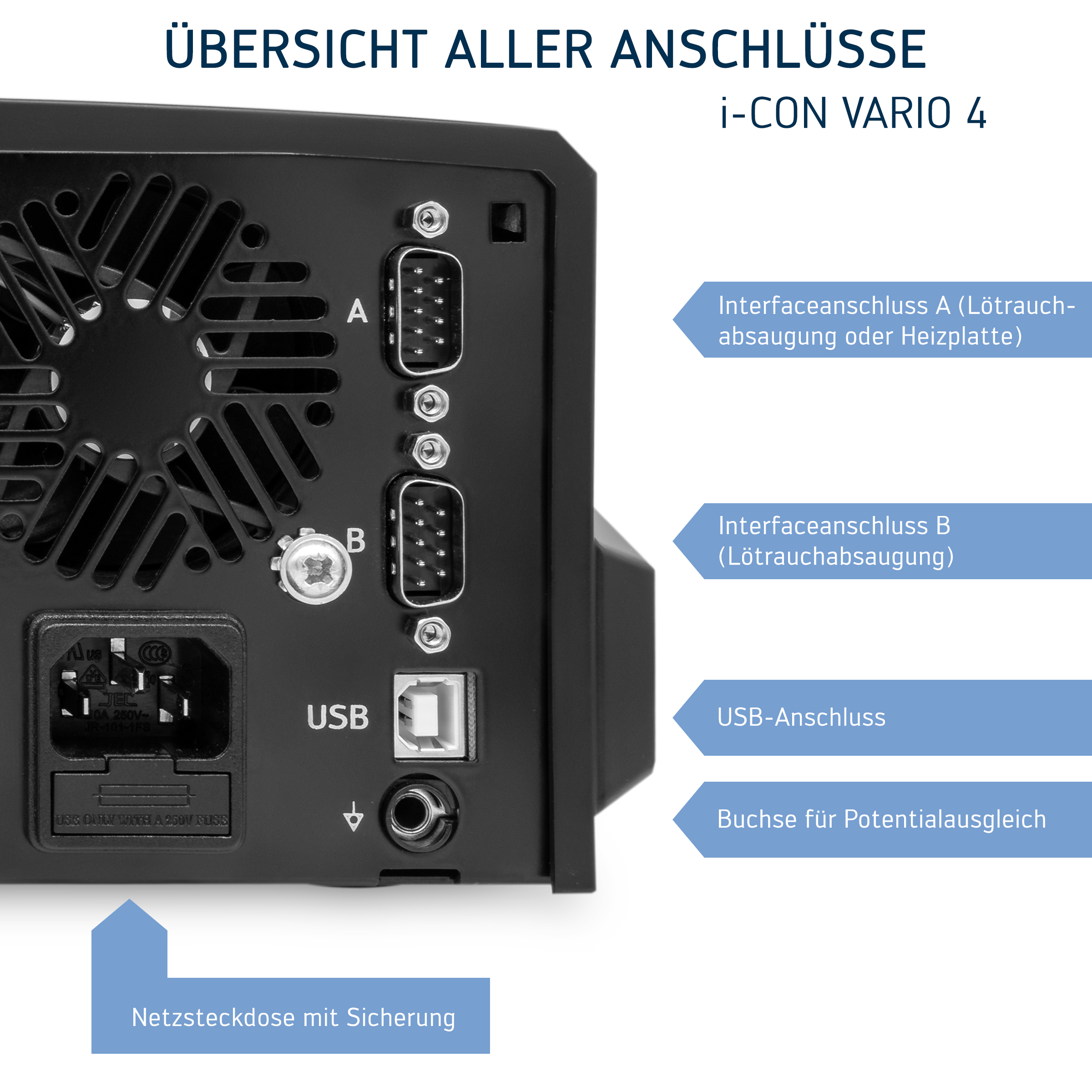

- Interfaces for Ersa fume extraction units and infrared preheaters, USB port and microSD configuration
- Standby power consumption approx. 52 W
Technical data
| Heat-up time | 9 sec. |
|---|---|
| Antistatic version | Yes |
| Digital display | Yes |
| Replacement heater | 016100J |
| Replacement soldering/desoldering iron | 0470ERJ |
| Soldering/desoldering tip | Series 0472ER |
| Max. power | 500 W |
| Max. tip temperature | 450 °C |
| Tip diameter/width | 3.5 mm |
| Tip series | 472 |
| Temperature range | 50-550 °C |
| Weight | 11.11 kg |
| Manufacturer | Ersa |
| Manufacturer Nr. | 0ICV4005AI |
| EAN | 4003008153880 |
| GPSR manufacturer information | Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | ESD (antistatic) |
| Power (W) | 500 W |
| Tip diameter/width [mm] | 3.5 |
| Heat-up time [s] | 9 |
| Series | 472 |
| Temperature (max.) | up to 450 °C |

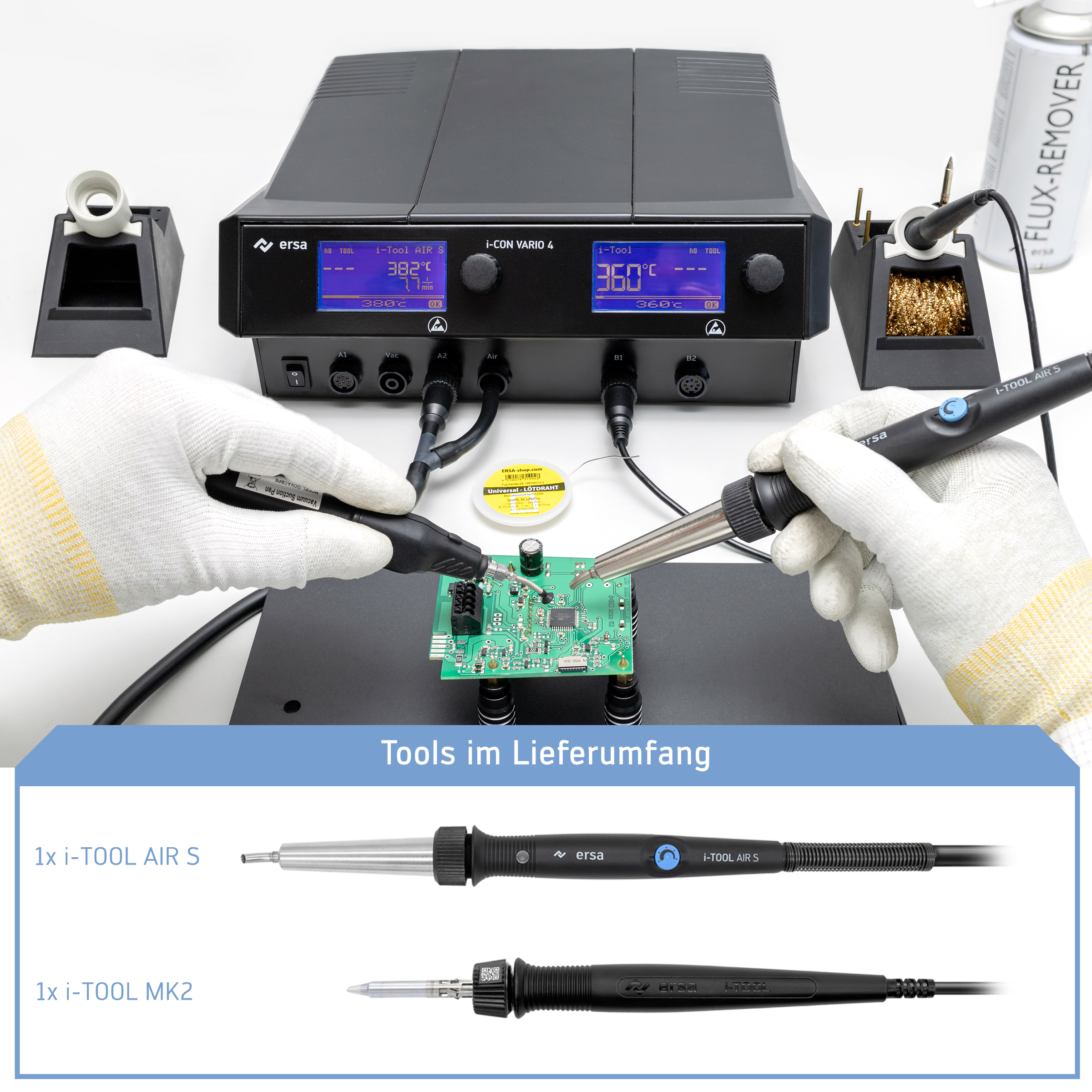

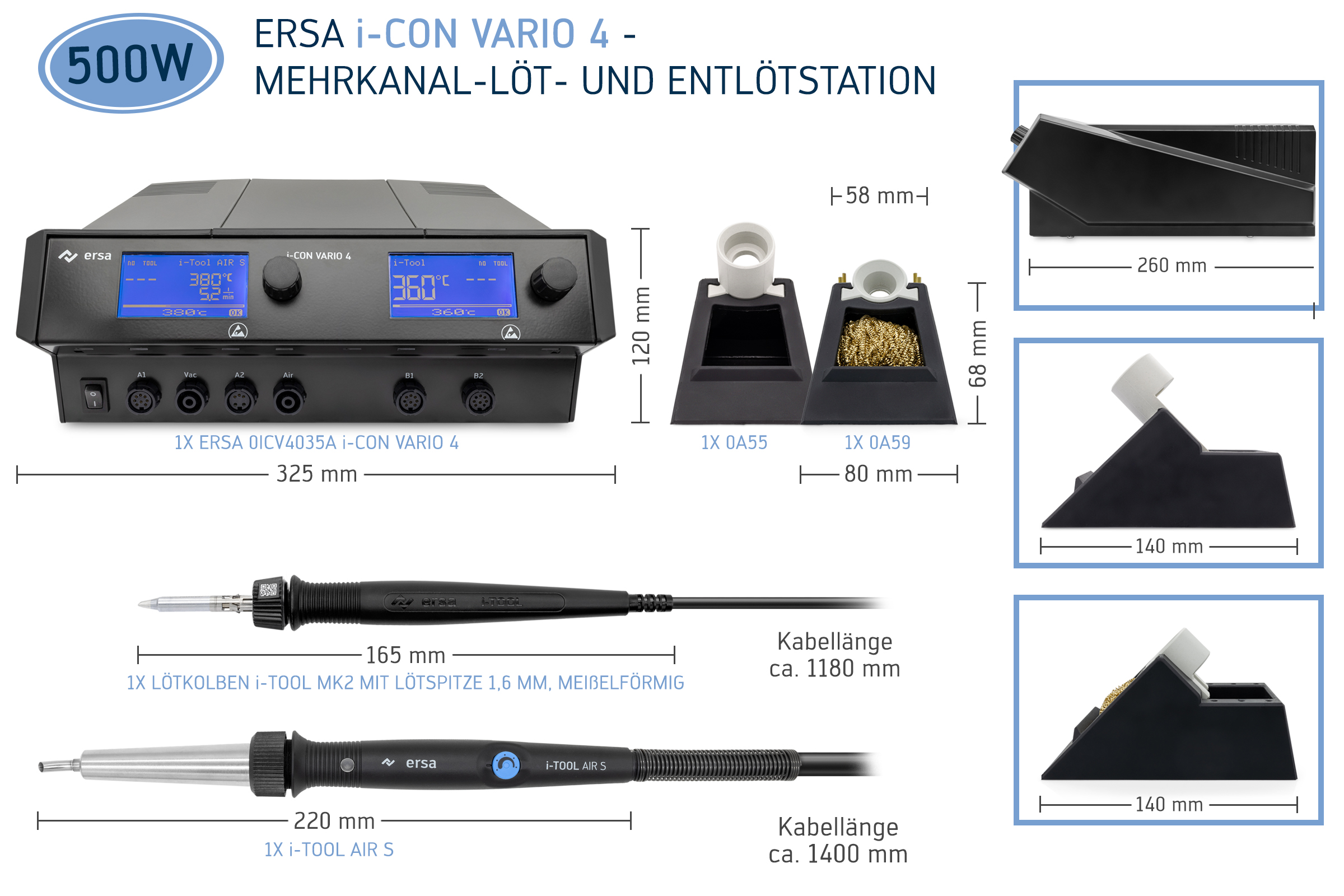

Scope of delivery
- Electronics station, antistatic 200 W, air flow 2-20 l/min, 50-550 °C (0ICV403A)
- i-Tool AIR S hot air pencil 200 W (0470ERJ) with 3.5 mm diameter hot air nozzle (0472ER)
- i-Tool soldering iron 150 W (0105CDJ) with 1.6 mm chisel-shaped tip (0142CDLF16)
- Holder for i-Tool AIR S (0A55)
- Holder for i-Tool (0A59)
