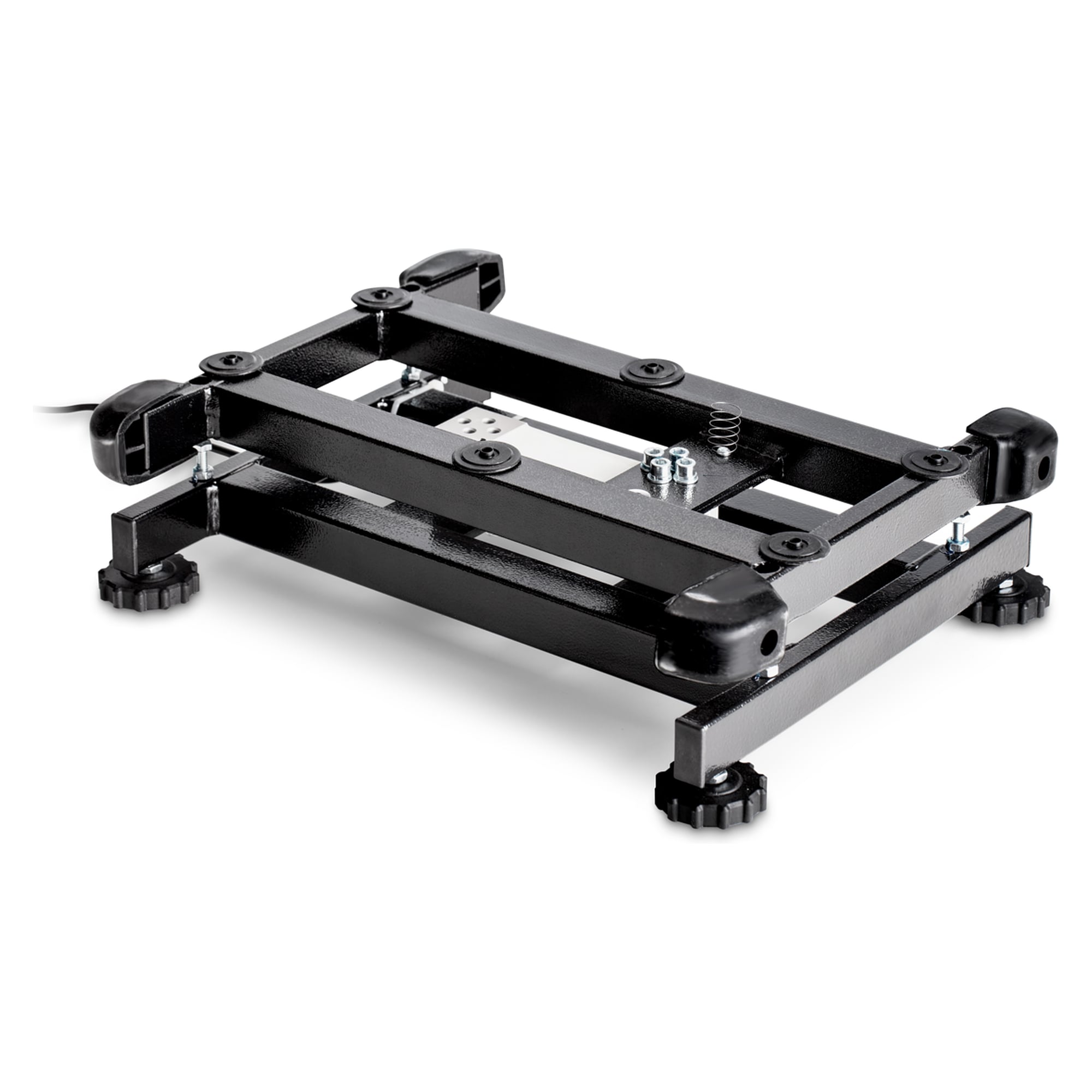

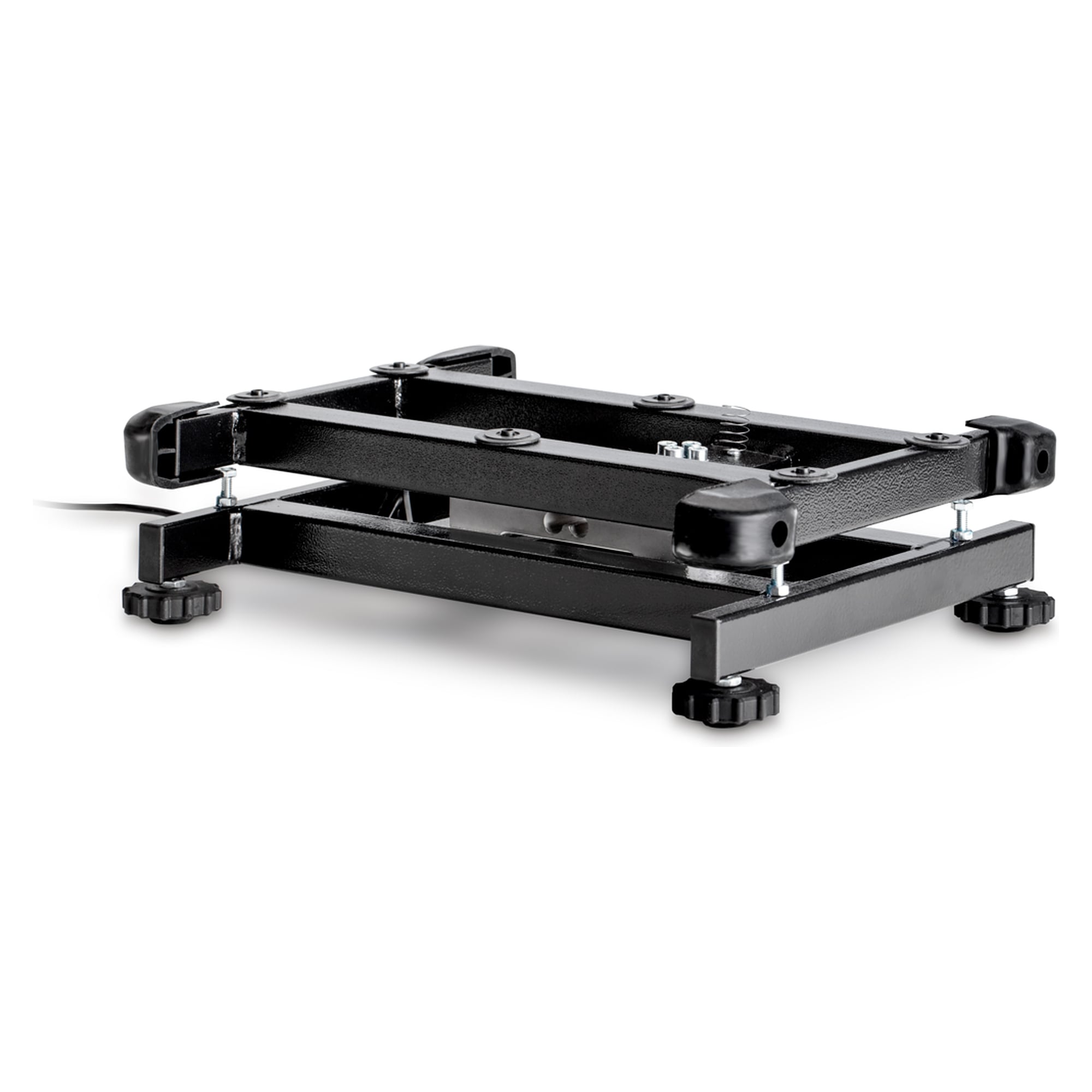

Counting Scale 60 kg / 150 kg Readability 0,02 kg / 0,05 kg - KERN IFS 100K-2LM

The KERN IFS 100K-2LM counts identical parts quickly and reliably instead of tallying them one by one, with a weighing range up to 150 kg and 0,02 kg readability. A numeric keypad and three separate displays turn reference sampling, piece counting and stocktaking into routine.

Benefits

• High counting resolution: up to 60.000 points for reliable piece-count determination.
• Convenient numeric keypad: direct entry of tare, reference and limit values on the ergonomic indicator.
• Three clear displays: weight, reference weight and total piece count visible at the same time.
• Automatic reference optimization: gradually refines the average piece weight for more accurate counting.
• Multi-range scale: switches automatically between 60 kg at 0,02 kg and 150 kg at 0,05 kg.
• Optionally verifiable (class III, e = 0,02 kg): for legal-for-trade use.

Technical data

• Weighing range (Max): 60 kg; 150 kg
• Readability (d): 0,02 kg; 0,05 kg
• Verification value (e): 0,02 kg; 0,05 kg
• Accuracy class: III
• Minimum capacity (Min): 0,4 kg; 1 kg
• Repeatability: 0,02 kg; 0,05 kg
• Linearity: ± 0,02 kg; 0,05 kg
• Smallest piece weight (laboratory conditions): 2,5 g
• Smallest piece weight (normal conditions): 25 g
• Weighing system: Strain gauge
• Stabilization time: 2 s
• Weighing plate (W×D): 650×500 mm
• Display digit height: 16,5 mm
• Interfaces: RS-232 as standard
• Operating temperature: -10 °C to 40 °C
• Net weight: 22 kg

Applications

Typical uses of the KERN IFS 100K-2LM include plastics processing, warehouse logistics, shipping, counting applications as well as order picking and stocktaking.

Compliance and origin

EAN 4045761150966, customs tariff code 84238220, country of origin China. For legal-for-trade use, the KERN IFS 100K-2LM is optionally available in accuracy class III.
