LEANLED II Basic-Line LED Machine Light 760 mm, 17.3W, 5700K, IP54 - LED2WORK 111010-55
LEANLED II Basic-Line LED Machine Light 760 mm, 17.3W, 5700K, IP54 - LED2WORK 111010-55 LEANLED II Basic-Line LED Machine Light 760 mm, 17.3W, 5700K, IP54 - LED2WORK 111010-55 LEANLED II Basic-Line LED Machine Light 760 mm, 17.3W, 5700K, IP54 - LED2WORK 111010-55

Images are examples, some edited with AI. The technical data are authoritative. AI notice

LEANLED II Basic-Line LED Machine Light 760 mm, 17.3W, 5700K, IP54 - LED2WORK 111010-55

LED2WORK ✓ Original product Brand new Made in Germany

LED surface-mounted light for control cabinets and machinery, delivering 2666 lm from 17.3 W. The opal-white cover spreads daylight-white 5700K light evenly over 120 degrees, powered by 24V DC.

Net
€82.90
excl. VAT
Item L2W-111010-55
Manufacturer no. 111010-55
Save Compare
Question about this item
Datasheet (PDF) User manual 5 documents, all under Downloads
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The LEANLED II Basic-Line brings affordable, functional machine and workplace lighting to cost-sensitive jobs such as control cabinet construction and the wider industrial environment. At 760 mm it produces 2666 lm from 17.3 W.

Key benefits

  • High efficiency of 155 lm/W saves energy across its service life
  • Opal-white cover delivers low-glare, even light over 120 degrees
  • Daylight-white 5700K light with Ra >80 for accurate detail work
  • Sturdy aluminium housing rated IP54 for demanding machine use
  • Long service life of more than 60,000 h (L80/B10)
  • Pivoting and fixed brackets included for mounting

Applications

Suited to lighting control cabinets, machines and work areas in industry wherever a budget-conscious, durable luminaire is needed.

Note: undervoltage (< 24V DC) reduces the luminous flux.

Technical data

ModelLEANLED II Basic-Line opal white
DesignLED surface-mounted machine light
Light sourceSMD LED
Power17.3 W
Luminous flux2666 lm
Luminous efficacy155 lm/W
Light colour5700K (3-step MacAdam)
Colour rendering (Ra)>80
Beam angle120 degrees
Supply voltage24V DC
ConnectionM12 A-coded, 3-pin
Protection ratingIP54
Protection classIII
Operating temperature0 °C to +45 °C
Service life> 60,000 h (L80/B10)
Housing materialaluminium
Cover materialpolycarbonate

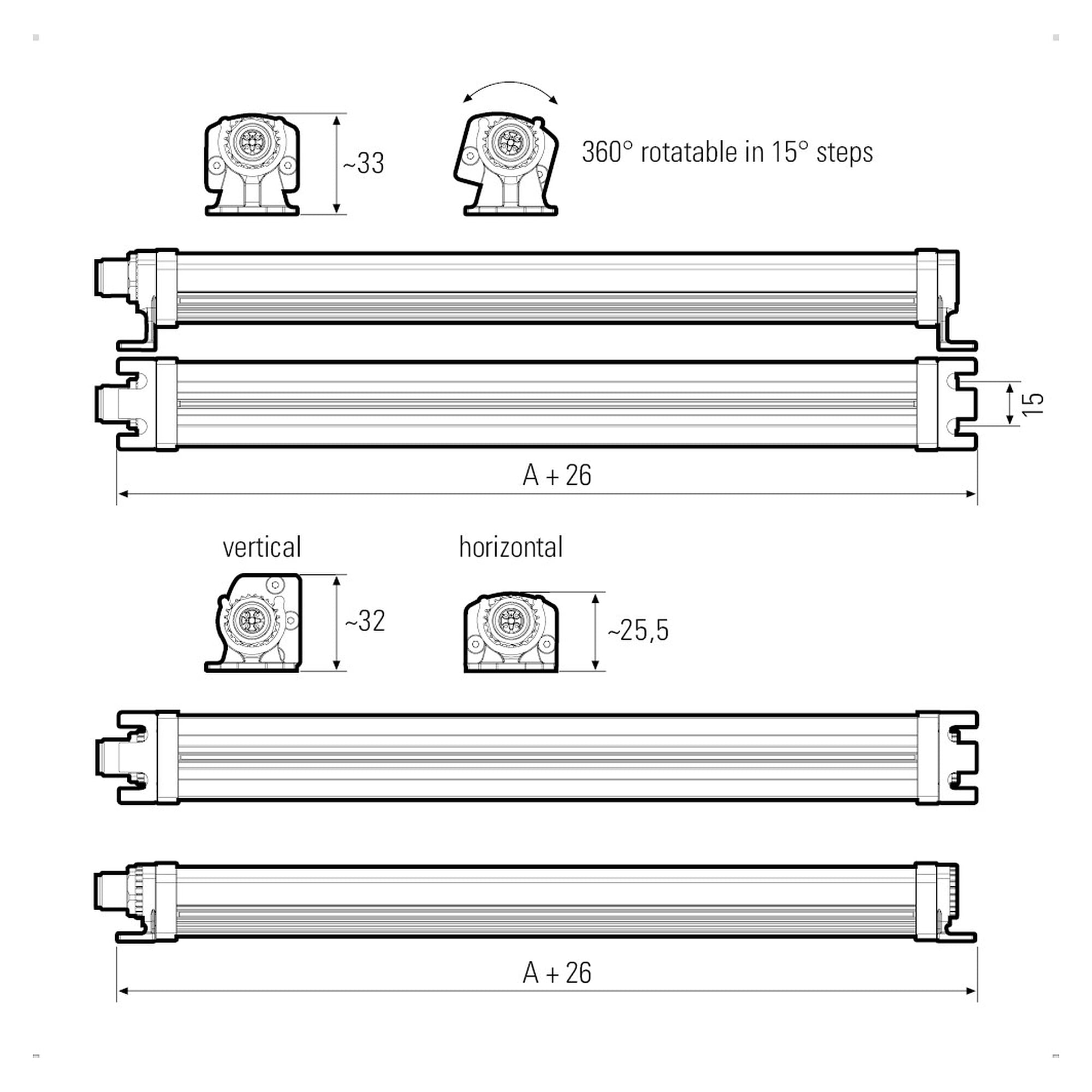

Dimensionslength 760 mm, 31 mm x 26 mm
Weight620 g
Risk group (DIN EN 62471)exempt group
CertificationsCE, UKCA
Made inGermany
ManufacturerLED2WORK
Manufacturer Nr.111010-55
HS-Code94054239
GPSR manufacturer informationLED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com
Condition of articleNew
Article authenticityOriginal product
Country of ManufactureGermany
NormDIN EN 62471
Luminous flux (lumen)2666 lm
Power (W)17.3 W
Colour temperature5700K
Mounting typeSurface-mounted
Operating voltage24 V
Protection class (IP)IP54
