JBC C560 desoldering tips are designed exclusively for the DR560-A desoldering iron and cover bore diameters from 0.4 mm to 2.8 mm. The range is split into two groups: pin desoldering tips (C560001-C560009, C560014-C560018) and pad-cleaning tips (C560011-C560013) for removing residual solder after component extraction. The hollow-needle geometry channels molten solder directly into the DR560-A integrated vacuum system, leaving the pad clean for re-population.

⚙ Bore range 0.4-2.8 mm - C560001 (0.4 mm) to C560015 (2.8 mm), selectable by pin diameter from BOM

✓ Pad-cleaning tips C560011-C560013 - 0.6 mm / 0.8 mm / 1.0 mm bore, removes solder residue directly on the pad

🛠 DR560-A compatibility - form-fit mounting, no additional tooling required for tip change

⚡ Rapid heat transfer - JBC T245 heating cartridge in the DR560-A ensures short heat-up time and stable working temperature

Model	Type	Bore (max.)

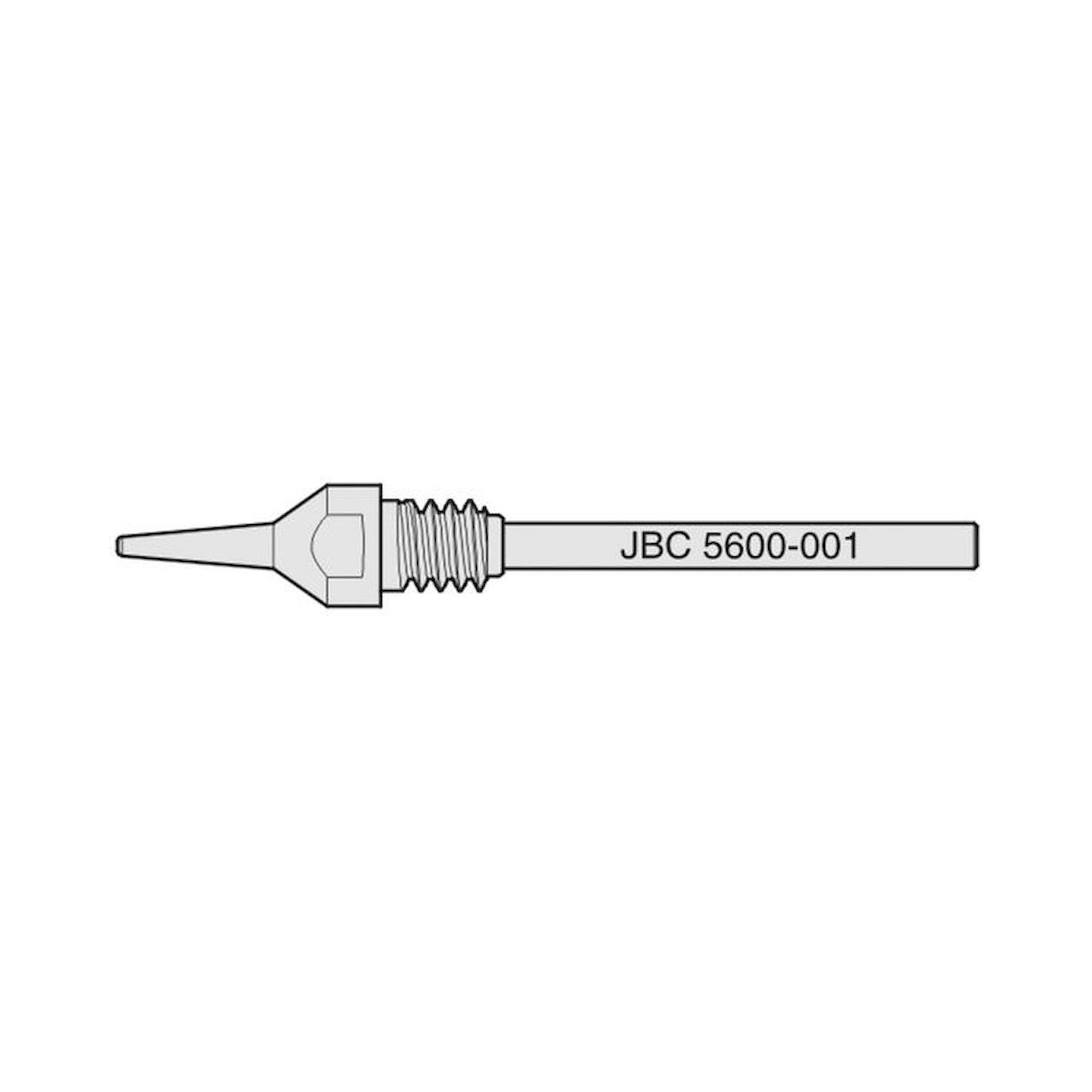

C560001	Pin desoldering tip	0.4 mm

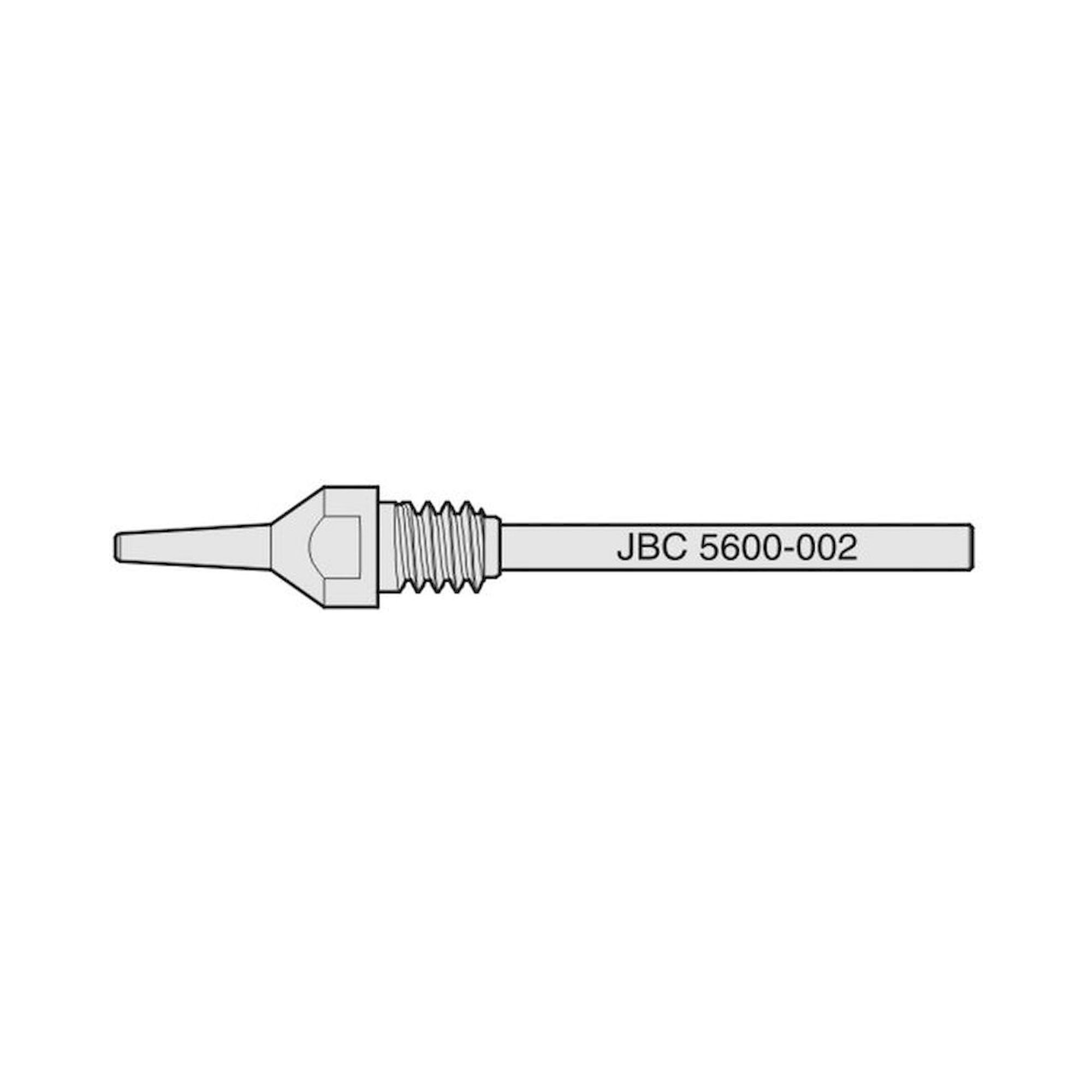

C560002	Pin desoldering tip	0.6 mm

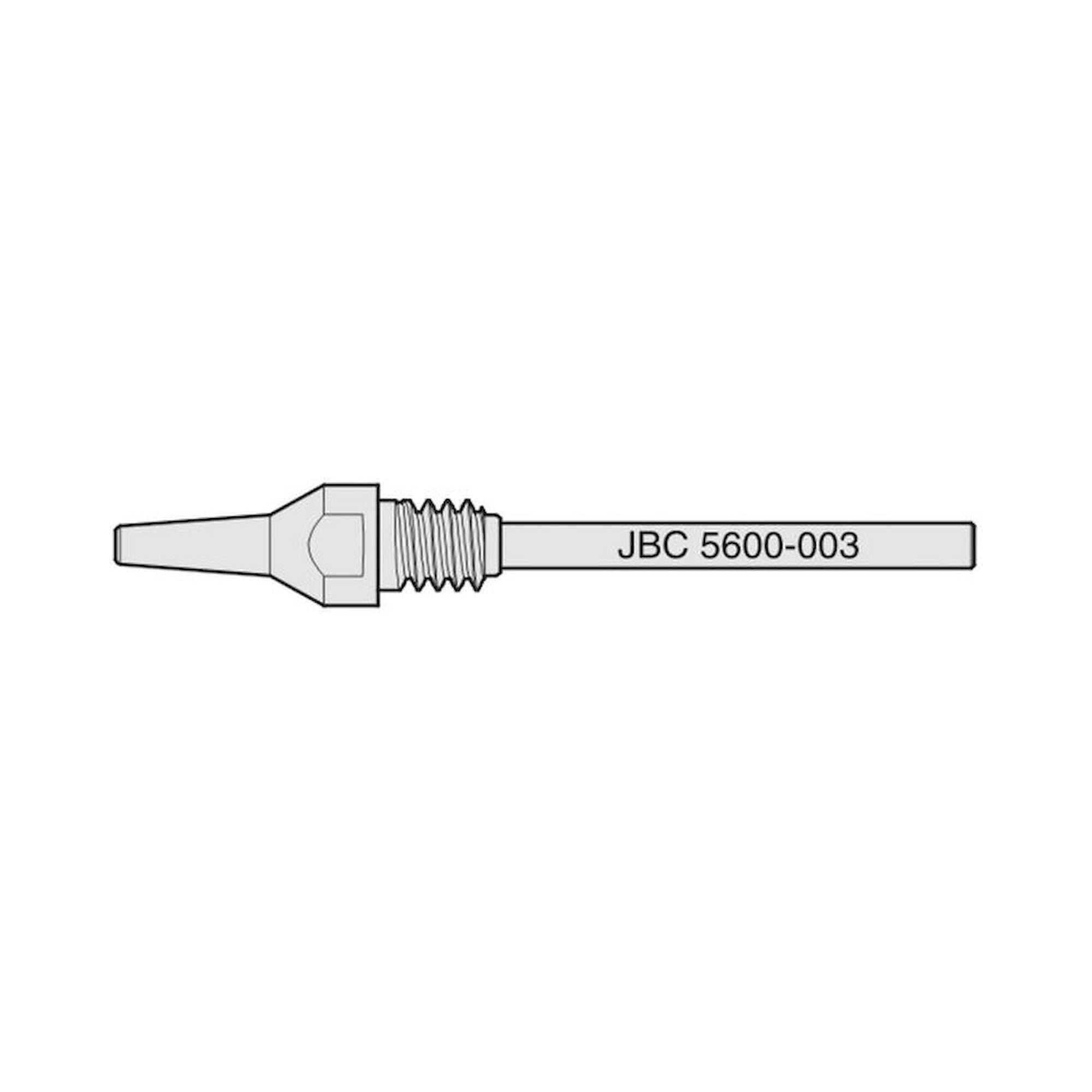

C560003	Pin desoldering tip	0.8 mm

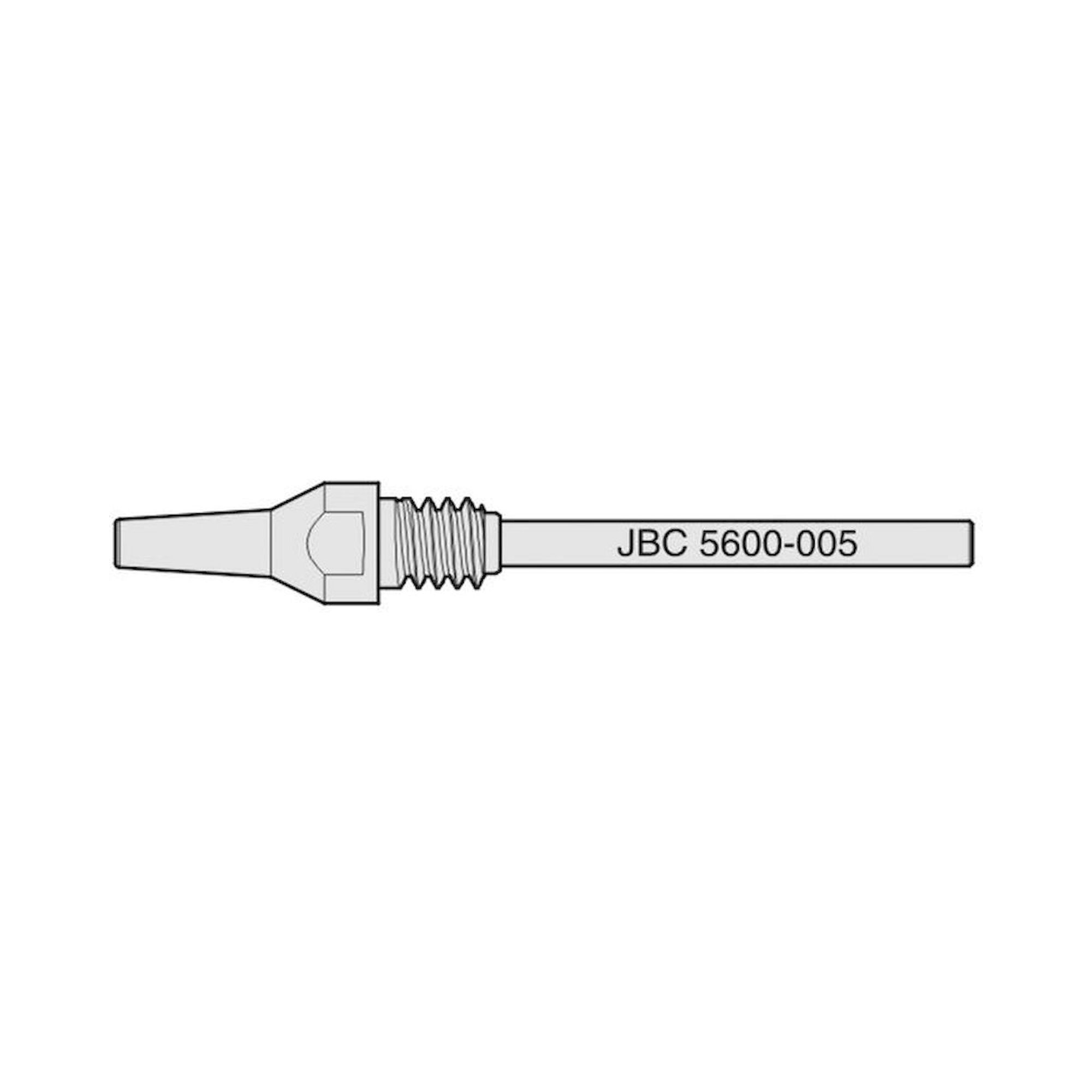

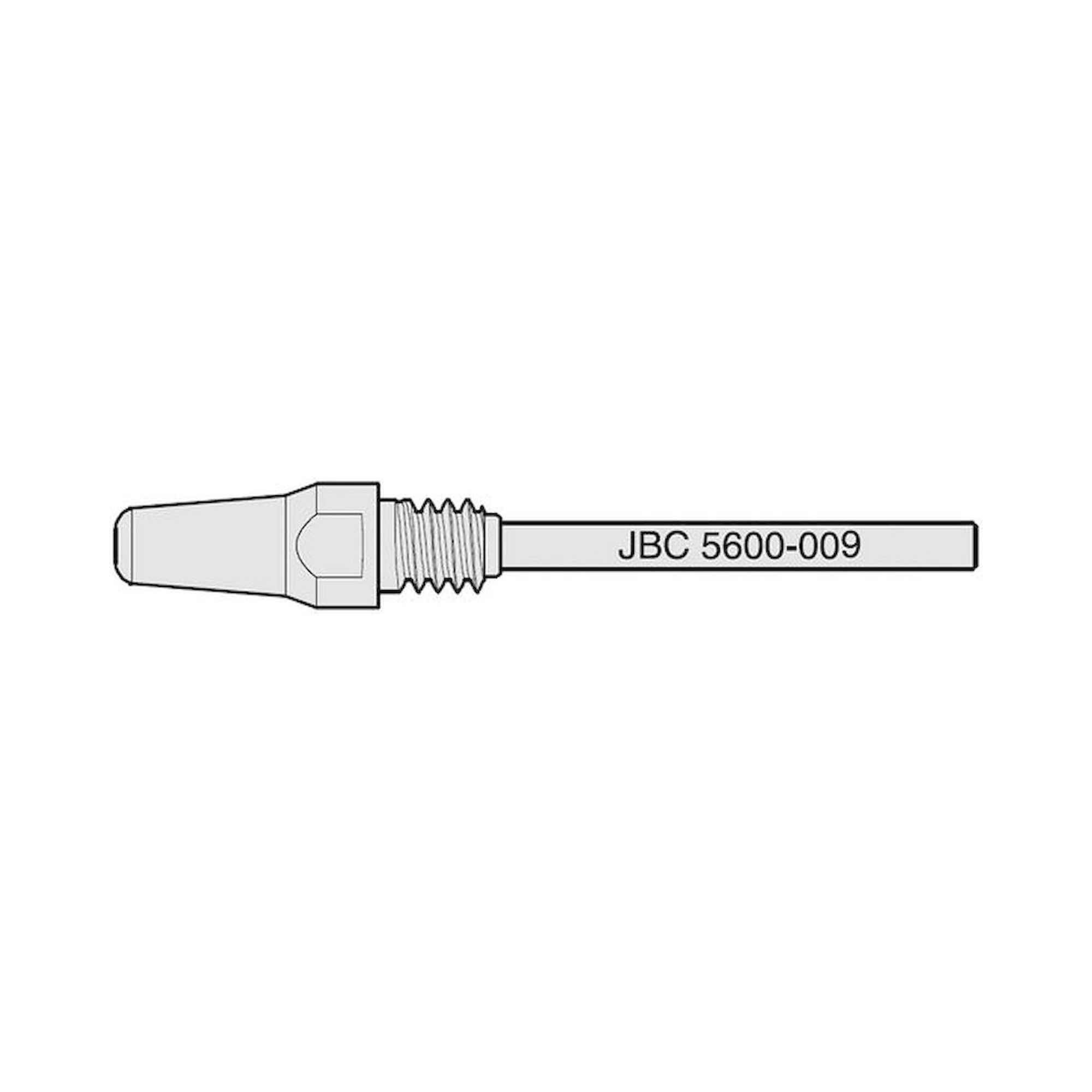

C560004 / C560009	Pin desoldering tip	1.1 mm
C560005	Pin desoldering tip	1.3 mm

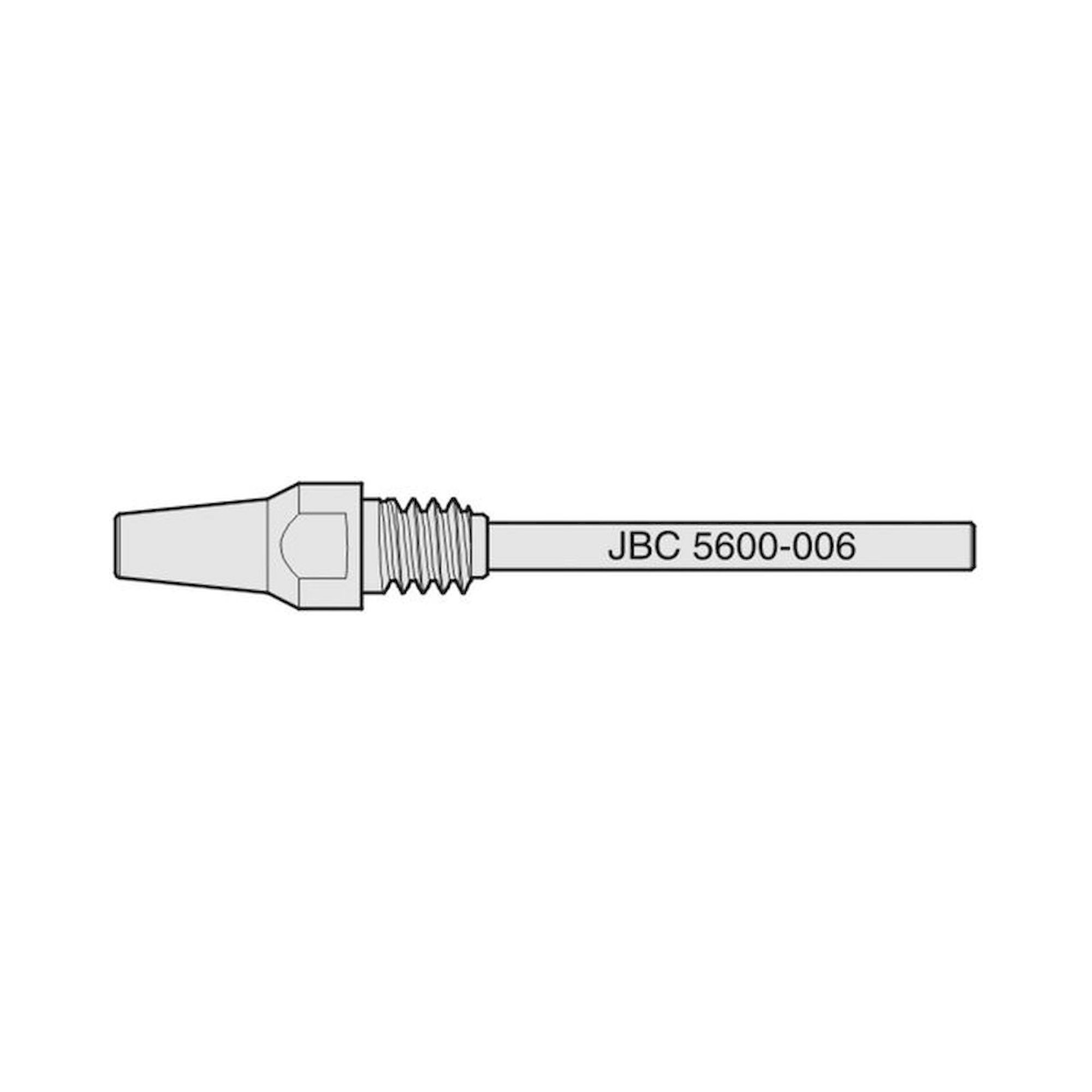

C560006	Pin desoldering tip	1.7 mm

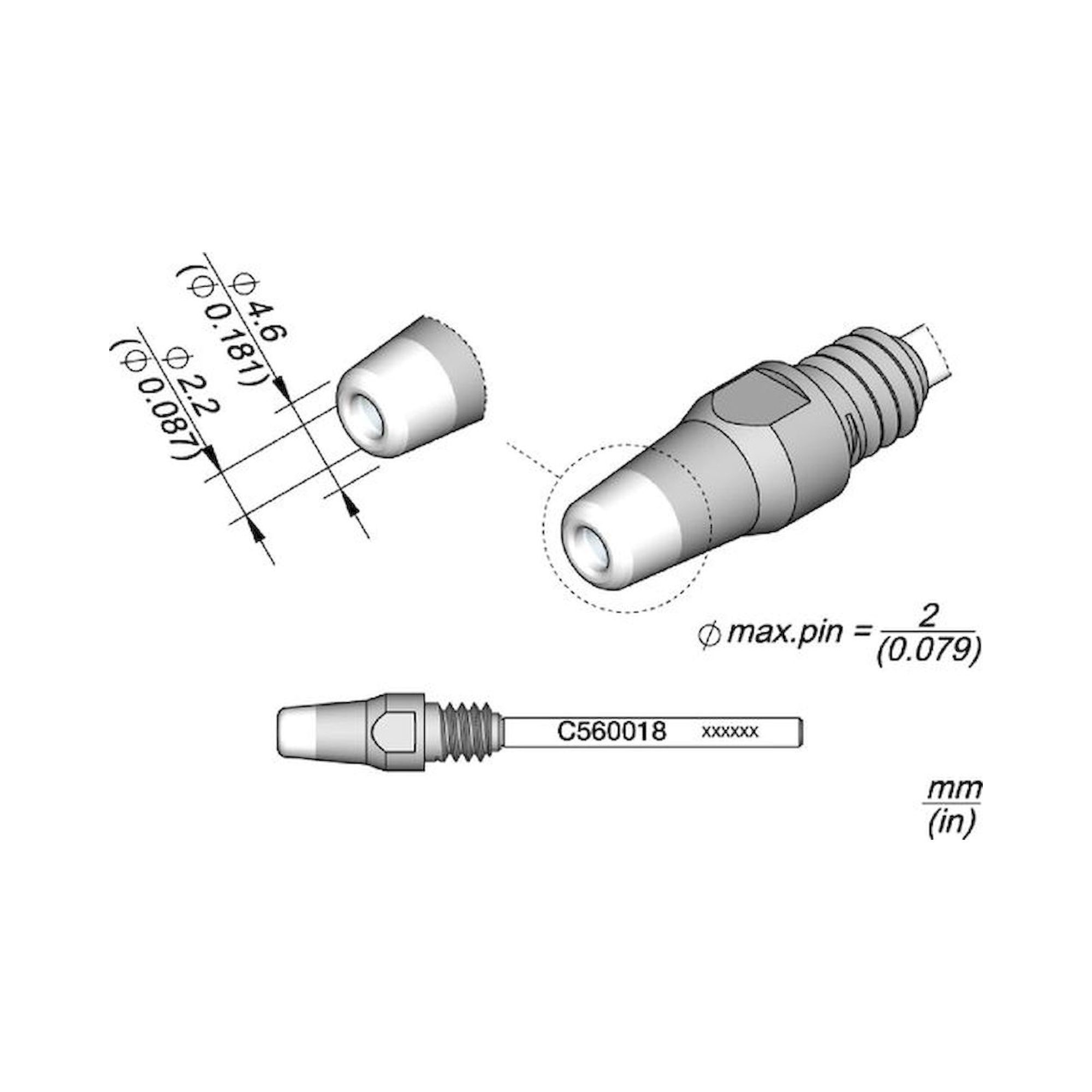

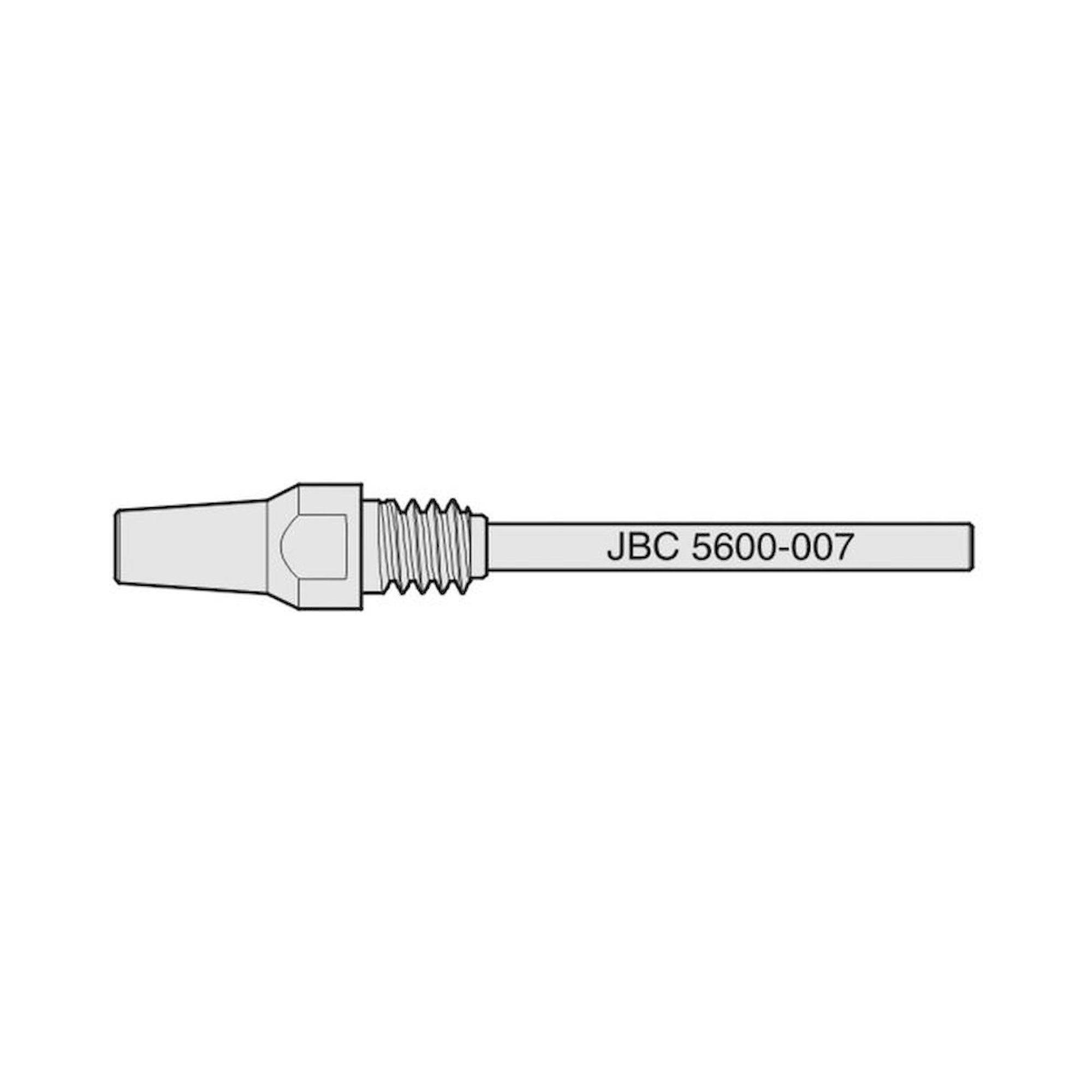

C560007 / C560018	Pin desoldering tip	2.2 mm

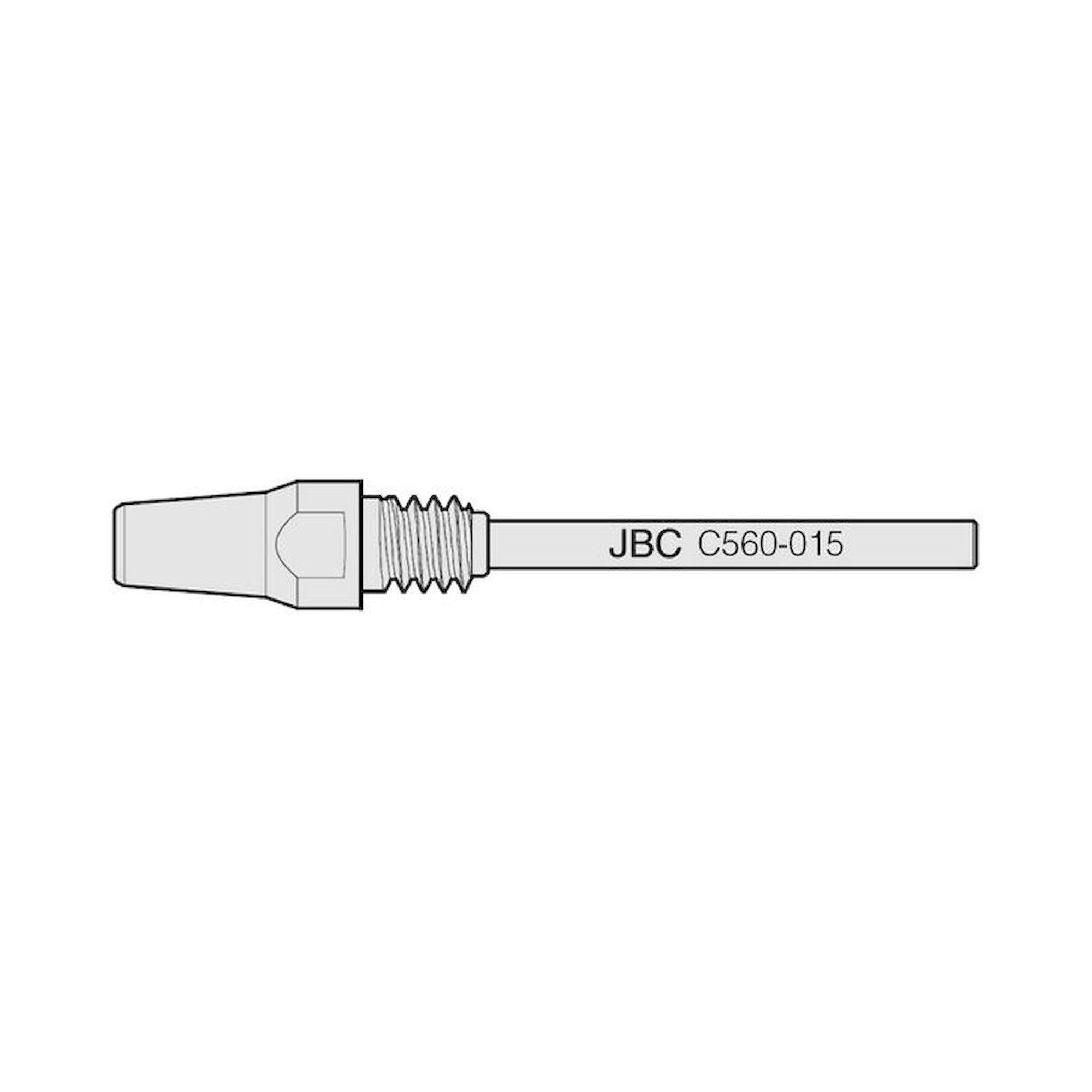

C560015	Pin desoldering tip	2.8 mm

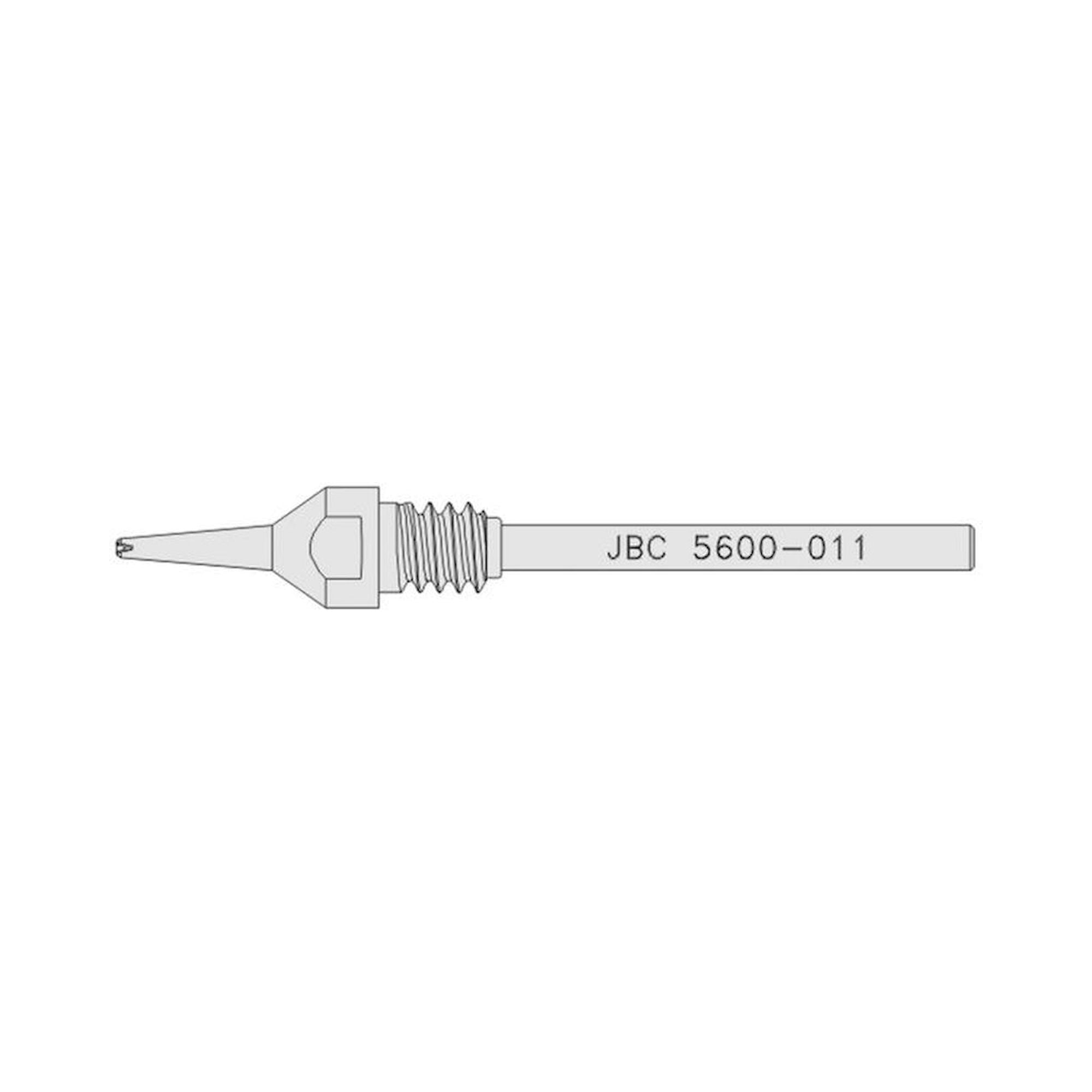

C560011	Pad cleaning	0.6 mm

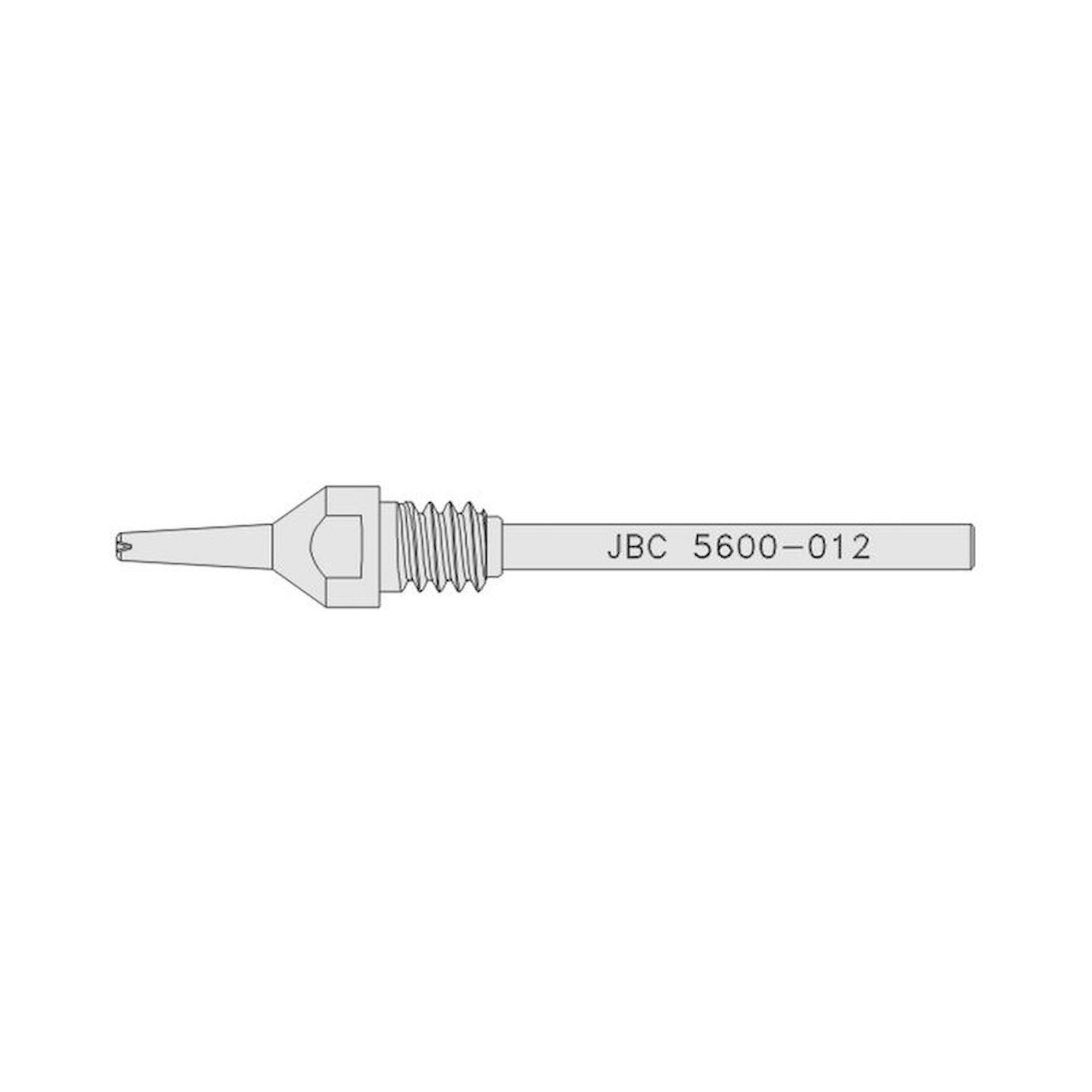

C560012	Pad cleaning	0.8 mm

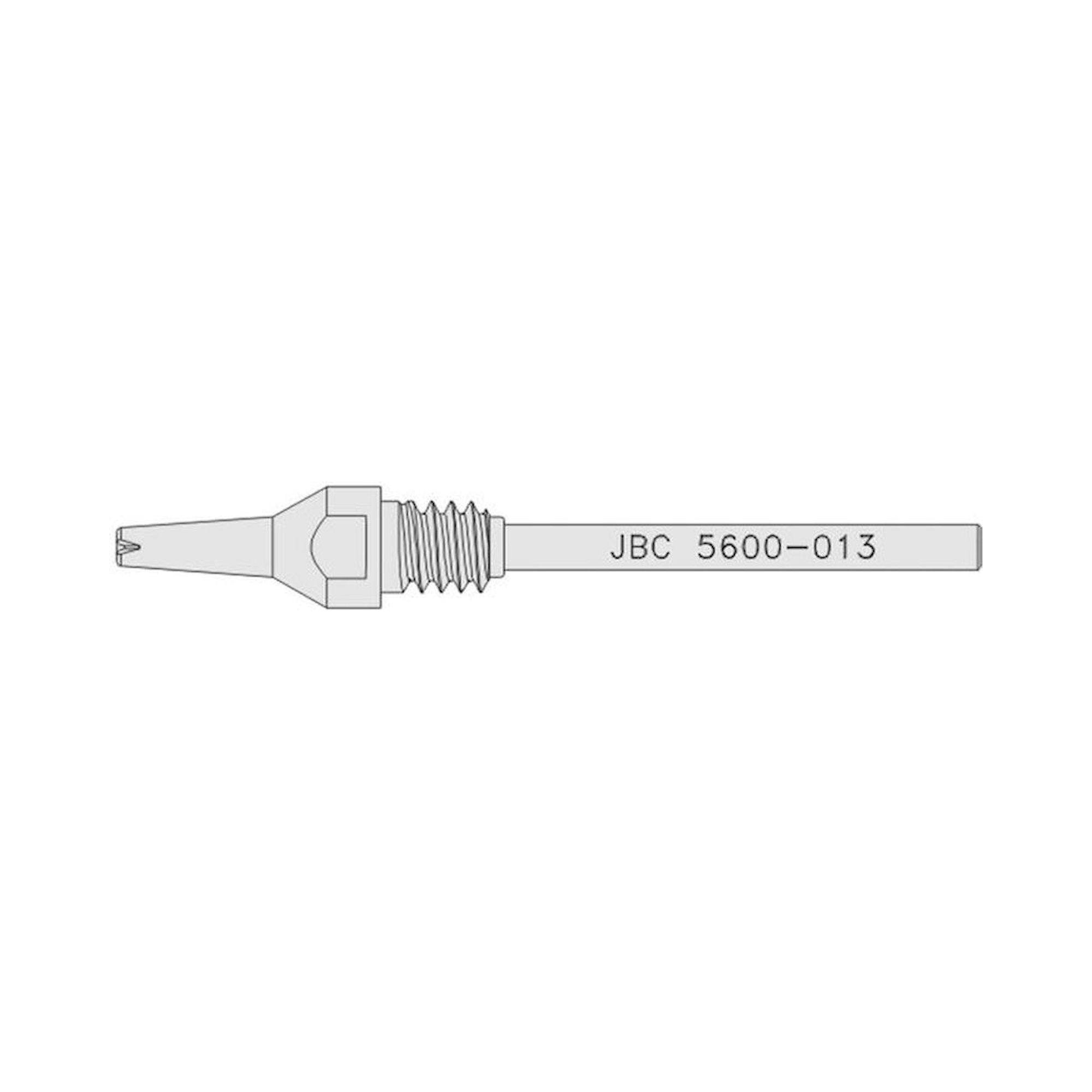

C560013	Pad cleaning	1.0 mm

Typical applications: Rework and repair of through-hole components (THT) on double-sided and multilayer PCBs, desoldering connectors and relays with pin pitches per IPC-7711/7721, pad cleaning prior to component re-population, and removal of transformers and inductors with large pin cross-sections up to 2.8 mm.
