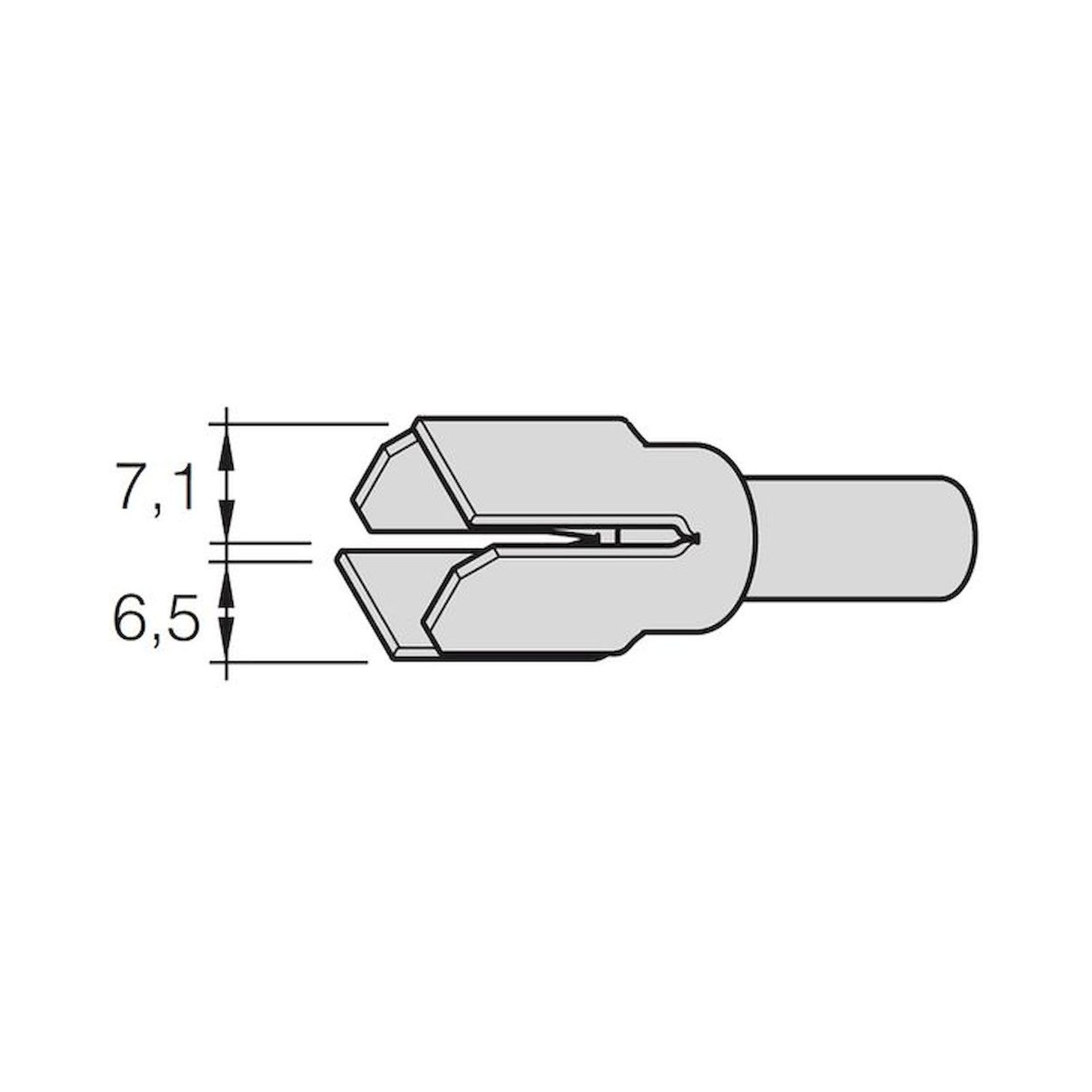

JBC SMD desoldering tips C245 for the T245 handpiece comprise 22 variants for the removal of a wide range of SMD package types. Chip desoldering tips are available at 1.9 mm (C245016), 2.2 mm (C245017), 3.4 mm (C245018) and 4.5 mm (C245019). QFP tips cover 8.5x8.5 mm (C245223), 12.4x15 mm (C245228), 15x15 mm (C245315) and 12x12 mm (C245224). Socket tips are available in 11.9x14.5 mm (C245248), 17x17 mm (C245247) and 17.5x17.5 mm (C245227). Tunnel desoldering tips range from 5.4x6 mm (C245220) through 5.4x10 mm (C245221) and 7.1x13 mm (C245222) to the large forms 9.6x18 mm (C245215) and 15.2x29 mm (C245226). A special form for Micro Stick Switch (C245136) rounds out the range.
| Type | Part no. | Size |
|---|---|---|

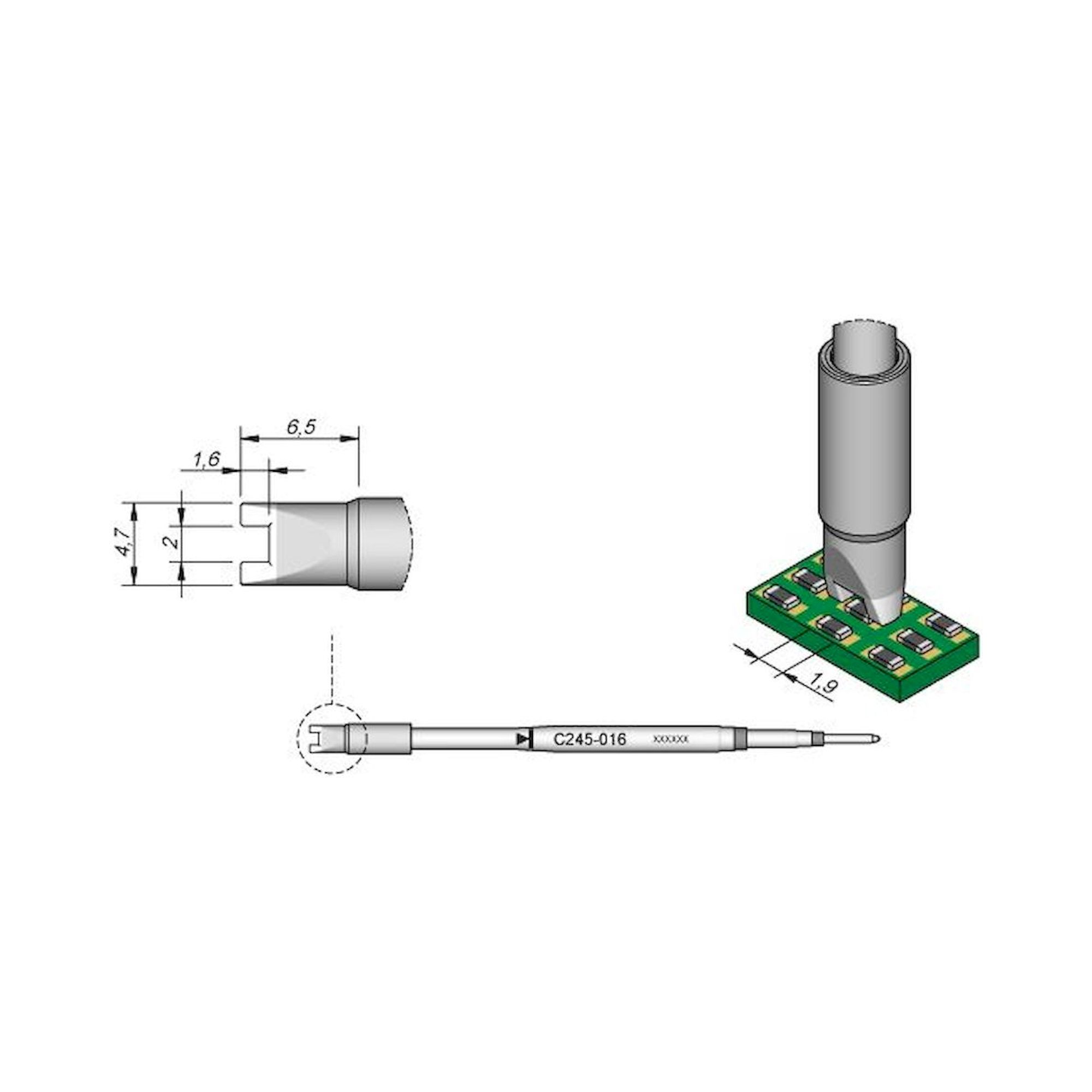

| Chip | C245016 | 1.9 mm |

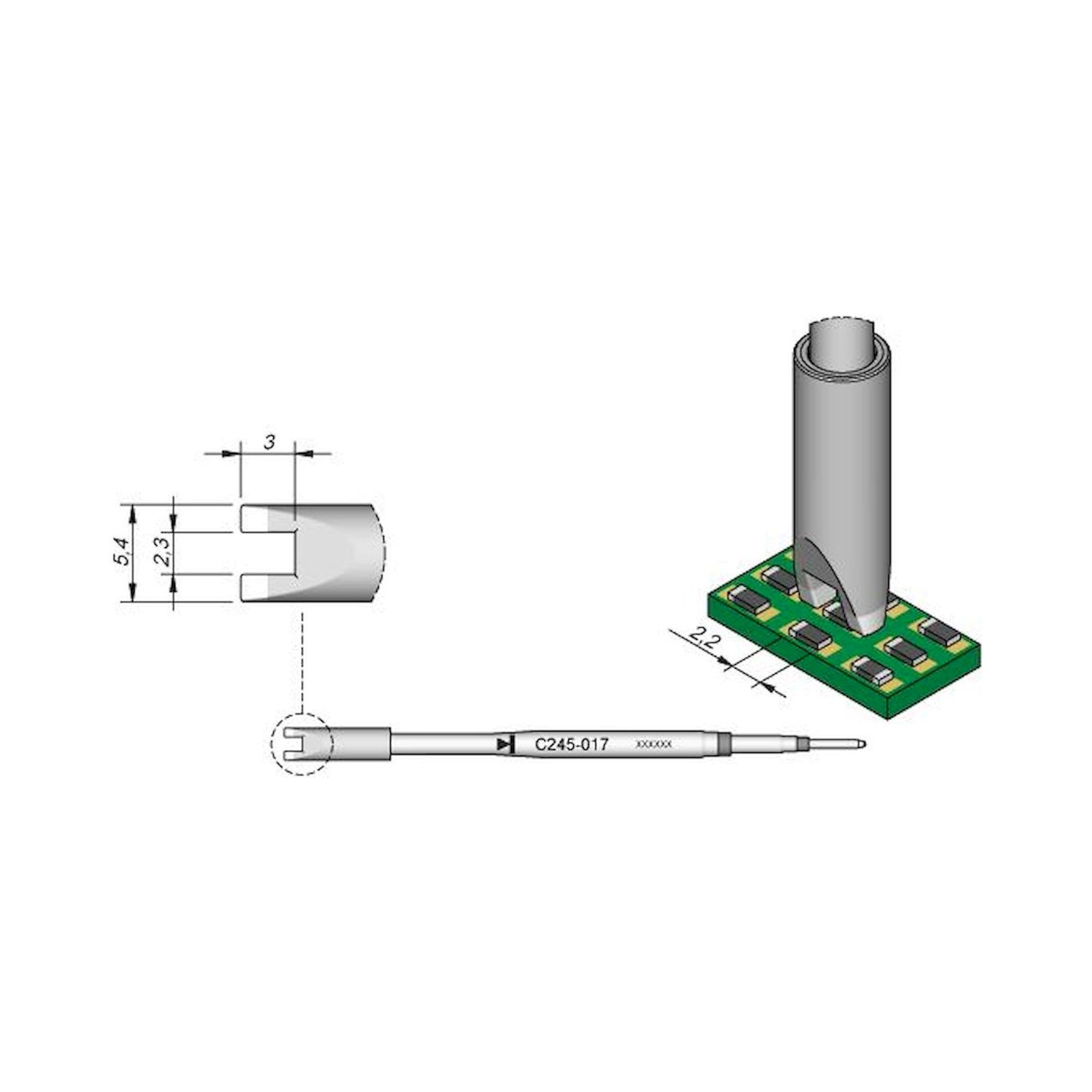

| Chip | C245017 | 2.2 mm |

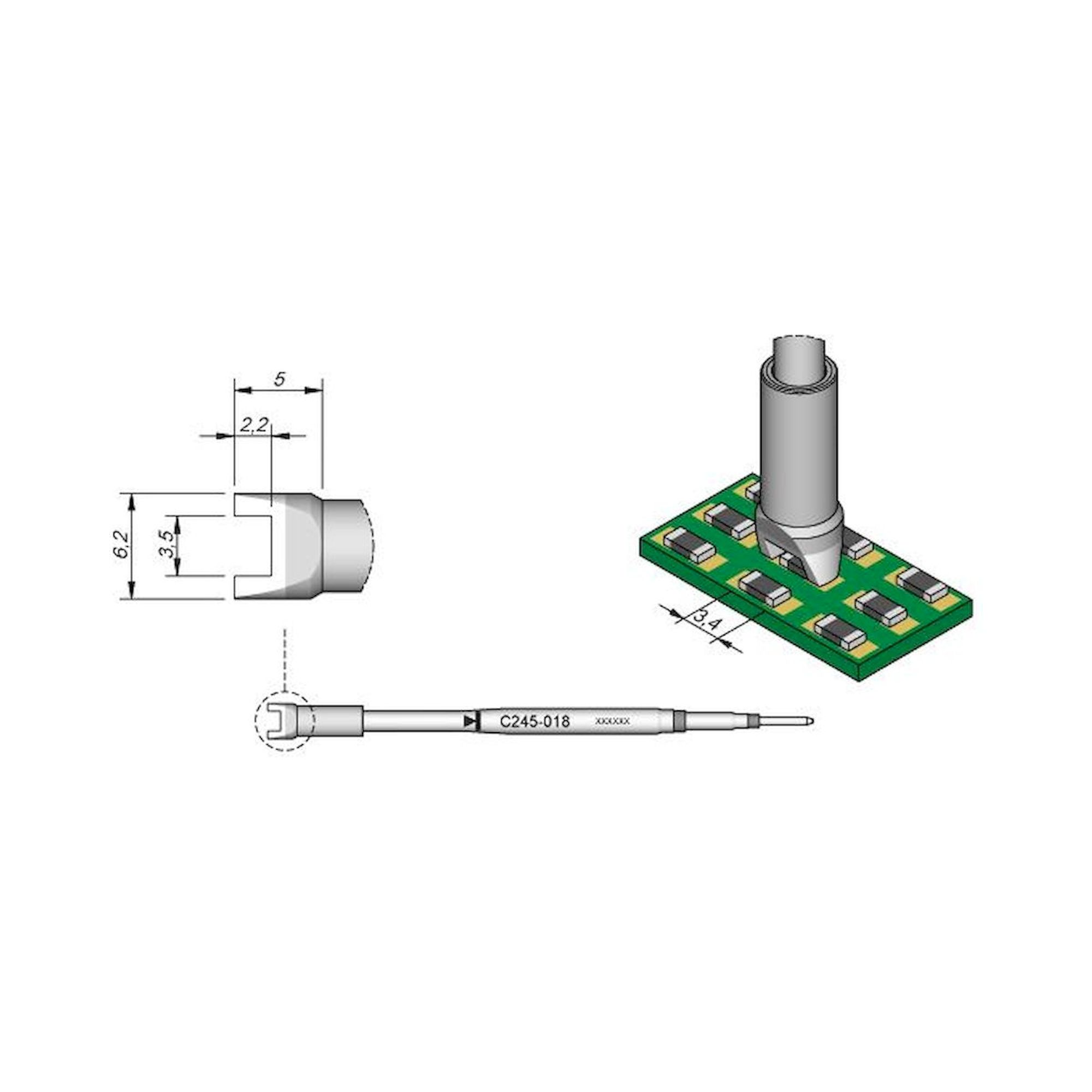

| Chip | C245018 | 3.4 mm |

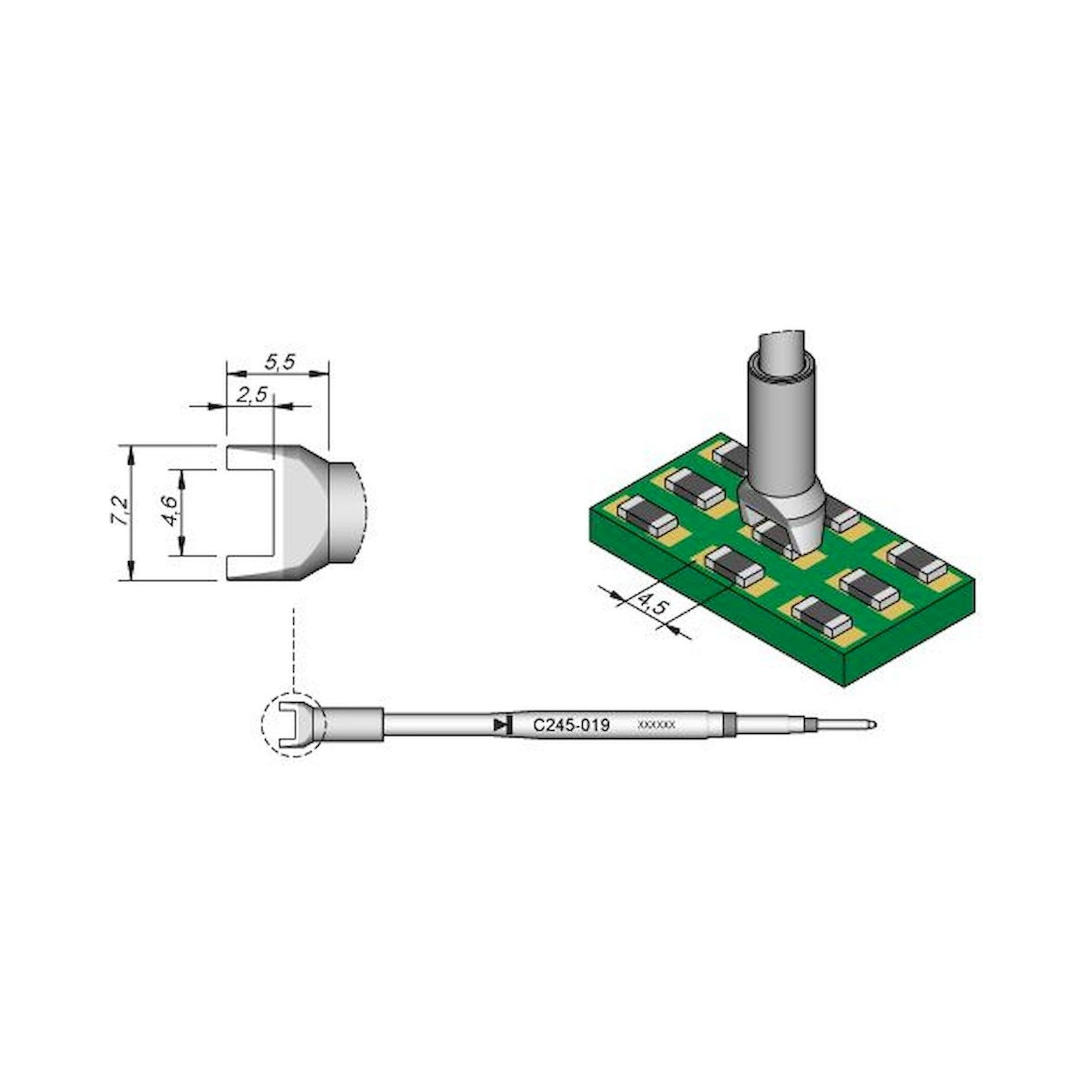

| Chip | C245019 | 4.5 mm |
| QFP | C245223 | 8.5x8.5 mm |

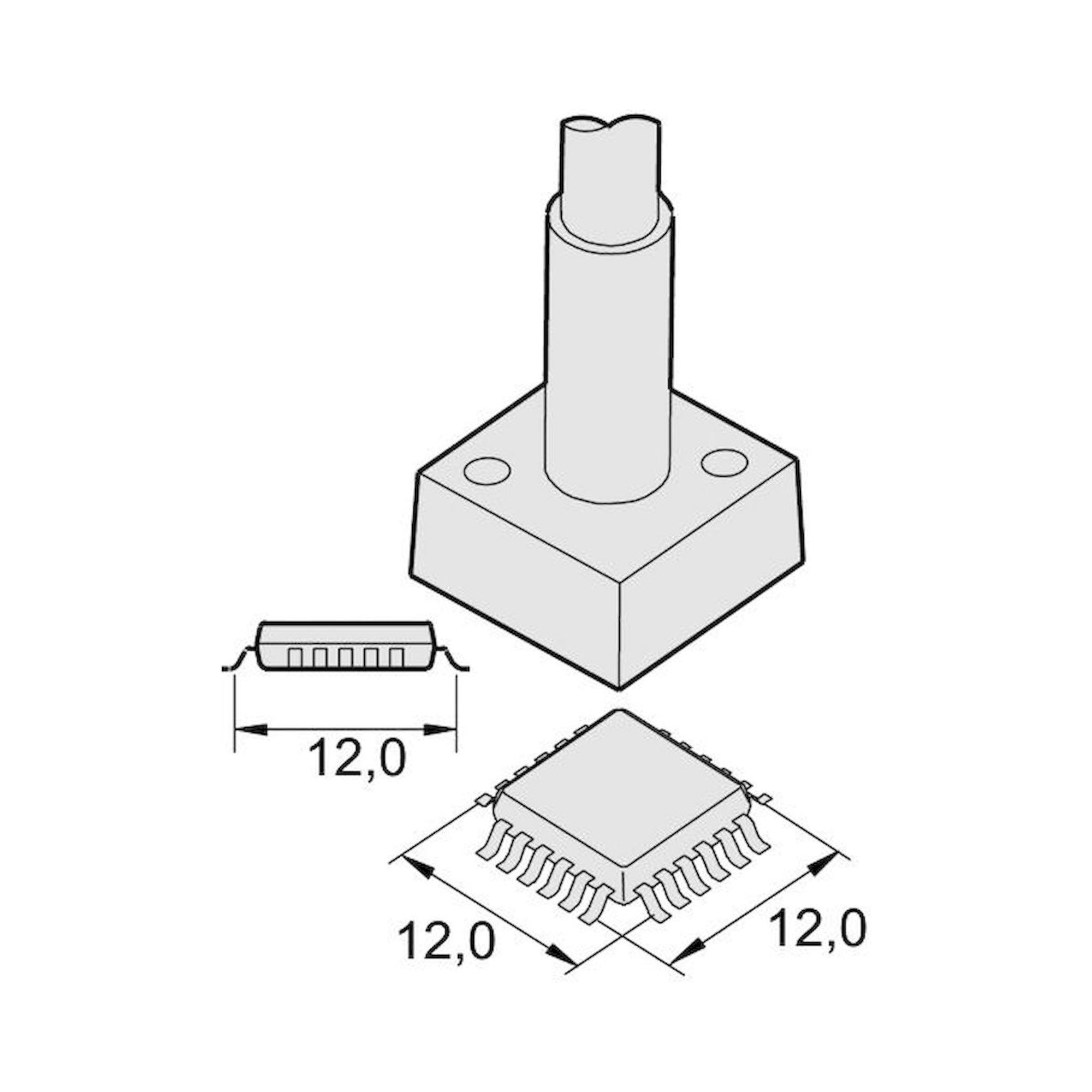

| QFP/PLCC | C245224 | 12x12 mm |

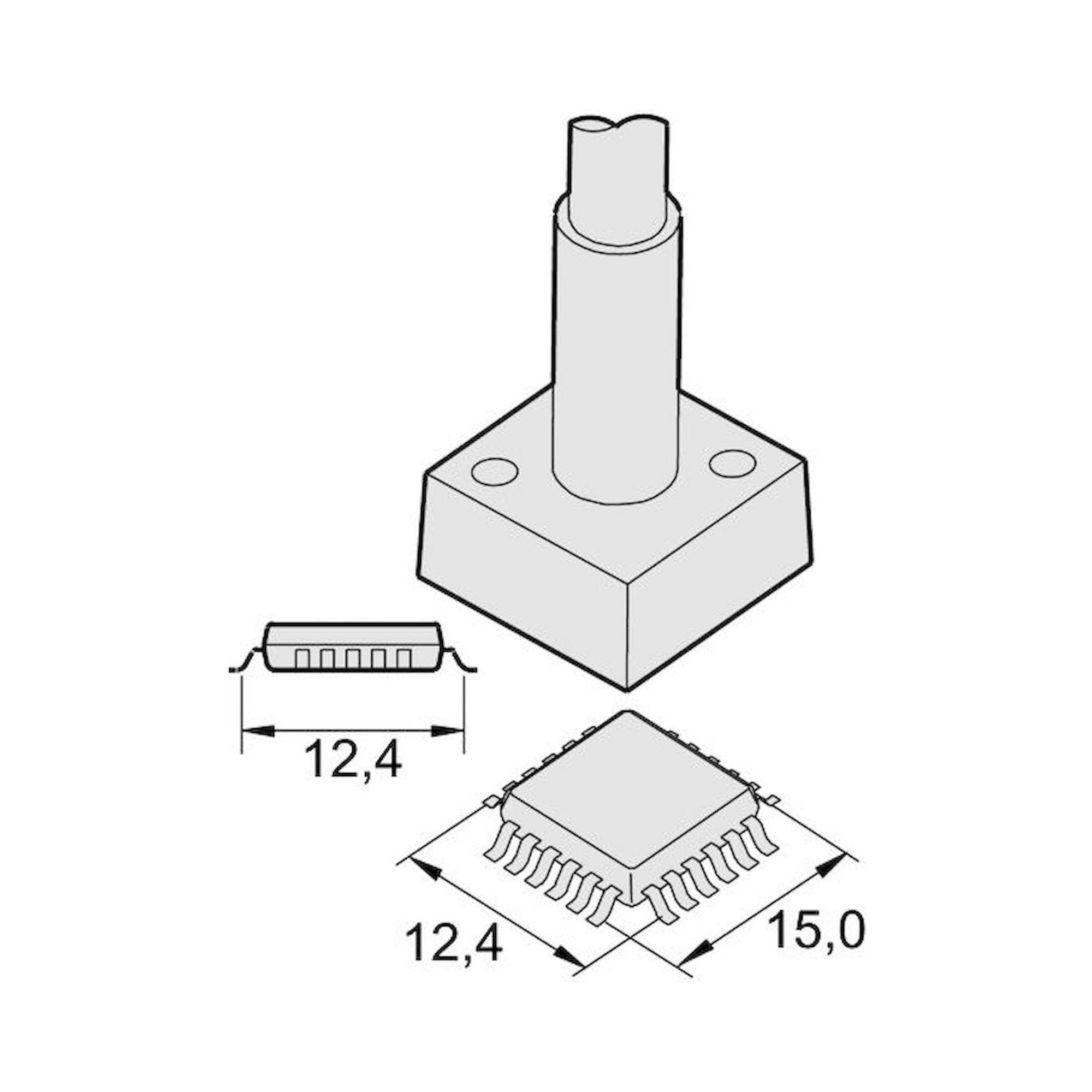

| QFP | C245228 | 12.4x15 mm |

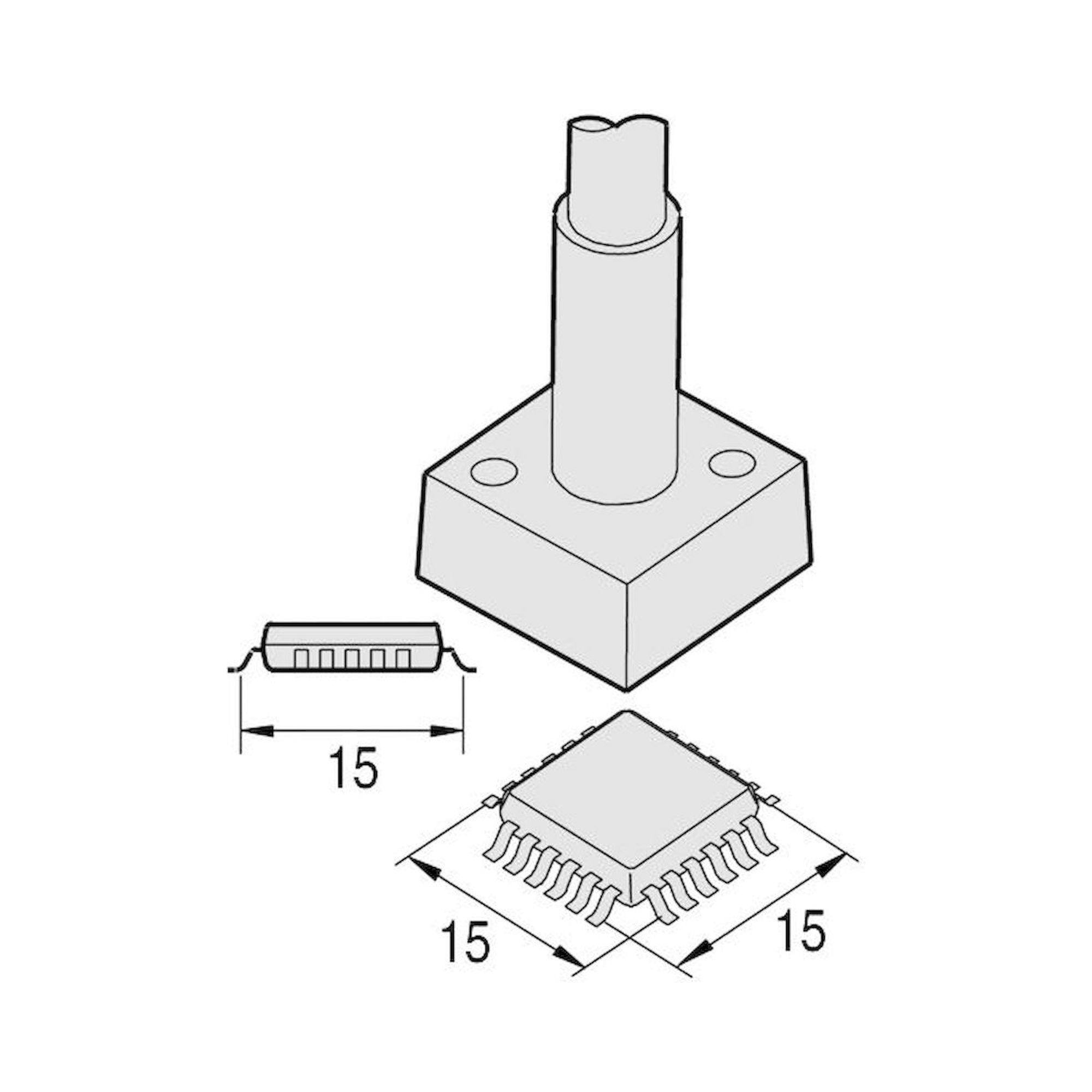

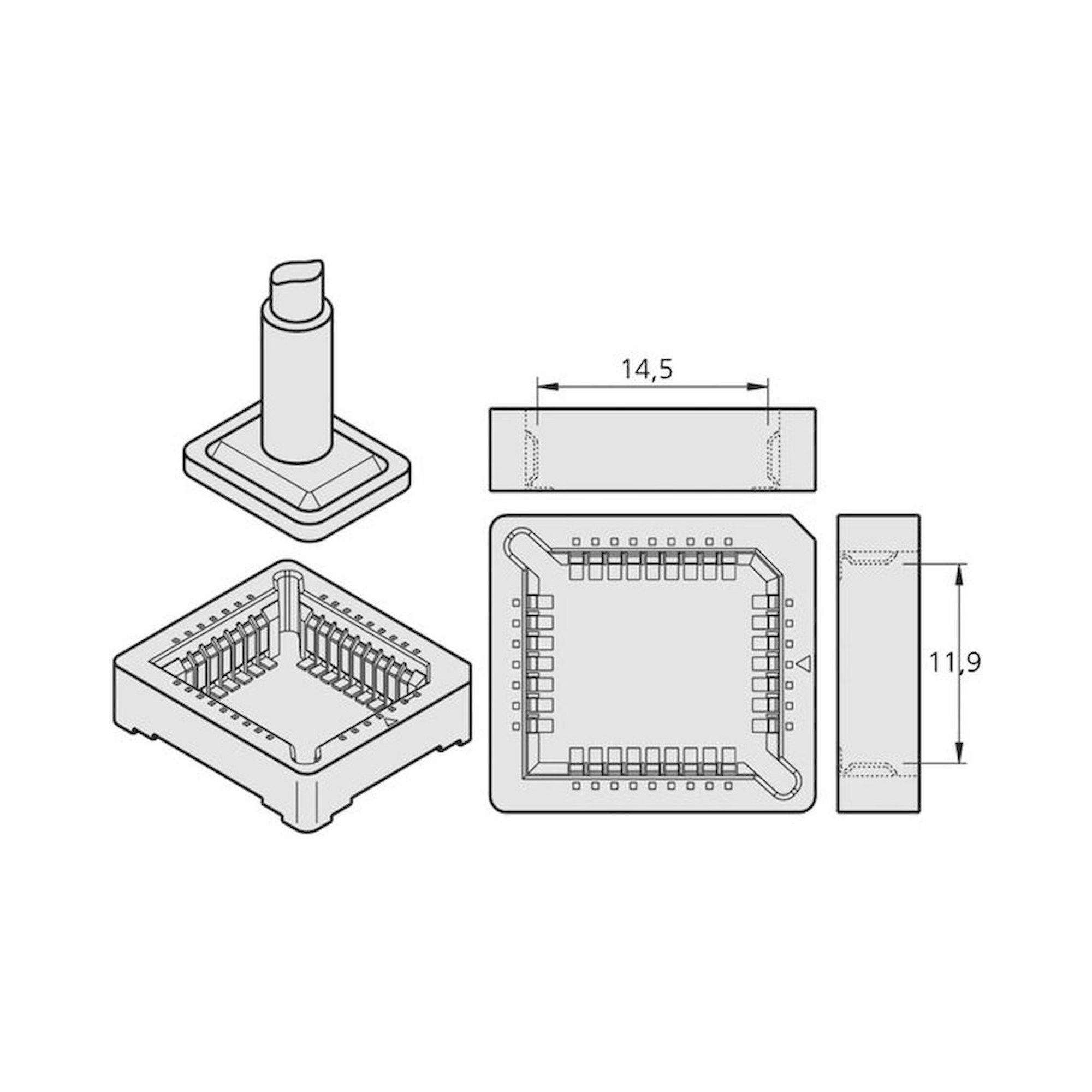

| QFP | C245315 | 15x15 mm |
| Socket/flat | C245227 | 17.5x17.5 mm |
| Socket | C245247 | 17x17 mm |

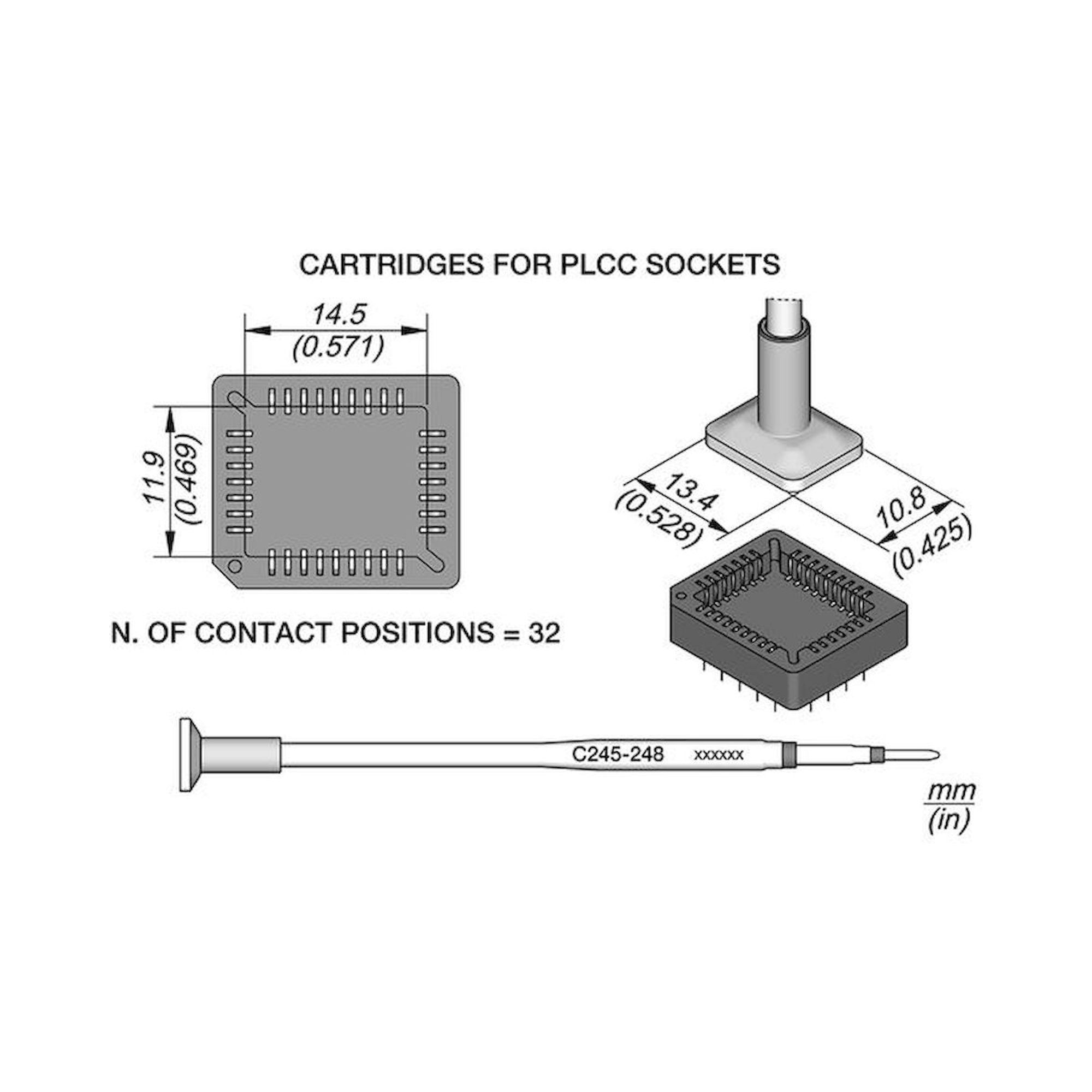

| Socket | C245248 | 11.9x14.5 mm |

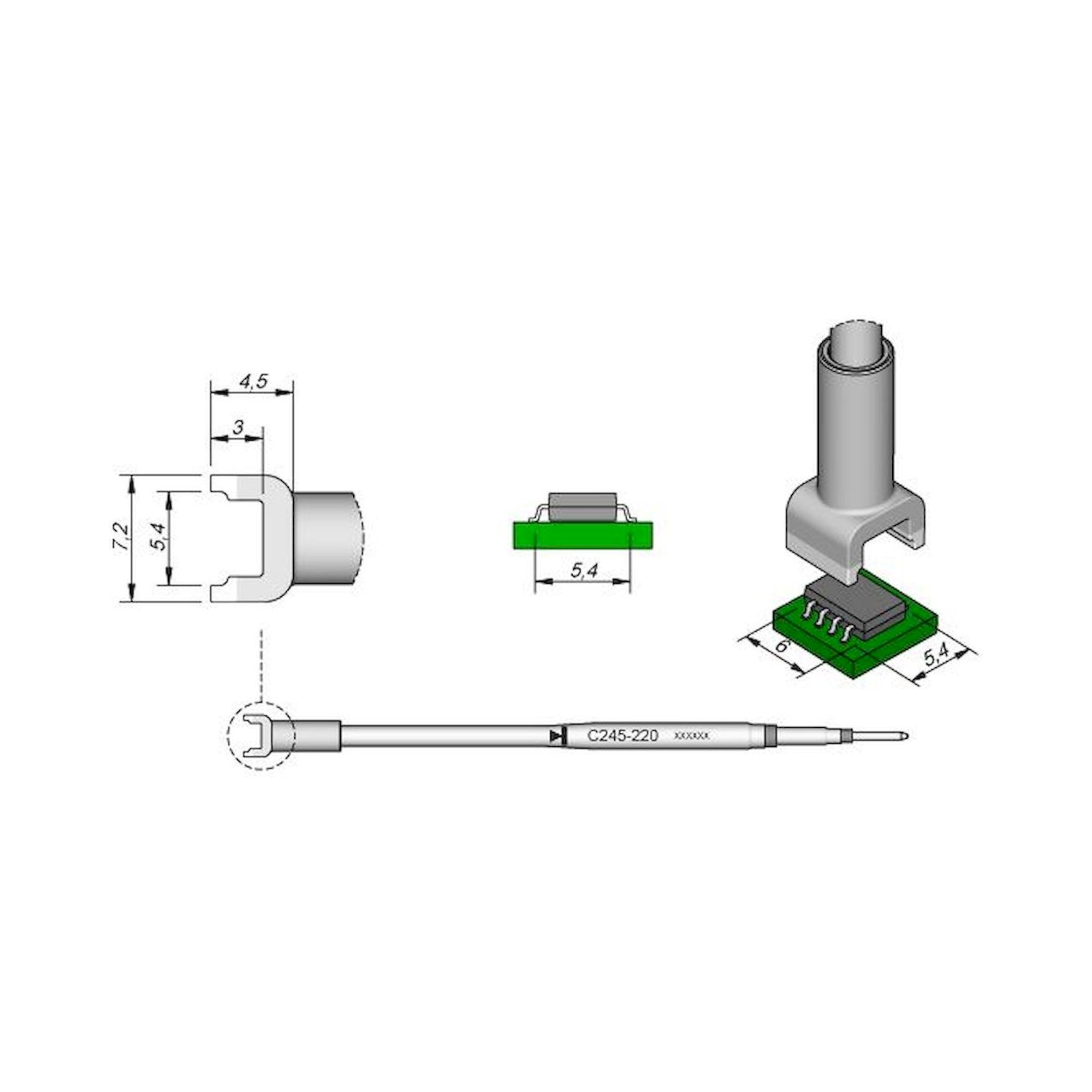

| Tunnel | C245220 / C245250 | 5.4x6 / 5.4x8 mm |

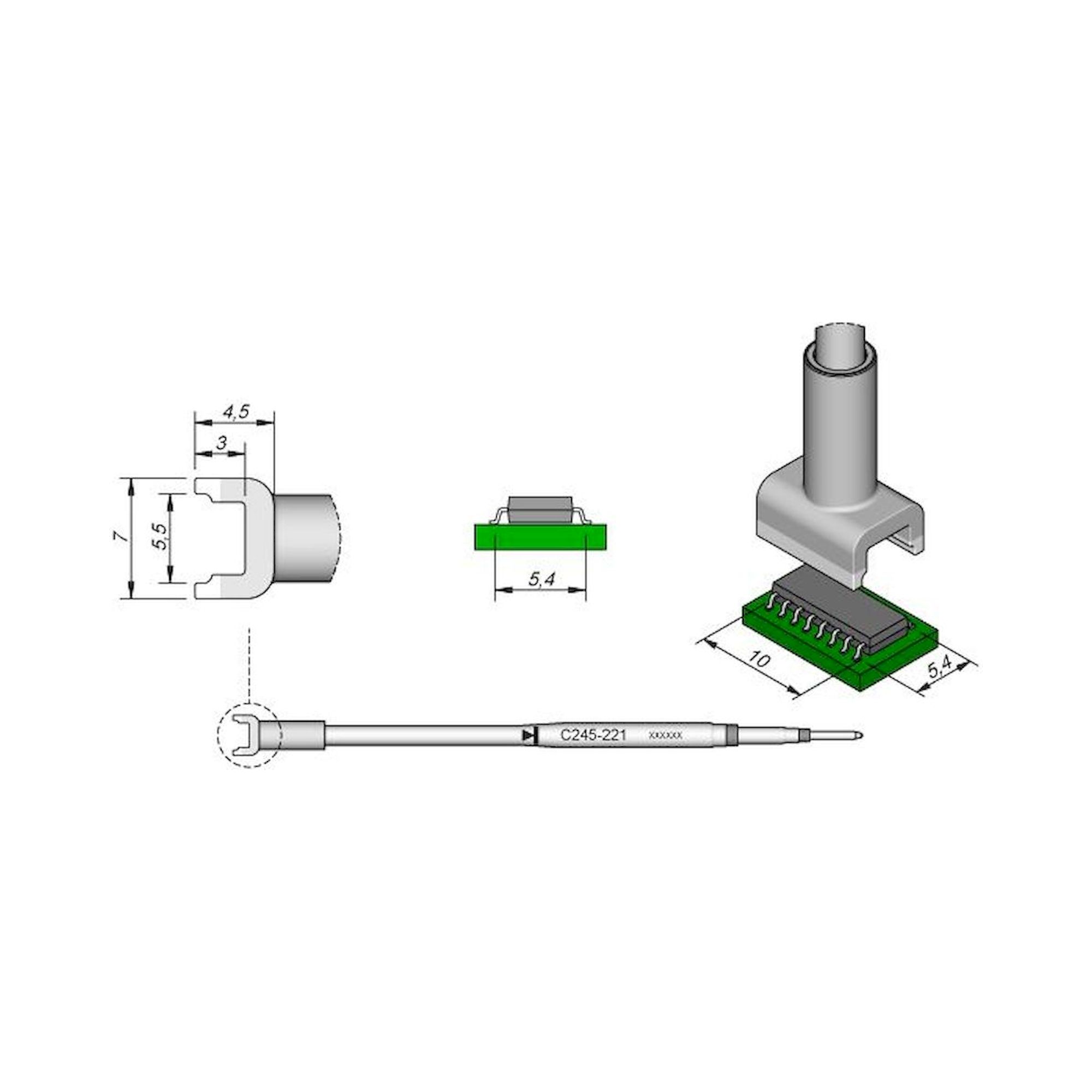

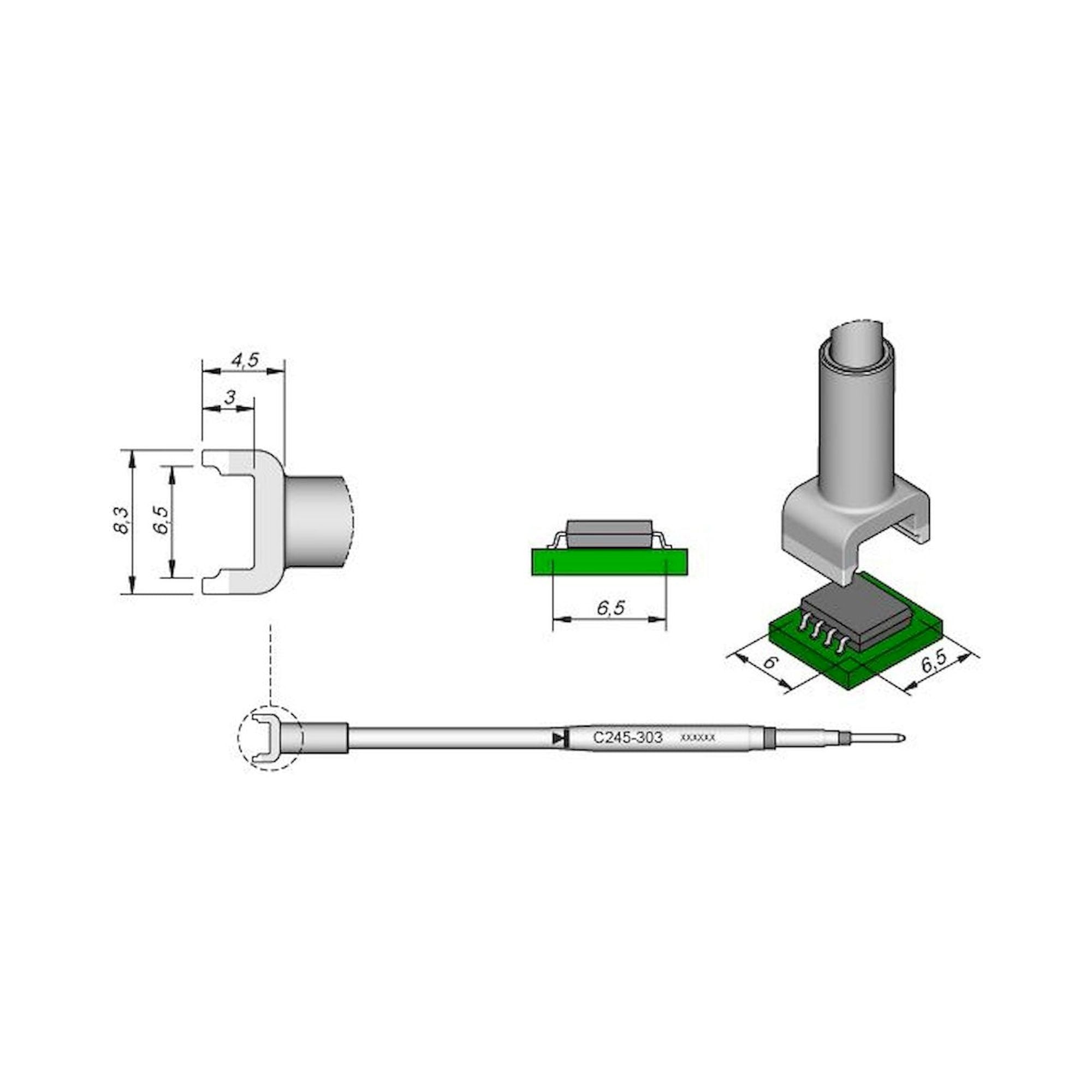

| Tunnel | C245221 / C245303 | 5.4x10 / 6.5x6 mm |

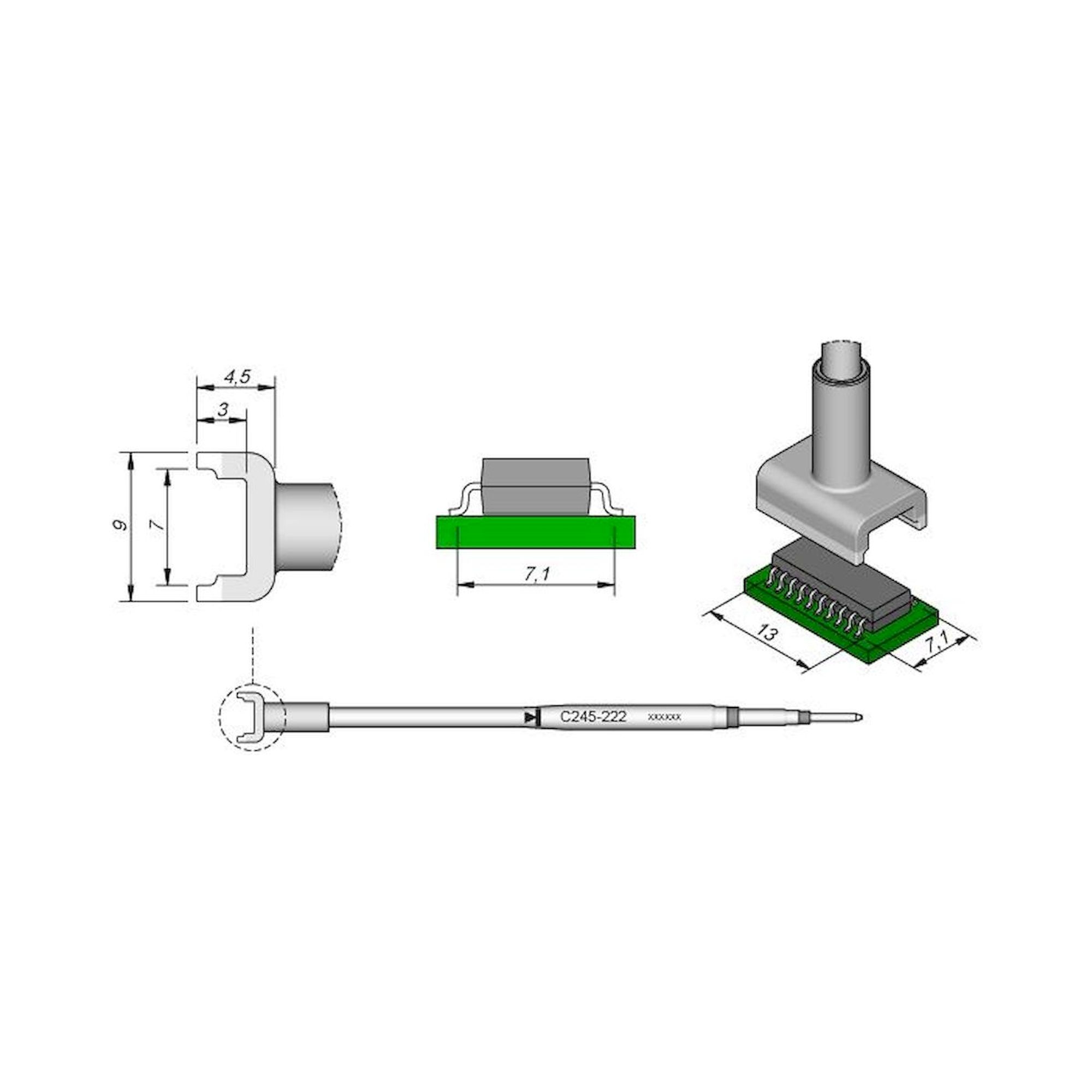

| Tunnel | C245222 | 7.1x13 mm |

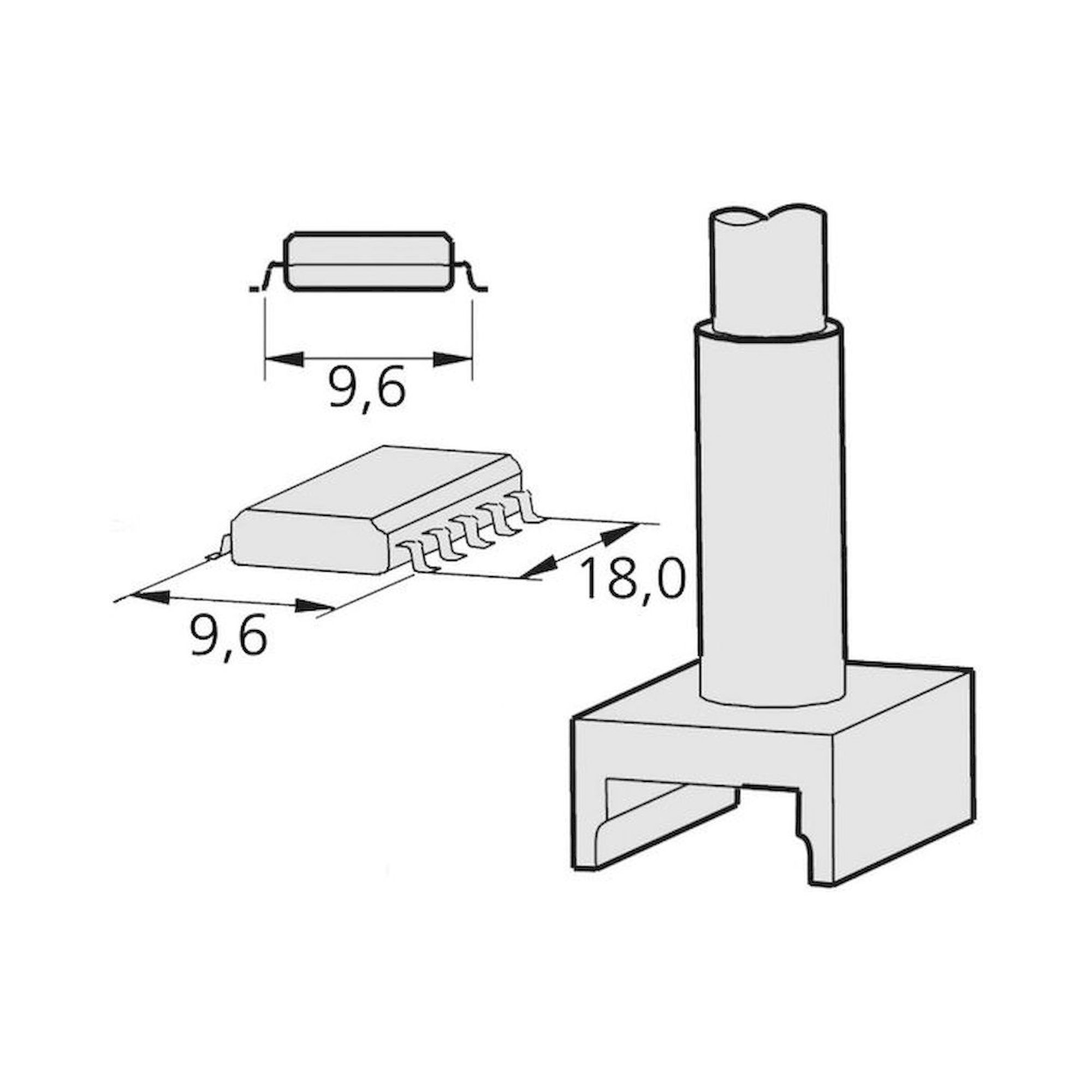

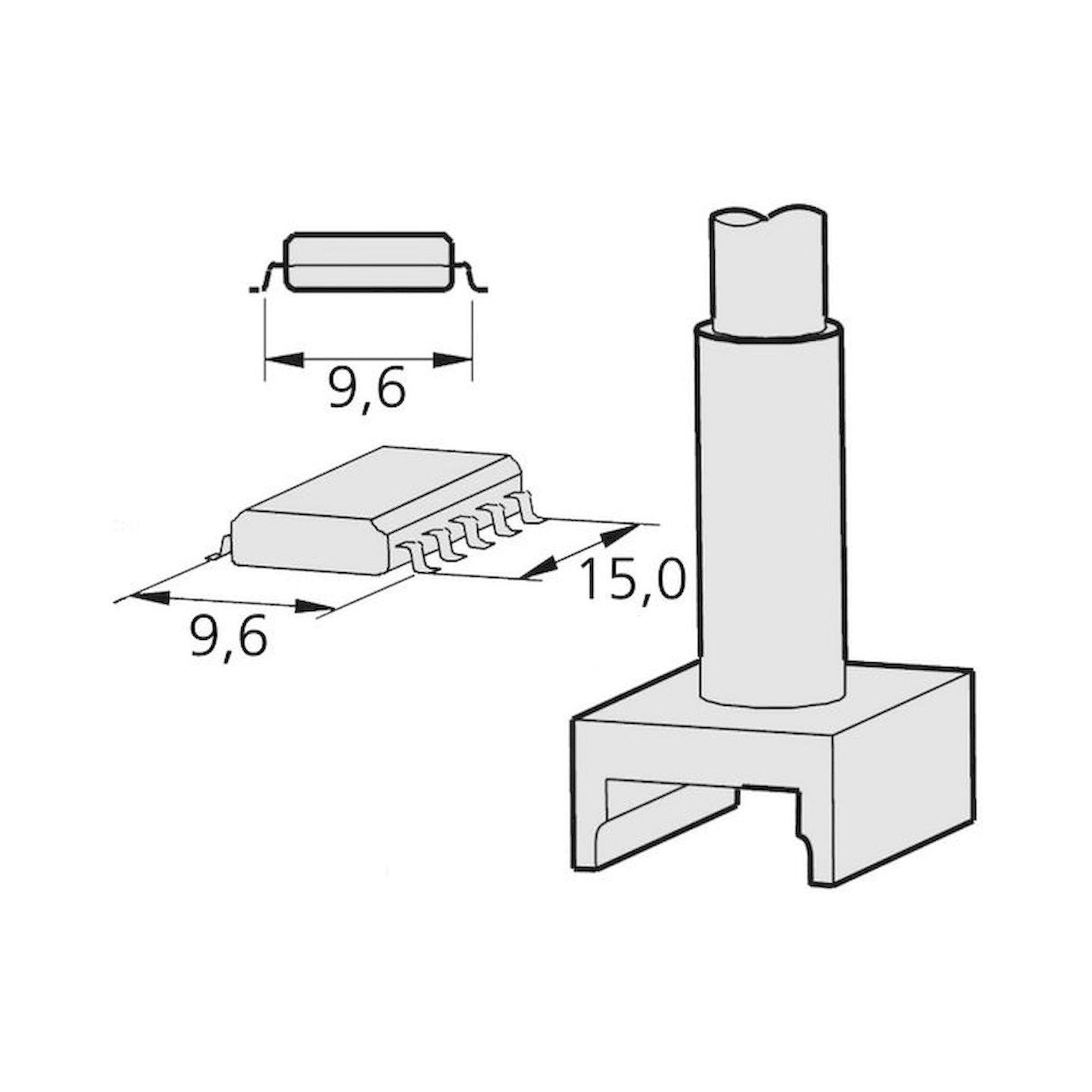

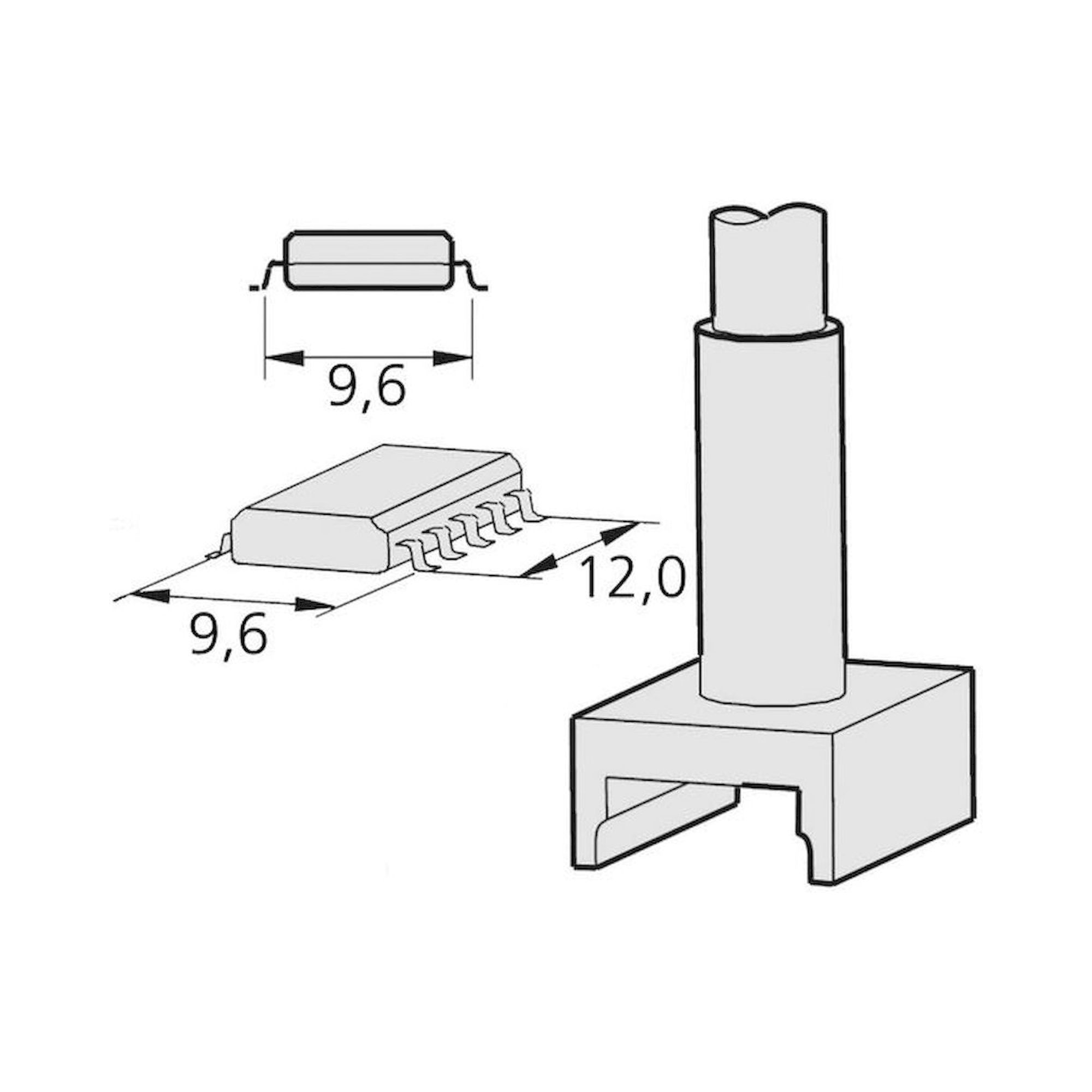

| Tunnel | C245215 | 9.6x18 mm |

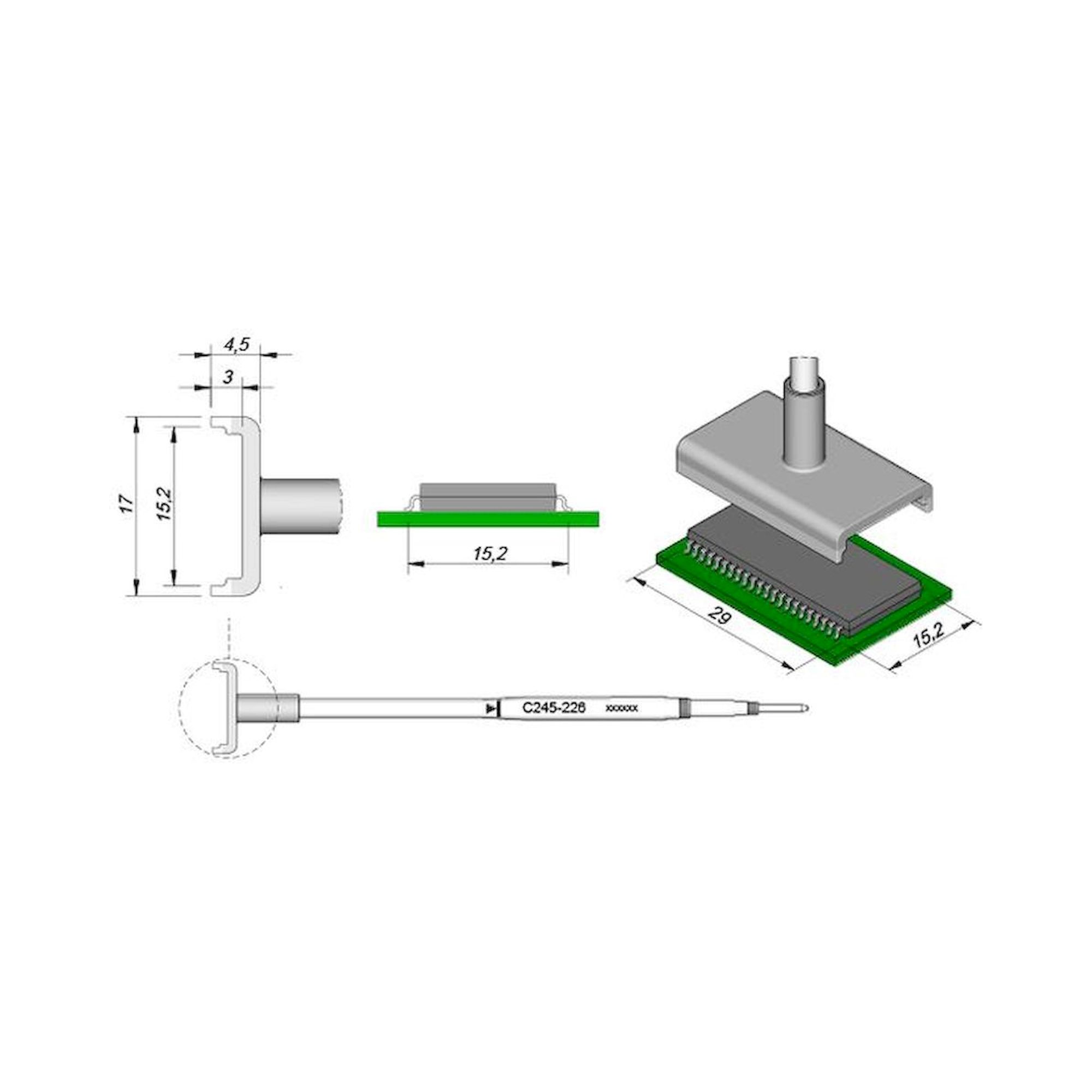

| Tunnel (solder tip) | C245226 | 15.2x29 mm |
Typical applications: Removal of chip SMD components (0402 to 1206 and larger), complete single-operation desoldering of QFP and PLCC packages, tunnel desoldering of SOIC and SOT on populated PCBs with the T245 handpiece, and rework in electronics assembly and after-sales service.
