Desoldering tips C120
Desoldering tips
JBC C120 tips are designed exclusively for the PA120-A micro-soldering iron and cover a wide range of tip geometries: conical bent tips (C120001, C120002, C120004, C120006, C120012, C120902) from 0.2 mm to 0.7 mm diameter, blade-type tips (C120003, C120005, C120007-C120010, C120013) from 2x0.35 mm to 6x0.7 mm, and a chisel-bent variant (C120011, 0.6x0.3 mm). The PA120-A uses the JBC NANO heating system, reaching working temperature in under one second, with a sleep/hibernate mode that reduces oxidation-driven tip wear.
| Model | Shape | Dimension |
|---|---|---|

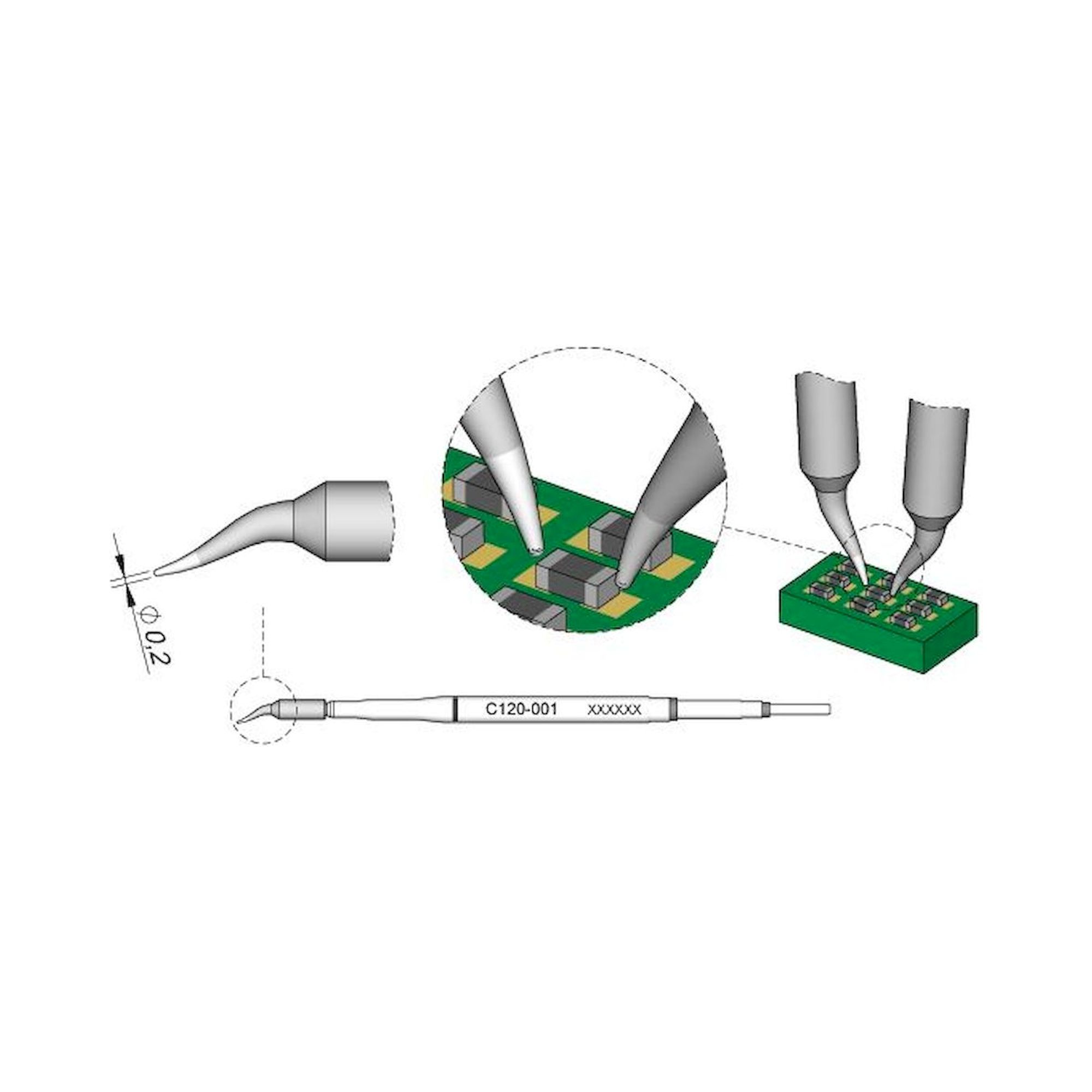

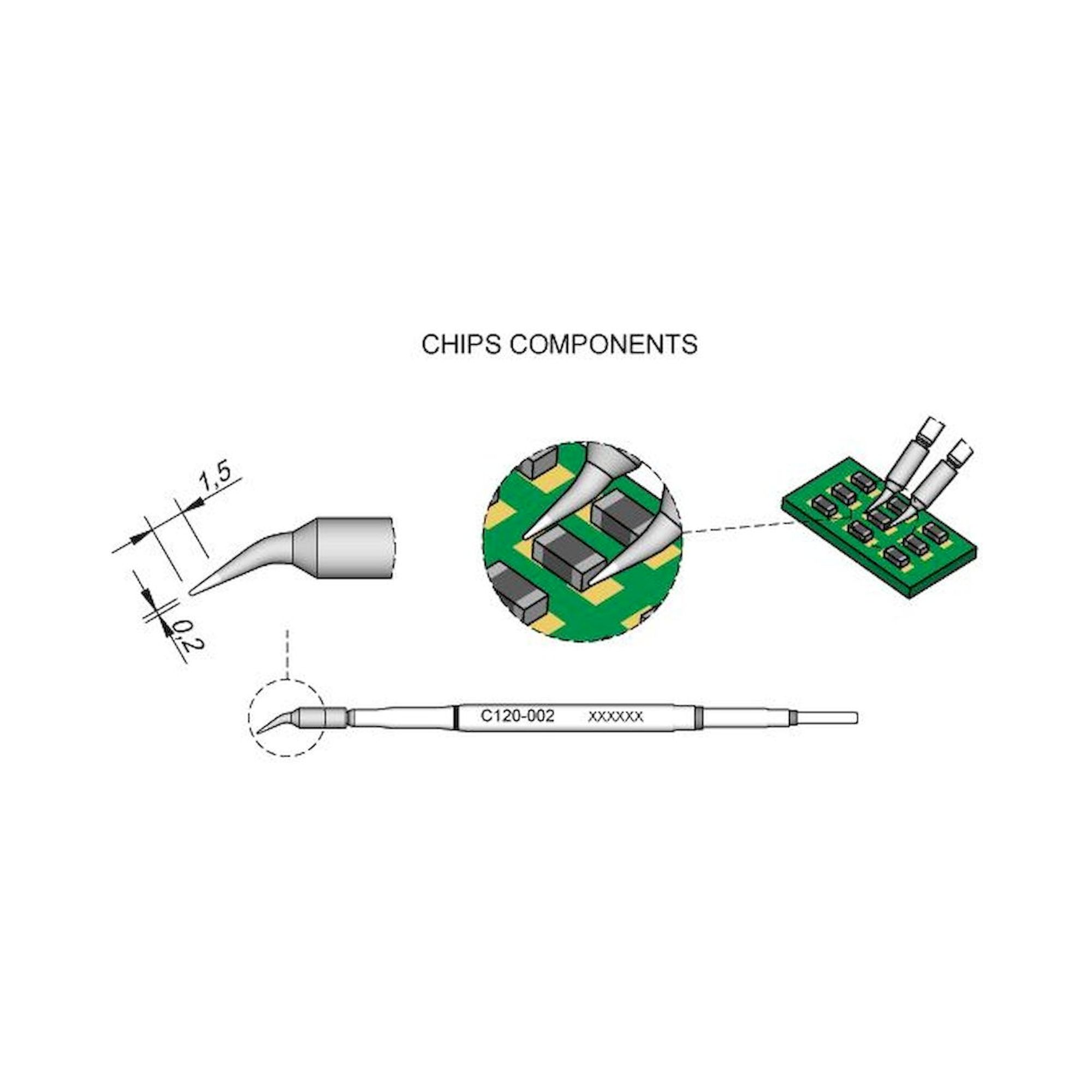

| C120001 / C120002 | Conical bent | D: 0.2 mm |

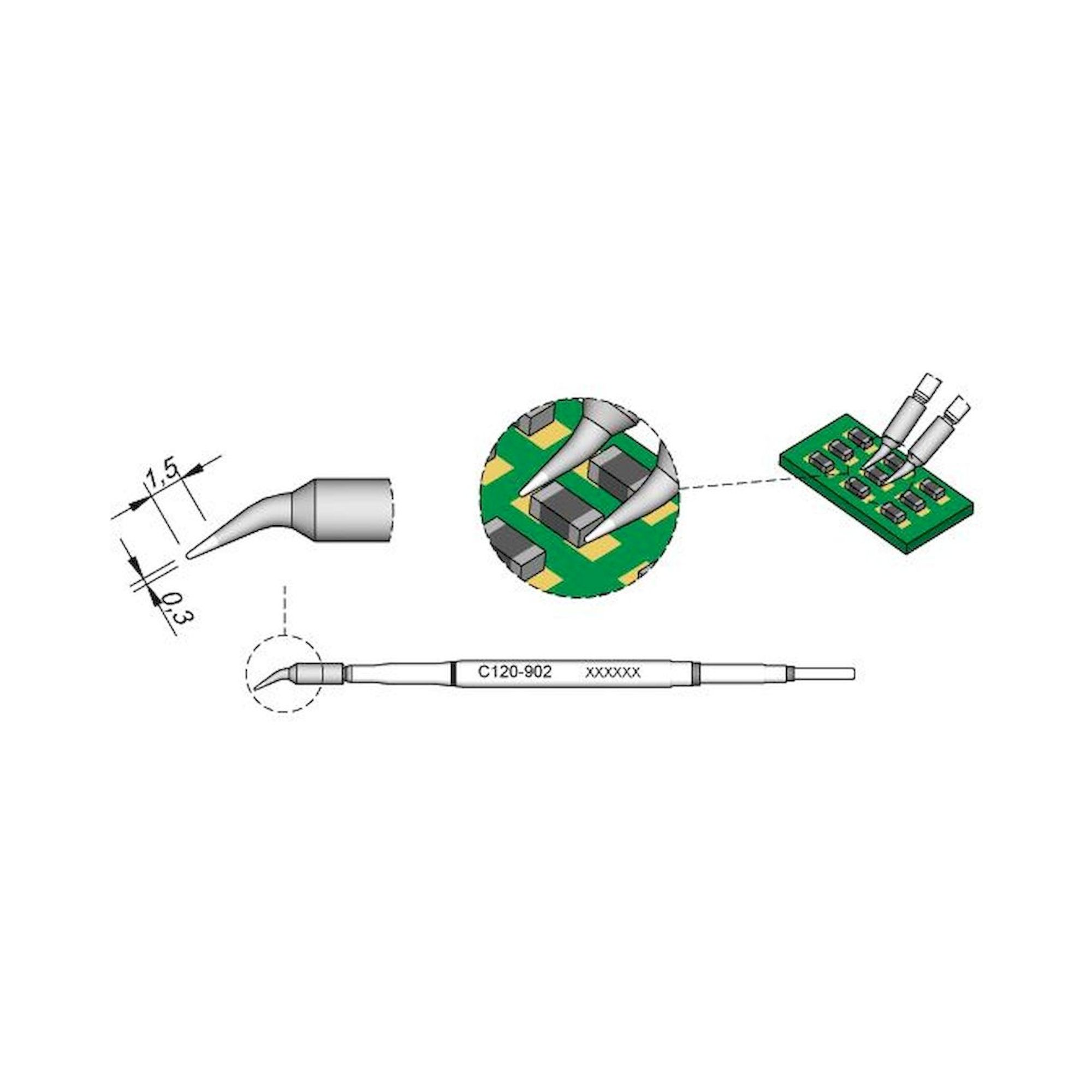

| C120902 | Conical bent | D: 0.3 mm |

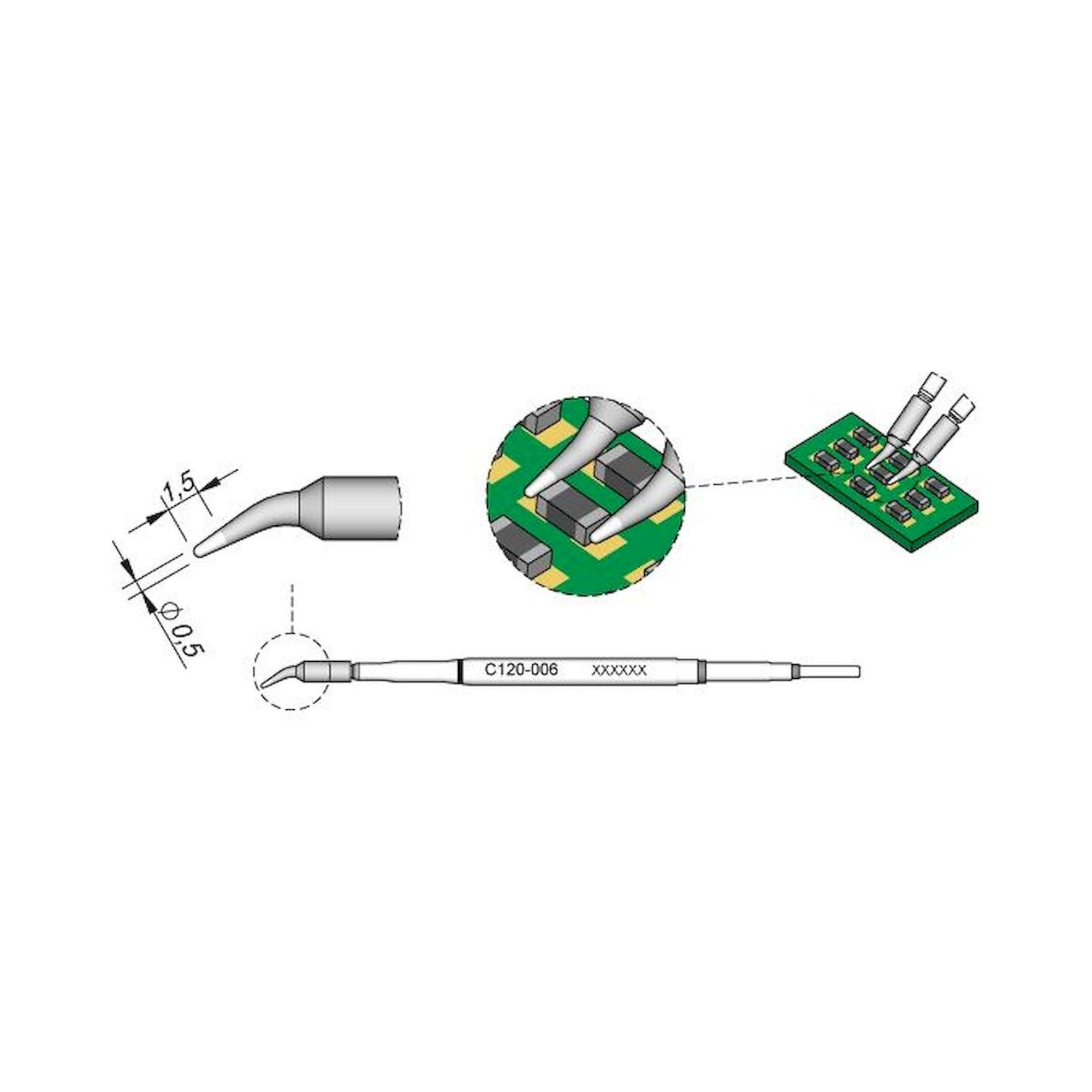

| C120006 | Conical bent | D: 0.5 mm |

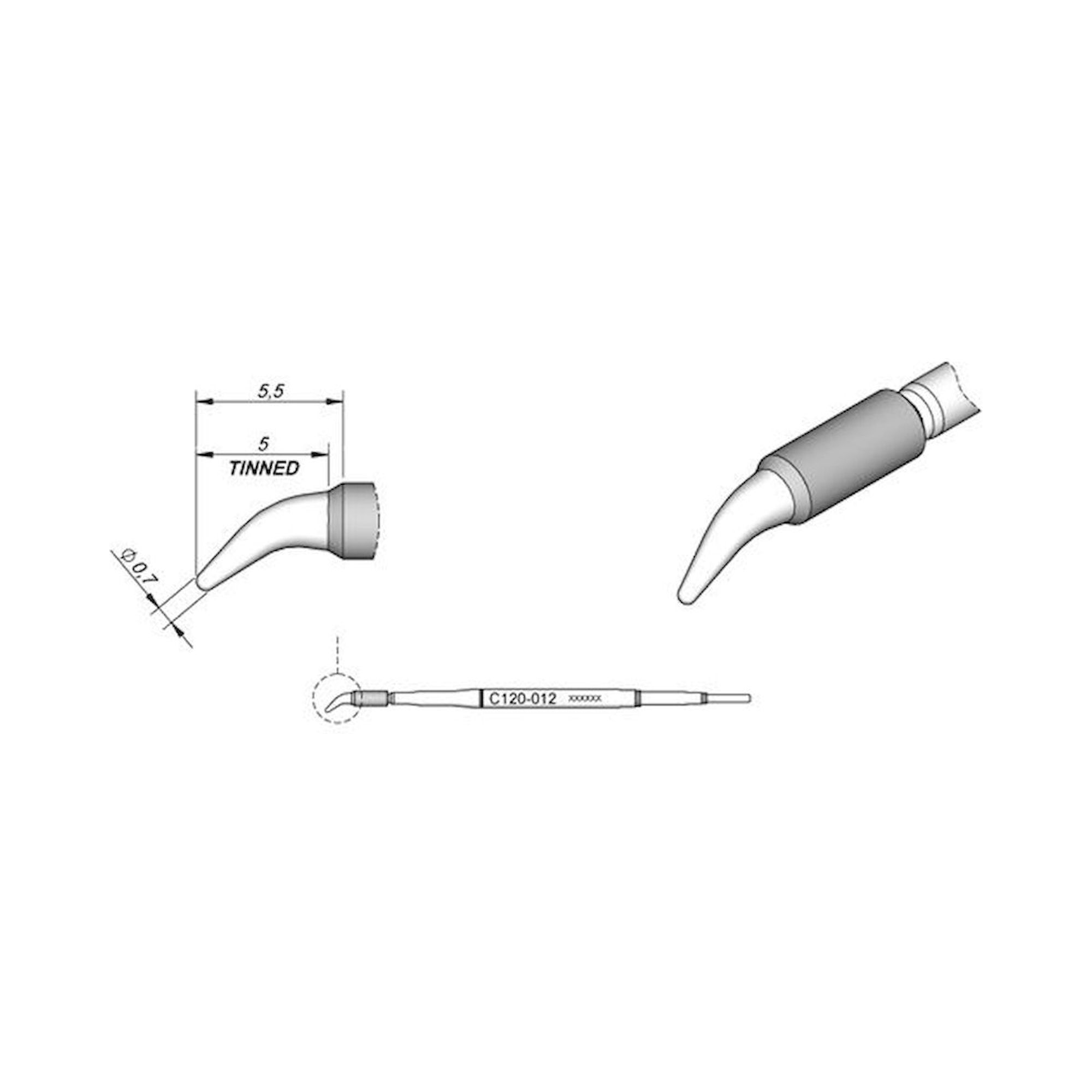

| C120004 / C120012 | Conical bent | D: 0.7 mm |

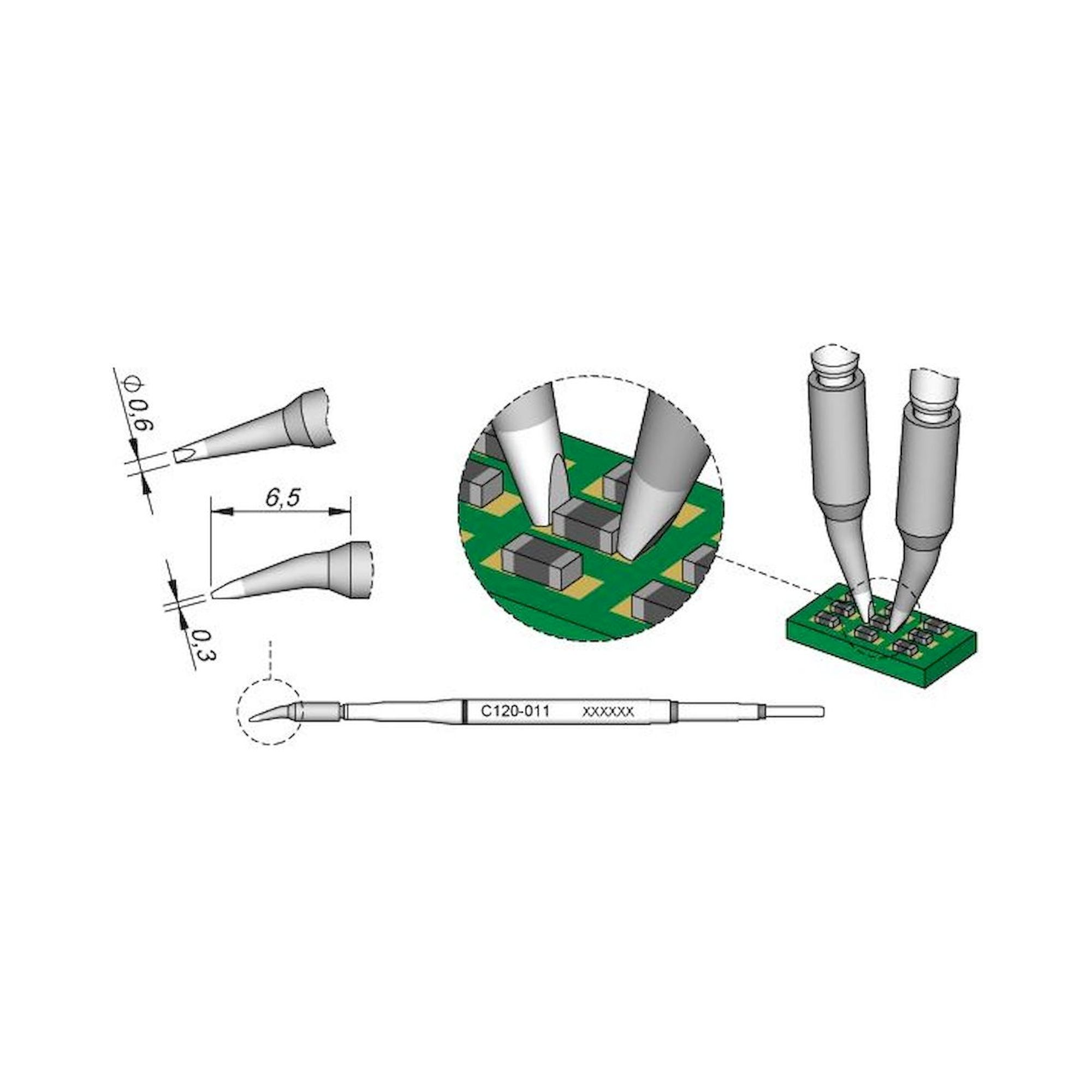

| C120011 | Chisel bent | 0.6 x 0.3 mm |

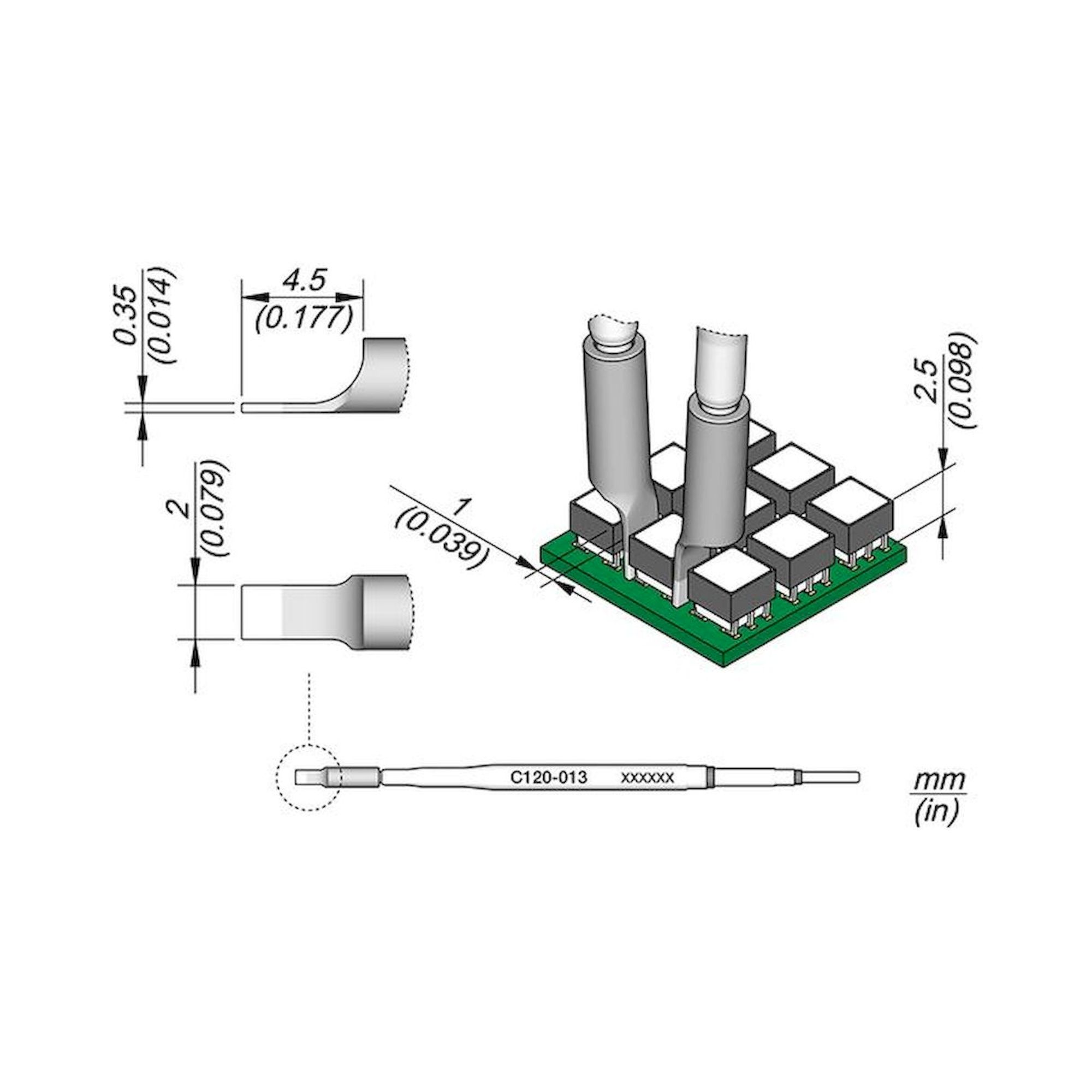

| C120013 | Blade | 2 x 0.35 mm |

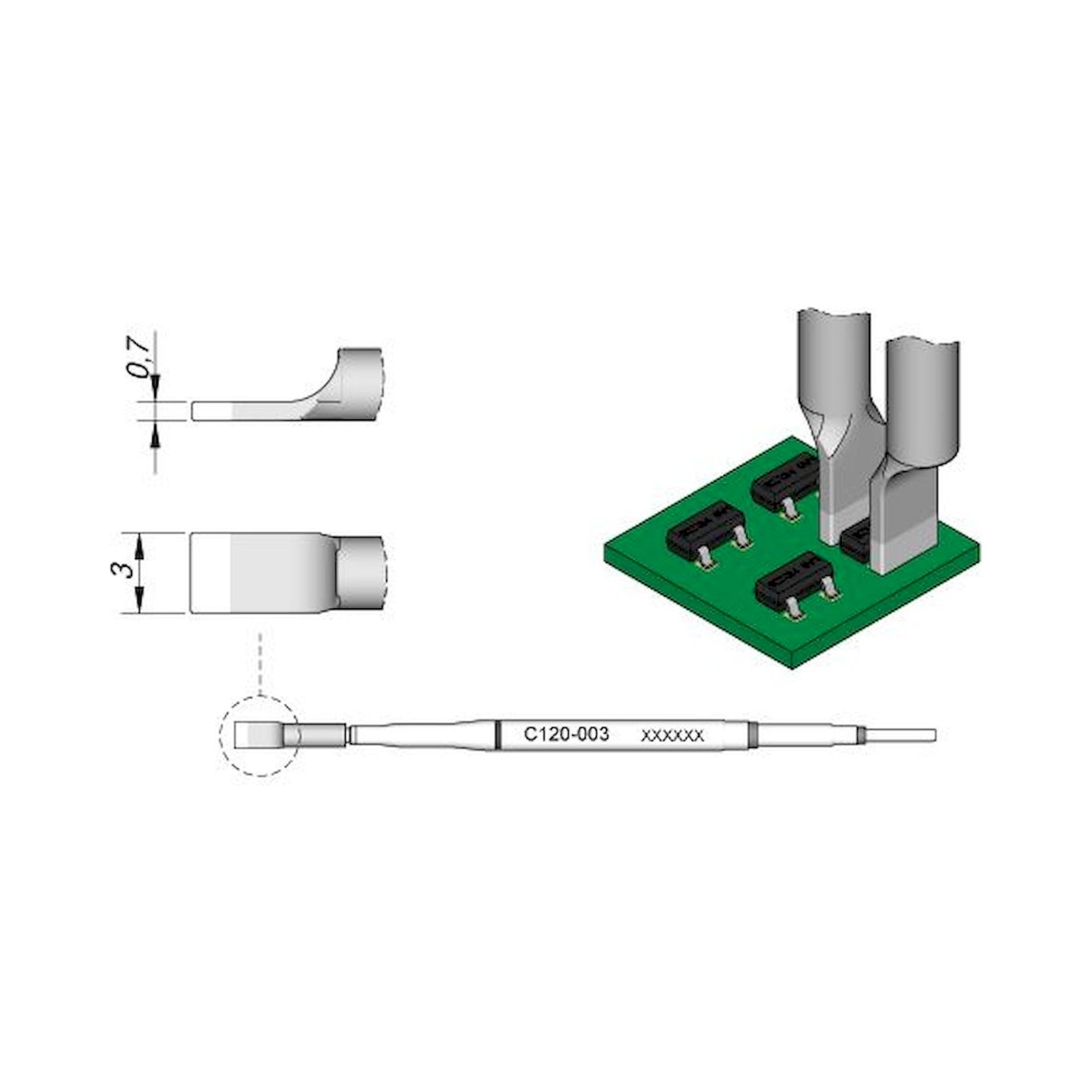

| C120003 | Blade | 3 x 0.7 mm |

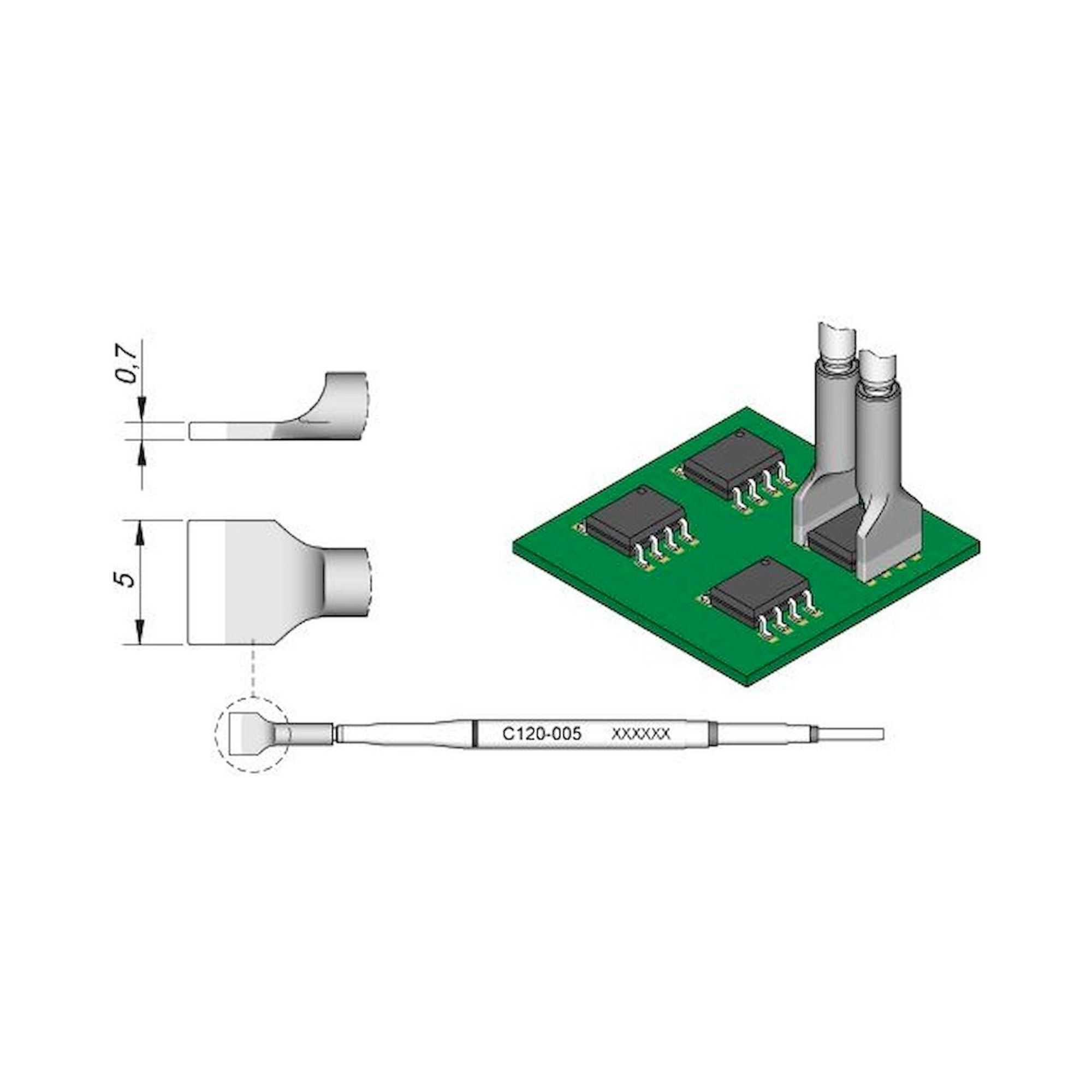

| C120005 | Blade | 5 x 0.7 mm |

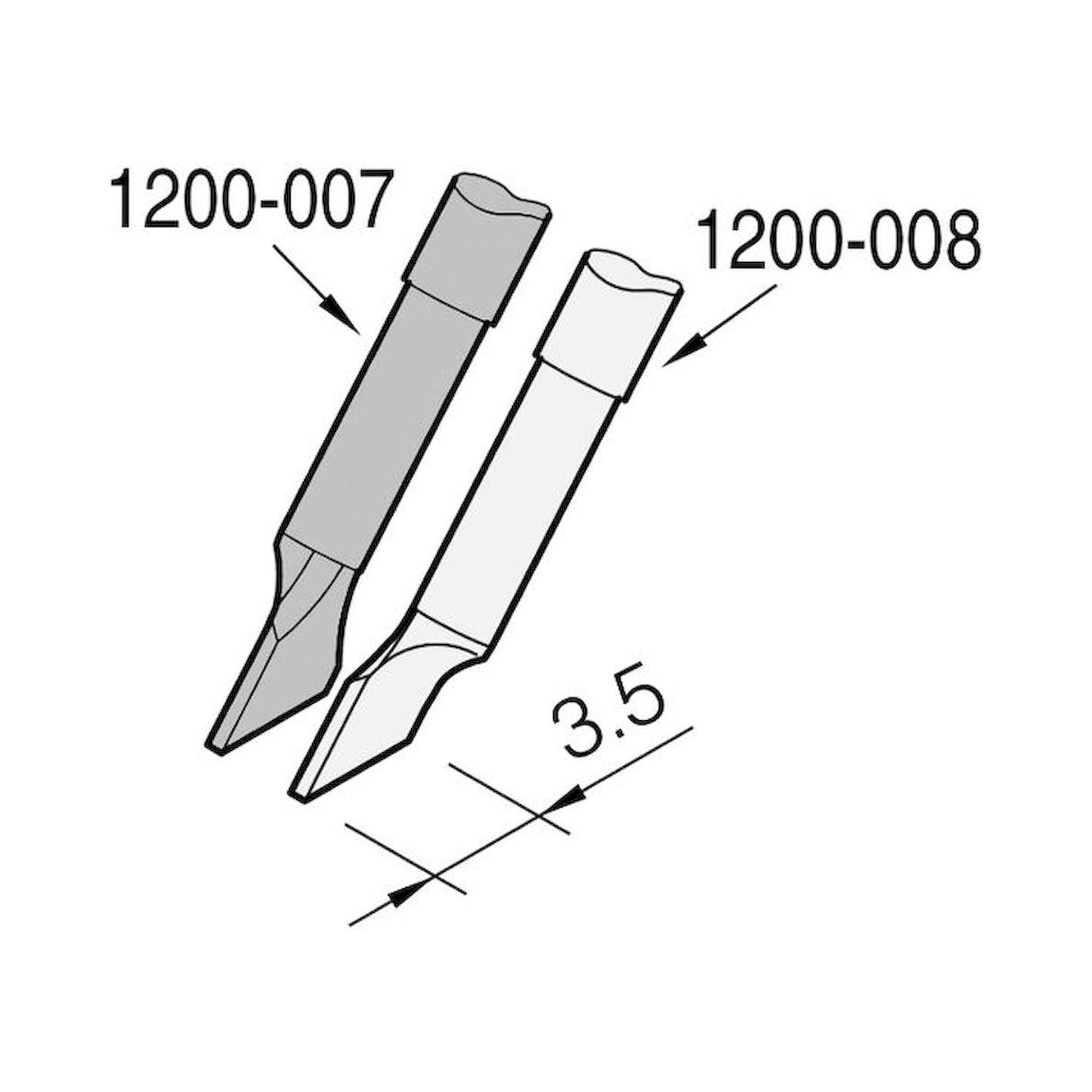

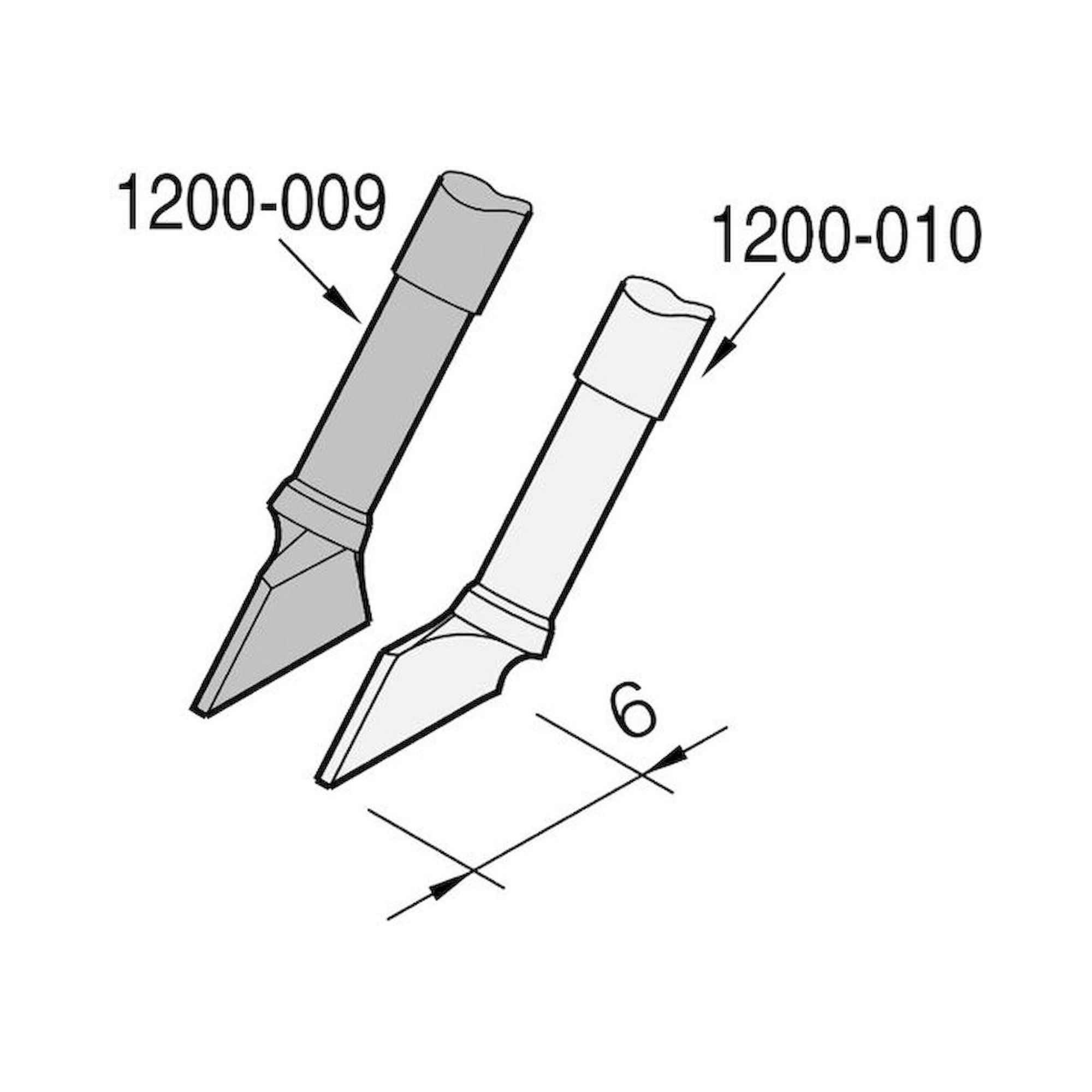

| C120007 / C120009 | Blade right | 3.5 x 0.7 mm / 6 x 0.7 mm |

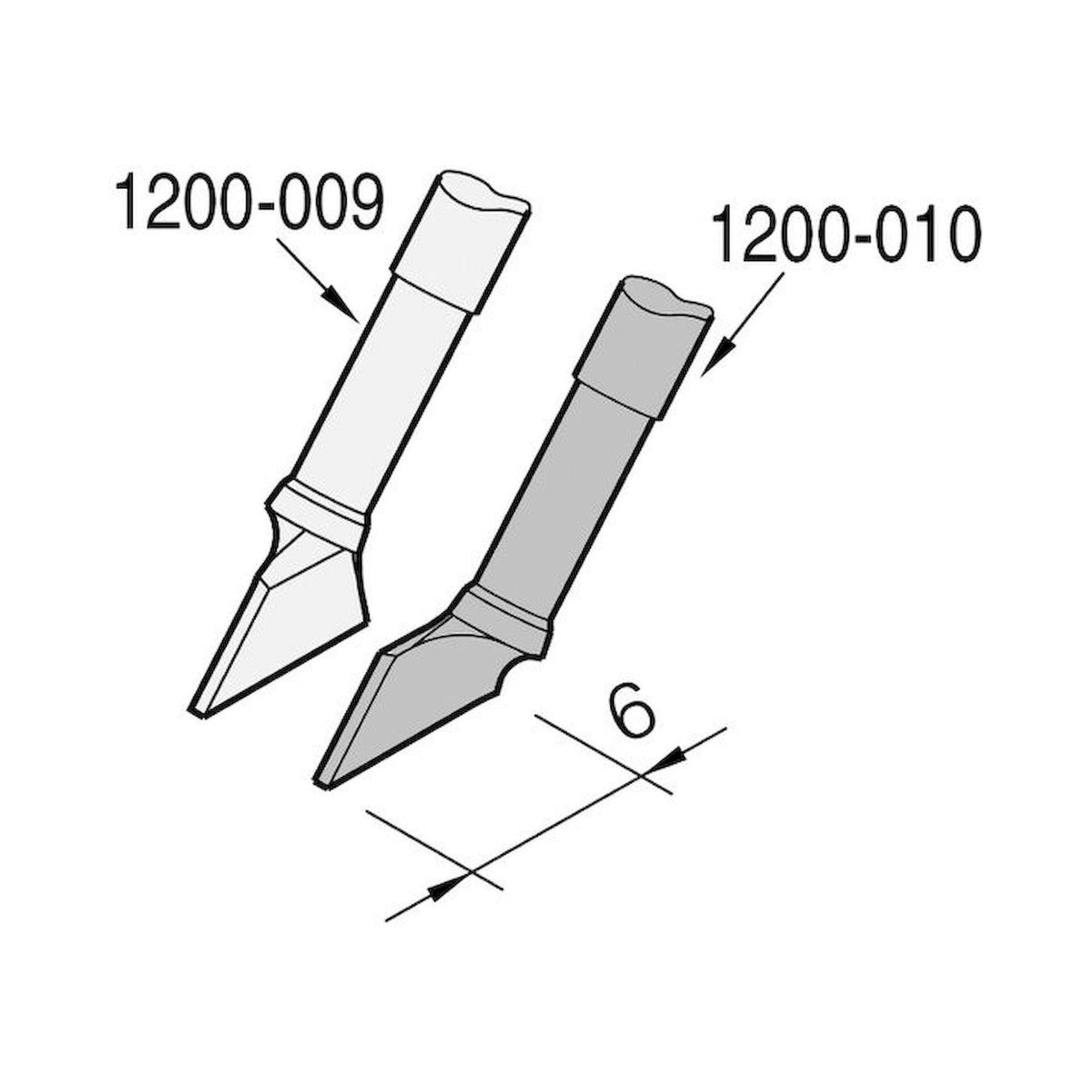

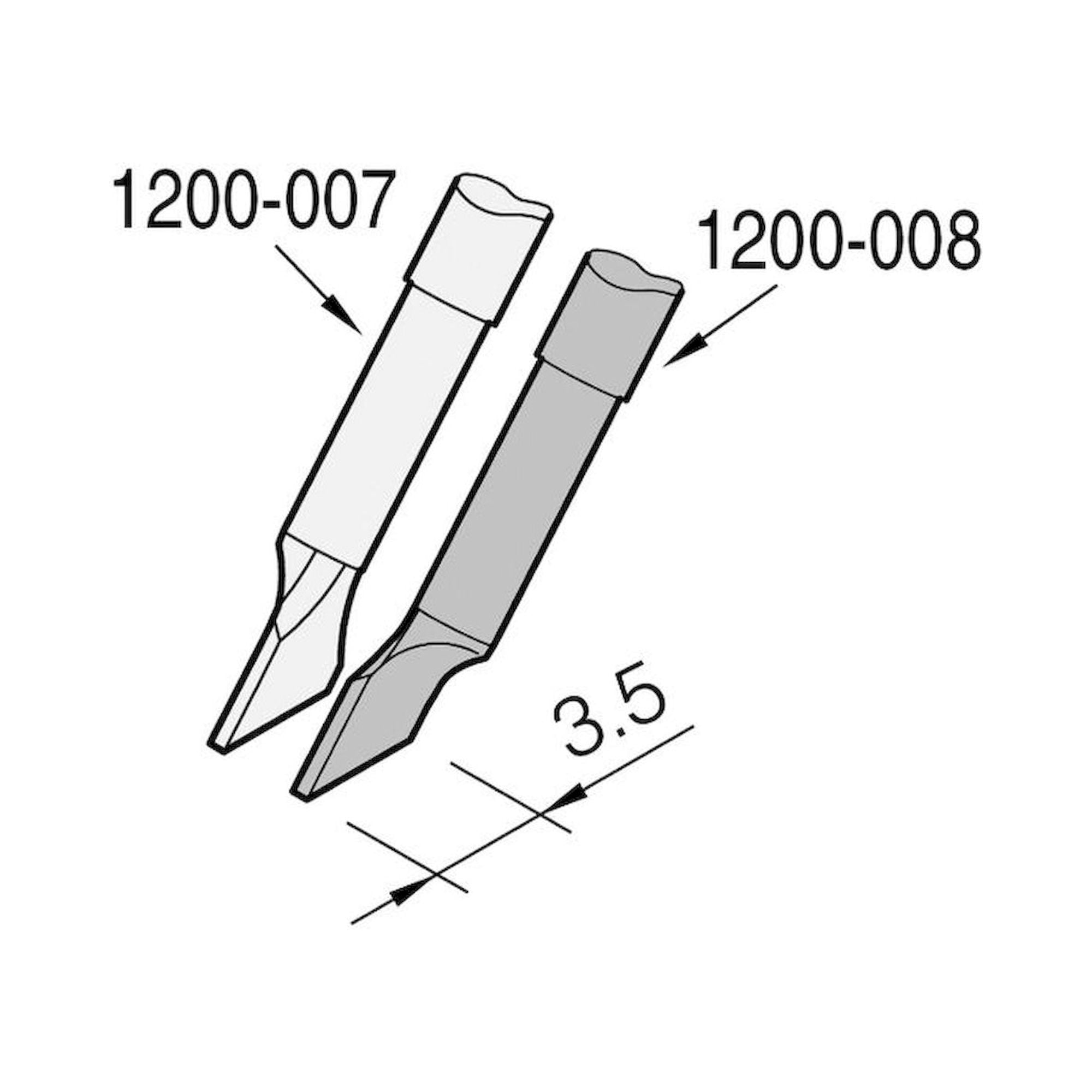

| C120008 / C120010 | Blade left | 3.5 x 0.7 mm / 6 x 0.7 mm |
Typical applications: Micro-soldering and rework of SMD components down to 0201 package size, fine-wire connections in sensor and medical devices, rework on densely packed PCBs with limited clearance to adjacent components, and bridge-forming or bridge-removal in PCB prototype development.
