ISO 5599-1, series 581, size 3

Aventics ISO 5599-1 Serie 581 Size 3 pneumatic valves are directional control valves designed for industrial automation systems requiring precise air flow control and actuator positioning. These valves serve as the primary interface between pneumatic control systems and actuators in manufacturing equipment, packaging machines, material handling systems, and assembly lines. The Size 3 designation indicates a nominal flow rate capacity suitable for medium-duty pneumatic applications with actuators requiring moderate air consumption. Industries commonly deploying these valves include automotive manufacturing, food processing, pharmaceutical production, and general industrial automation where reliable switching of compressed air circuits is essential.

Aventics Serie 581 Size 3 valves operate at working pressures from 2 to 10 bar with port connections conforming to ISO 5599-1 interface standards for Size 3 mounting patterns. Available configurations include 5/2-way and 5/3-way valve functions with electrical actuation voltages of 12VDC, 24VDC, 48VDC, 24VAC, 110VAC, and 230VAC depending on the specific model variant. The valve body features G1/4 threaded ports with flow coefficients optimized for Size 3 applications, while response times typically range from 10 to 30 milliseconds depending on the actuator type. Selection criteria must consider the required valve function, operating voltage availability, mounting orientation, and flow capacity matching the downstream pneumatic actuator requirements.

Aventics Serie 581 valves are manufactured in full compliance with ISO 5599-1 international standard, which defines interface dimensions, mounting patterns, and port configurations for pneumatic directional control valves. The Size 3 designation specifically refers to ISO 5599-1 geometric specifications ensuring interchangeability with other manufacturers' Size 3 valve systems. Additional compliance includes relevant sections of ISO 4414 for pneumatic system safety requirements and electromagnetic compatibility standards for industrial environments. The valves meet IP65 ingress protection rating per IEC 60529, providing dust-tight sealing and protection against water jets during industrial cleaning operations. CE marking indicates conformity with applicable European Machinery Directive and Low Voltage Directive requirements for industrial automation equipment.

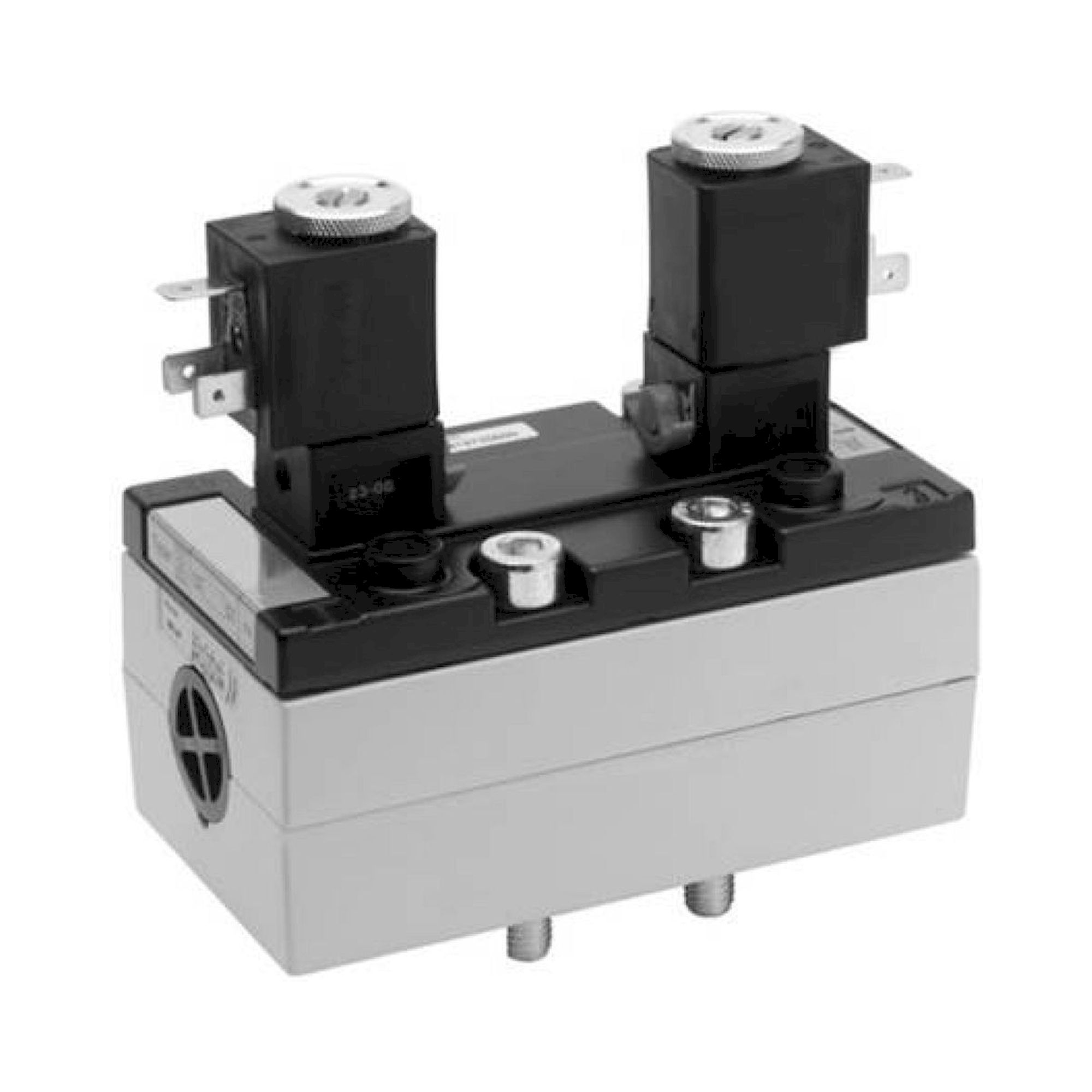

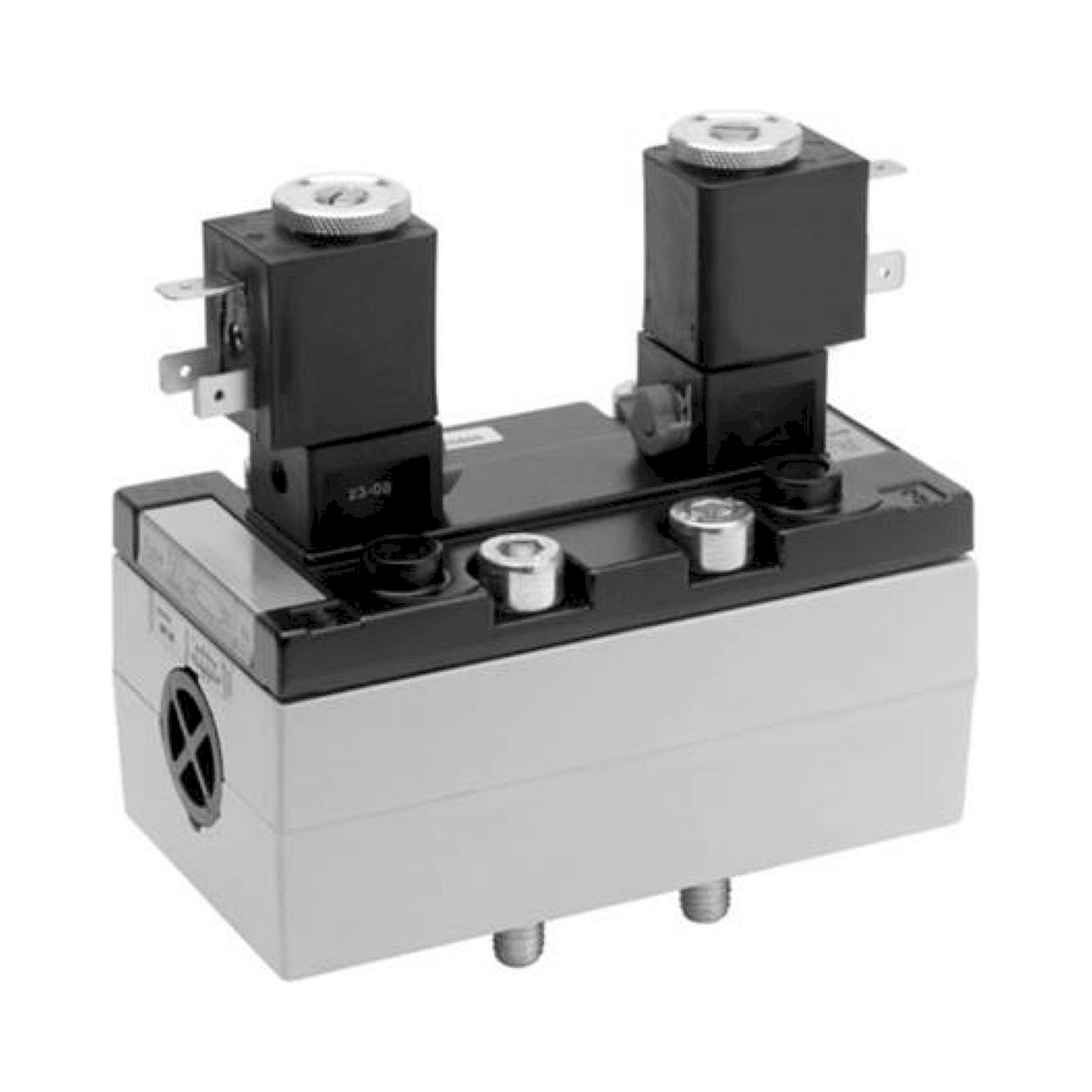

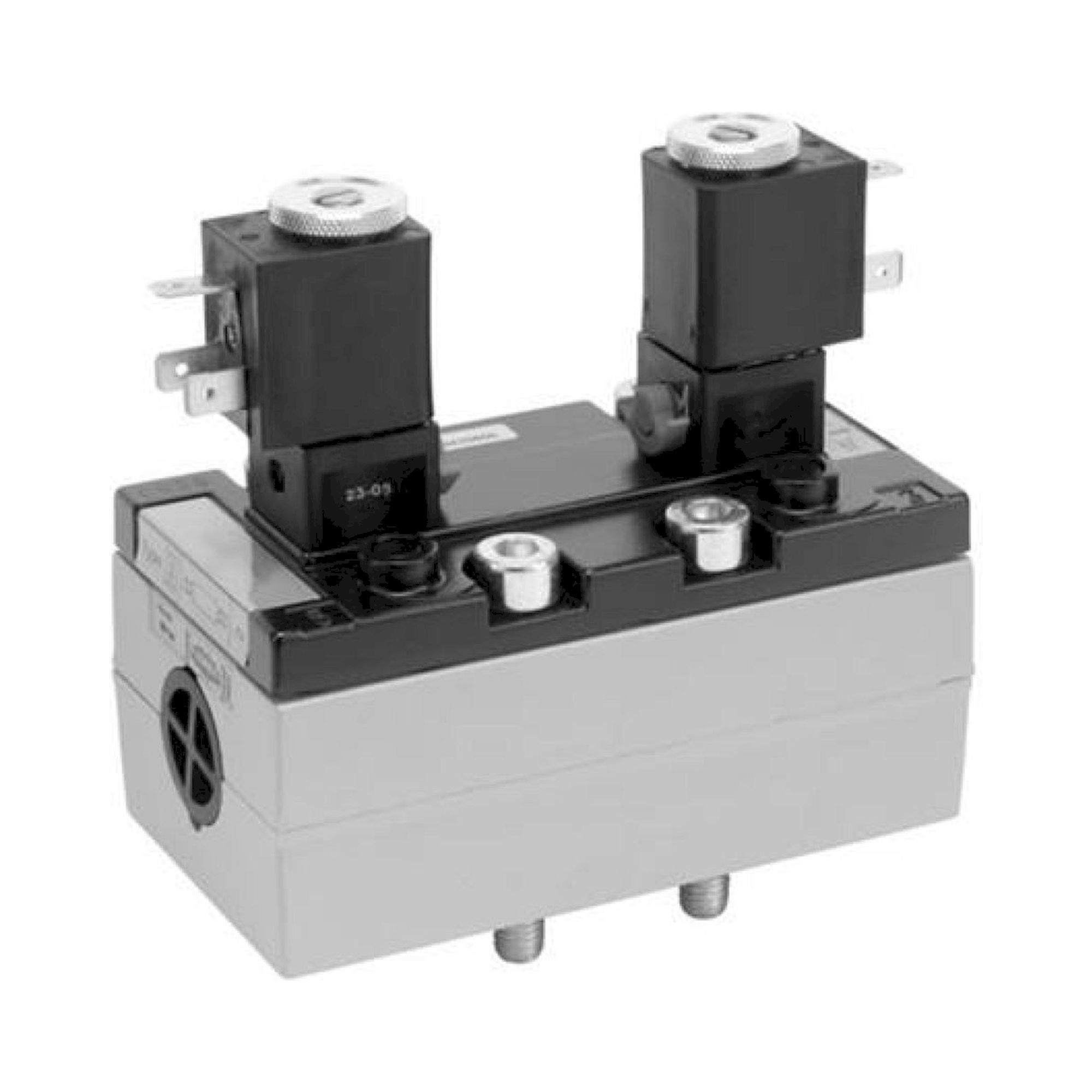

The 5/2-way Aventics Serie 581 valves such as model V581-5/2DS provide two stable switching positions connecting the pressure port to either output port while exhausting the opposite port, making them ideal for single-acting cylinders or bi-directional actuator control. The 5/3-way variants like V581-5/3CC, V581-5/3EC, and V581-5/3PC offer a third center position with different port configurations including closed center, exhaust center, or pressure center depending on the specific model designation. Center position functionality allows for intermediate states such as actuator floating, pressure holding, or controlled decompression during system cycling. Selection between 5/2 and 5/3 configurations depends on whether the application requires intermediate positioning, safety exhaust states, or energy-saving pressure isolation during standby periods.

Aventics Serie 581 Size 3 valves require mounting on ISO 5599-1 compliant manifold systems or individual mounting plates with the standardized bolt pattern of 50mm x 50mm center distances and M5 mounting screws. Electrical connections utilize standard industrial connector systems with IP65 rated cable entries, while compressed air supply must be filtered to ISO 8573-1 Class 7:4:4 or better to prevent contamination damage to internal sealing elements. The valve orientation can be horizontal, vertical, or inverted without performance degradation, though exhaust ports should be positioned to prevent moisture accumulation. Installation clearances must provide minimum 25mm spacing above electrical connectors for cable routing and sufficient access for periodic maintenance inspections of the actuator mechanism and electrical connections.

Aventics Serie 581 Size 3 valves operate reliably within a working pressure range of 2 to 10 bar with proof pressure testing conducted at 15 bar to ensure long-term durability under industrial conditions. The ambient temperature range spans from -10°C to +50°C for standard models, while the compressed air media temperature can range from -10°C to +60°C without affecting valve performance or seal integrity. Maximum switching frequency reaches 5 Hz for continuous operation with appropriate compressed air quality maintained per ISO 8573-1 standards. The valve housing achieves IP65 ingress protection rating ensuring reliable operation in dusty industrial environments and resistance to cleaning procedures using pressurized water. Power consumption varies by model from 2.5W for 24VDC solenoids to 8W for 230VAC variants during energized states.

Aventics Serie 581 Size 3 valves typically achieve 10 million switching cycles under normal industrial conditions with compressed air quality maintained to ISO 8573-1 Class 7:4:4 specifications and operating pressures within the 2-10 bar range. Preventive maintenance intervals should include quarterly visual inspection of electrical connections and exhaust port cleanliness, semi-annual compressed air quality verification, and annual functional testing of switching response times and internal leakage rates. Service life expectancy ranges from 3-5 years in continuous duty applications depending on switching frequency, air quality, and environmental conditions such as temperature cycling and contamination exposure. Critical wear indicators include increased switching response times beyond 50 milliseconds, audible changes in actuator operation, or compressed air leakage exceeding manufacturer specifications, all requiring immediate valve replacement to maintain system reliability.
