Series QR1-S mini - inch
Push-in fittings
The Aventics Series QR1-S Mini in inch dimensions offers 61 variants of compact push-in fittings for tubing in inch outside diameters (D 1/4" = D014, D 5/32" = D018, D 5/32" = D532) with port threads to NPT standard (N018, 10-32 UNF). The miniature design is especially suited to confined installations where standard inch fittings no longer fit.
| Type code | Fitting form | Tube dimension |
|---|---|---|
| MLT | Straight fitting | D014-D532, NPT / 10-32 |
| MTT | Elbow fitting | D014-D532, NPT / 10-32 |

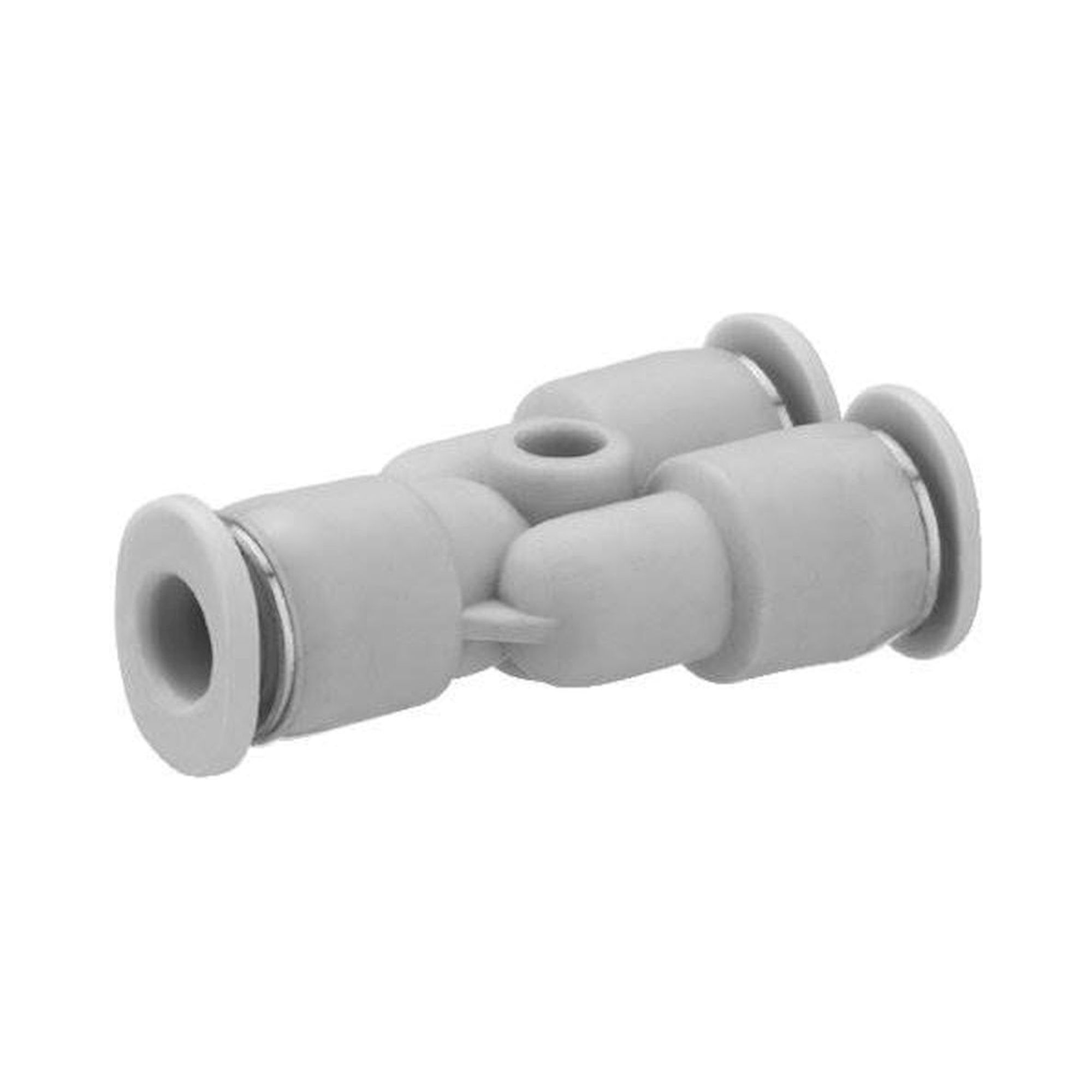

| MYK / MY2 / MYR | Y- and reducer fitting | D014-D532 |
| MYZ / MXS | Push-in socket / tube union | D014-D018 |

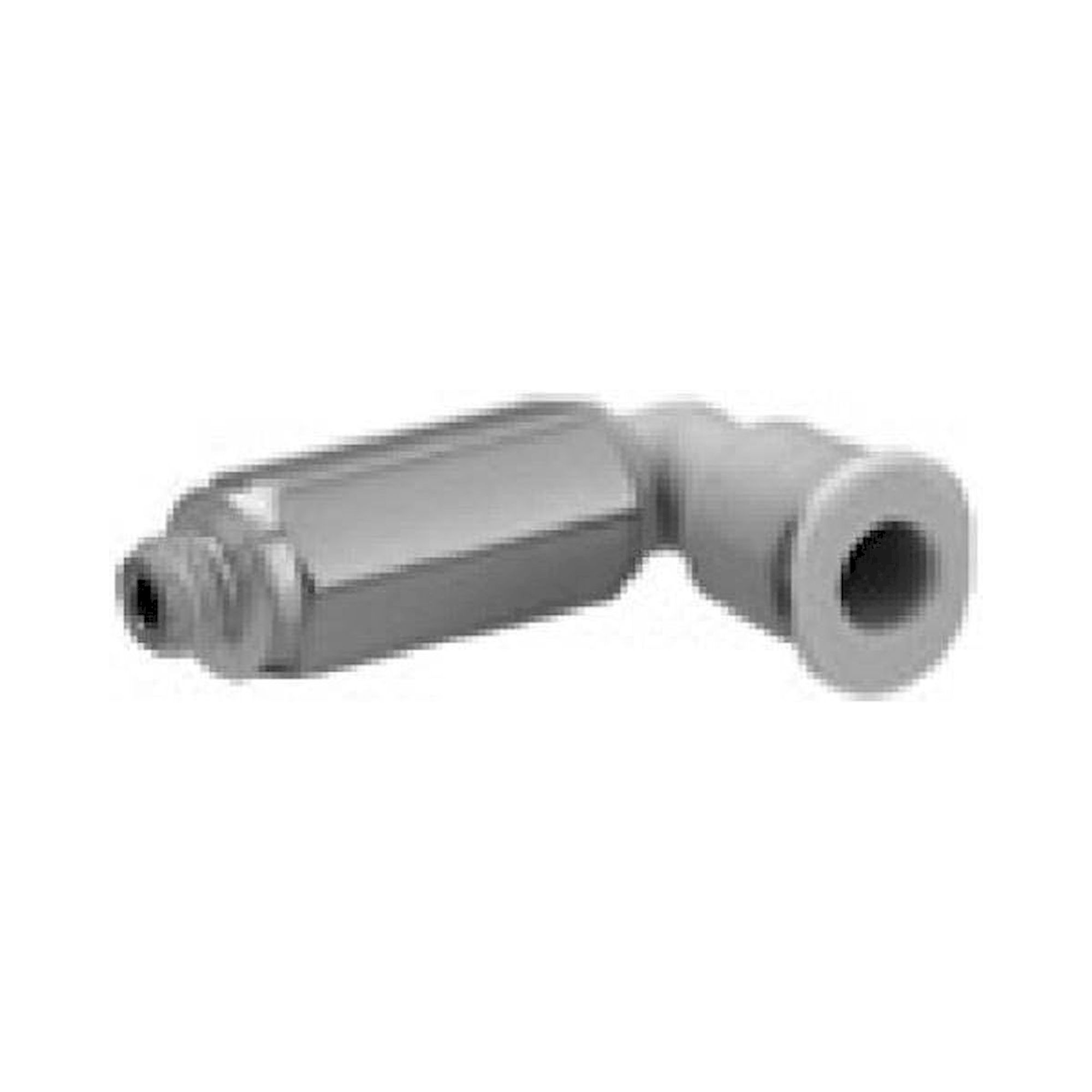

| MVL | Tee fitting | D014-D018, 10-32 |
| MSM | Socket (socket-socket) | D018 |
61 variants - complete inch mini programme with NPT and 10-32 UNF connections
Smallest installation dimensions - miniature body for tight space next to small valves
Tool-free push-in assembly - release ring, assembly and disassembly even in confined positions
10-32 UNF threads - miniature thread for small valve bodies and pneumatic cylinders
All common fitting forms - straight, elbow, T, Y, reducer, socket
Typical applications: Miniature pneumatic cylinders and small valves in inch format, precision automation and laboratory handling with small tube cross-sections, US original equipment and OEM spare-part supply for inch pneumatic systems, robot end-effectors and gripper systems with confined installation space, and micro-actuators in semiconductor and electronics assembly.
