Series QR1-S standard - inch
Push-in fittings

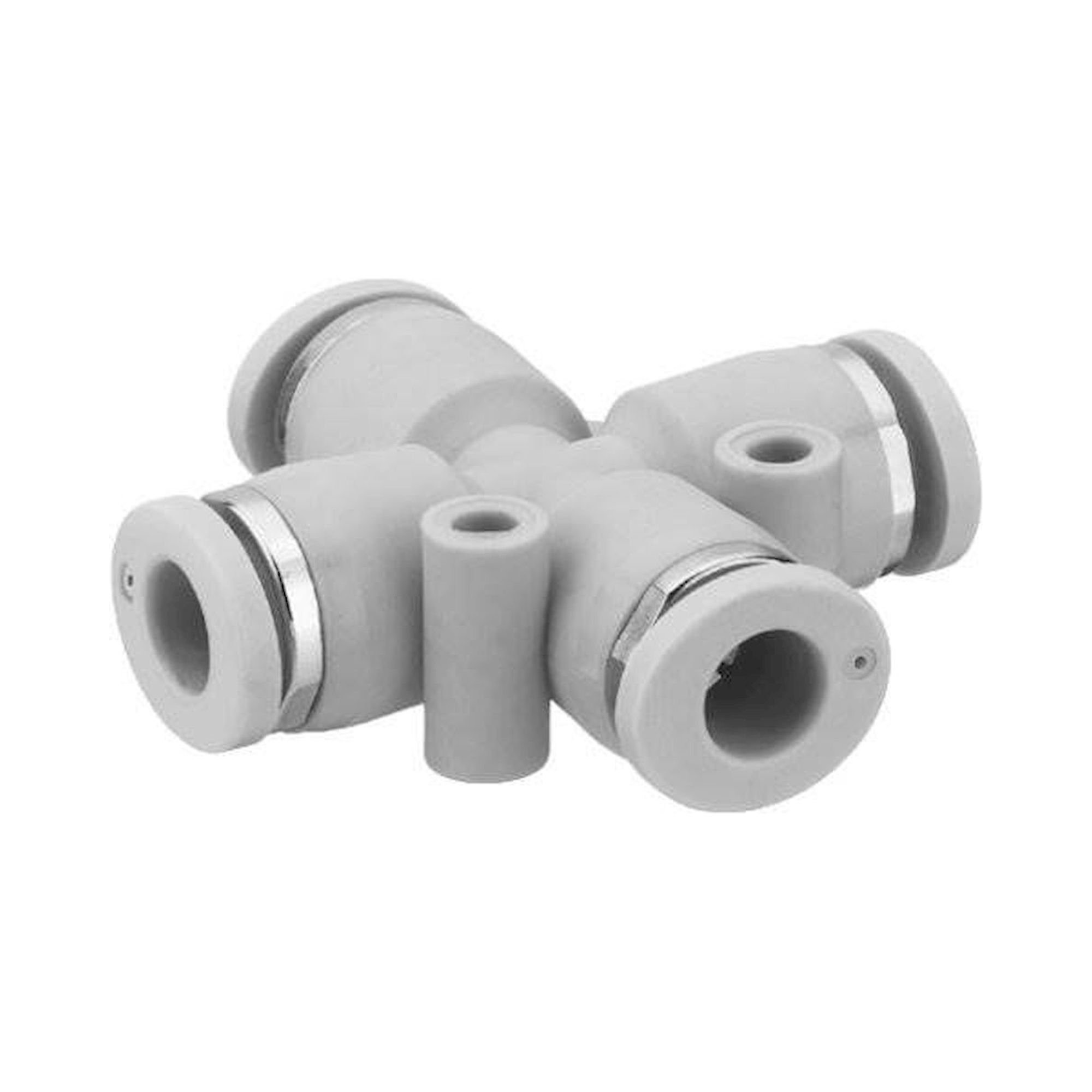

The Aventics Series QR1-S Standard in inch dimensions (305 variants) complements the metric standard programme for systems based on American or British pipe standards. Tube connections are in inch outside diameters D 1/8", D 5/32", D 3/8" and D 1/4"; port threads conform to NPT and NPTF standards in 1/8", 1/4", 3/8" and 1/2".
The type code follows the same scheme as the metric version: QR1-S-RWD for male-thread straight fittings, QR1-S-RID for straight push-in fittings, QR1-S-RIW for elbow push-in fittings. The D prefix identifies inch dimensions (e.g. D012 = 1/2", N038 = NPT 3/8").

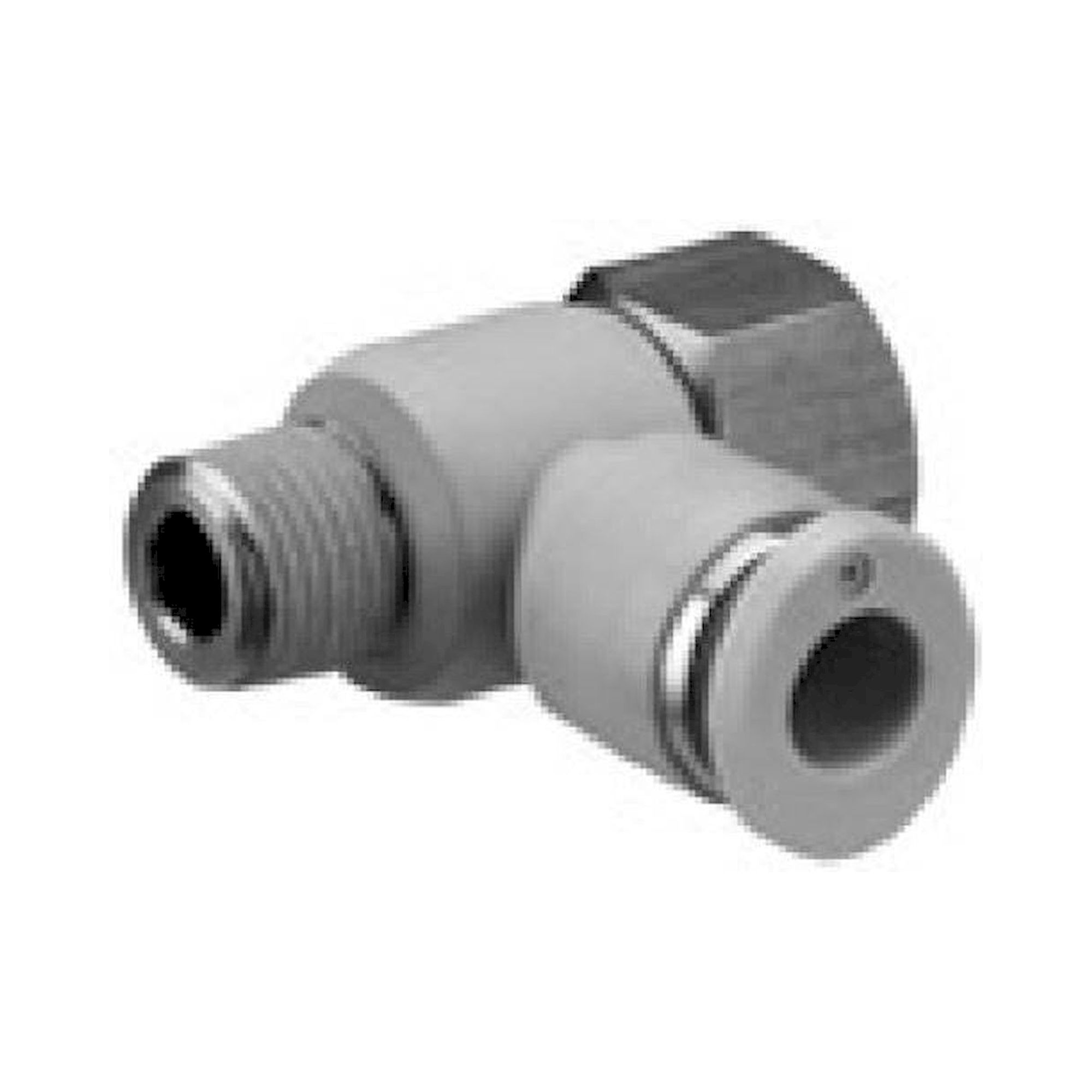

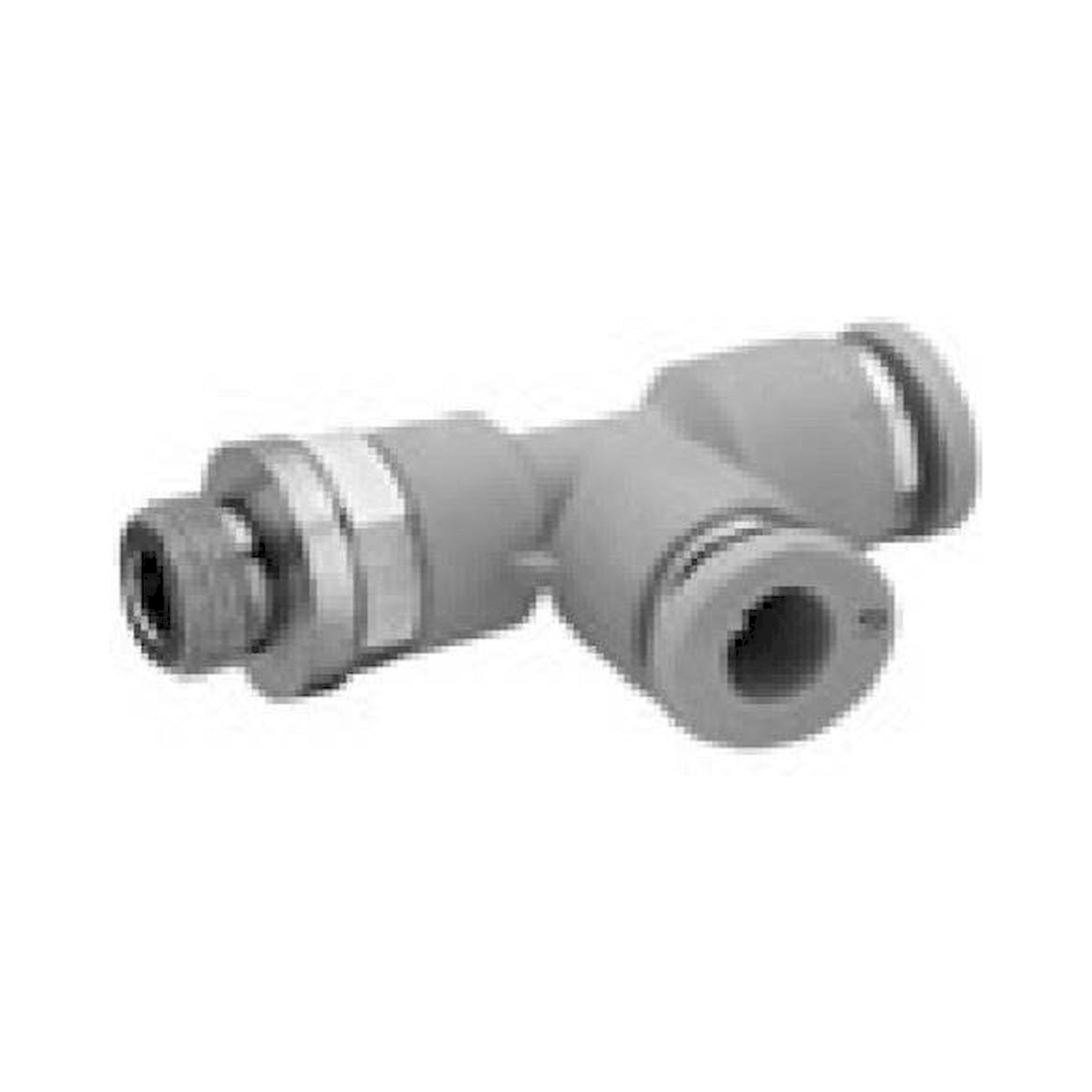

| Type code | Fitting form | Tube dimension |
|---|---|---|
| RWD | Straight male-thread fitting | D 1/8"-D 1/2", NPT/NPTF |
| RID | Straight push-in, inch tube | D012-D038 |
| RIW | Elbow push-in, inch tube | D012-D038 |
| RAY | Tee fitting | D012-D038 |
| RMT / RMG | Reducer fitting | D038-D516 |
| RSI / RSM | Push-in socket / sleeve | D012-D038 |
Typical applications: Machines and installations with American pneumatic components or NPT pipe thread standard, export projects for the North American market, retrofit of existing plant with inch tube cross-sections, vehicle construction and mobile hydraulics using Anglo-American standards, and mixed installations where metric and inch parts are used side by side.
