Series QR1-S standard
Push-in fittings

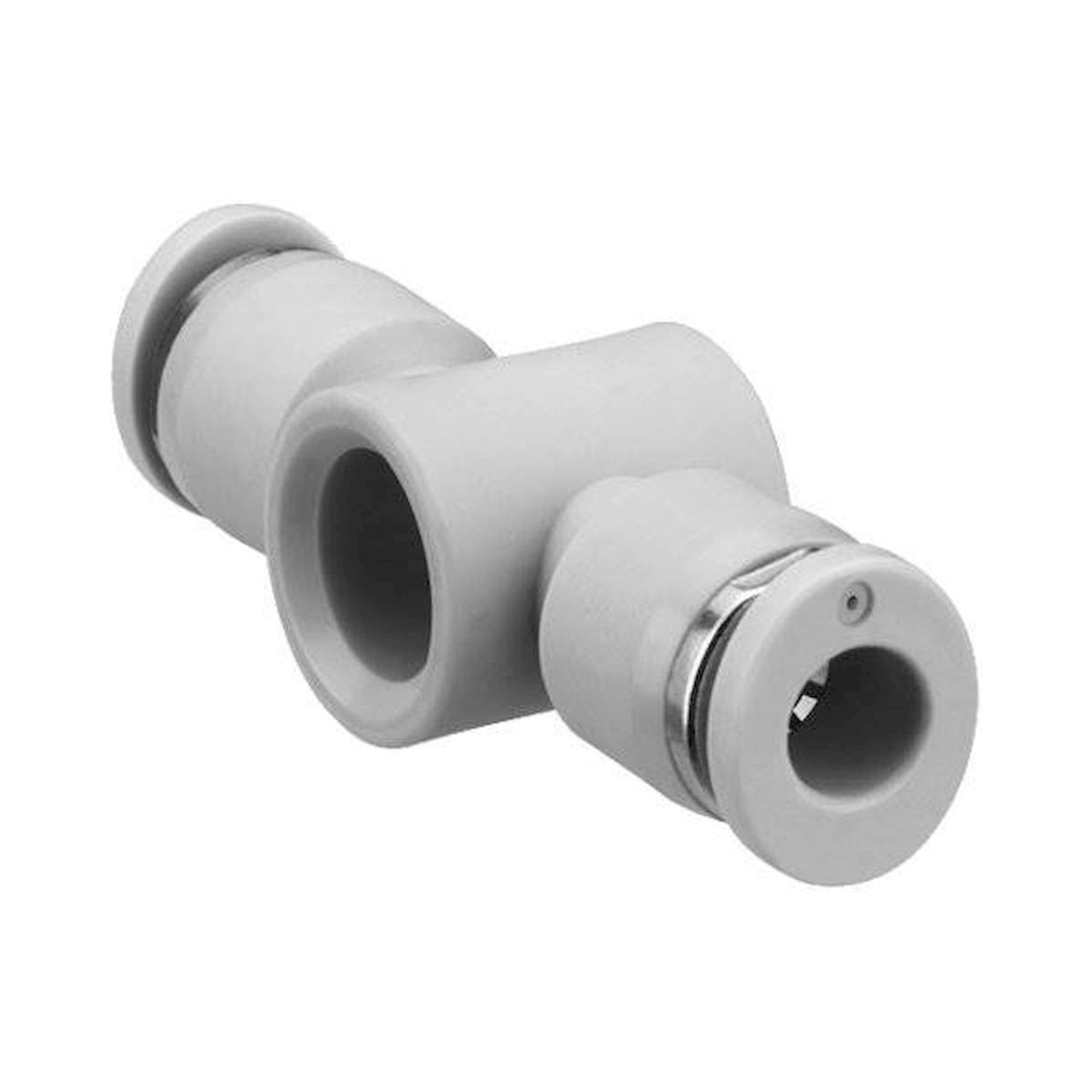

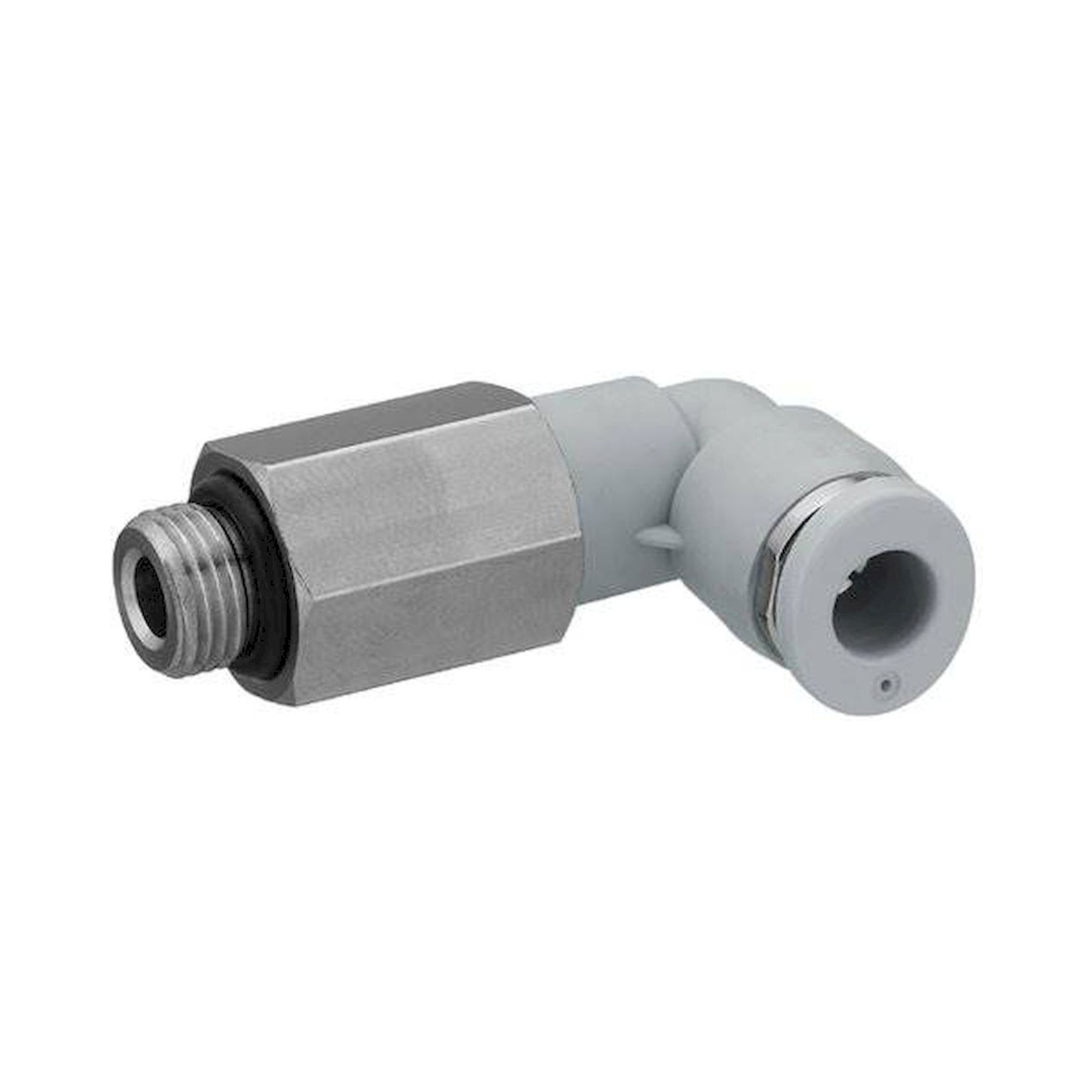

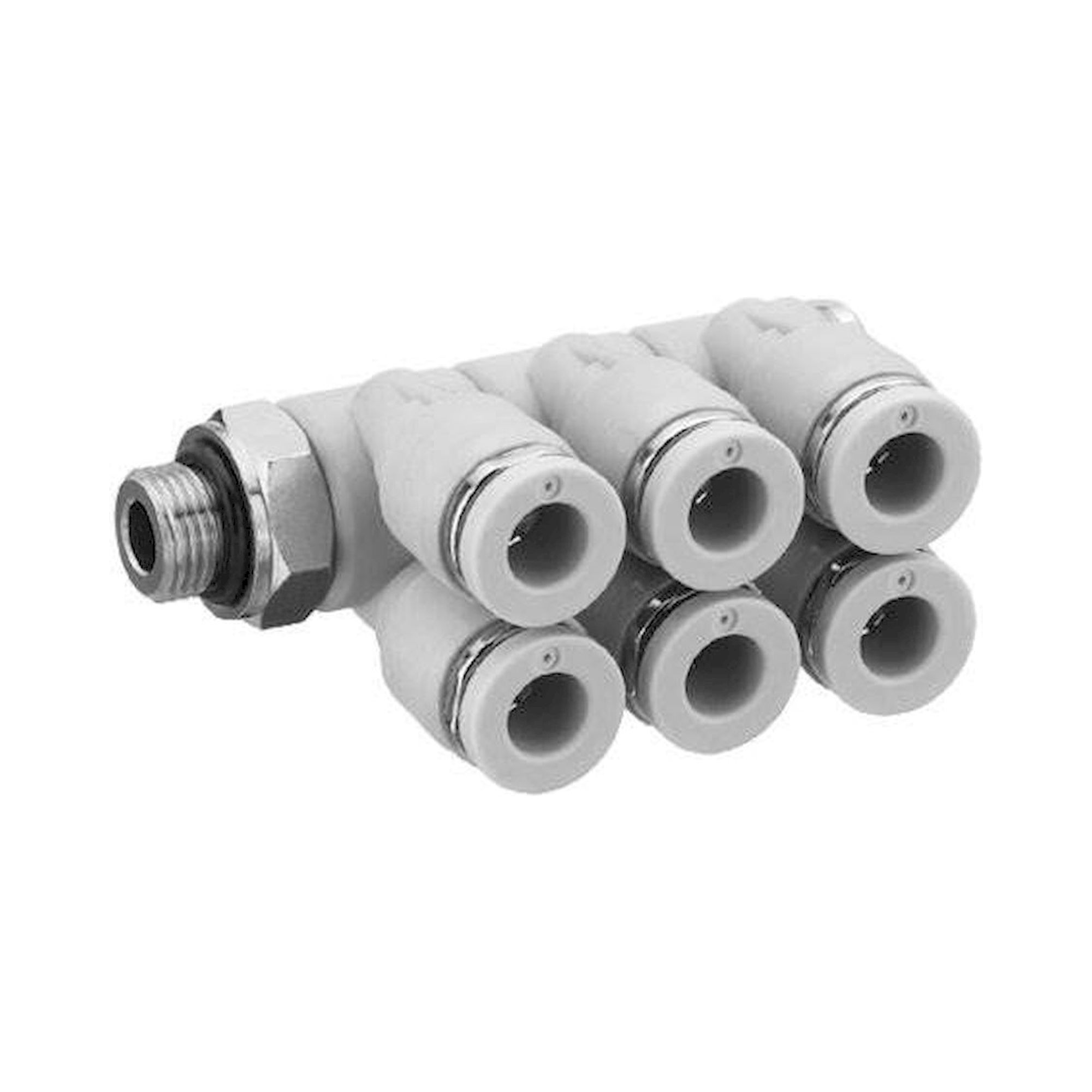

The Aventics Series QR1-S Standard (metric) offers 343 variants, making it the most extensive metric push-in fitting programme in the range. Tube connections span DA4 to DA16; port threads include M5, G 1/8, G 1/4, G 3/8 and G 1/2. The fitting forms catalogue covers straight fittings (RVT, RPN), elbows (RTT, RW6), tees (RAY, RTK), Y-fittings, reducers, double fittings (RMT, RMG) and sockets (RVS).
| Type code | Fitting form | Typical size |
|---|---|---|
| RPN / RVT | Straight fitting | G 1/8-G 1/2, DA4-DA16 |
| RTT / RW6 | Elbow fitting | G 1/8-G 3/8, DA4-DA10 |
| RAY / RTK | Tee fitting | DA6-DA16 |
| RMT / RMG | Reducer / double fitting | DA8-DA16 |
| RW2 / RVL | Screw-in elbow / straight female | G 1/4-G 1/2, DA10-DA16 |
| RVS | Push-in socket | DA10 |
343 variants - largest metric push-in fitting programme in the QR1-S line
Tube DA4-DA16 - covers all standard tube cross-sections
Tool-free push-in assembly - release ring locking, releasable without tools
Complete fitting form range - straight, elbow, T, Y, reducer, double, socket
Brass body, plastic clamping element - robust for industrial series applications
Typical applications: General compressed air installation in machine frames and control cabinets, tube plumbing at pneumatic cylinders and valve islands, handling automation with standard tube sizes DA6-DA12, packaging and assembly machines, and maintenance work as direct replacement parts for existing Aventics installations.
