ISO 15524, Series SSI

Aventics ISO 15524 Series SSI pneumatic cylinders are compact short-stroke pneumatic actuators designed for precise linear motion control in industrial automation systems. These cylinders feature double-acting operation with bore diameters of 63mm and 100mm, delivering reliable positioning and force generation for assembly lines, packaging equipment, and material handling applications. The SSI series excels in automotive manufacturing, electronics production, and pharmaceutical processing where space constraints require compact actuators with repeatable stroke accuracy. Manufacturing facilities utilize these cylinders for clamping operations, component positioning, and automated sorting systems that demand consistent cycle times and minimal maintenance requirements.

Selection of Aventics ISO 15524 Series SSI cylinders depends on bore diameter requirements of either 63mm or 100mm, stroke lengths ranging from 5mm to 100mm based on the product codes shown, and operating pressure specifications typically between 1.5 to 10 bar for pneumatic systems. The cylinder mounting configuration determines compatibility with existing machinery, while piston rod diameter affects force output and deflection characteristics under load. Port thread specifications and cushioning options influence system integration and operational smoothness, with double-acting operation providing bidirectional force capability. Applications requiring precise positioning select shorter stroke variants like the 5mm to 25mm models, while longer strokes up to 100mm suit material transfer and larger component handling tasks.

Aventics ISO 15524 Series SSI cylinders comply with ISO 15524 international standard governing pneumatic cylinder dimensions, mounting interfaces, and performance specifications for interchangeability across manufacturers. These cylinders meet ISO 8573 compressed air quality requirements and conform to ISO 5599 valve mounting patterns for standardized system integration. European machinery applications require CE marking compliance under Machinery Directive 2006/42/EC, while ATEX certification may apply for explosive atmosphere installations depending on specific model variants. The cylinders satisfy ISO 4762 specifications for socket head cap screws used in mounting hardware and adhere to DIN 24562 pneumatic fitting standards for consistent port connections across pneumatic system components.

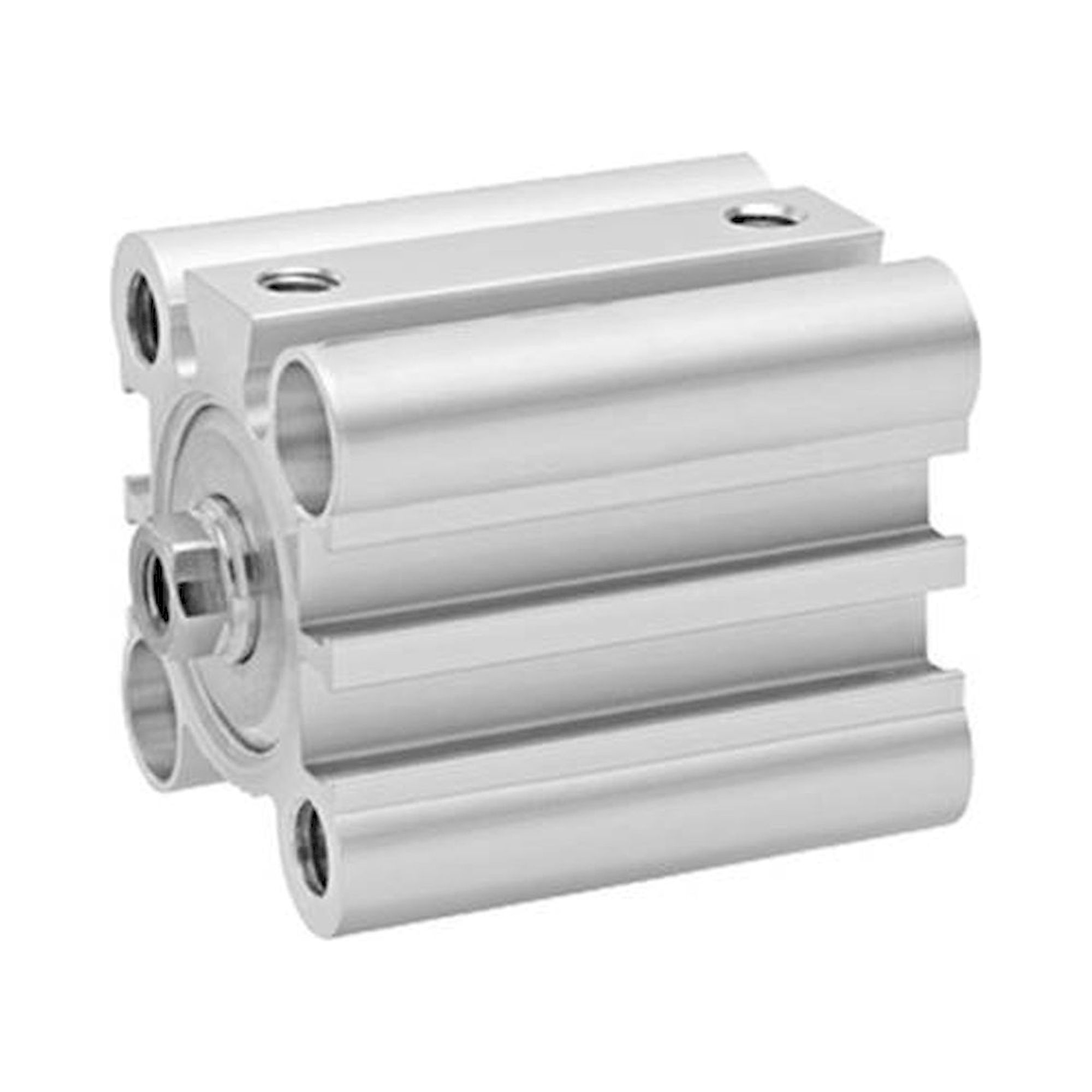

The primary differences between Aventics ISO 15524 Series SSI variants center on bore diameter sizing with 63mm models like R480637991 and 100mm variants such as R412019891 offering different force output capabilities. Stroke length variations range from compact 5mm versions for precision positioning applications to extended 100mm strokes for material handling requirements, with intermediate options of 10mm, 20mm, 25mm, 30mm, 40mm, 50mm, and 80mm available. Model number suffixes indicate specific mounting configurations, piston rod specifications, and port orientations that determine compatibility with existing pneumatic systems. The part number coding system differentiates between cushioning options, seal materials, and special features like magnetic piston sensing capability for position feedback applications in automated manufacturing processes.

Installation of Aventics ISO 15524 Series SSI cylinders requires compressed air supply filtered to ISO 8573 Class 7:4:4 quality with operating pressure between 1.5 and 10 bar delivered through G1/8 or M5 pneumatic ports depending on cylinder size. Mounting configurations utilize ISO 15524 standardized dimensions ensuring compatibility with existing machinery fixtures and pneumatic valve manifolds conforming to ISO 5599 specifications. System integration demands proper alignment to prevent side loading of piston rods and adequate clearance for full stroke extension plus safety margins in automated equipment. Temperature compensation considerations apply when cylinders operate in environments varying beyond standard 5°C to 50°C ranges, requiring seal material selection appropriate for specific media and thermal cycling conditions in industrial production environments.

Aventics ISO 15524 Series SSI cylinders operate safely within temperature ranges of -10°C to +80°C for standard seal configurations and pressure ranges from 1.5 to 10 bar maximum working pressure with safety factors built into cylinder barrel design. IP40 ingress protection rating provides dust protection suitable for industrial environments while higher IP ratings require additional sealing modifications for wash-down applications. Operating media compatibility includes compressed air per ISO 8573 quality standards with lubrication ratios between 1:20,000 and 1:50,000 depending on seal material selection and cycling frequency. Maximum cycling rates reach 300 cycles per minute for standard configurations while specialized high-frequency variants accommodate up to 600 cycles per minute in packaging and assembly automation requiring rapid actuation sequences.

Aventics ISO 15524 Series SSI cylinders typically achieve 10 million cycle service life under normal operating conditions with compressed air quality maintained to ISO 8573 Class 7:4:4 specifications and proper lubrication intervals. Preventive maintenance requires inspection every 2 million cycles or annually including seal condition assessment, piston rod alignment verification, and port connection tightness checks to maintain optimal performance. Seal replacement intervals depend on operating pressure, temperature cycling, and media contamination levels with standard nitrile seals lasting 5-8 million cycles while polyurethane variants extend service life up to 12 million cycles. Critical applications in pharmaceutical or food processing environments may require more frequent inspection schedules every 6 months to ensure compliance with industry cleanliness standards and prevent contamination risks in production processes.
