ISO 6432, Series MNI

Standard cylinder

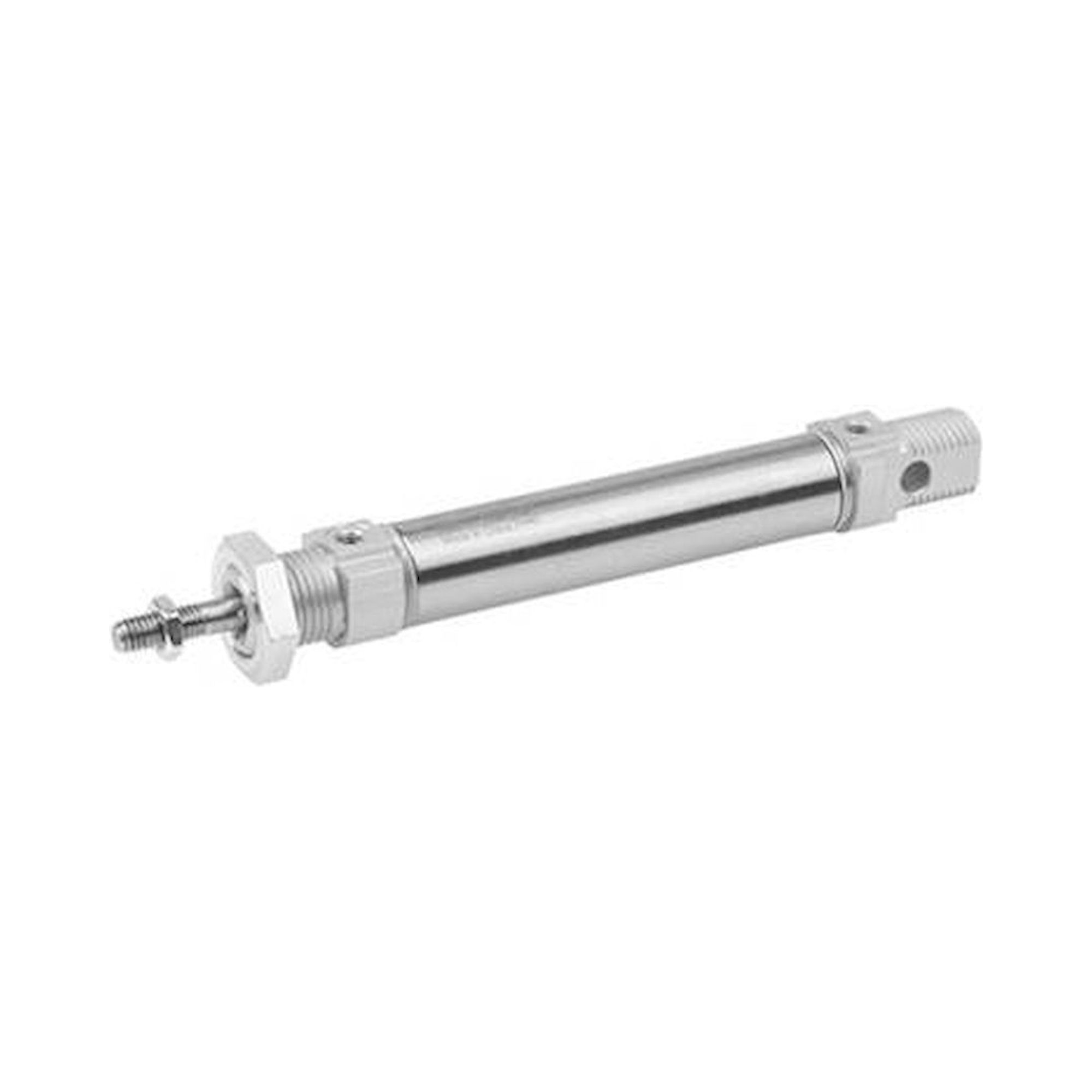

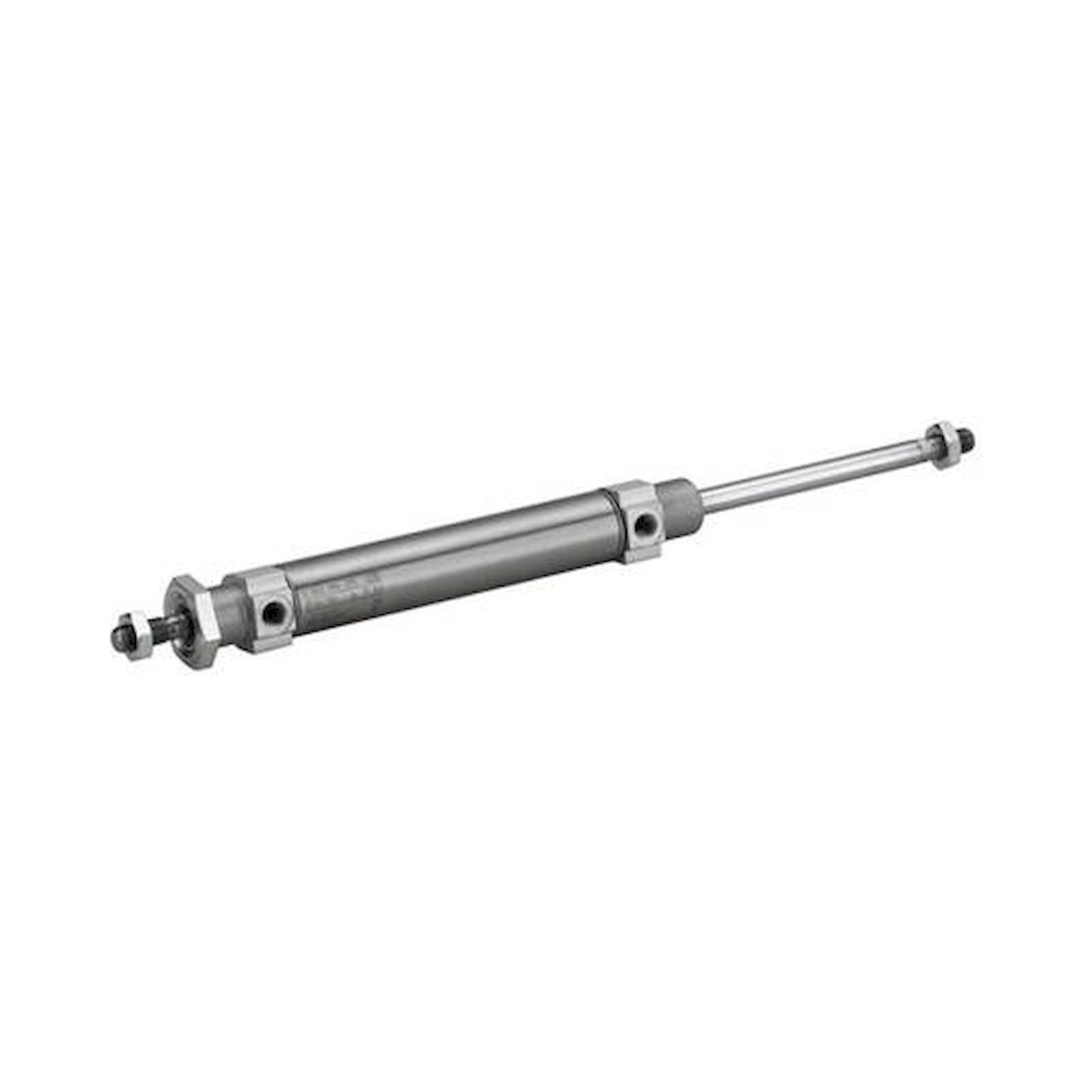

The Aventics ISO 6432 MNI series are double-acting mini cylinders to ISO 6432 with bores from 10 to 20 mm and strokes from 10 to 200 mm. With 579 variants, the MNI is the most extensive ISO 6432 series in the Aventics programme and is distinguished by its wide stroke range up to 200 mm, setting it apart from pure short-stroke mini cylinder families. Part numbers MNI-DA-[bore]-[stroke]-U-01-01-1-00-00 encode all key parameters directly.

✓ ISO 6432 compliant - standardised mini cylinder mounting dimensions, replacement without design changes
⚙ Double-acting (DA) - active force in both directions, bores 10 / 12 / 16 / 20 mm
↕ Strokes 10-200 mm - wide stroke range for mini profile; typical steps 10/25/50/80/100/125/160/200 mm
⬡ Compact miniature profile - smallest bore 10 mm for the tightest installation spaces
📦 579 variants - most extensive ISO 6432 mini cylinder series from Aventics

Bore (mm)Strokes (mm)
1010 / 25 / 50 / 80 / 100
1210 / 25 / 50 / 80 / 100 / 125 / 160
1610 / 25 / 50 / 80 / 100 / 125 / 160 / 200
2010 / 25 / 50 / 80 / 100 / 125 / 160 / 200

Compared with the CSL-RD series (ISO 6432, bore from 16 mm), the MNI offers the smallest bore range from 10 mm and the widest stroke range up to 200 mm within ISO 6432.

Typical applications: Miniaturised feed and sorting systems, gripper and clamping elements in small-parts handling robots, positioners in watchmaking and fine instrument manufacturing, slides and stops in laboratory and analytical automation, and retrofit of ISO 6432 applications requiring the smallest bores (10/12 mm).

We can't find products matching the selection.
What is the ISO 6432 Series MNI?
The ISO 6432 Series MNI is a standard pneumatic cylinder series from Aventics known for its compact design and compliance with ISO standards.
What applications are suitable for Aventics MNI cylinders?
Aventics MNI cylinders are ideal for automation, industrial applications, and any setting requiring compact and reliable pneumatic actuation.
Are Aventics MNI cylinders ISO compliant?
Yes, Aventics MNI cylinders comply with ISO 6432 standards, ensuring compatibility and reliability in various applications.
What are the key features of Aventics ISO 6432 Series MNI?
Key features include compact design, ISO 6432 compliance, and robust construction for high performance in pneumatic systems.
Can ISO 6432 Series MNI be used in hydraulic systems?
No, the ISO 6432 Series MNI is specifically designed for pneumatic systems, not hydraulic applications.
How does the Aventics MNI series enhance automation?
The Aventics MNI series enhances automation by providing efficient and reliable pneumatic actuation, crucial for automated systems.
What industries benefit from Aventics ISO 6432 cylinders?
Industries such as manufacturing, automotive, and packaging benefit from Aventics ISO 6432 cylinders due to their reliability and standard compliance.
