Standard cylinder DNC metric
Festo standard cylinder DNC metric is a double-acting piston rod cylinder from the Classic series with metric dimensions. The available range covers 6 items in bore diameters from 50 to 100 mm with strokes from 25 to 400 mm. All variants carry the suffix -PPV (adjustable bilateral end cushioning) without a magnetic piston suffix; they are suited to retrofit and spare part applications in existing installations where metric DNC cylinders are installed.
- 6 items
- 1 manufacturer
- Net prices plus VAT
Buying guide
How to choose Standard cylinder DNC metric
What matters when choosing: properties, comparison and typical applications.
Technical features DNC metric
Product overview DNC metric
| Type | Bore Ø | Stroke |
|---|---|---|
| DNC-50-125-PPV | 50 mm | 125 mm |

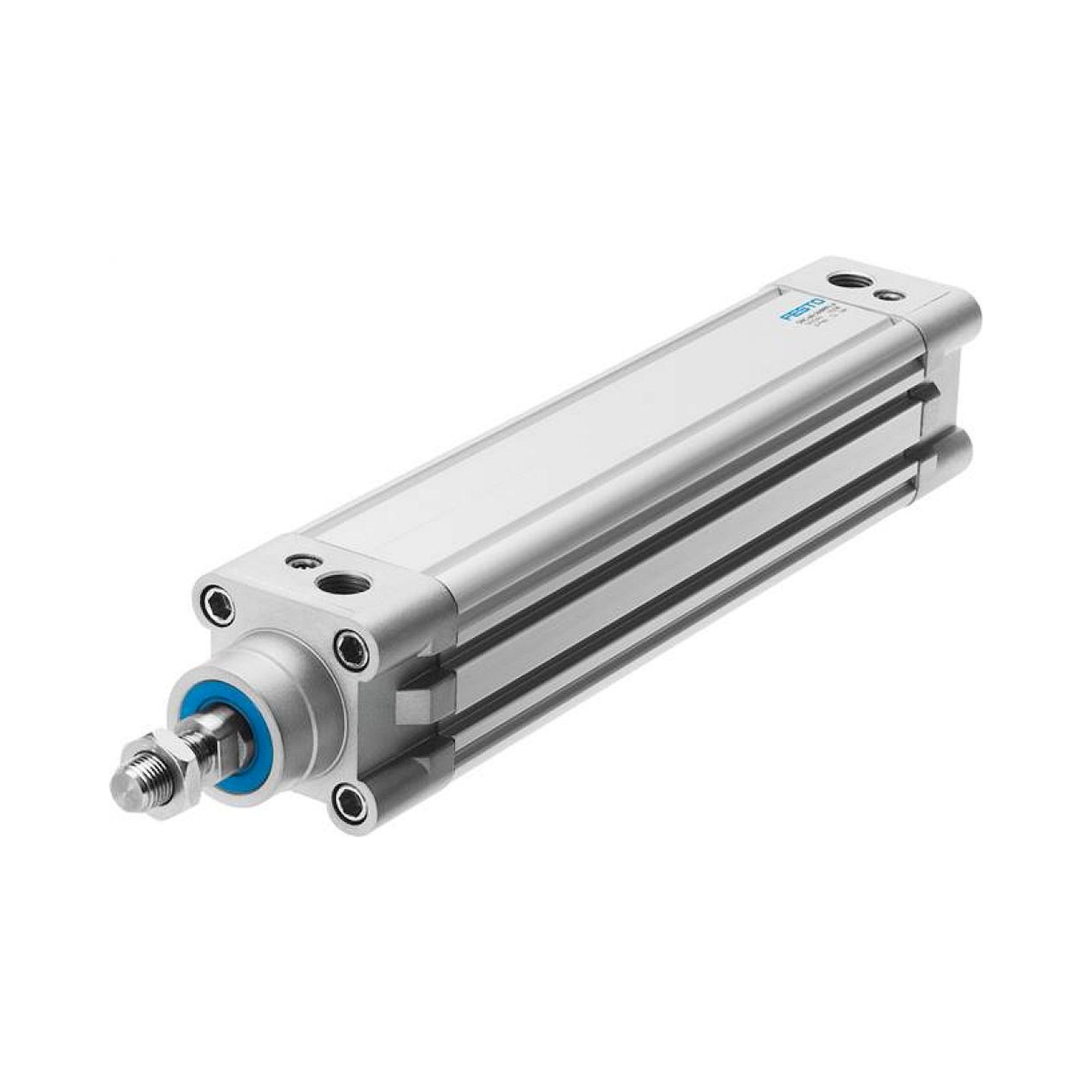

| DNC-50-400-PPV | 50 mm | 400 mm |
| DNC-63-25-PPV | 63 mm | 25 mm |
| DNC-80-320-PPV | 80 mm | 320 mm |
| DNC-100-25-PPV | 100 mm | 25 mm |
| DNC-100-50-PPV | 100 mm | 50 mm |
Typical applications
Typical applications: Spare parts procurement and retrofit for existing machines with DNC cylinders, general machinery with high cylinder forces and medium to long strokes, press fixtures, locking and clamping units, and handling technology where large-bore metric standard cylinders are required.
