The Festo DGPL linear drives in metric sizes are rodless linear actuators with a profile tube housing and an integrated external slide. Available in bore sizes of 25, 32 and 40 mm with strokes from 250 to 1000 mm (e.g. DGPL-25-1000-PPV-A-KF-B), the external carriage is magnetically coupled to the internal piston, keeping the pressure chamber fully sealed without an external rod. The absence of a piston rod results in a compact overall length relative to the available stroke.
Bore 25, 32, 40 mm - rodless, metric, stroke 250-1000 mm
Profile tube housing (PPV) - aluminium extrusion with integrated T-slot for sensor mounting
Magnetic force transmission - sealed pressure chamber, no buckling risk from an extended rod
Compact installation length - overall length equals stroke plus a fixed housing constant

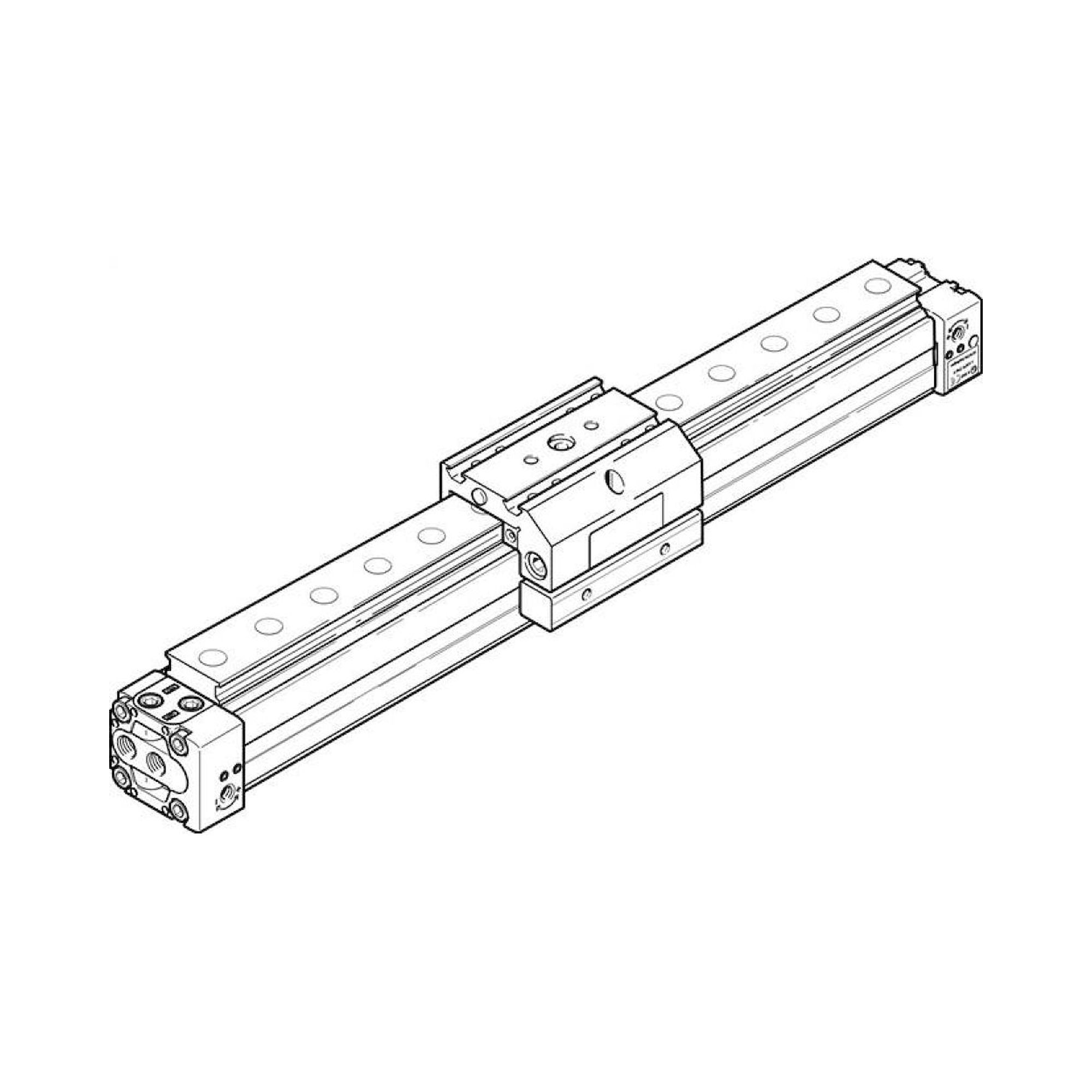

Variant -KF-B - with ball-race guide (KF) and cushioning at both end positions
| Type | Bore (mm) | Strokes (mm) | Notes |
|---|---|---|---|
| DGPL-25-…-PPV-A-B-KF | 25 | 250 / 400 / 500 | Standard version with KF guide |
| DGPL-25-1000-PPV-A-KF-B | 25 | 1000 | Long stroke, dual end cushioning |

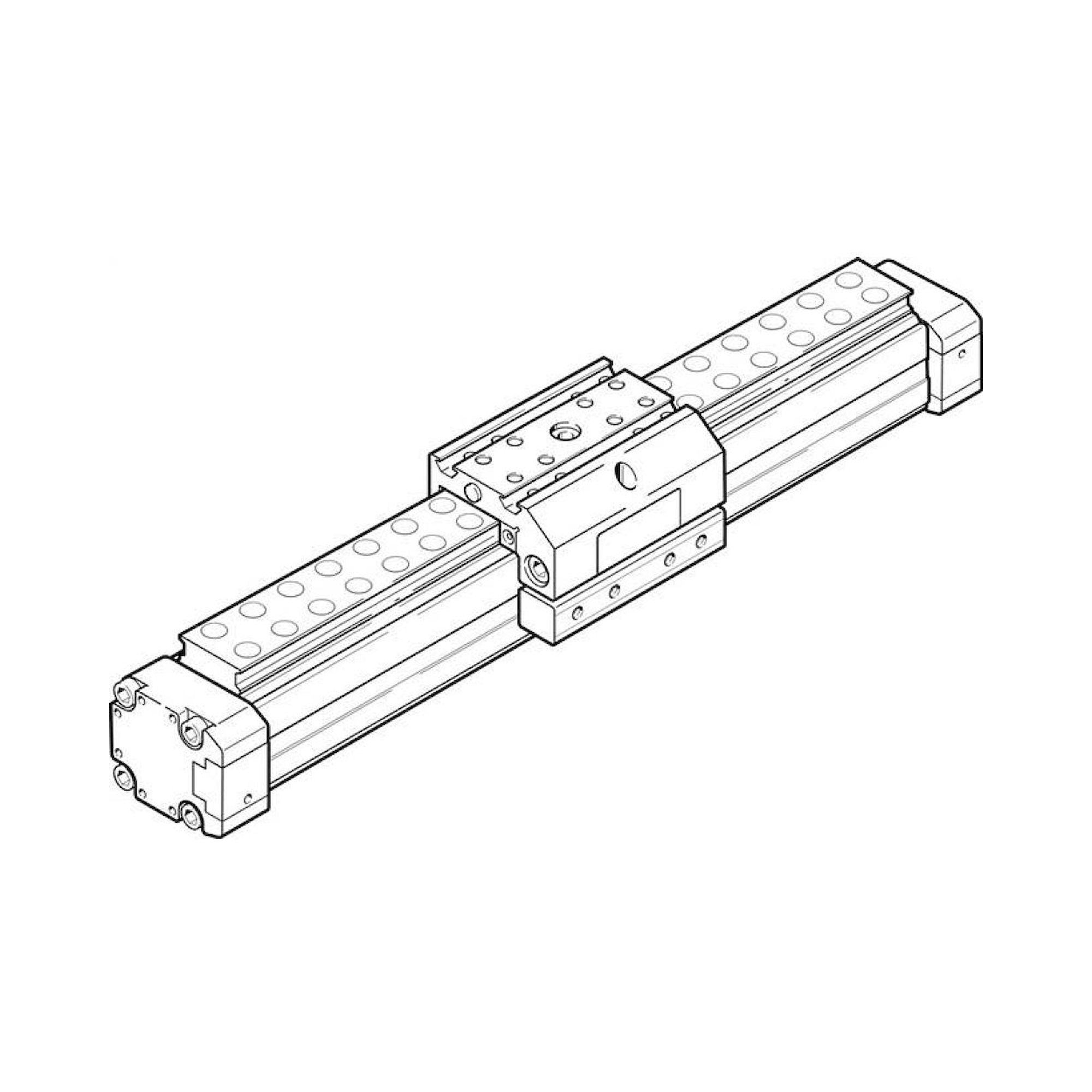

| DGPL-32-…-PPV-A-B-KF | 32 | 250-1000 | Medium load capacity |
| DGPL-40-…-PPV-A-B-KF | 40 | 250-1000 | Higher carriage load rating |
Typical applications: Horizontal and vertical transport tasks with long strokes in infeed systems, pick-and-place installations where an external rod is structurally impractical, and sliding or portal axes in handling systems.
