What are Festo threaded pneumatic fittings and where are they primarily used in industrial applications?

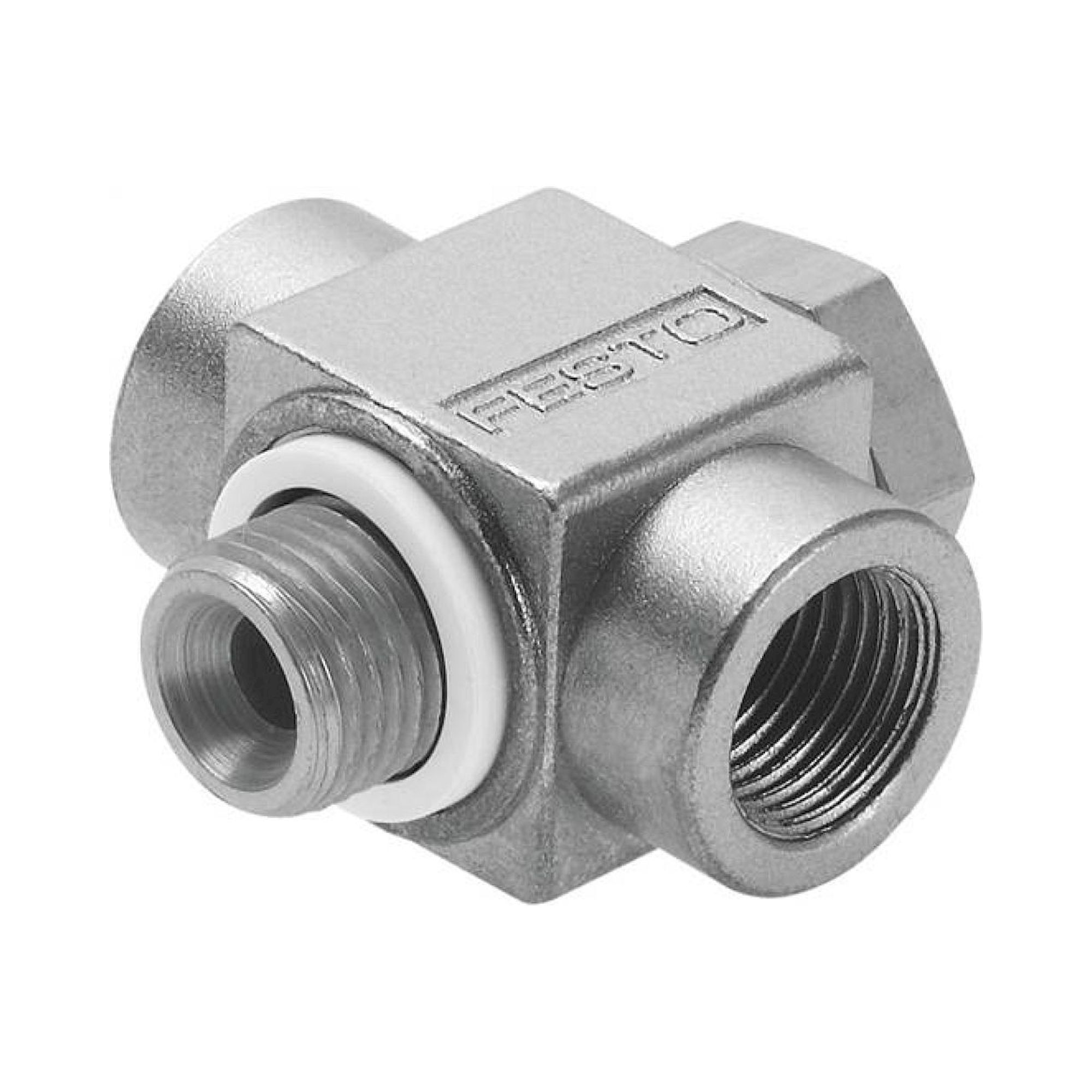

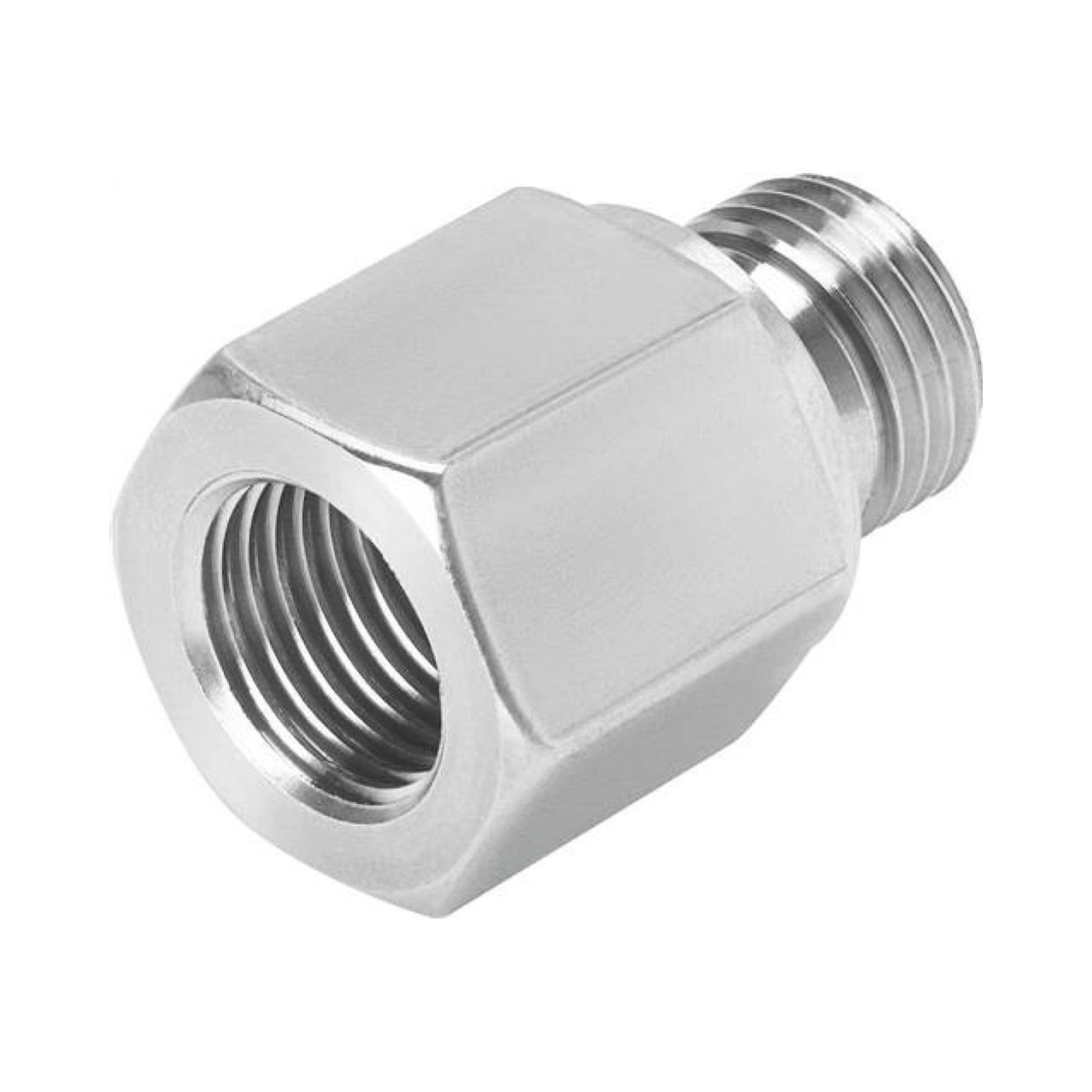

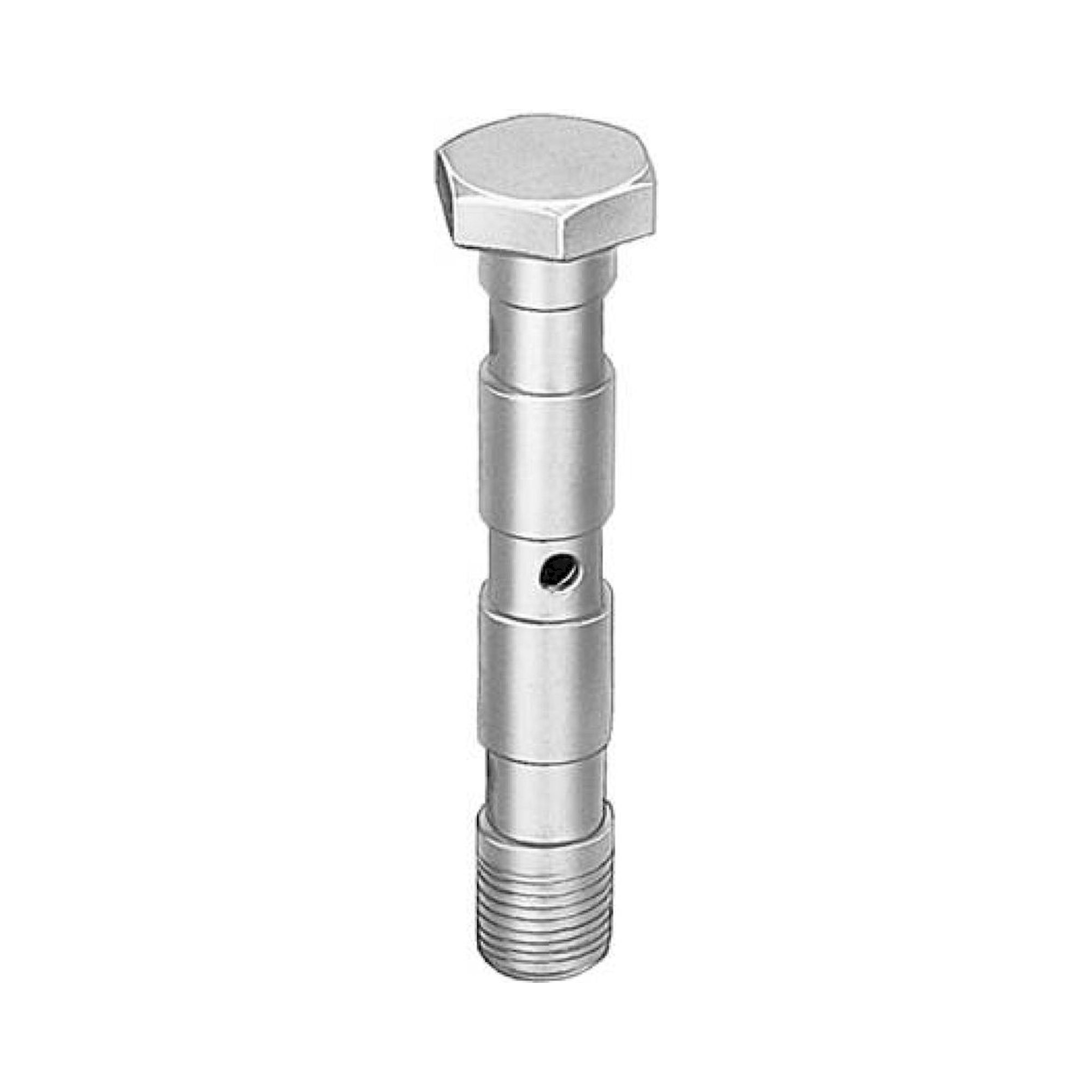

Festo threaded pneumatic fittings are precision-engineered connection components that create secure, leak-tight joints in compressed air systems through standardized thread interfaces. These fittings serve critical roles in manufacturing automation, process control systems, and material handling equipment across automotive, packaging, food processing, and semiconductor industries. The product range includes adapters like the NPFV-AF-G14-N14-MF for thread conversion, T-junctions such as the TJK-1/2 for branching air lines, and hollow screws like the VT-3/8-3-3/8 for panel mounting applications. Industrial facilities rely on these components to maintain system pressure integrity and enable modular pneumatic circuit design.

What are the key technical selection criteria for Festo threaded pneumatic fittings?

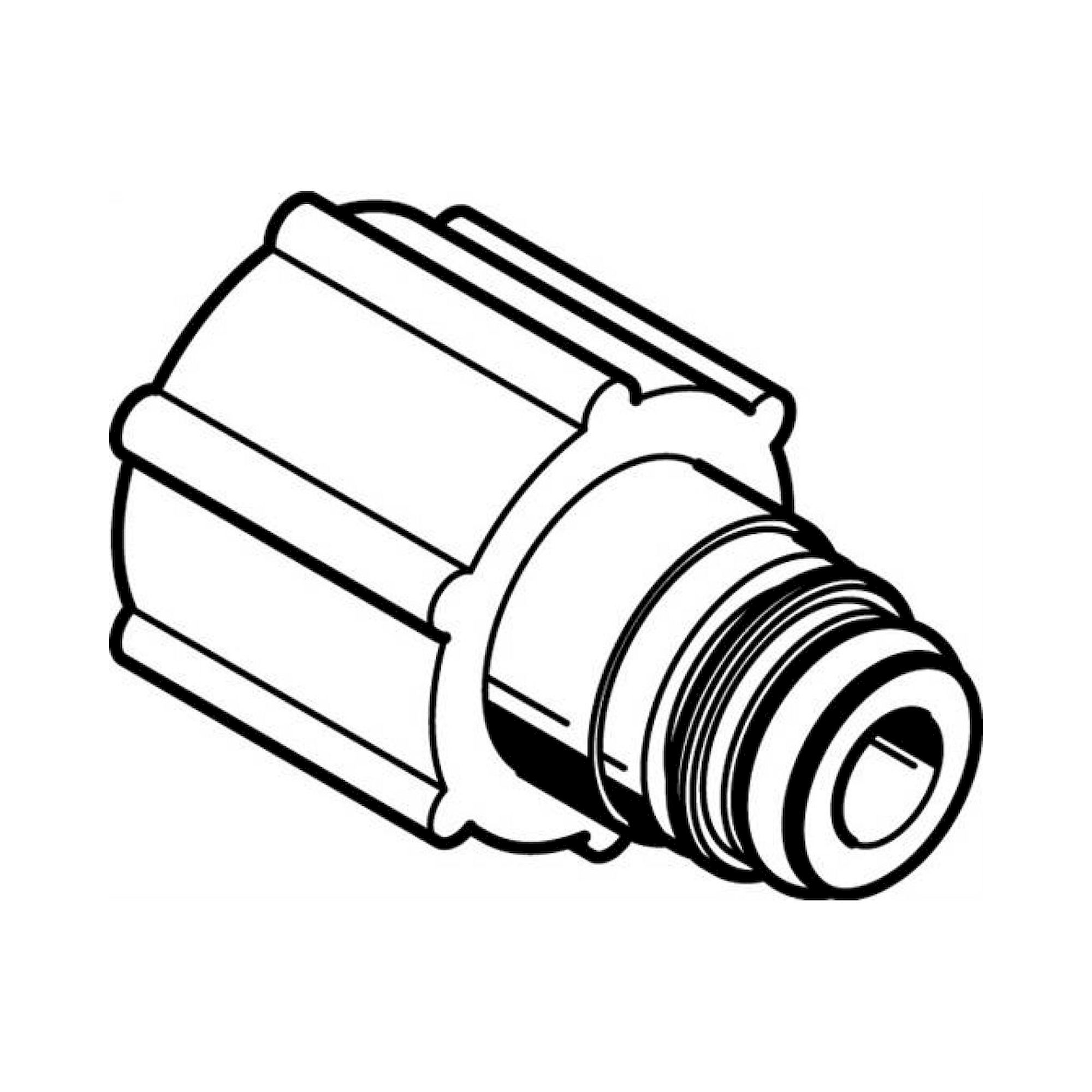

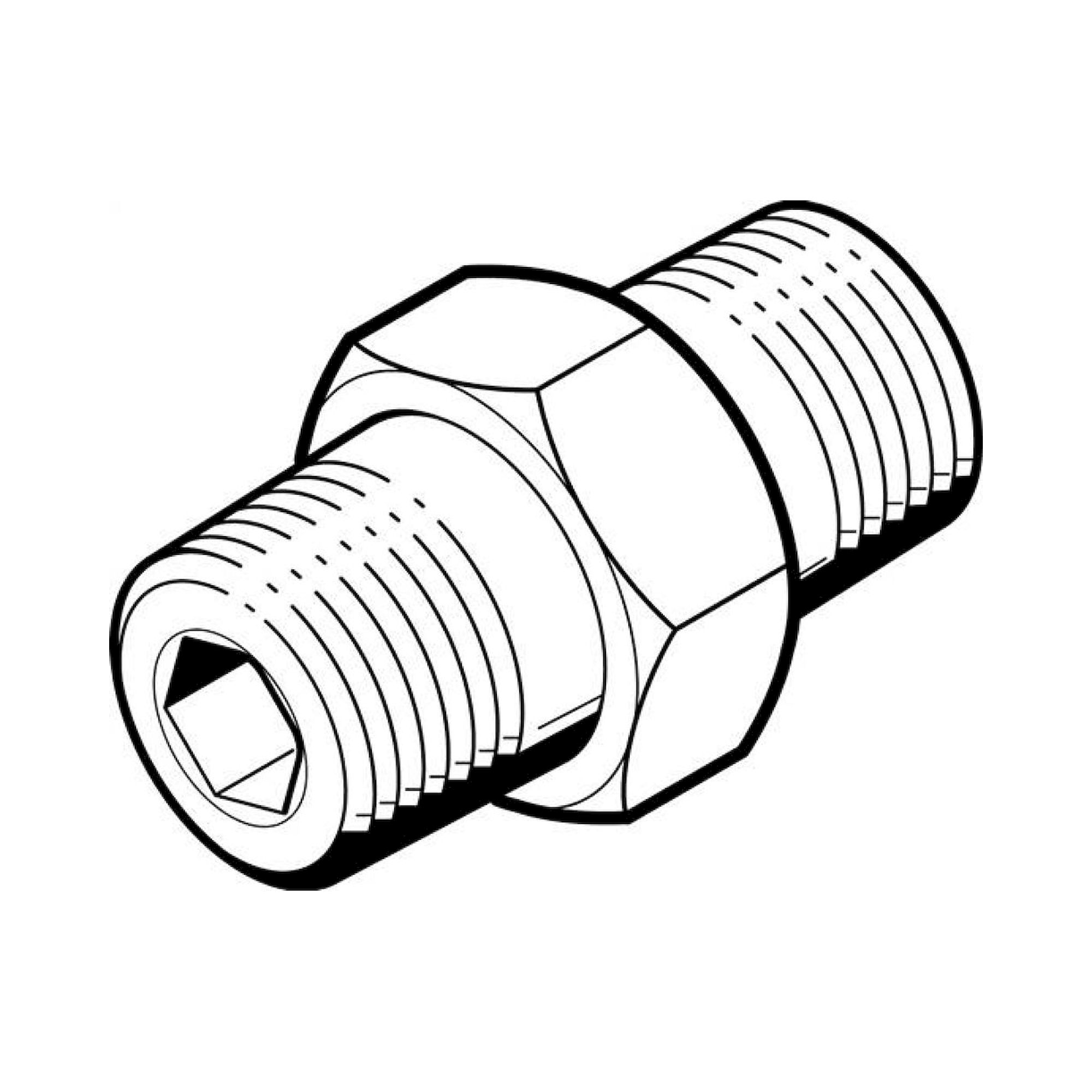

Selection of Festo threaded pneumatic fittings requires matching thread specifications, with common sizes ranging from G1/8 to 1/2 inch as demonstrated by products like the QSP10-G1/8 adapter and TJK-1/2 T-junction. Operating pressure capability typically extends to 16 bar for standard pneumatic applications, while thread pitch and sealing method must align with existing system components. Material compatibility becomes critical when handling different media, with brass and stainless steel variants available for corrosive environments or food-grade applications. Connection geometry determines flow characteristics, where straight-through designs like the ESK-3/8-1/2 double nipple minimize pressure drop compared to angular configurations.

Which international standards and certifications apply to Festo threaded pneumatic fittings?

Festo threaded pneumatic fittings comply with ISO 228-1 for parallel pipe threads and ISO 7-1 for tapered threads, ensuring global compatibility with industrial pneumatic systems. DIN EN 837-1 governs pressure ratings and safety factors for threaded connections in compressed air applications, while ISO 4762 specifies dimensional requirements for hollow screws and threaded fasteners. Manufacturing processes adhere to ISO 9001 quality management standards, with material certifications meeting EN 10204 documentation requirements for traceability. ATEX certification may apply to specific variants designed for explosive atmosphere applications, particularly in chemical processing and grain handling facilities where static electricity poses ignition risks.

What are the main differences between Festo threaded fitting variants like adapters, T-junctions, and hollow screws?

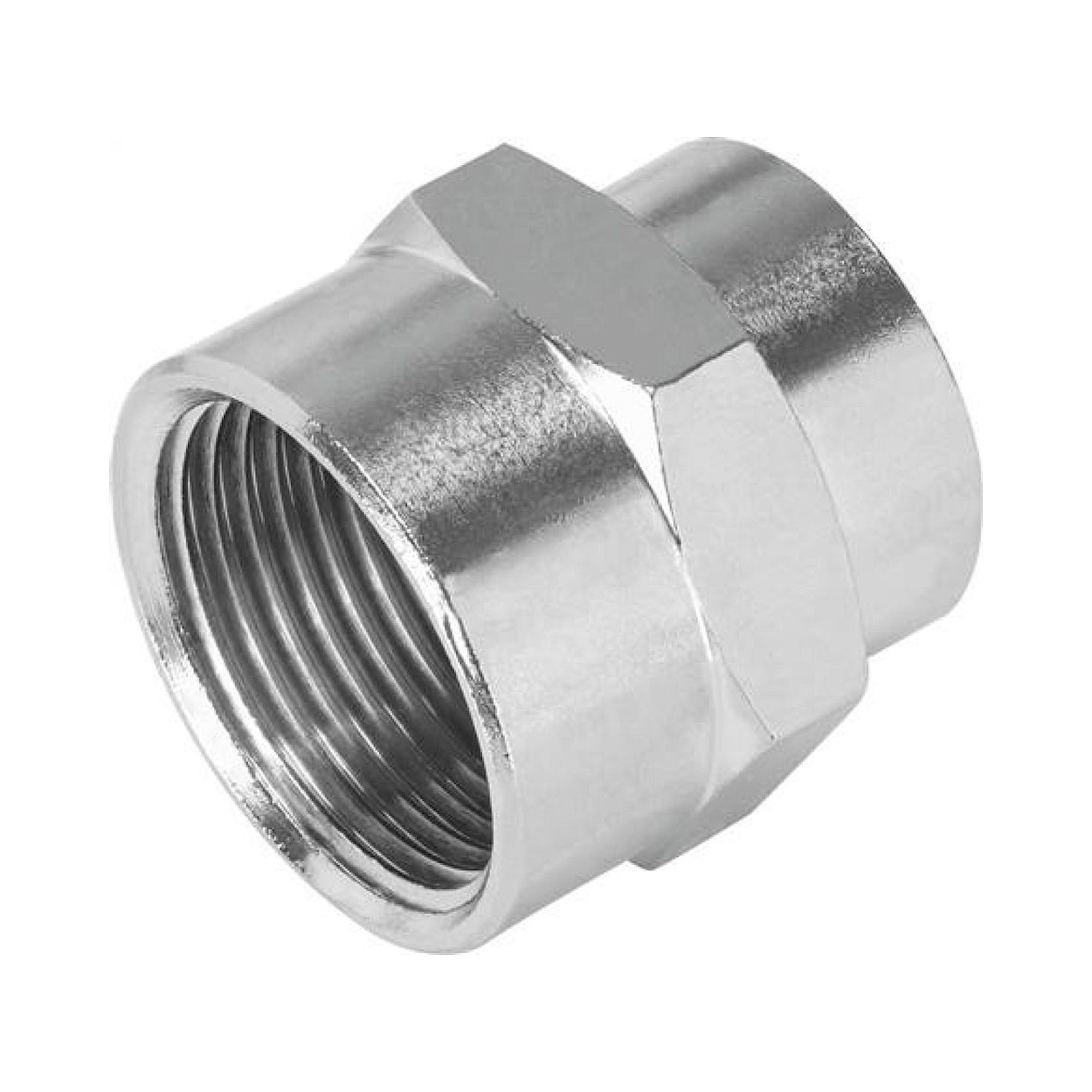

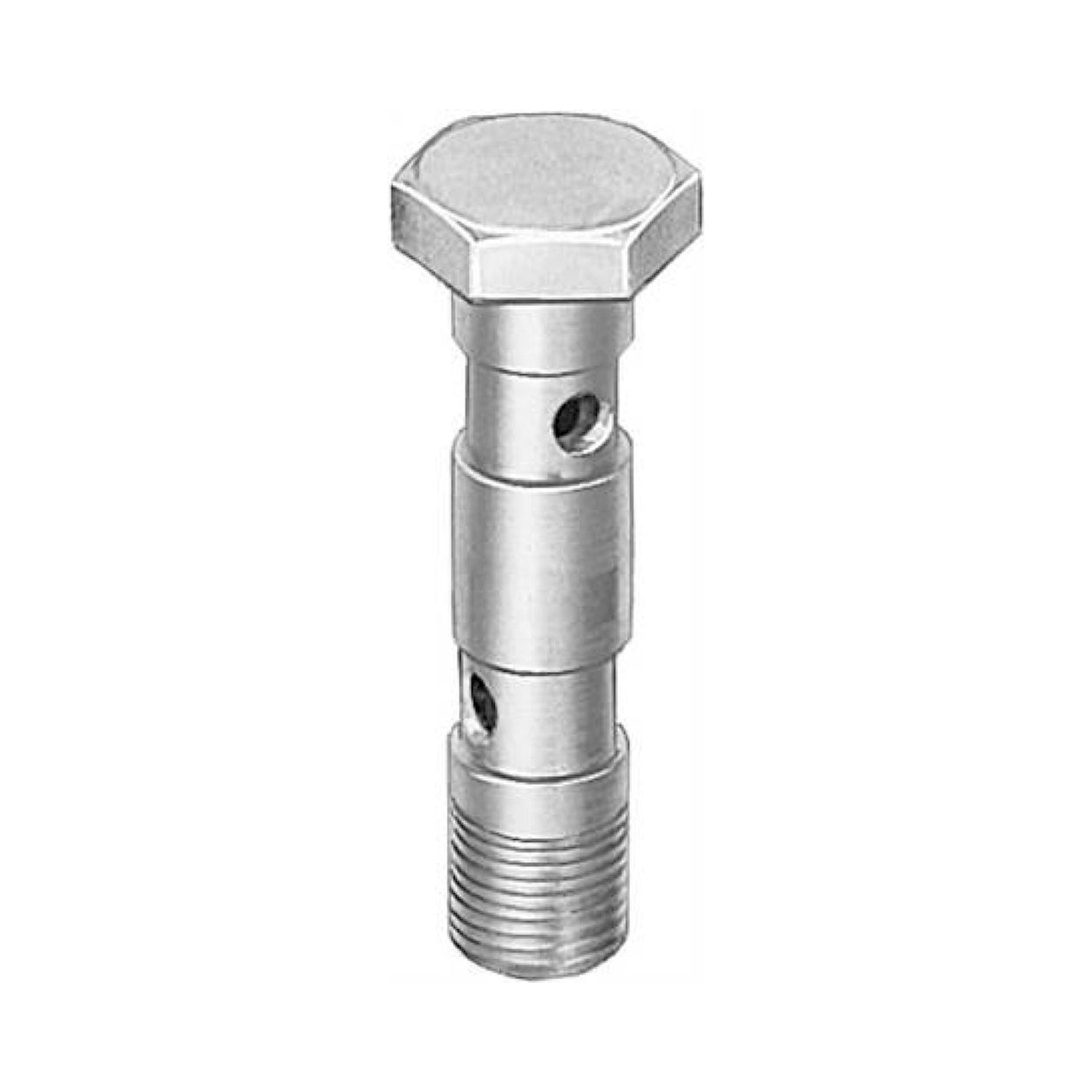

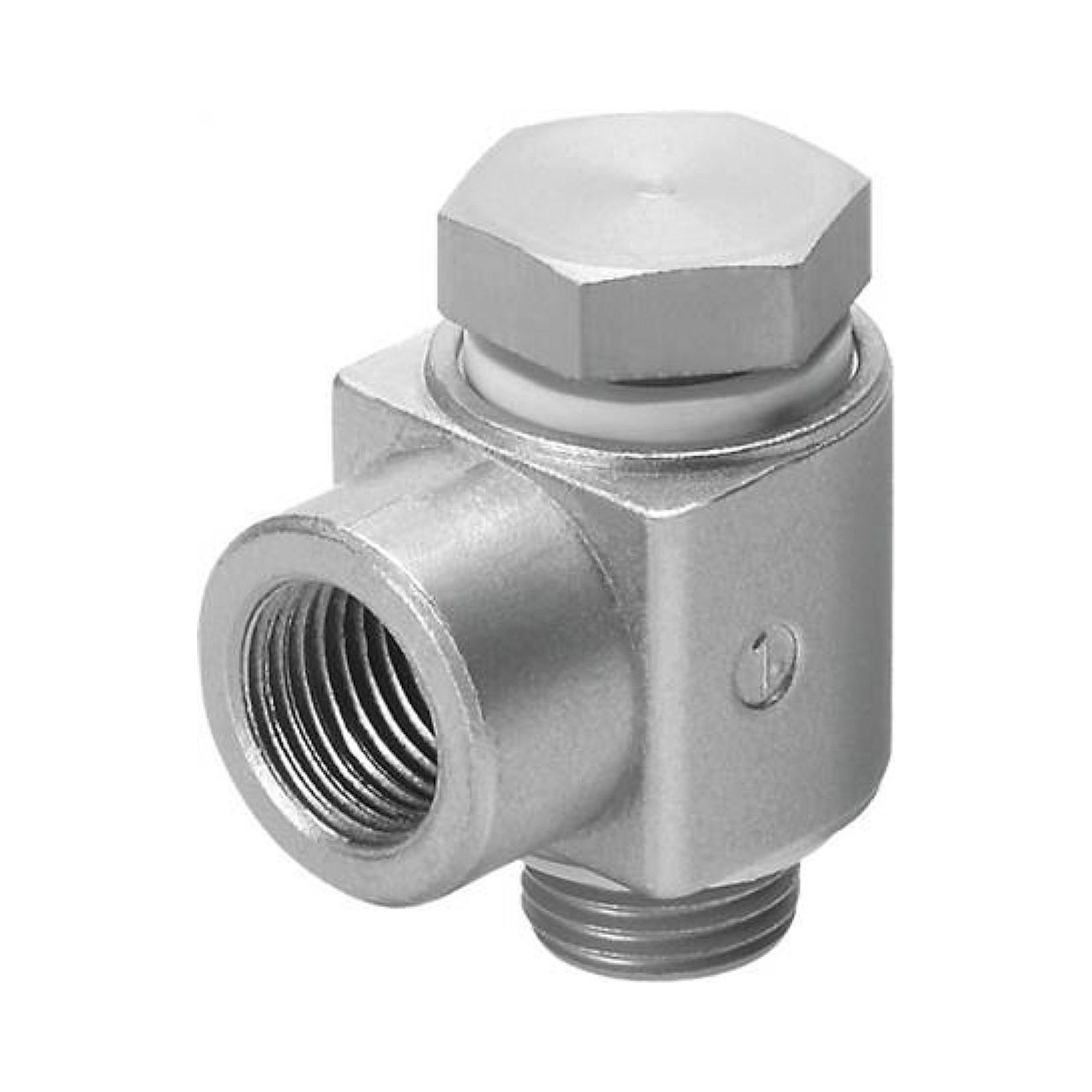

Festo adapters such as the NPFV-AF-G14-G14-MF provide straight-through connections for joining different thread types or converting between male and female threads without changing flow direction. T-junctions like the TJK-3/8 create three-way branch points in pneumatic circuits, enabling air distribution to multiple actuators or sensors from a single supply line. Hollow screws including the VT-3/8-3-3/8 combine fastening and fluid connection functions, allowing compressed air passage through panel walls while maintaining mechanical attachment. L-fittings such as the LJK-1/2 redirect airflow by 90 degrees in space-constrained installations, while reducing sleeves like the NPFC-R-G1-G12-F enable connection between different pipe diameters within the same thread standard.

What installation requirements and system compatibility factors apply to Festo threaded pneumatic fittings?

Installation of Festo threaded pneumatic fittings requires proper thread engagement depth according to DIN EN ISO 228-1, typically 4-6 thread turns for parallel threads with additional PTFE tape or liquid sealant application. System compatibility demands matching thread pitch and sealing method, where BSP parallel threads on components like the QSP10-G1/8 require different sealing approaches compared to NPT tapered threads. Torque specifications range from 8-25 Nm depending on thread size and material, with brass fittings requiring lower torque than steel variants to prevent galling. Compatible tubing systems include polyurethane, polyamide, and PTFE lines rated for pneumatic service, while connection to rigid piping systems requires consideration of thermal expansion and vibration isolation.

What safety ratings and operating parameters apply to Festo threaded pneumatic fittings?

Festo threaded pneumatic fittings typically operate at maximum working pressures of 16 bar with safety factors of 4:1, providing burst pressure resistance exceeding 64 bar for standard brass and steel variants. Operating temperature range spans -20°C to +150°C for standard materials, while specialized high-temperature versions extend service capability to +200°C in thermal processing applications. IP protection ratings vary by design, with panel-mount hollow screws achieving IP65 sealing when properly installed with O-ring gaskets. Thread materials include brass (CW617N), stainless steel (1.4571), and specialized polymers for chemical compatibility, each rated for specific media including compressed air, neutral gases, and select hydraulic fluids up to ISO VG 68 viscosity grades.

What maintenance schedules and service life expectations apply to Festo threaded pneumatic fittings?

Festo threaded pneumatic fittings require visual inspection every 6 months for thread damage, corrosion, and seal degradation, with immediate replacement upon detection of air leakage exceeding 0.1 bar pressure drop per hour. Service life typically exceeds 10 years in standard industrial environments when operating within specified pressure and temperature limits, though aggressive media or thermal cycling may reduce lifespan to 3-5 years. Thread sealant replacement becomes necessary during system modifications, requiring complete cleaning with isopropyl alcohol and fresh PTFE tape application according to DIN EN 751-1 guidelines. Critical applications in semiconductor manufacturing or pharmaceutical production may mandate annual replacement regardless of visual condition to maintain contamination control and process reliability standards.

Threaded fittings

Fittings

Festo threaded fittings form the rigid connection layer in pneumatic installations. Blanking plugs of the B series (B-M3 to B-1) seal unused ports in valves and cylinders, double nipples of the ESK series connect two matching internally threaded bores, elbows (G) redirect air paths by 90 degrees, and distributors (FR) allow parallel supply to multiple consumers from a single port. The range covers M3 and M5 for miniaturised components through to G 1 for larger nominal sizes.

⚙ Blanking plugs B series - M3, M5, M7, G 1/8, G 1/4, G 3/8, G 1/2, G 3/4, G 1 - complete port sealing range

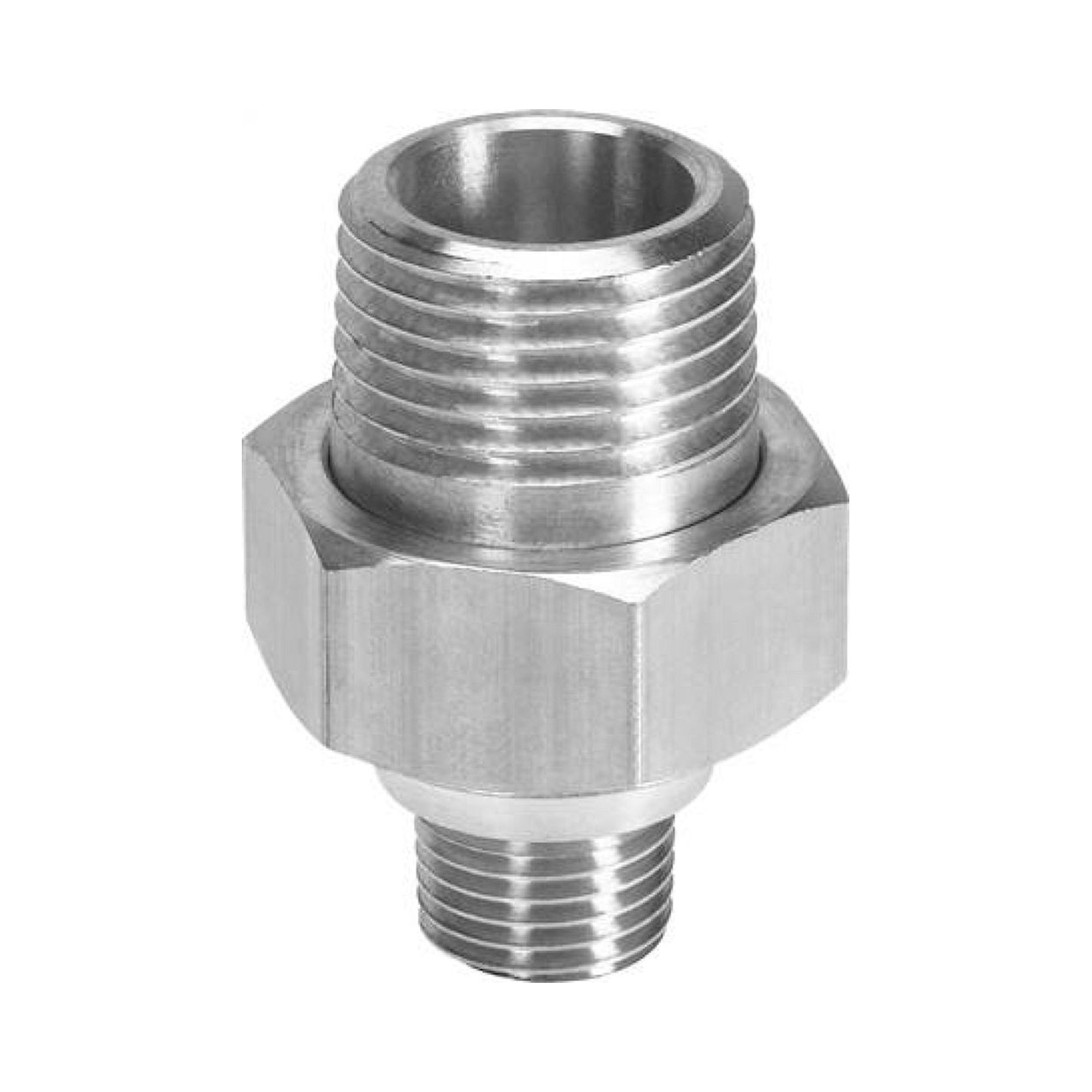

⚡ Double nipples ESK - joining two female thread connections, size combinations G 1/8 to G 1/2

✓ Elbows G - 90° redirection, A/I variants (male/female thread), G 1/8 to G 3/8

⬡ Distributors FR - parallel distributor M5 to G 3/8, A/I versions for flexible installation direction

✦ Reducer nipple D-M5I-M7A - adapter for different thread sizes on one port

Type	Function	Thread sizes
B (blanking plug)	Seal port	M3, M5, M7, G 1/8 to G 1
ESK (double nipple)	Connect two female threads	G 1/8-G 1/8 to G 1/2-G 1/2
G (elbow)	90° redirection A/I	G 1/8, G 1/4, G 3/8
FR (distributor)	Parallel supply of multiple ports	M5, G 1/8, G 1/4, G 3/8
D-M5I-M7A (reducer nipple)	Thread adapter M5 to M7	M5 female / M7 male

Typical applications: Sealing spare ports in multi-way pneumatic valves and cylinder end caps (blanking plugs), connecting two valves or cylinders with the same thread standard (ESK double nipples), redirecting compressed air supply lines in confined installation spaces (elbows G), parallel supply of multiple small consumers from a single port (FR distributors), and adapting mismatched thread sizes when combining components from different manufacturers (reducer nipples).
