Buy 450B Cupla - High-Pressure Pneumatic

High-Pressure up to 700 Bar

The Nitto Kohki 450B Cupla is a high-pressure quick coupling in steel with NBR seals, designed for operating pressures up to 450 bar. The range includes a plug (450B-3P) and a socket (450B-3S) in nominal size 3. The steel body with NBR elastomer seal allows use with hydraulic oils and comparable fluids in test and industrial equipment.

2 items
1 manufacturer
Net prices plus VAT

Add to Wish List Add to Compare

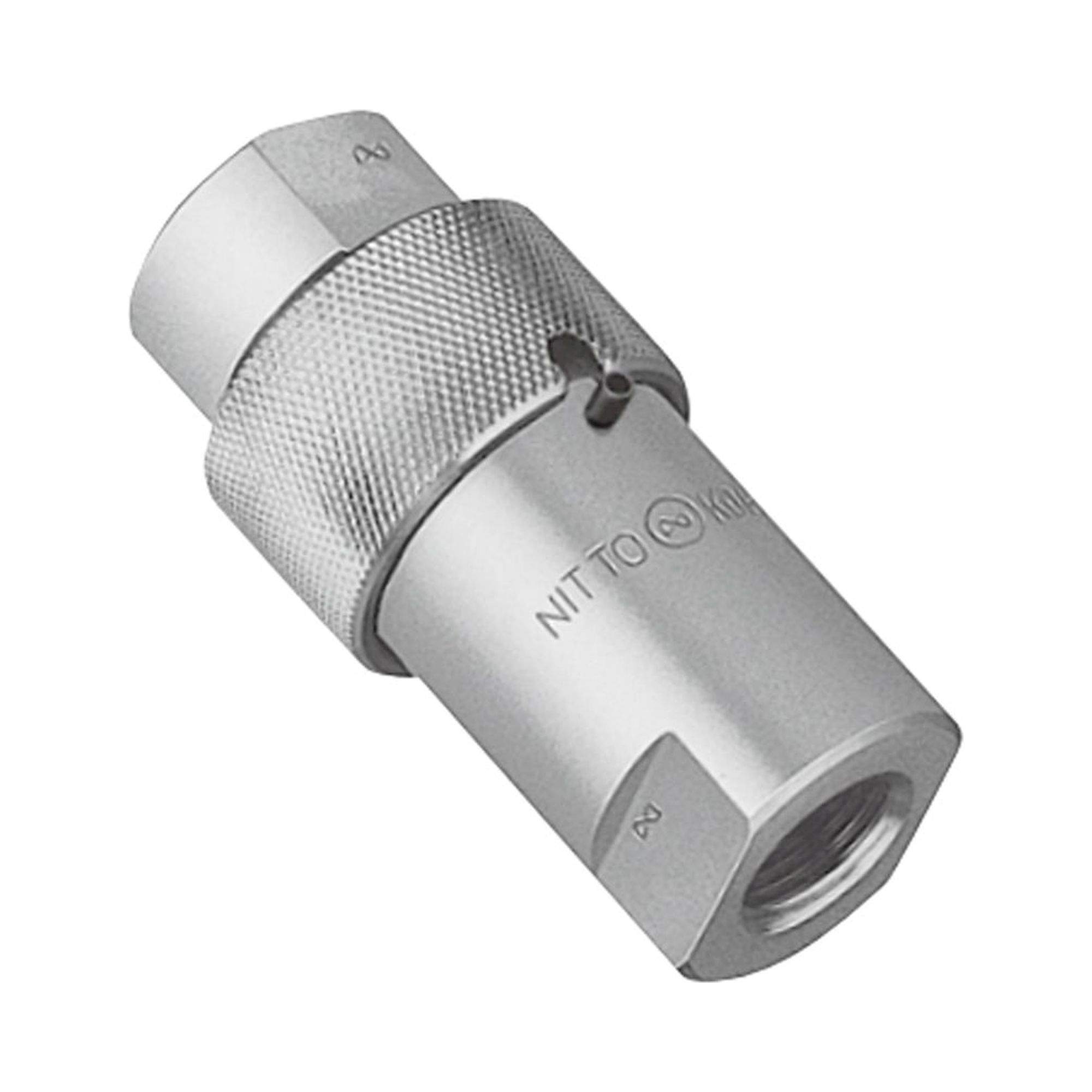

Quick connect coupling 450B Cupla 450B-3P, R 3/8, steel - Nitto Kohki 369803007
€30.26
Add to Wish List Add to Compare

Quick connect coupling 450B Cupla 450B-3S, steel - Nitto Kohki 369803006
€70.59

Buying guide

How to choose 450B Cupla

What matters when choosing: properties, comparison and typical applications.

Technical features

⚡ Max. operating pressure 450 bar - steel housing for high-pressure hydraulics and test systems

✓ NBR seal - suitable for hydraulic oils and mineral-oil-based media

⚙ Nominal size 3 - compact design for restricted installation spaces

✦ Plug and socket available - 450B-3P (Plug) and 450B-3S (Socket)

Type overview

Type	Design	Nominal size	Material	Seal
450B-3P	Plug	3	Steel	NBR
450B-3S	Socket	3	Steel	NBR

Typical applications

Typical applications: Hydraulic test benches and medium-to-high-pressure test lines, machine tools with high-pressure coolant circuits, pressure-testing systems for pipelines and fittings, and laboratory equipment for pressure measurements up to 450 bar.
