210 Cupla
High-Pressure up to 700 Bar

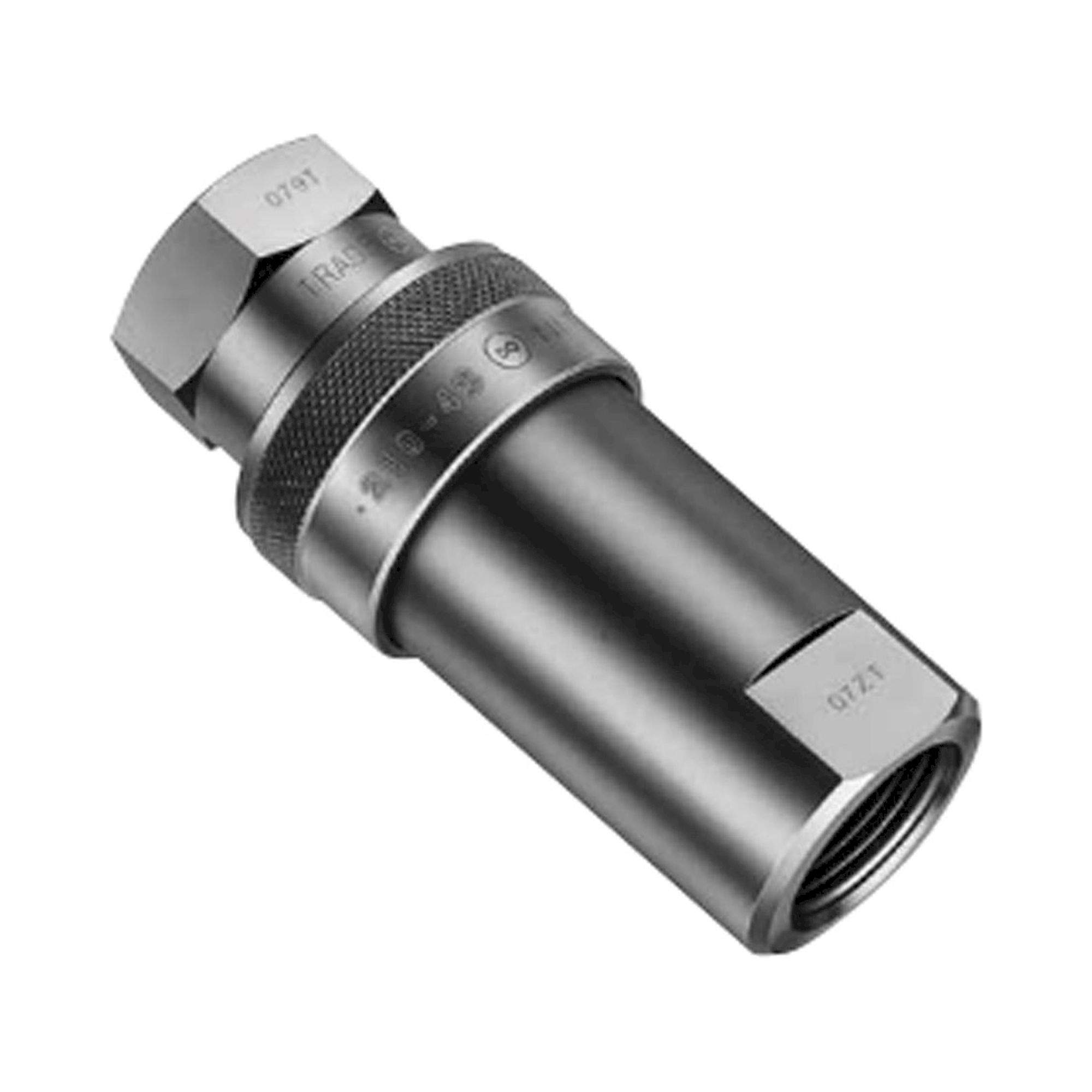

The Nitto Kohki 210 Cupla is a high-pressure quick coupling in steel with NBR seals, rated for operating pressures up to 210 bar. The programme covers plugs (210-2P through 210-8P) and sockets (210-2S through 210-8S) in nominal sizes 2, 3, 4, 6, and 8. With 20 line items, this series addresses a wide range of hydraulic connection tasks in the medium-to-high pressure sector.
| Nominal size | Plug | Socket | Material | Seal |
|---|---|---|---|---|
| 2 | 210-2P | 210-2S | Steel | NBR |
| 3 | 210-3P | 210-3S | Steel | NBR |
| 4 | 210-4P | 210-4S | Steel | NBR |
| 6 | 210-6P | 210-6S | Steel | NBR |
| 8 | 210-8P | 210-8S | Steel | NBR |
Typical applications: Hydraulic control circuits in machine tools, press hydraulics and bending fixtures, hose-line connectors for mobile hydraulics, test-bench and instrumentation installations, and industrial systems requiring frequent hydraulic connection changes up to 210 bar.
Technical data from the manufacturer catalogue
| Series | 210 CUPLA |
|---|---|
| Body material | Special steel (Nickel plated) |
| Seal material | NBR (Nitrile rubber), FKM (Fluoro rubber) |
| Max working pressure | 20.6 MPa {210 kgf/cm2} |
| Working temperature | NBR (Nitrile rubber): -20 to +80 deg C | FKM (Fluoro rubber): -20 to +180 deg C |
| Valve structure | Two-way shut-off |
| Applicable fluids | Hydraulic oil |
| Vacuum service | 1.3 Pa {1x10-2 mmHg}: socket only -, plug only -, operational when connected |
| Size range | 1/4 inch to 1 inch |
| Catalogue page | C01en-b, 97 |
Operating principle
- Hydraulic CUPLA with a working pressure of 20.6 MPa {210 kgf/cm2}.
- Structure is designed to reduce pressure loss to the lowest, and is suitable for hydraulic applications that need big flow rates.
- Both socket and plug have built-in automatic shut-off valves that prevent fluid outflow when disconnected.
- The body material is quenched to cope especially with impulses.
- Various end configurations.
- Fluid flow can be bi-directional when socket and plug are connected.
All models of the series
P - Female thread
| Model | Coupling part | Application | Steel (g) | L | C | T | øH(WAF) |
|---|---|---|---|---|---|---|---|
| 210-2P | Plug | R 1/4 | 39 | 33 | 18 | Rc 1/4 | Hex.19 |
| 210-3P | Plug | R 3/8 | 57 | 36 | 18.5 | Rc 3/8 | Hex.23 |
| 210-4P | Plug | R 1/2 | 90 | 42.5 | 24 | Rc 1/2 | Hex.27 |
| 210-6P | Plug | R 3/4 | 195 | 51 | 28 | Rc 3/4 | Hex.35 |
| 210-8P | Plug | R1 | 293 | 61 | 35 | Rc 1 | Hex.41 |
S - Female thread
| Model | Coupling part | Application | Steel (g) | L | T | øH(WAF) | øoD |
|---|---|---|---|---|---|---|---|
| 210-2S | Socket | R 1/4 | 158 | 50.5 | Rc 1/4 | 22 | (30) |
| 210-3S | Socket | R 3/8 | 193 | 54 | Rc 3/8 | 23 | (33) |
| 210-4S | Socket | R 1/2 | 330 | 65 | Rc 1/2 | 29 | (39) |
| 210-6S | Socket | R 3/4 | 566 | 78.5 | Rc 3/4 | 35 | (48) |
| 210-8S | Socket | R1 | 861 | 95 | Rc 1 | 41 | (55) |
Dimensions in millimetres. Values in brackets apply in the connected condition.
Legend: L = overall length; H = width across flats or outside dimension; D = socket outside diameter; A = hose barb length; C = sleeve dimension; T = thread or barb size; B = bore
Series comparison
| Series | Max working pressure | Size range | Valve structure | Applicable fluids |
|---|---|---|---|---|
| 210 CUPLA | 206 bar | 1/4 inch to 1 inch | Two-way shut-off | Hydraulic oil |
| HSP CUPLA | 206 bar | 1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, 1 inch, 1 1/4 inch, 1 1/2 inch, 2 inch | Two-way shut-off | Hydraulic oil |
| HYPER HSP CUPLA | 206 bar | 1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, 1 inch | Two-way shut-off | Hydraulic oil |
| HSU CUPLA | 210 bar | Thread 1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, 1 inch | Two-way shut-off | Water, Hydraulic oil, Gas |
| 280 CUPLA | 315 bar | Thread 1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, 1 inch | Two-way shut-off | Hydraulic oil |
| 350 CUPLA | 345 bar | Thread 1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, 1 inch, 1 1/4 inch, 1 1/2 inch | Two-way shut-off (Spill Reduction) | Hydraulic oil |
| 450B CUPLA | 441 bar | 3/8 inch | Two-way shut-off | Hydraulic oil |
| 700R CUPLA | 686 bar | Thread 3/8 inch, 1/2 inch | Two-way shut-off | Hydraulic oil |
Choose 210 CUPLA when the hydraulic line runs at up to 20.6 MPa {210 kgf/cm2} and needs two-way shut-off together with low pressure loss at large flow rates. For higher pressure, the siblings are 280 CUPLA at 27.5 to 31.5 MPa {281 to 321 kgf/cm2}, 350 CUPLA at 34.5 MPa {352 kgf/cm2}, 450B CUPLA at 44.1 MPa {450 kgf/cm2} and 700R CUPLA at 68.6 MPa {700 kgf/cm2}. HSP CUPLA, HYPER HSP CUPLA, HSU CUPLA and S210 CUPLA cover the same pressure class with the same two-way shut-off, but they are separate series and 210 CUPLA is not interchangeable with HSP CUPLA.
Body and seal materials
| Body material |
|---|
| Special steel (Nickel plated) |
| Seal material | Mark | Working temperature | Remarks |
|---|---|---|---|
| NBR (Nitrile rubber) | - | -20 to +80 deg C | - |
| FKM (Fluoro rubber) | - | -20 to +180 deg C | - |
Further catalogue data
| Note | Value |
|---|---|
| Working pressure (MPa) | 20.6 |
| Working pressure (kgf/cm2) | 210 |
| Working pressure (bar) | 206 |
| Working pressure (PSI) | 2990 |
| Maximum tightening torque 1/4 inch | 28 Nm {286 kgf cm} |
| Maximum tightening torque 3/8 inch | 45 Nm {459 kgf cm} |
| Maximum tightening torque 1/2 inch | 90 Nm {918 kgf cm} |
| Maximum tightening torque 3/4 inch | 100 Nm {1020 kgf cm} |
| Maximum tightening torque 1 inch | 180 Nm {1836 kgf cm} |
| Minimum cross-sectional area 210-2SP (mm2) | 24.5 |
| Minimum cross-sectional area 210-3SP (mm2) | 42.8 |
| Minimum cross-sectional area 210-4SP (mm2) | 77.4 |
| Minimum cross-sectional area 210-6SP (mm2) | 146.5 |
| Minimum cross-sectional area 210-8SP (mm2) | 235.6 |
| Admixture of air on connection 210-2SP (mL) | 0.85 |
| Admixture of air on connection 210-3SP (mL) | 1.02 |
| Admixture of air on connection 210-4SP (mL) | 2.63 |
| Admixture of air on connection 210-6SP (mL) | 8.83 |
| Admixture of air on connection 210-8SP (mL) | 16.04 |
| Flow direction | Fluid flow can be bi-directional when socket and plug are connected. |
| WAF | WAF stands for width across flats. |
| Flow rate | Flow rate - pressure loss characteristics chart printed on page 98 for 210-2SP, 210-3SP, 210-4SP, 210-6SP and 210-8SP, flow rate axis 1 to 300 L/min. Test conditions: fluid hydraulic oil, fluid viscosity 32x10-6 m2/s, density 0.87x103 kg/m3. |
Interchangeability and size groups
Socket and plug of different sizes cannot be connected. There is no interchangeability between 210 CUPLA and HSP CUPLA, 280 CUPLA or 450B CUPLA.
Safety and application notes
- Precautions for use: There is no interchangeability between 210 CUPLA and HSP CUPLA, 280 CUPLA or 450B CUPLA. Do not connect each other even if some sizes are approximate.
- Before use, please be sure to read the Safety Guide described at the end of this book and the Instruction Sheet that comes with the products.
All technical data on this page is taken from the Nitto Kohki general catalogue Quick Connect Couplings C01en-b, page 97. The complete catalogue is available for download on this page.
