High-Pressure up to 700 Bar

Nitto Kohki Pneumatic Solutions

Nitto Kohki offers high-pressure quick couplings rated up to 700 bar, engineered for hydraulic and high-pressure pneumatic applications. The product range divides into several series matched to specific pressure levels and material requirements: from the HSP Cupla and HSU Cupla (stainless steel, HNBR) through the 210, S210, 280, 350, 450B and 700R Cupla, complemented by a Purge Adapter for pressure-free venting of the high-pressure system before disconnection.

Series	Max. working pressure	Body material	Seal
210 Cupla	210 bar	Steel	-
S210 Cupla	210 bar	Stainless steel (SUS)	-
280 Cupla	280 bar	Steel	-
350 Cupla	350 bar	Steel	-
450B Cupla	450 bar	Steel	-
HSU Cupla	up to 700 bar	Stainless steel (SUS)	HNBR

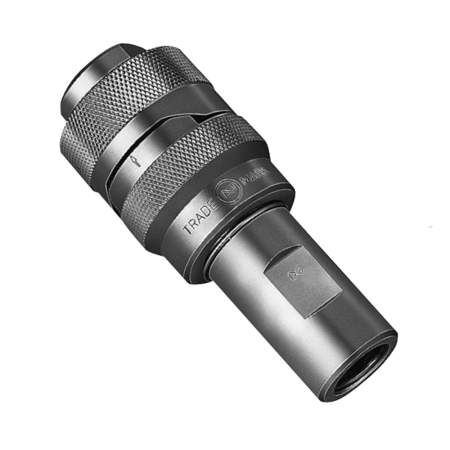

700R Cupla	700 bar	Steel	-
HSP / Hyper HSP Cupla	elevated pressure	Steel/SUS	-

Series in this category compared

Maximum working pressure is the first selection criterion. It decides the series, not the size: a low pressure coupling does not become high pressure capable by choosing a larger bore.

Where each series sits by maximum working pressure.

Series	Max working pressure	Sizes	Shut-off type	Fluids	Body material	Catalogue page
700R CUPLA	686 bar	Thread 3/8 inch, 1/2 inch	Two-way shut-off	Hydraulic oil	Special steel (Nickel plated)	112

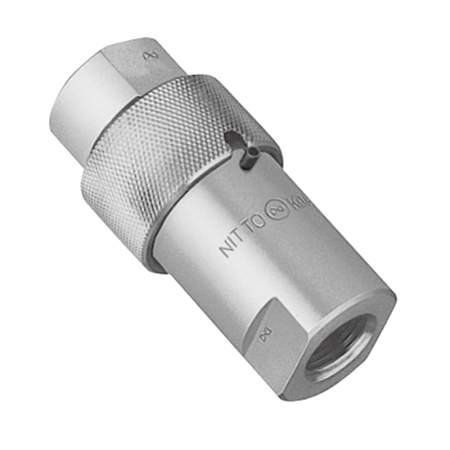

450B CUPLA	441 bar	3/8 inch	Two-way shut-off	Hydraulic oil	Special steel (Nickel plated)	111
PURGE ADAPTER	350 bar	R 1/4 (PAD-2), R 3/8 x Rc 3/8, R 1/2 x Rc 1/2, R 3/4 x Rc 3/4, R 1 x Rc 1	-	Hydraulic oil	Steel (nickel plated)	168
350 CUPLA	345 bar	Thread 1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, 1 inch, 1 1/4 inch, 1 1/2 inch	Two-way shut-off (Spill Reduction)	Hydraulic oil	Special steel (Nickel plated)	105
280 CUPLA	315 bar	Thread 1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, 1 inch	Two-way shut-off	Hydraulic oil	Special steel (Bright chromate conversion coating : silver color)	103
HSU CUPLA	210 bar	Thread 1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, 1 inch	Two-way shut-off	Water, Hydraulic oil, Gas	Stainless steel (SUS304)	99

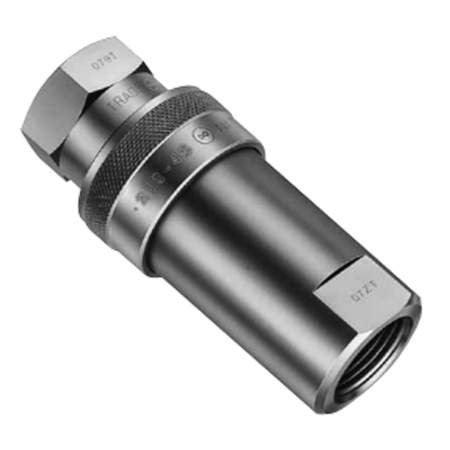

210 CUPLA	206 bar	1/4 inch to 1 inch	Two-way shut-off	Hydraulic oil	Special steel (Nickel plated)	97
HSP CUPLA	206 bar	1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, 1 inch, 1 1/4 inch, 1 1/2 inch, 2 inch	Two-way shut-off	Hydraulic oil	Special steel (Nickel plated)	91
HYPER HSP CUPLA	206 bar	1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, 1 inch	Two-way shut-off	Hydraulic oil	Special steel (Nickel plated)	95

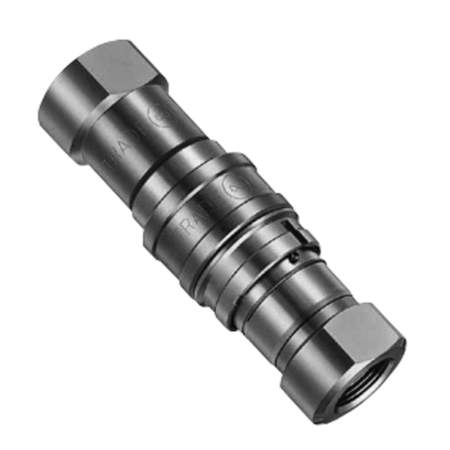

S210 CUPLA	206 bar	1/4 inch, 3/8 inch, 1/2 inch, 3/4 inch, 1 inch	Two-way shut-off	Water, Hydraulic oil, Gas	Stainless steel (SUS304)	101

The four shut-off types

The shut-off type decides what happens on disconnection. It is the second criterion and depends on whether the line is under pressure when it is parted and how much fluid may escape.

On disconnection the valve in the socket closes the supply line. The fluid left in the plug escapes.

Both halves close on disconnection, so the line contents are retained on both sides.

No valve, therefore the lowest pressure drop. The line must be depressurised before disconnecting.

Flat sealing face, so fluid loss is minimal and the parting face is easy to wipe clean.

Connecting sequence of a ball locking quick connect coupling.

Choosing a coupling in five steps

Fix the fluid and the operating temperature, which gives the seal material.
Determine the maximum working pressure, which gives the pressure class and the series.
Choose the shut-off type: one-way, two-way, valveless or flat face.
Fix the end connection and size: hose barb, male thread, female thread or tube fitter.
Choose the body material for the fluid and the environment, then order plug and socket as a pair.

This page is based on the Nitto Kohki general catalogue Quick Connect Couplings C01en-b, 190 pages. The complete catalogue is available for download on this page.
