Lötspitze meißelförmig 5,0 x 1,5 mm für Lötroboter-Tools 9018M, 9018BMT - Quick QU911G-50D-02

On leads with a large copper connection the tip temperature drops the moment it lands, and the joint stays cold. This chisel therefore uses a 1.5 mm blade instead of the usual 1.0 mm and, together with 5.0 mm of width, provides a distinctly larger heat reserve.

Why it works

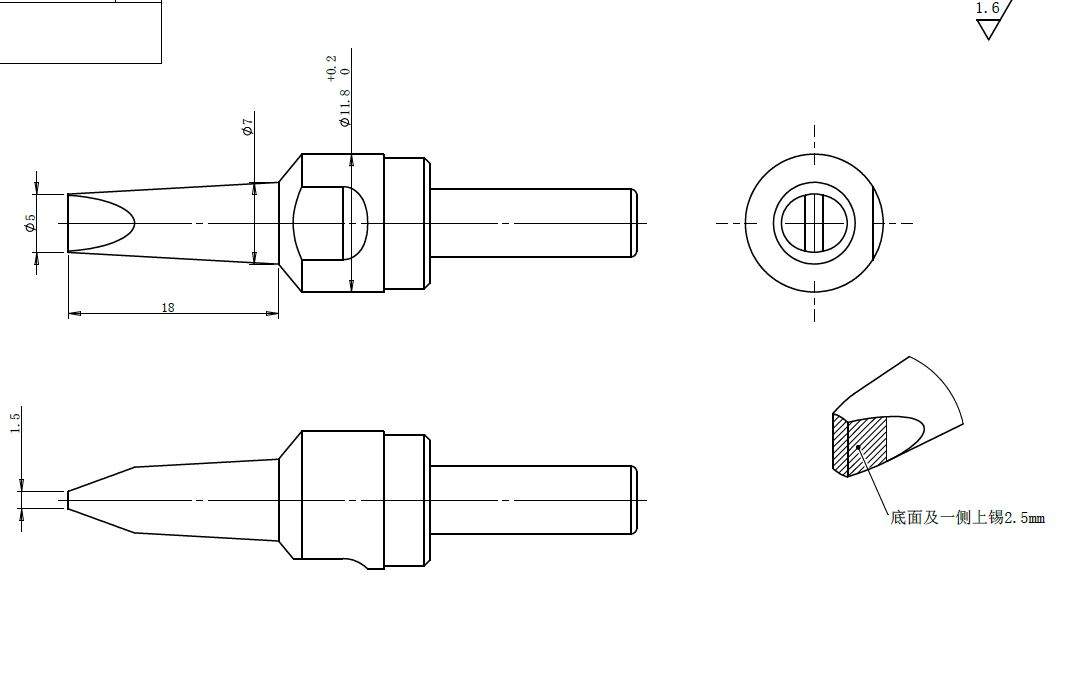

• Blade thickness 1.5 mm, more cross section behind the contact face and therefore less temperature drop on touchdown.
• Blade width 5.0 mm, enough bearing surface for solder tags, ground pads and heavy connector pins.
• Flat blade, even heat transfer across the whole contact area.
• Straight design, vertical approach with no offset in path programming.
• QU911G cartridge format, the same holder as the slimmer 4.0 and 4.5 mm shapes of the series.
• RoHS compliant and rated for the higher working temperatures of lead free alloys.

Technical data

Application and compatibility

Aimed at joints with a higher heat demand such as ground planes, power terminals and sturdy connectors. Fits the 9018M and 9018BMT soldering robot tools and therefore the ET9181, 9594FYA, ET9494E, 9584EYA and ET9494F-A robots plus further models of the range. Supplied as a single tip.
