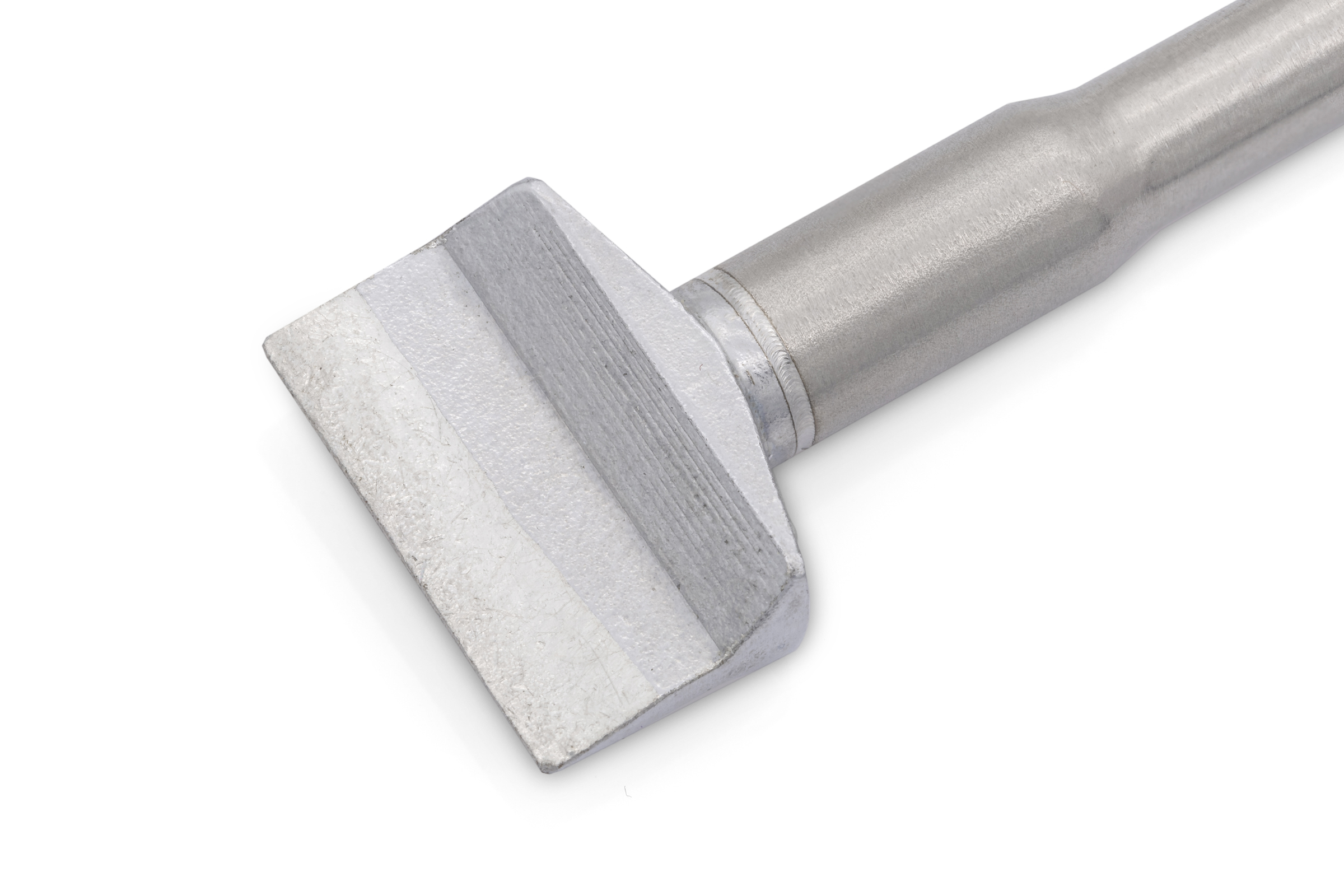

Kartuschenlötspitze für TS8, gerade, meißelförmig spitz 15 mm breit x 1,5 mm, 3 mm Lot-benetzt beidseitig - Quick TSS08-15D

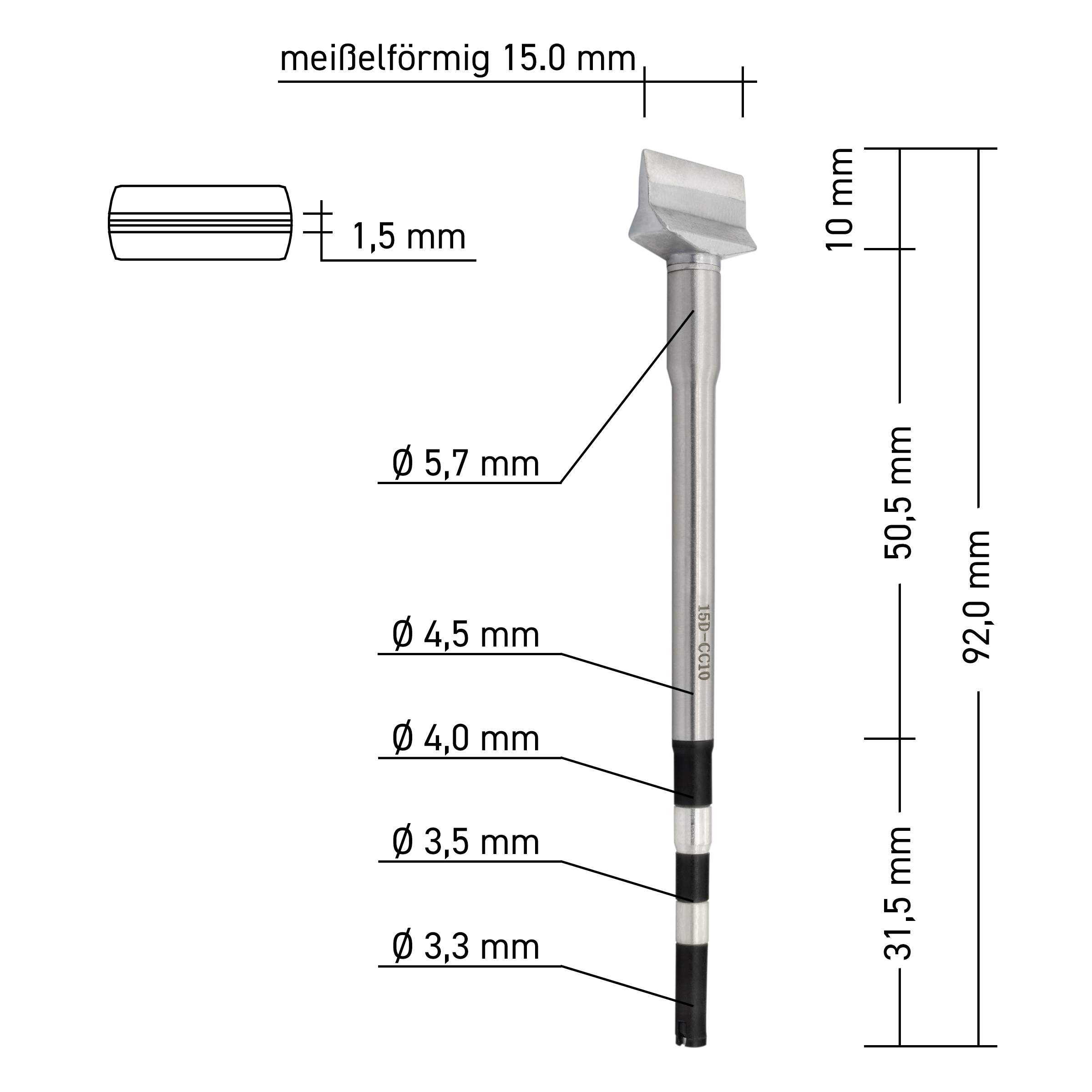

A shield frame or a busbar needs a continuous seam, not a line of separate dots. The TSS08-15D lands on 15 mm of blade width, the widest tip in the TSS08 range, with 1.5 mm of material in the blade.

Key points

• Contact width 15 mm, half again as wide as the TSS08-10D, for seams pulled in a single pass.
• Blade thickness 1.5 mm holds temperature when sheet metal and copper area draw heat at the same time.
• Tinning 3 mm on both faces, work with whichever flank sits more conveniently.
• Thermocouple in the cartridge lets the station compensate the high heat drain of large joints.
• Chip with calibration value in the tip keeps the displayed temperature dependable on large shapes.

Specifications

Use and scope of delivery

For soldering shield frames and sheet metal, large area ground connections, busbars, high current connectors and heavy stranded wire. Where 15 mm will not fit, the TSS08-10D is the more compact alternative. The tip fits the QUELKTSS80A iron of the Quick TS8 and TS8+ stations. Supplied as one cartridge tip without iron or station.
