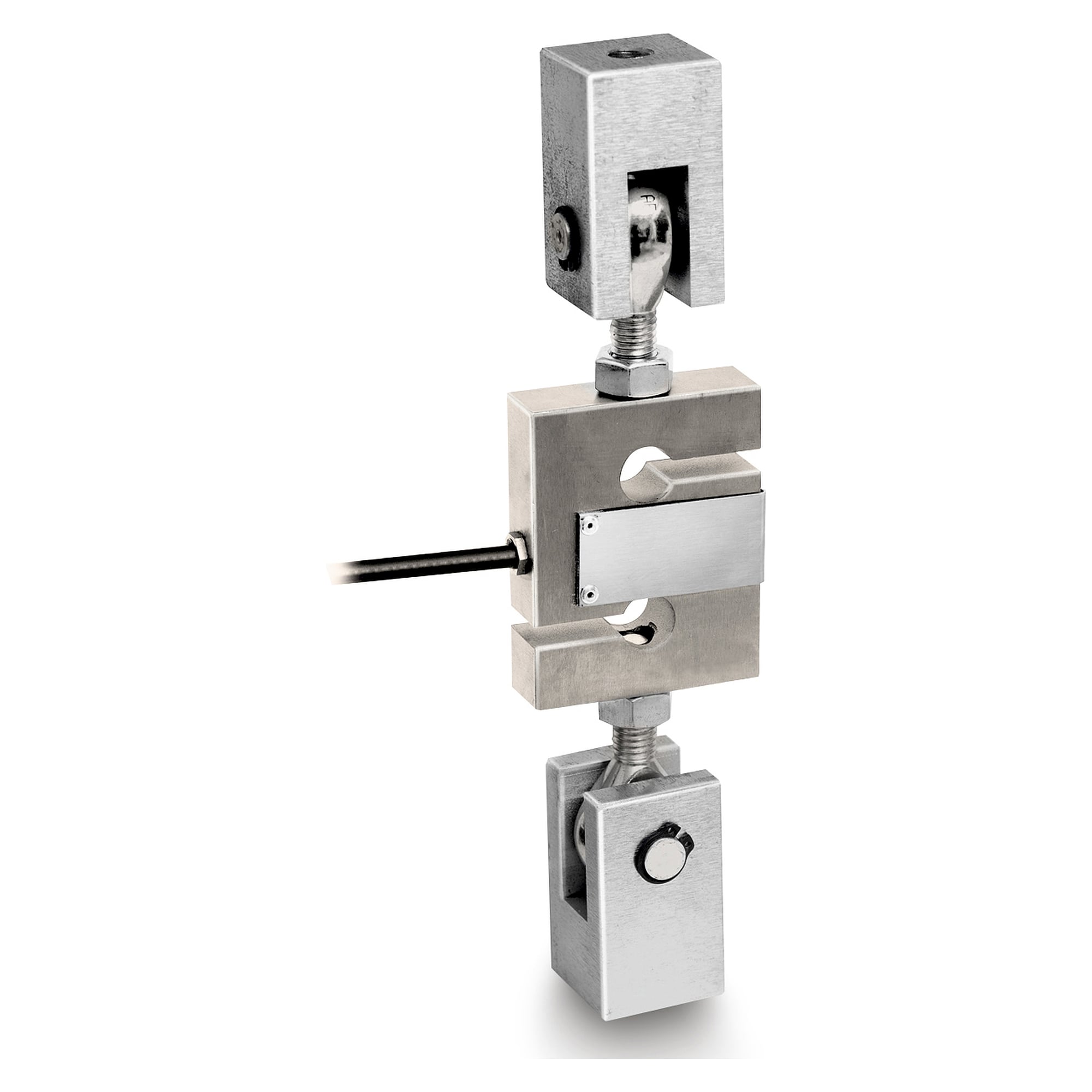

Load Cell 1000 kg - SAUTER CS 1000-3Q1
Verifiable S-beam cell from SAUTER in nickel-plated steel for tension and compression forces up to 1000 kg (10 kN). OIML class C3 with 3000 e, 6-wire connection with sense lines. For hanging scales and force measurement.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SAUTER CS 1000-3Q1 is a 6-wire S-beam cell in nickel-plated steel for tension and compression forces up to 1000 kg (10 kN). It is verifiable to OIML class C3 with 3000 e and suits hanging and hopper scales as well as force measurement.
Benefits
- Verifiable (OIML class C3, 3000 e): high resolution for legally compliant weighing.
- Tension and compression: S-beam cell for hanging scales, hopper scales and force measurement.
- 6-wire connection: sense lines compensate cable resistance for stable readings.
- Nickel-plated steel: protected surface for industry and materials handling.
- Rated load 1000 kg / 10 kN: 6-wire connection for process integration.
Applications
The CS 1000-3Q1 suits hanging and hopper scales, tank and silo weighing as well as force measurement and test rigs in mechanical engineering, materials handling and materials testing.
Compliance and origin
EAN 4045761221994. Customs tariff code 90249000. Country of origin: Spain.
Technical data
| Rated capacity (Max) | 1000 kg |
|---|---|
| Force range (Max) | 10 kN |
| Force direction | Tension and compression |
| OIML class | C3 |
| Verifiable resolution | 3000 e |
| Y value | 10000 |
| Operating temperature | -10 °C to 40 °C |
| Connection | 6-wire |
| Cable length | 5 m |
| Material | nickel-plated steel |
| Net weight | 0,80 kg |
| Weight | 1 kg |
| Manufacturer | Sauter |
| EAN | 4045761221994 |
| HS-Code | 90249000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Spain |
| Wägebereich max (g) | 1000000 |
