Force Gauge Set - SAUTER FS 2-5KRY1

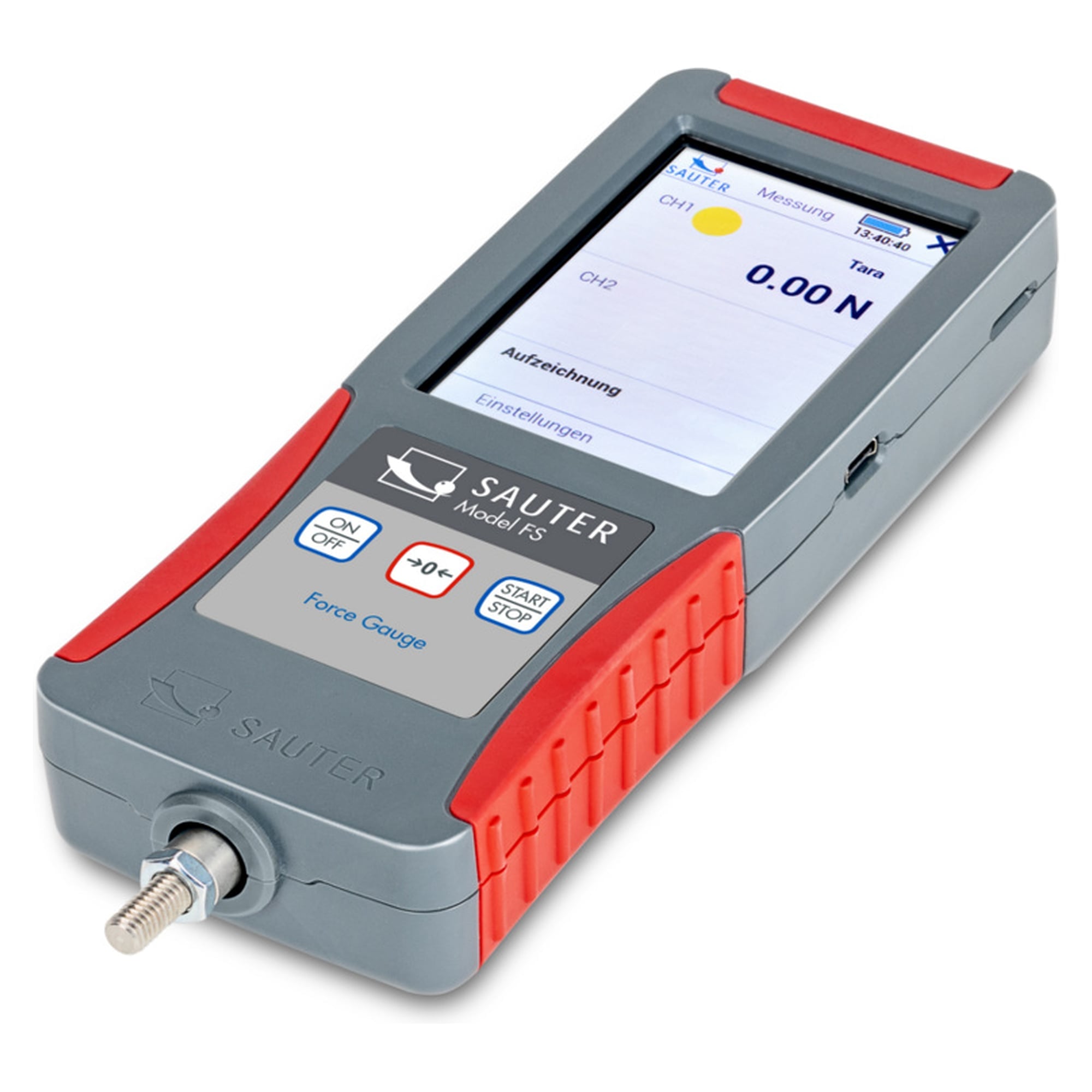

To measure tension and compression forces up to 5 kN without any setup work, the SAUTER FS 2-5KRY1 pairs the FS 2 premium force gauge with the external CR 500-1Y1 load cell (load cell) and arrives ready to use at 1 N readability.

Benefits

• Ready to use out of the box: the FS 2 gauge and the CR 500-1Y1 cell are matched at the factory, with sensor data stored in the connector.
• Fine resolution: 1 N readability across the full range up to 5 kN.
• Accurate load cell: load cell CR 500-1Y1 in alloy steel, OIML C1 accuracy class, combined error 0,05% F.S..
• Built for demanding sites: the load cell carries IP68 protection against dust and splashing water.
• Clear operation: 3.5 inch touchscreen with track, peak-hold and tolerance functions plus 16 GB internal memory.
• Direct data transfer: USB interface for data output and power, supplied in a system case (systainer T-LOC).

Technical data

• Measuring range (Max): 5 kN
• Readability (d): 1 N
• Force directions: tension and compression
• Load cell: CR 500-1Y1 (load cell, alloy steel)
• Load cell accuracy class: OIML C1
• Rated output: 2 mV/V
• Load cell protection: IP68 (per EN 60529)
• Measuring frequency: 1000 Hz
• Display: 3.5 inch touchscreen
• Internal memory: 16 GB
• Interface: USB
• Power: Li-Ion battery and mains adapter
• Housing: plastic
• Net weight: 2,0 kg

Applications

The set is used in test laboratories, in research and development, in the automotive industry, in maintenance and servicing and in plastics engineering.

Compliance and origin

EAN 4045761358430, customs tariff code 90248000, country of origin Germany.
