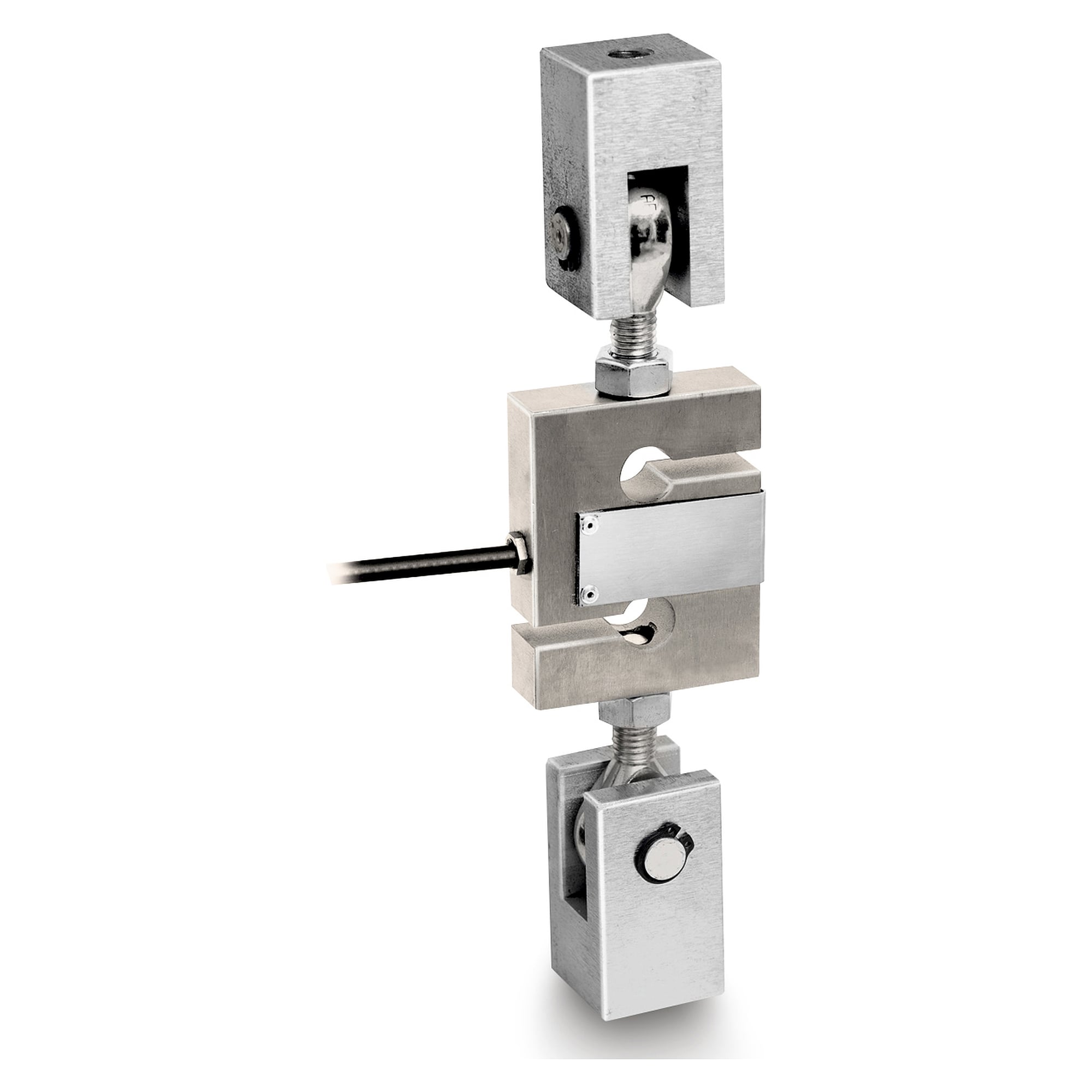

Load Cell 500 kg - SAUTER CS 500-3Q1
SAUTER CS 500-3Q1 S-type load cell in nickel-plated steel for tension and compression up to 500 kg or 5 kN. Legal-for-trade to OIML C3 with 3000 e. 6-wire connection with 5 m cable.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For loads or forces up to 500 kg or 5 kN in tension and compression, the SAUTER CS 500-3Q1 provides a 6-wire S-type load cell in nickel-plated steel. It integrates into hanging, hopper and silo scales as well as test benches.
Benefits
- Tension and compression in one cell: rated load 500 kg or 5 kN in both directions
- Legal-for-trade to OIML C3: C3 with 3000 e for verifiable weighing
- Six-wire design with sense lines compensates cable resistance and keeps accuracy stable over long runs: 5 m lead cable
- Durable design: S-type cell in nickel-plated steel
- Wide working range: operating temperature -10 °C to +40 °C
Applications
Typical fields of use are machinery and plant engineering, testing technology and materials testing, conveying technology and logistics, vessel and silo weighing, medical technology and research.
Compliance and origin
EAN 4045761222069, customs tariff number 90249000, country of origin Spain.
Technical data
| Capacity (max) | 500 kg |
|---|---|
| Force range (max) | 5 kN |
| OIML class | C3 |
| Verification scale intervals | 3000 e |
| Y value | 10000 |
| Force directions | Tension, Compression |
| Connection | 6-wire |
| Cable length | 5 m |
| Operating temperature | -10 °C to +40 °C |
| Net weight | 0,80 kg |
| Weight | 0.95 kg |
| Manufacturer | Sauter |
| EAN | 4045761222069 |
| HS-Code | 90249000 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Spain |
| Wägebereich max (g) | 500000 |
