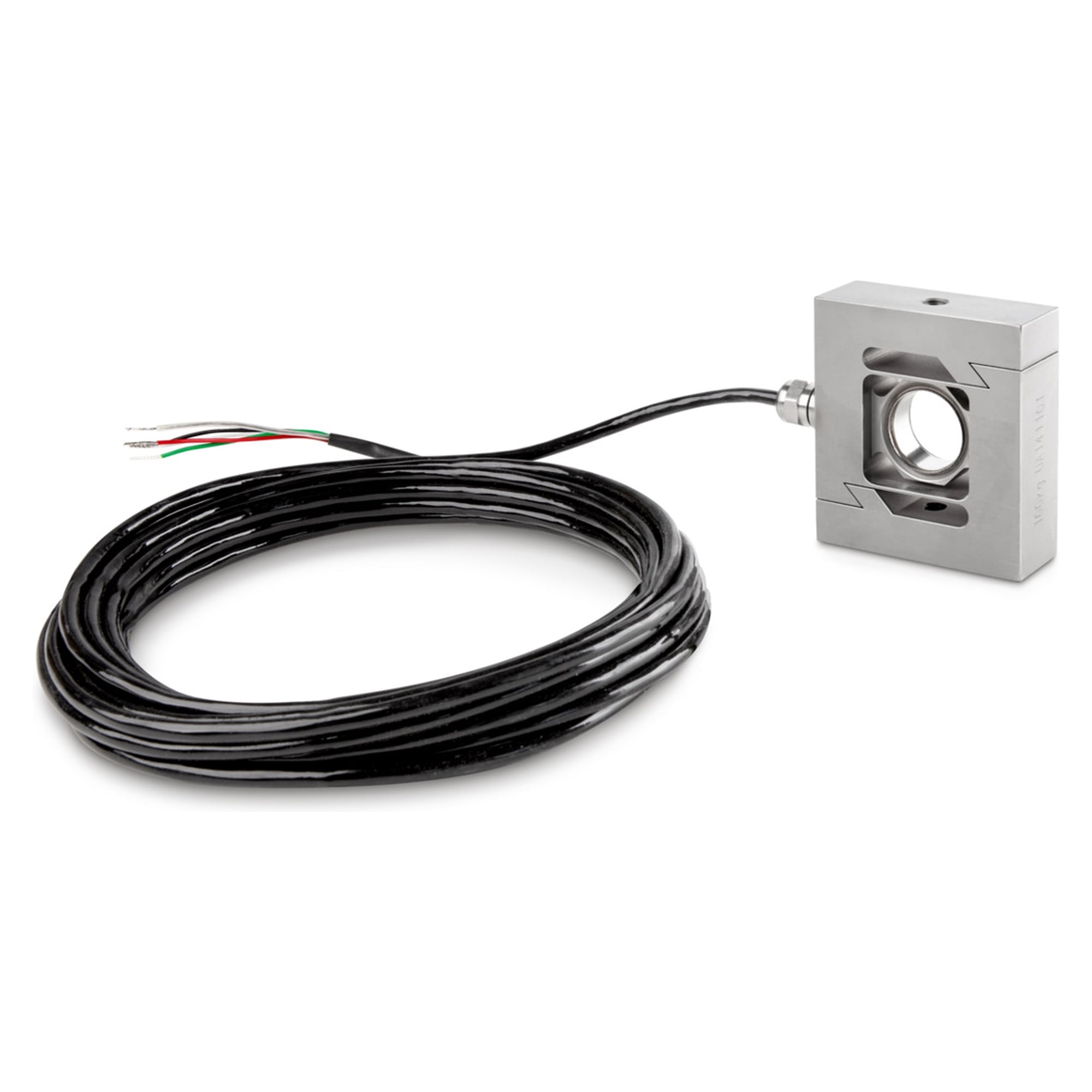

S-type load cell 250 kg / 2.5 kN, stainless steel, C3 - SAUTER CS 250-3P2
S-type load and force cell SAUTER CS 250-3P2 made of stainless steel for tensile and compressive forces up to 2.5 kN or loads up to 250 kg. Verifiable to OIML class C3 with 3000 e, IP68 protection and a 6 m cable with 4-wire connection. For hanging scales, silo scales and force test stands.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SAUTER CS 250-3P2 covers loads up to 250 kg and forces up to 2.5 kN in tension and compression. The M12 threaded holes at both ends take rod ends, tie rods or adapters for installing the cell in hanging scales, silo scales and force test stands.
Advantages
- Tension and compression: one cell for both directions of force.
- Verifiable to OIML C3: 3000 e with a combined error of 0.023 %, suitable for building legal-for-trade scales.
- M12 threads: stable force application for the medium load range.
- IP68 and stainless steel: for use in damp or dusty environments.
- 6 m cable: the evaluation unit can be mounted away from the measuring point.
- Matching evaluation: can be combined with the DIN rail evaluation unit KERN CE HSN and the SAUTER FS 2 series force gauges.
Applications
Measurement of mass and force in hanging scales, silo scales, force test stands and other scales.
Conformity and origin
EAN 4045761232563. Warranty 24 months.
Technical data
| Weighing capacity (Max) | 250 kg |
|---|---|
| Force measuring range (Max) | 2.5 kN |
| Design | S-type cell |
| Directions of force | tension, compression |
| Measuring applications | force, mass |
| Combined error | 0.023 % |
| OIML class | C3 |
| Resolution (verifiable) | 3000 e |
| Y-value | 12000 |
| Nominal output | 2 mV/V |
| Protection class | IP68 |
| Material | stainless steel |
| Connection | 4-wire |
| Cable length | 6 m |
| Force application | threaded hole M12 |
| Force dissipation | threaded hole M12 |
| Manufacturer | Sauter |
| EAN | 4045761232563 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
