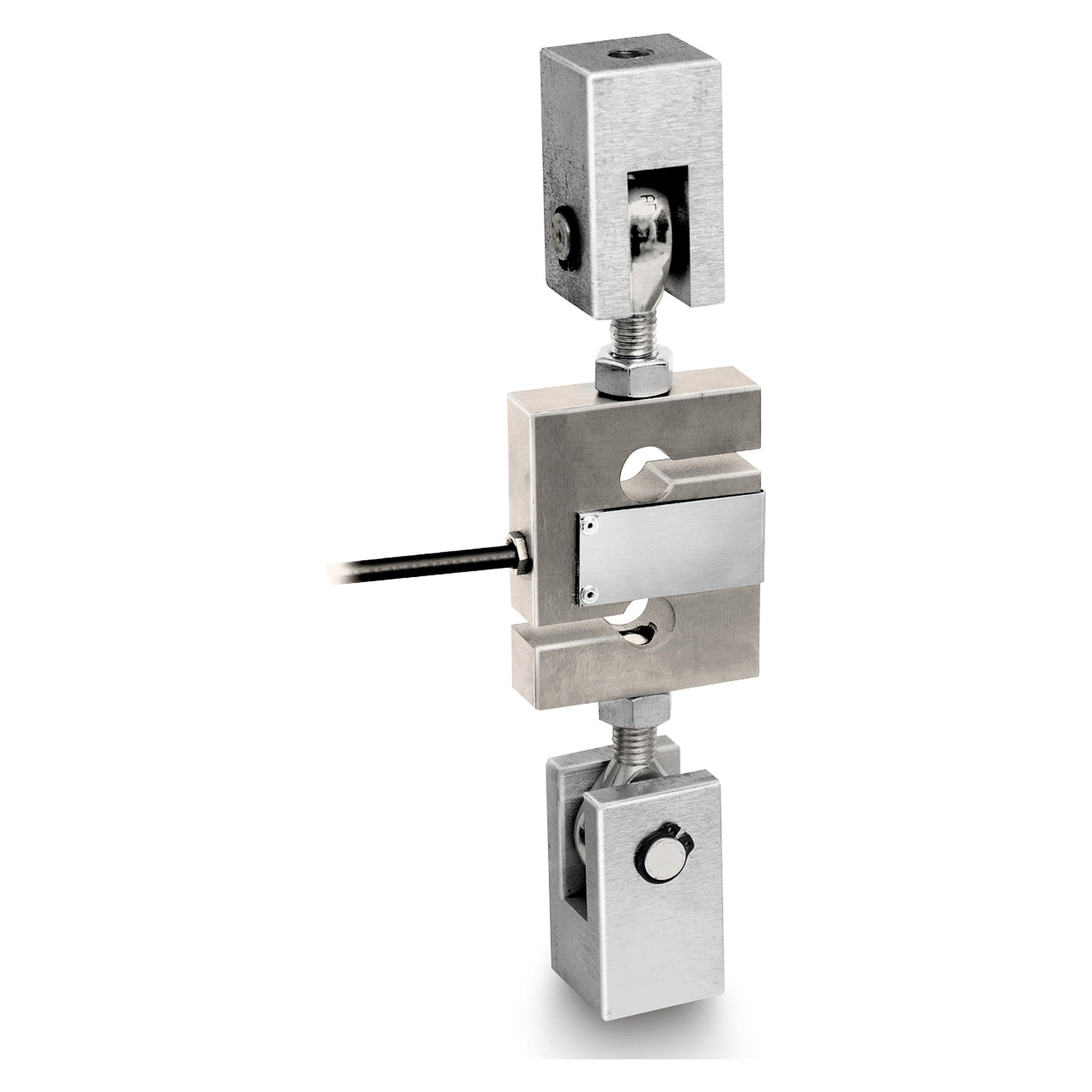

Load Cell 300 kg - SAUTER CS 300-3Q1

For loads or forces up to 300 kg or 3 kN in tension and compression, the SAUTER CS 300-3Q1 provides a 6-wire S-type load cell in nickel-plated steel. It integrates into hanging, hopper and silo scales as well as test benches.

Benefits

• Tension and compression in one cell: rated load 300 kg or 3 kN in both directions
• Legal-for-trade to OIML C3: C3 with 3000 e for verifiable weighing
• Six-wire design with sense lines compensates cable resistance and keeps accuracy stable over long runs: 5 m lead cable
• Durable design: S-type cell in nickel-plated steel
• Wide working range: operating temperature -10 °C to +40 °C

Technical data

• Capacity (max): 300 kg
• Force range (max): 3 kN
• OIML class: C3
• Verification scale intervals: 3000 e
• Y value: 10000
• Force directions: Tension, Compression
• Connection: 6-wire
• Cable length: 5 m
• Operating temperature: -10 °C to +40 °C
• Net weight: 0,80 kg

Applications

Typical fields of use are machinery and plant engineering, testing technology and materials testing, conveying technology and logistics, vessel and silo weighing, medical technology and research.

Compliance and origin

EAN 4045761222045, customs tariff number 90249000, country of origin Spain.
