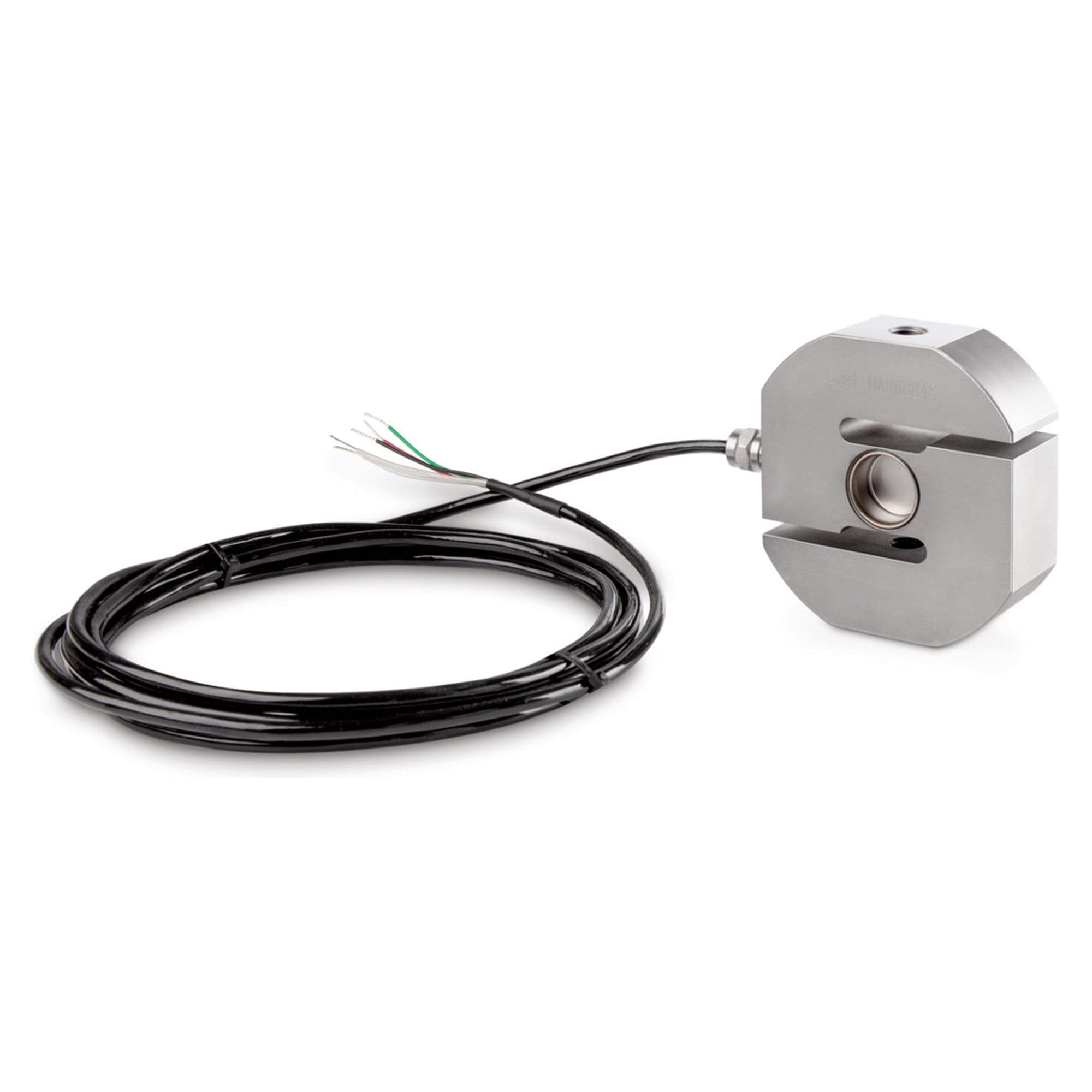

S-type load cell 7500 kg / 75 kN, stainless steel, C3 - SAUTER CS 7500-3P2
S-type load and force cell SAUTER CS 7500-3P2 made of stainless steel for tensile and compressive forces up to 75 kN or loads up to 7500 kg. Verifiable to OIML class C3 with 3000 e, IP68 protection and a 6 m cable with 4-wire connection. For heavy hanging scales, silo scales and force test stands.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The SAUTER CS 7500-3P2 is built for high loads up to 7500 kg and forces up to 75 kN in tension and compression. The M24 x 2 fine-thread holes at both ends take suitably sized rod ends or tie rods, for example in crane scale suspensions, silo scales or force test stands.
Advantages
- High measuring range: up to 7500 kg or 75 kN in a single cell.
- Tension and compression: the same cell measures in both directions of force.
- Verifiable to OIML C3: 3000 e with a combined error of 0.023 %, suitable for building legal-for-trade scales.
- IP68 and stainless steel: for use in damp or dusty environments.
- 6 m cable: the evaluation unit can be mounted away from the measuring point.
- Matching evaluation: can be combined with the DIN rail evaluation unit KERN CE HSN and the SAUTER FS 2 series force gauges.
Applications
Measurement of mass and force in hanging scales, silo scales, force test stands and other scales.
Conformity and origin
EAN 4045761236028. Warranty 24 months.
Technical data
| Weighing capacity (Max) | 7500 kg |
|---|---|
| Force measuring range (Max) | 75 kN |
| Design | S-type cell |
| Directions of force | tension, compression |
| Measuring applications | force, mass |
| Combined error | 0.023 % |
| OIML class | C3 |
| Resolution (verifiable) | 3000 e |
| Y-value | 12000 |
| Nominal output | 2 mV/V |
| Protection class | IP68 |
| Material | stainless steel |
| Connection | 4-wire |
| Cable length | 6 m |
| Force application | threaded hole M24 x 2 |
| Force dissipation | threaded hole M24 x 2 |
| Manufacturer | Sauter |
| EAN | 4045761236028 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
