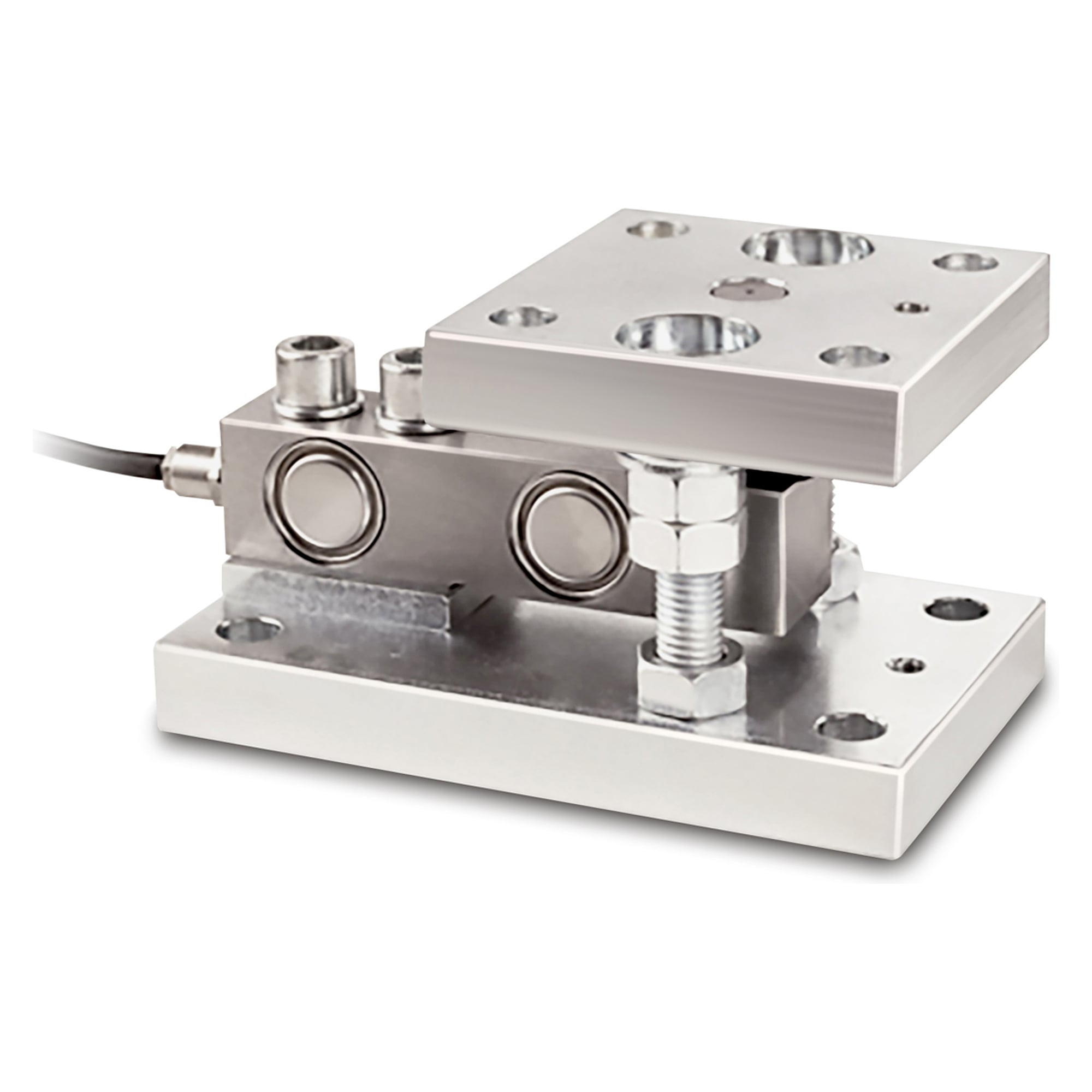

Load Cell 7500 kg - SAUTER CT 7500-3Q1
The SAUTER CT 7500-3Q1 is a stainless steel shear-beam load cell for compression loads up to 7500 kg. With OIML class C3 (3000 e) and a 6-wire connection, it suits platform, hopper and floor scales in demanding environments.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For heavy tank and platform scales up to 7500 kg, the SAUTER CT 7500-3Q1 offers a stainless steel shear-beam cell. The 6-wire connection secures signal quality over long cable distances from -30 °C to 70 °C.
Benefits
- Verifiable sensing element (OIML C3, 3000 e): suitable for legal-for-trade results in verified scales
- Stainless steel shear beam: withstands harsh and humid environments
- Compression capacity up to 7500 kg: for platform, hopper and floor scales
- Wide temperature range (-30 °C to 70 °C): stable measurement in cold and heat
- 6-wire connection: compensates cable resistance over long runs
Applications
The load cell is used in industry and manufacturing, the chemical industry, food and pharmaceutical operations, the building materials industry as well as logistics and packaging.
Compliance and origin
EAN 4045761222250, customs tariff number 84239010, country of origin Spain.
Technical data
| Capacity (Max) | 7500 kg |
|---|---|
| Accuracy class (OIML) | C3 |
| Verification interval | 3000 e |
| Y value | 10000 |
| Force direction | compression |
| Operating temperature | -30 °C to 70 °C |
| Cable length | 5 m |
| Connection | 6-wire |
| Material | stainless steel |
| Net weight | 4,4 kg |
| Weight | 4.6 kg |
| Manufacturer | Sauter |
| EAN | 4045761222250 |
| HS-Code | 84239010 |
| GPSR manufacturer information | KERN & SOHN GmbH, Ziegelei 1, DE-72336 Balingen-Frommern, www.kern-sohn.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Spain |
| Wägebereich max (g) | 7500000 |
