SMD precision tweezers in stainless steel with tips angled 45° and 0.5 mm wide, made for positioning small components. The tested black epoxy coating has a surface resistance between 10^3 and 10^9 ohms and equalises differences in potential in a controlled way. Antimagnetic, 15 g at 118 mm length.

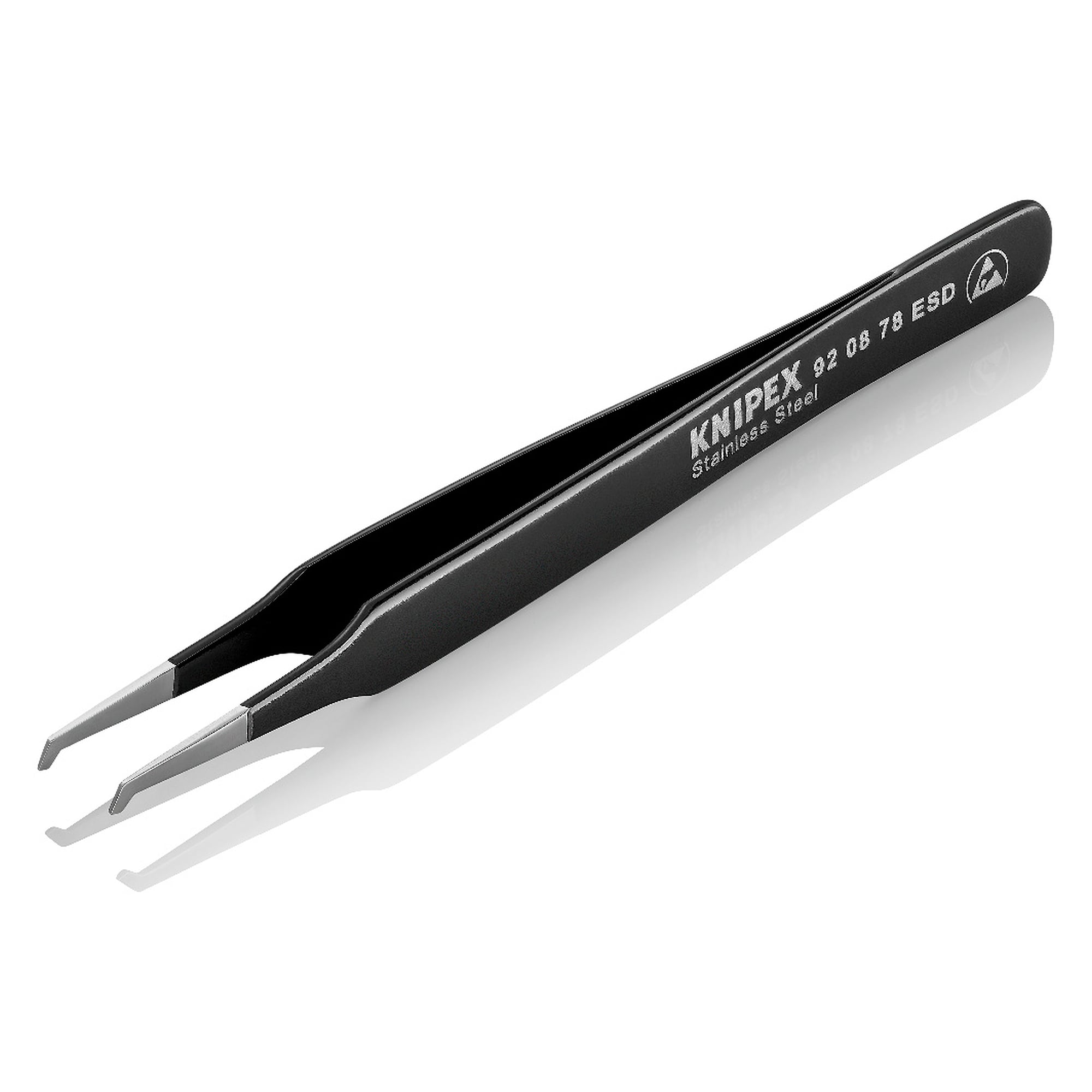

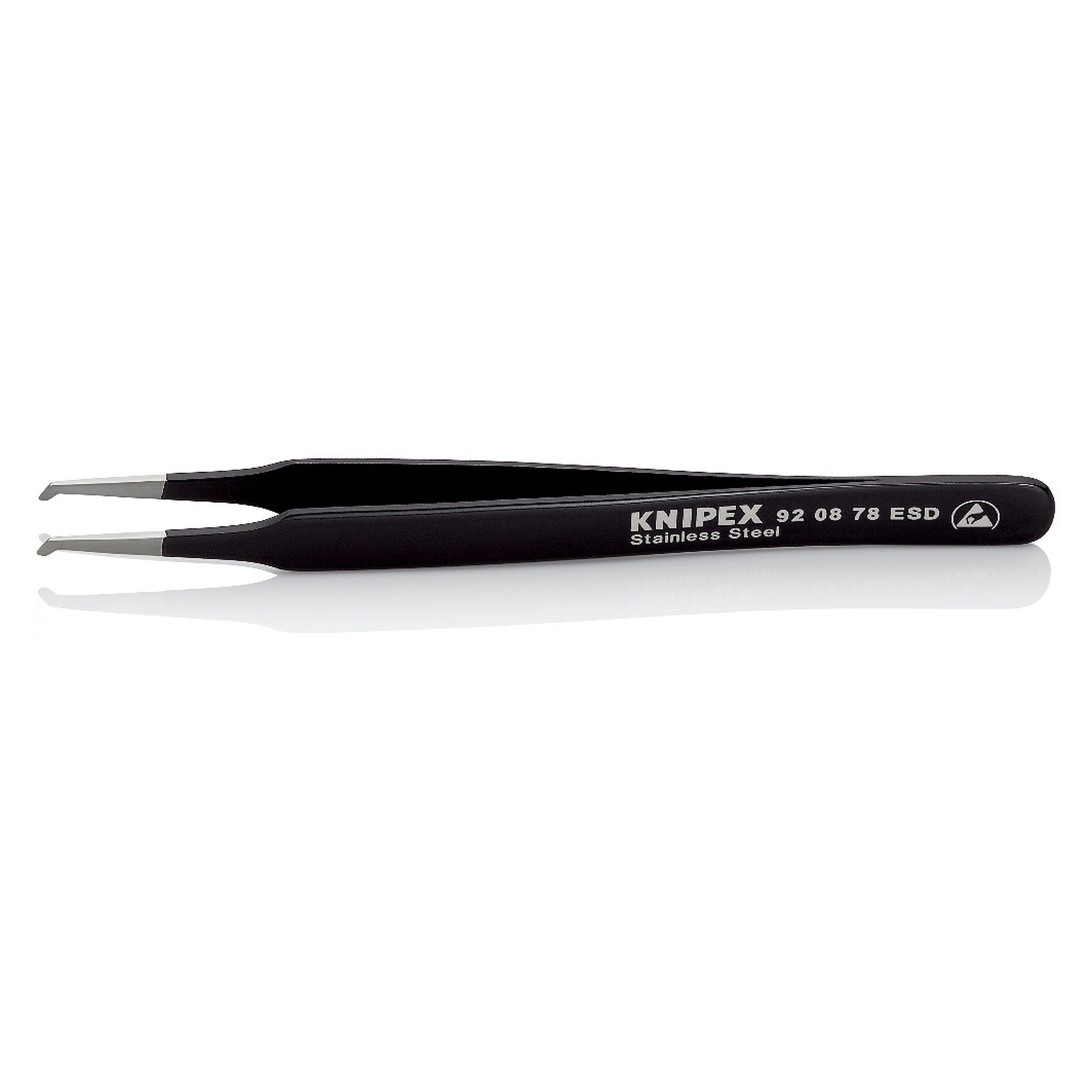

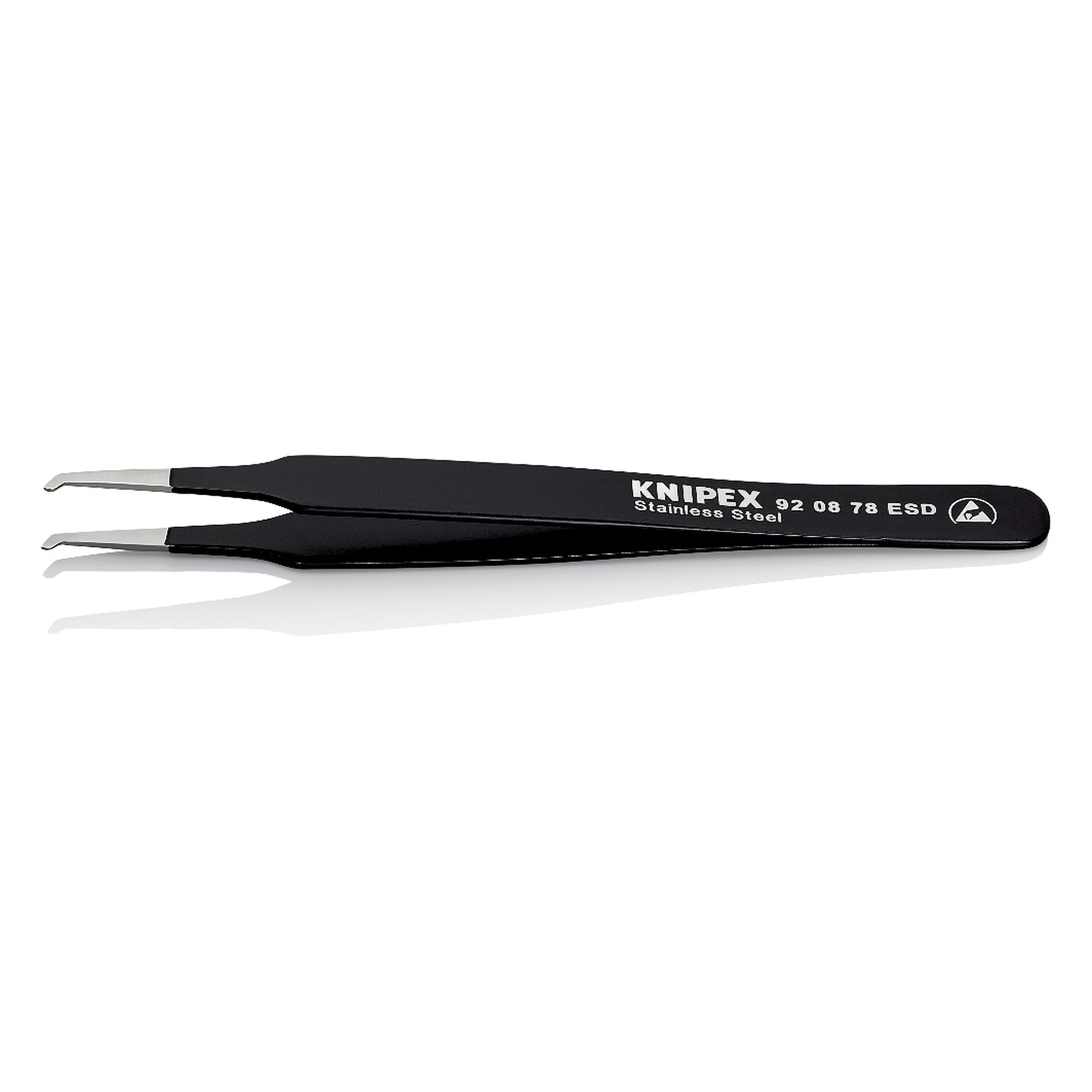

SMD precision tweezers ESD, tips angled 45°, stainless steel, 118 mm - Knipex 92 08 78 ESD
KNIPEX
Original product
Net price (excl. VAT)
€21.89
Item
WL37095
Manufacturer no.
92 08 78 ESD
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.92 08 78 ESD
EAN4003773054634
ConditionNew
Article
WL37095
Frequently Bought Together
SMD components cannot be picked up by hand, and ordinary tweezers build up an electrostatic charge. The 92 08 78 ESD SMD precision tweezers have tips angled 45° and 0.5 mm wide and dissipate charges in a controlled way through a tested epoxy coating of 10^3 to 10^9 ohms.
Benefits

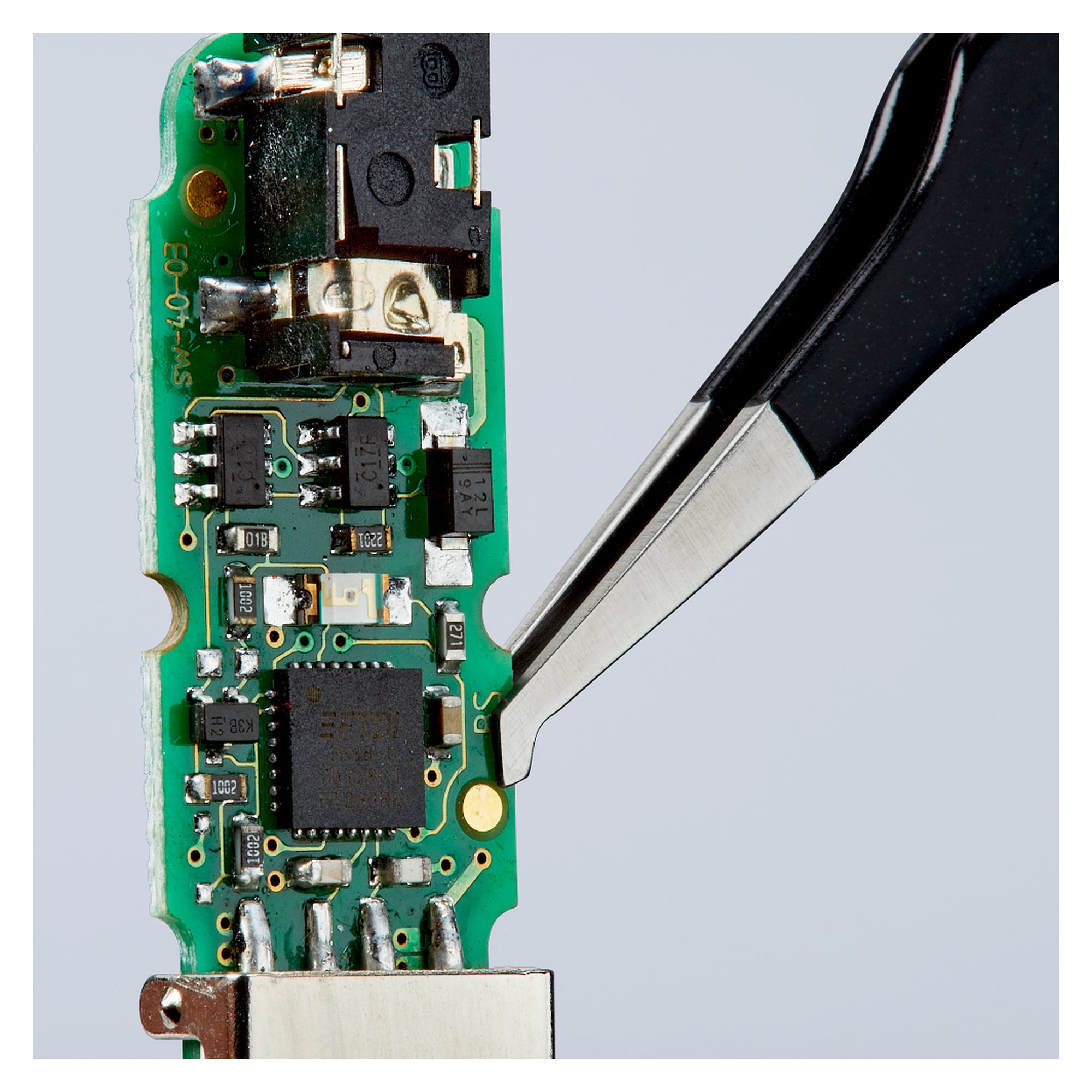

- Tips angled 45° with a tip width of 0.5 mm, designed for positioning SMD components on the board.
- Tested black epoxy coating with 10^3 to 10^9 ohms surface resistance equalises differences in potential in a controlled way.
- Premium stainless steel, heat resistant and corrosion resistant to most chemicals, salts and acids.
- Antimagnetic, rated not magnetisable to 80 percent, so no electromagnetic damage to the component.
- Handcrafted, polished edges, matt non-reflective surface, 15 g at 118 mm length.
Technical data
| EAN | 4003773054634 |
|---|---|
| Material | stainless steel |
| Gripping surfaces | smooth gripping surfaces |
| Handles | smooth |
| Weight | 15 g |
| Dimensions | 118 x 10 x 12 mm |
| Standard | DIN EN 61340-5-1 |
| Surface | matt |
| Design | angled 45° |
| Tip width (A) | 0.5 mm |
| Tip width (B) | 2.5 mm |
| Tip design | positioning |
| Corrosion resistant | yes |
| Acid resistance | very good |
| ESD tested | yes |
| VDE tested | no |
| Industries | electronics |
| Magnetic | not magnetisable (80%) |
| Behaviour | dissipative |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
Areas of use
Assembly work, laboratory processes, clean room environments, circuit board repairs and reworking in the electronics industry.
Standards and conformity
The tweezers are tested to DIN EN 61340-5-1 and are dissipative, so they suit ESD protected areas. No VDE test is stated. According to the manufacturer they contain no substances of very high concern under REACH, the RoHS directive does not apply.
| Norm | DIN EN 61340-5-1 |
|---|---|
| ESD version | ESD (antistatic) |
| Manufacturer Nr. | 92 08 78 ESD |
| Manufacturer | Knipex |
| EAN | 4003773054634 |
| Weight | 0.015000 |
| Height | 12 mm |
| Width | 10 mm |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Article authenticity | Original product |
| Condition of article | New |
| Overall length [mm] | 118.000000 |
