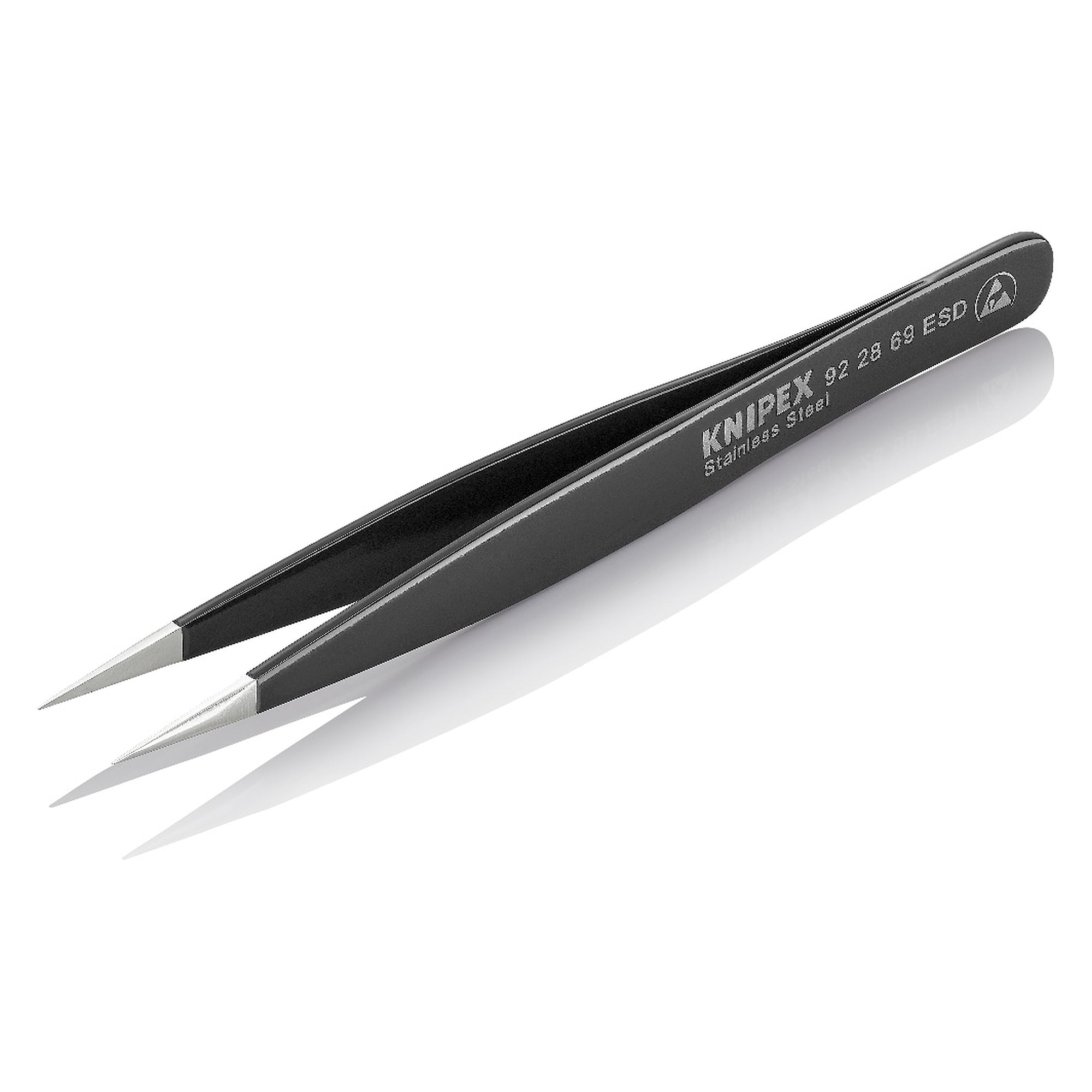

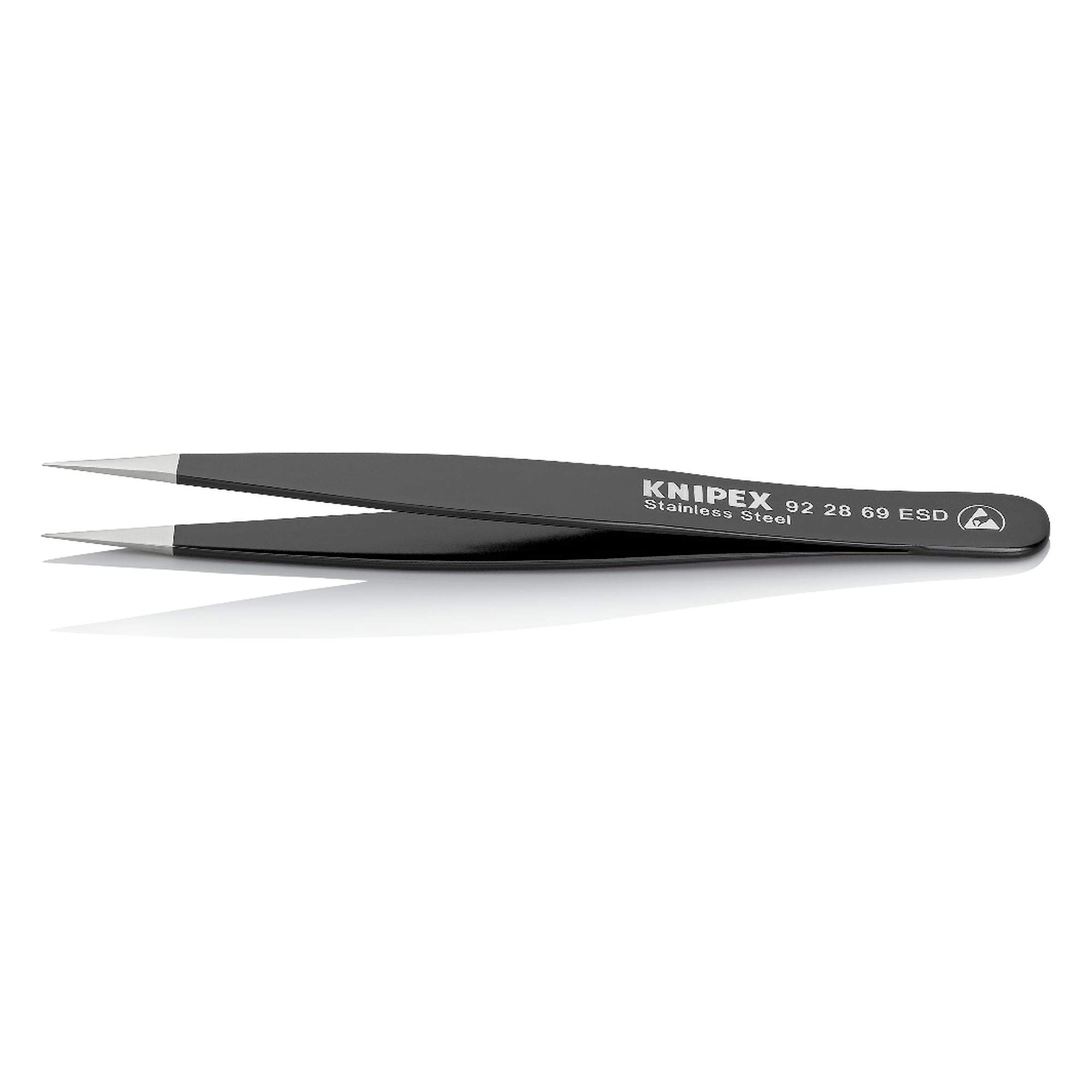

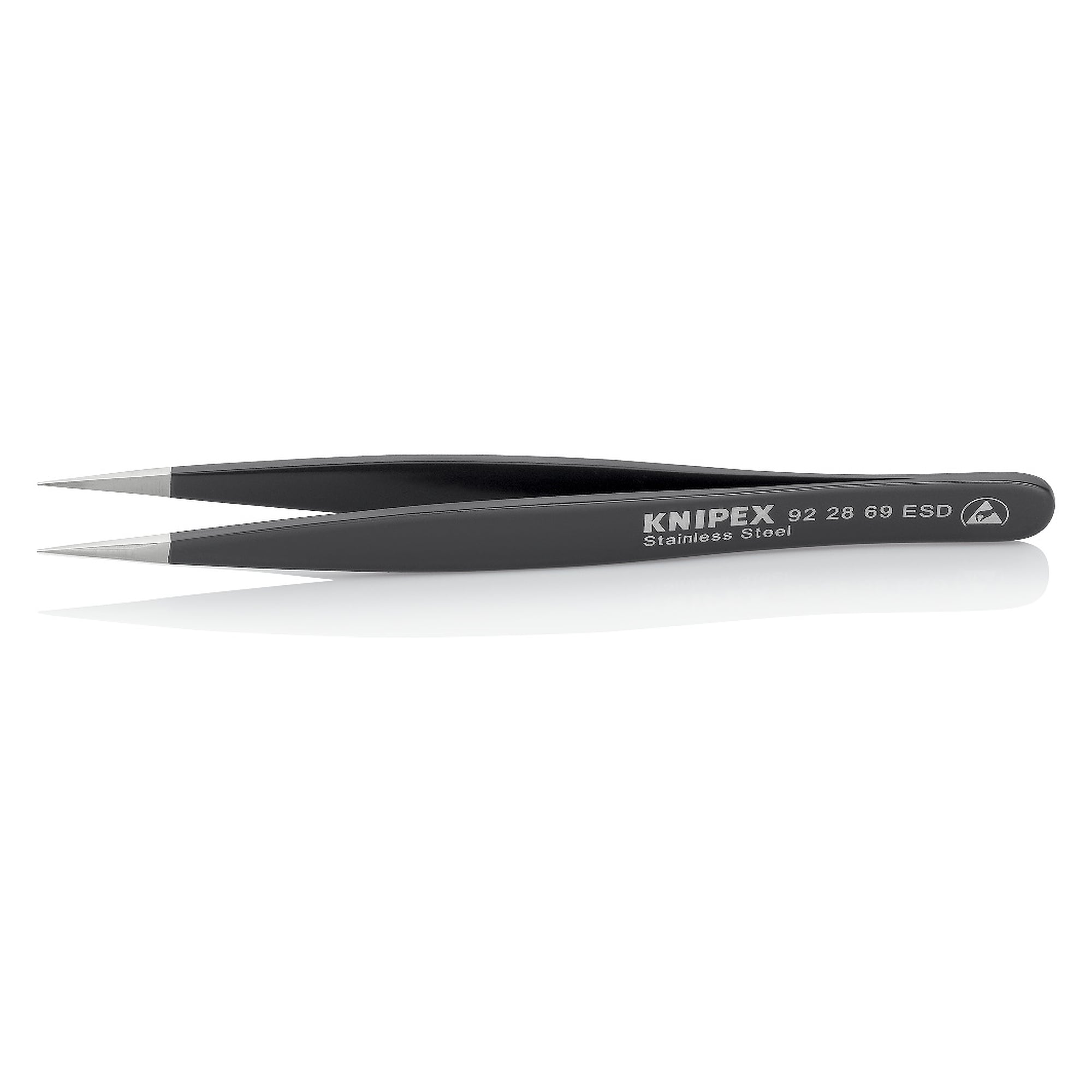

ESD universal tweezers, needle-pointed and straight, stainless steel, tip width 0.25 mm, 120 mm - Knipex 92 28 69 ESD

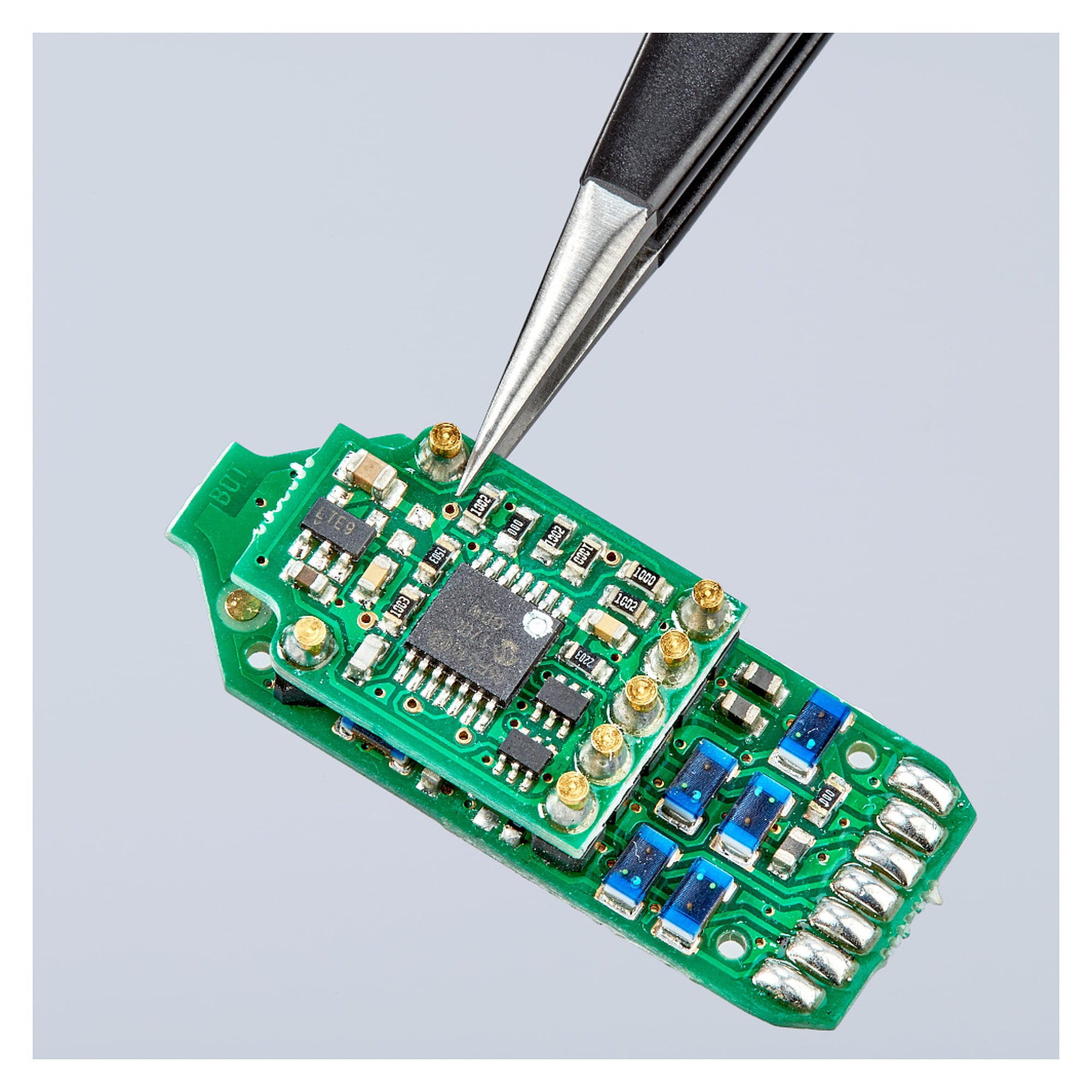

Anyone placing SMD parts by hand or moving test samples in production needs a tip that still hits the target under a microscope. The 92 28 69 ESD universal tweezers have needle points with a tip width of 0.25 mm and dissipate charges in a controlled way through their ESD tested coating.

Benefits

• Secure handling of electronic components in fine applications, because differences in electrical potential between user and workpiece are equalised in a controlled manner.
• ESD tested black epoxy resin coating with a surface resistance between 10^3 and 10^9 ohms, which makes the behaviour dissipative.
• Needle-pointed design with a tip width of 0.25 mm on both legs, suitable for the smallest parts in electronics and precision engineering.
• Antimagnetic construction avoids electromagnetic damage to sensitive assemblies.
• High quality stainless steel with high toughness and very good corrosion and acid resistance against many atmospheric environments and corrosive materials.
• Only 20 g at a length of 120 mm, with smooth gripping surfaces and smooth handles in a matt finish.

Technical data

Areas of use

Electronics manufacturing and repair, PCB assembly and testing, laboratory and precision mechanics work. The tweezers belong at workstations in electrostatic protected areas where charge-sensitive components are handled by hand. They are also available as part of the 92 00 01 ESD set.

Standards and conformity

The design follows DIN EN 61340-5-1 for the protection of electronic devices against electrostatic discharge. According to the manufacturer the tweezers contain no substances of very high concern under REACH. The RoHS directive does not apply and no VDE test has been carried out.
