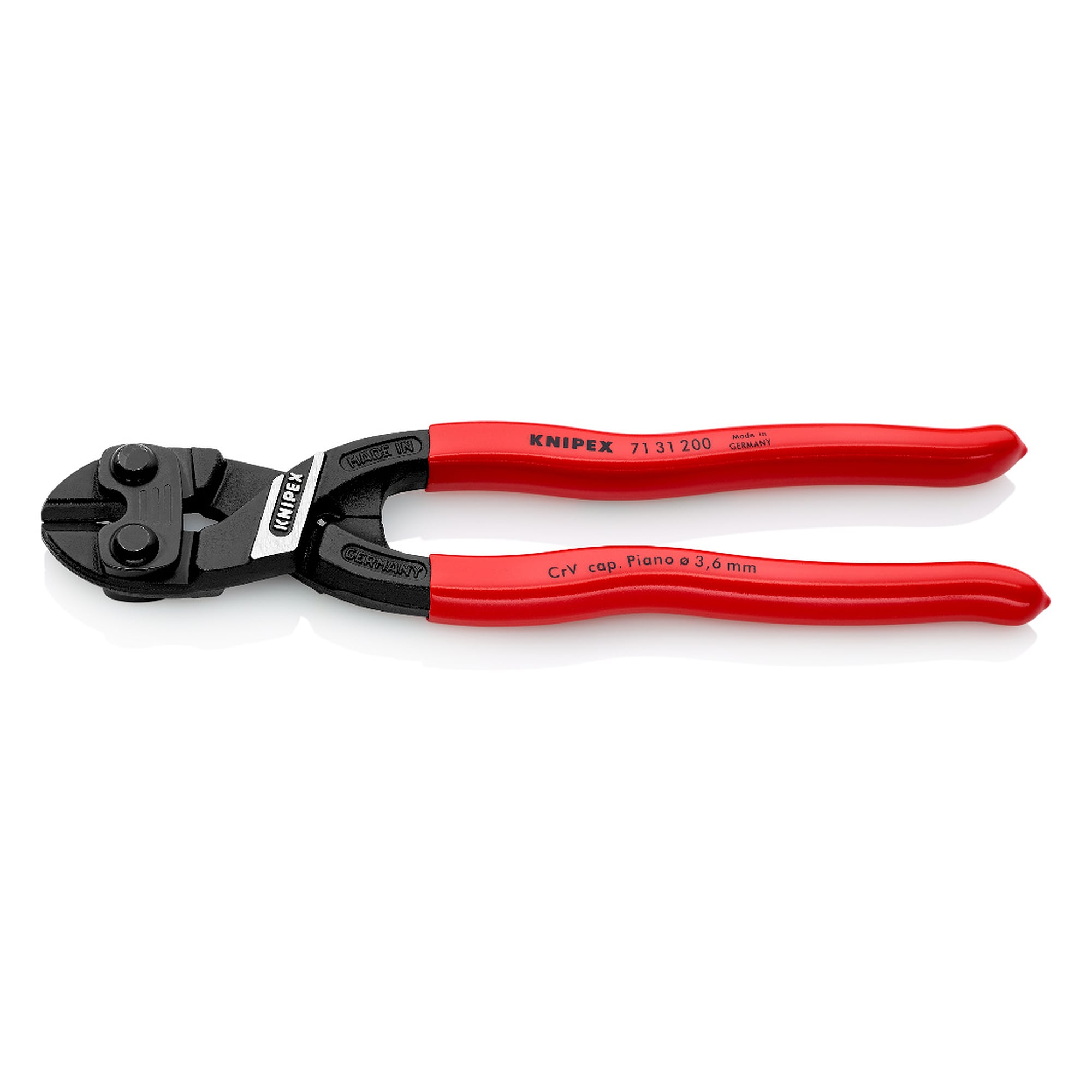

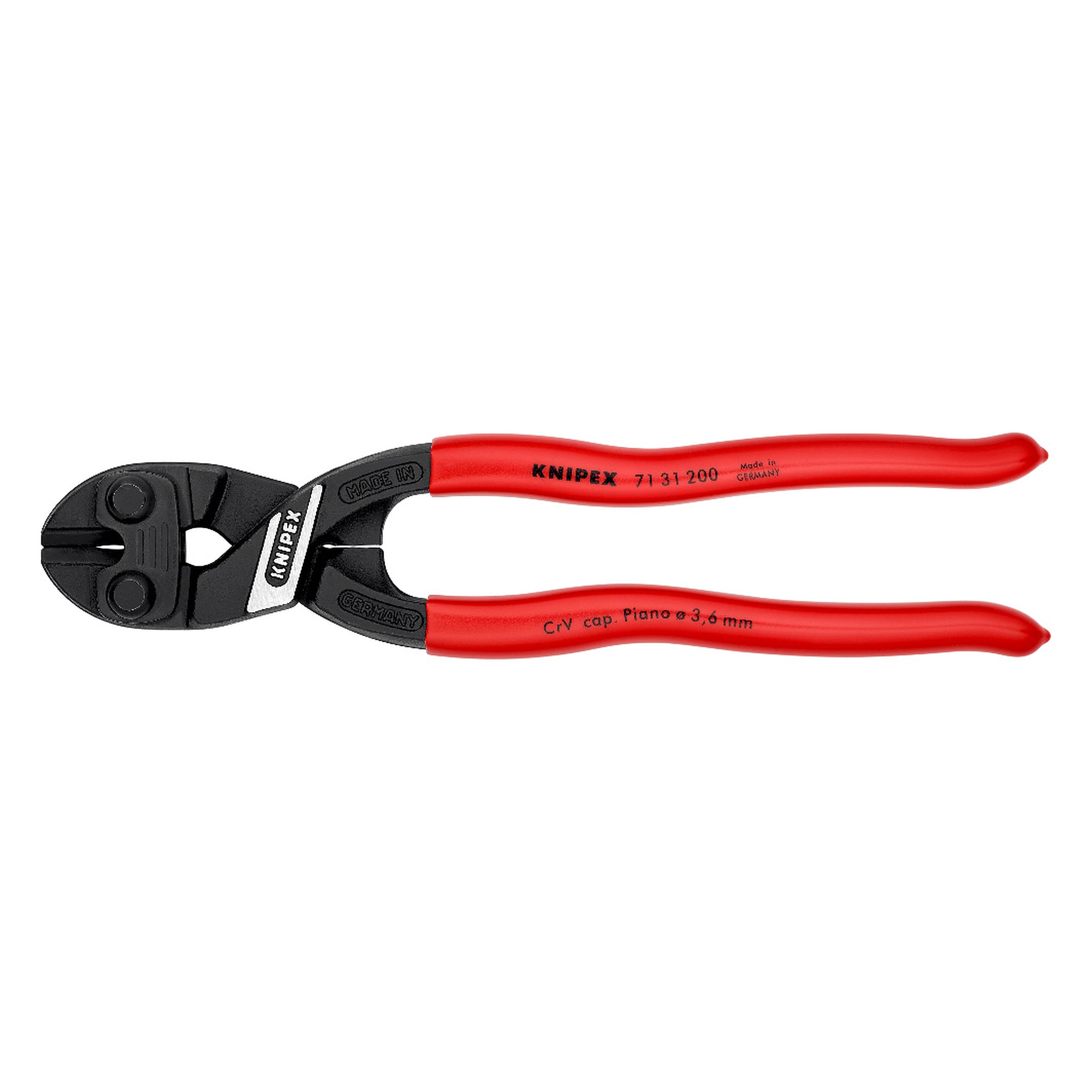

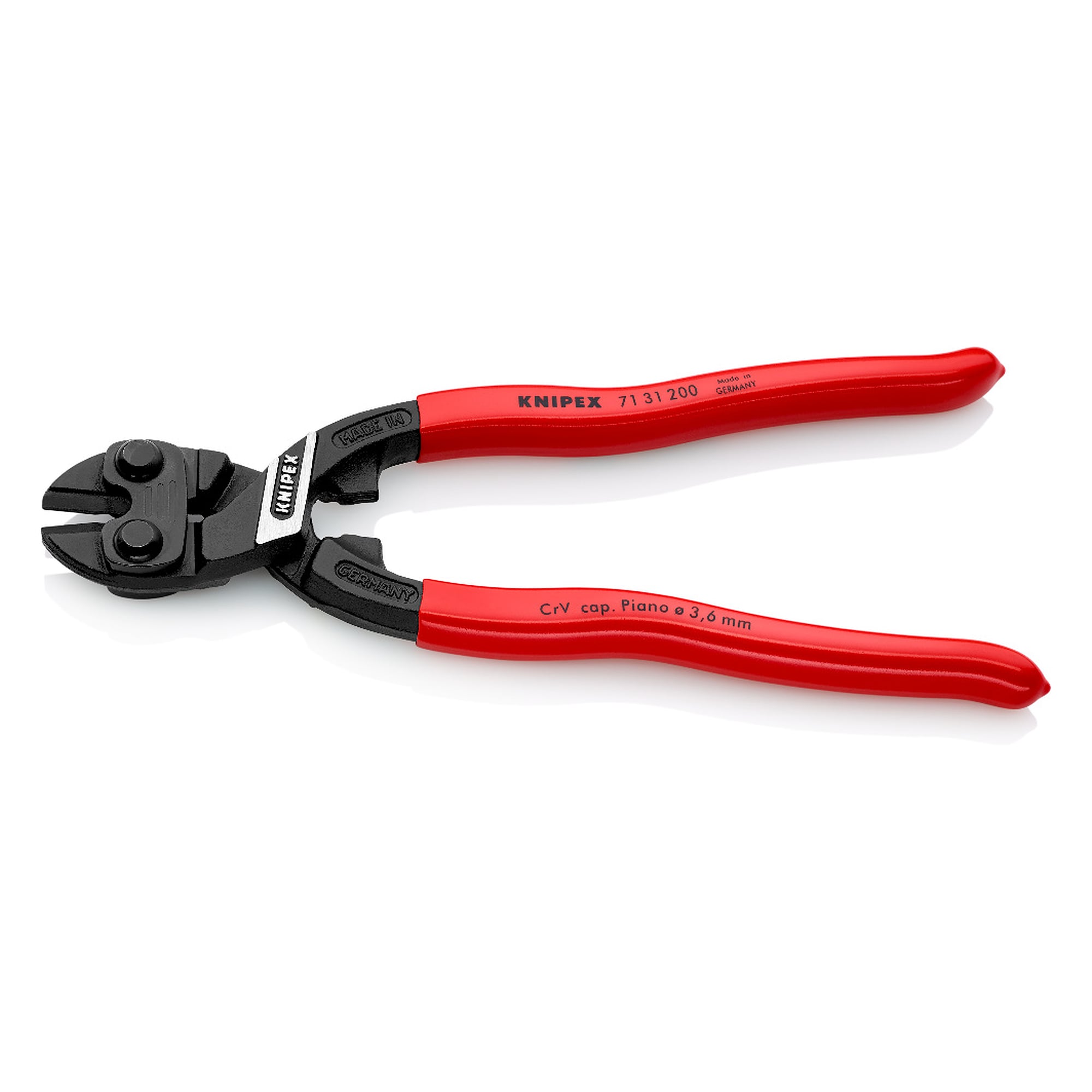

Compact bolt cutters CoBolt with cutting recess, hard wire 4.0 mm dia., 200 mm - Knipex 71 31 200
Compact bolt cutters with a recess in the blade that levers thicker wire close to the fulcrum. They cut bolts, nails and rivets up to 5.2 mm dia., hard wire up to 4.0 mm dia. and piano wire up to 3.6 mm dia., the edges are induction hardened to approx. 64 HRC. Slim head, 200 mm long at 330 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Thicker hard wire is hard work at the blade tip and easy close to the joint. The CoBolt with cutting recess uses exactly that leverage and cuts hard wire up to 4.0 mm dia. and components up to 5.2 mm dia. in a length of only 200 mm.
Benefits

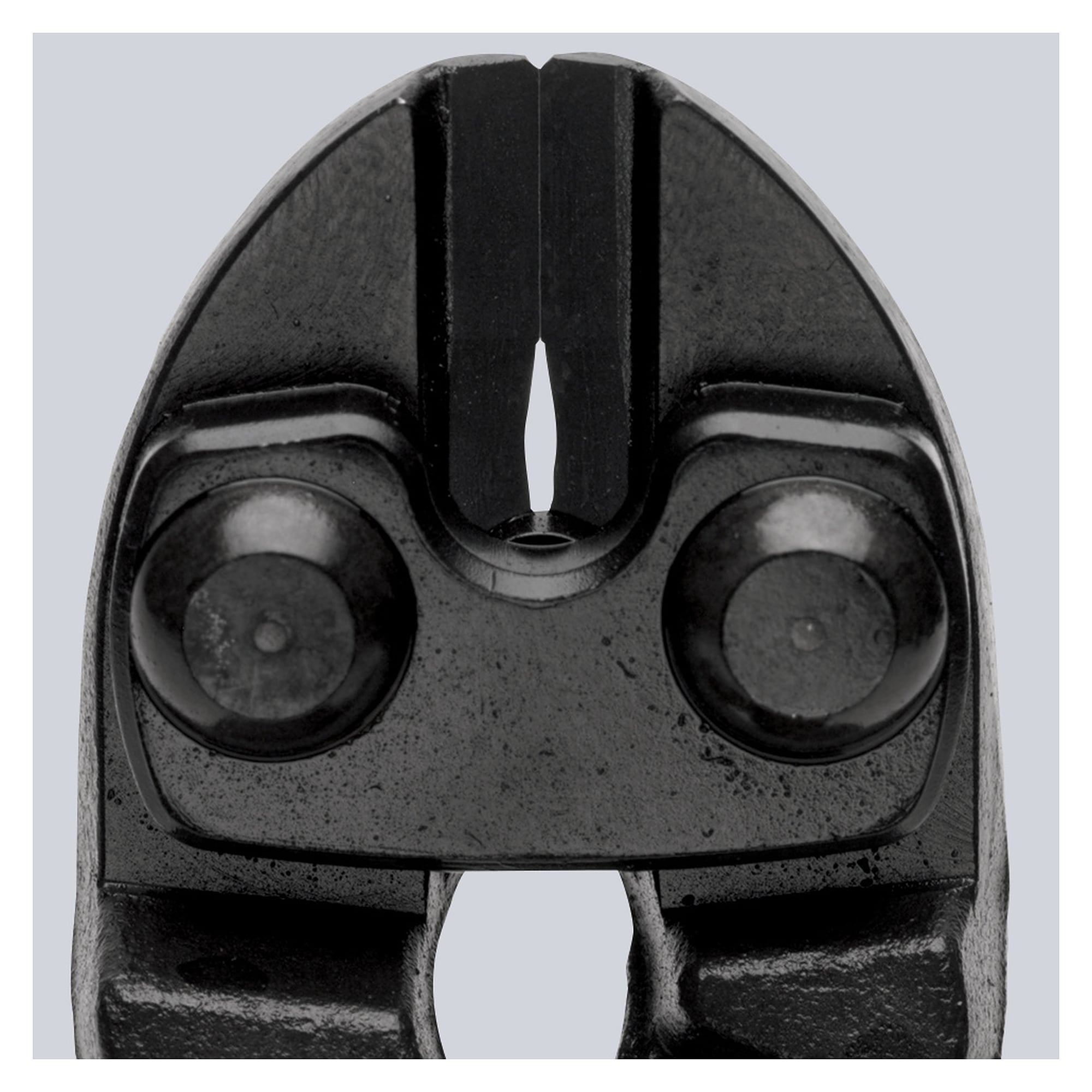

- Recess in the blade for easier cutting of thicker wire thanks to better leverage close to the fulcrum.
- Precision cutting edges for soft and hard wire as well as piano wire, capacities up to 6 mm dia., 4.0 mm dia. and 3.6 mm dia.
- Cuts components such as bolts, nails and rivets up to 5.2 mm dia.
- Cutting edges additionally induction hardened, cutting edge hardness approx. 64 HRC.
- Exceptional cutting performance with little effort due to the highly efficient joint design.
- Gripping surface below the joint for gripping and pulling wires from 1.0 mm dia.
Areas of use
Metalworking, assembly and maintenance, fence and mesh work, electrical installation and strip-out jobs. Wherever bolts, nails, rivets, screws, springs and wire have to be cut and the tool still has to fit into the tool pouch.
Standards and conformity
According to the manufacturer the article contains substances of very high concern as defined by the REACH regulation. The RoHS directive does not apply to this product. The manufacturer states no further standards for this article.
Technical data
| EAN | 4003773042327 |
|---|---|
| Pliers | black atramentized |
| Handles | plastic coated |
| Weight | 330 g |
| Dimensions | 200 x 46 x 16 mm |
| REACH conformity | contains SVHC |
| RoHS conformity | not applicable |
| Cutting capacity soft wire (diameter) | max. 6 mm dia. |
| Cutting capacity medium hard wire (diameter) | 5.2 mm dia. |
| Cutting capacity hard wire (diameter) | 4.0 mm dia. |
| Cutting capacity piano wire (diameter) | 3.6 mm dia. |
| Manufacturer | Knipex |
| Manufacturer Nr. | 71 31 200 |
| HS-Code | 82034000 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Height | 16 mm |
| Width | 46 mm |
| Colour | Black |
| Farbe | schwarz |
| Overall length [mm] | 200 |
