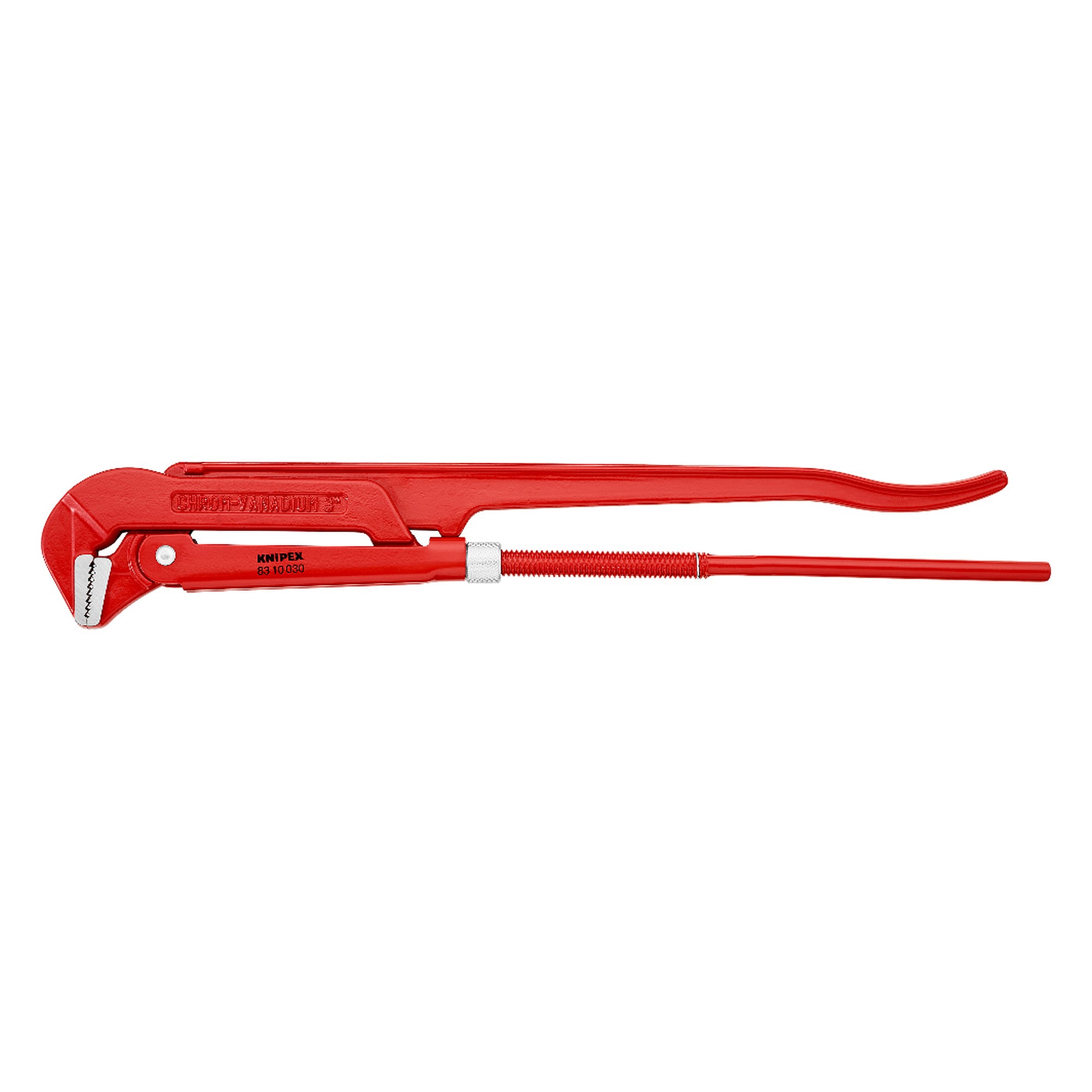

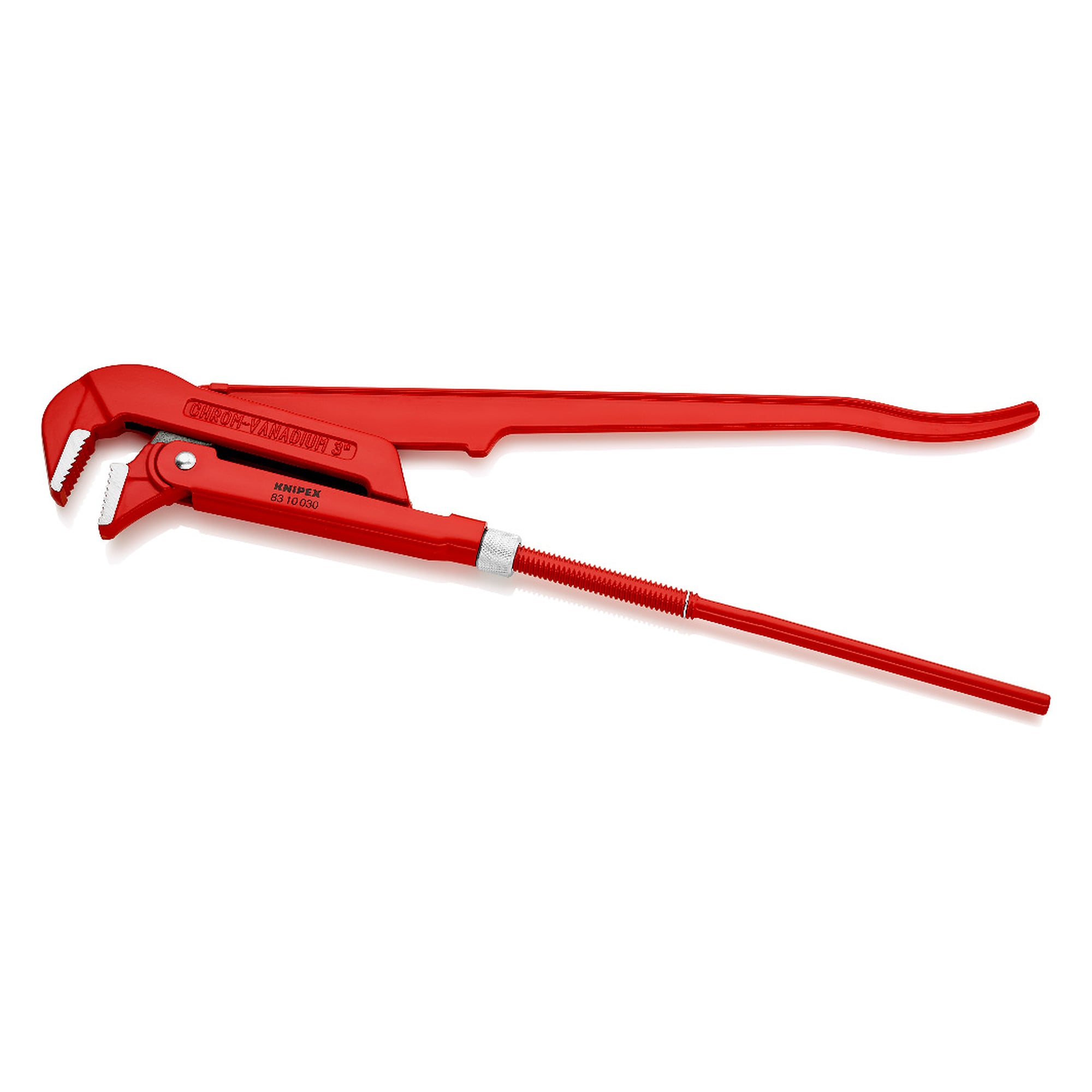

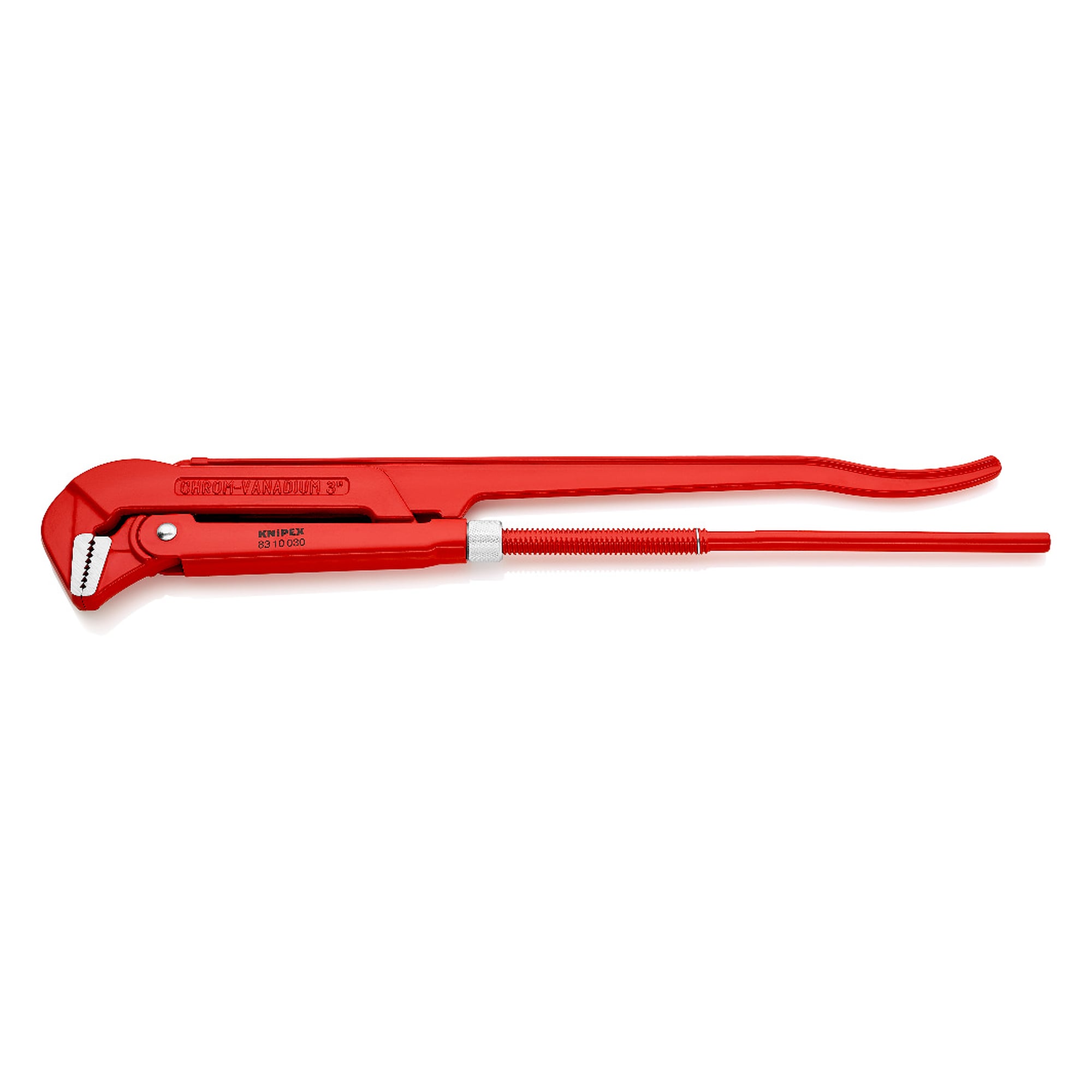

Pipe wrench 90°, Swedish pattern, 110 mm capacity, 650 mm long - Knipex 83 10 030

Pipe joints close to a wall or inside a narrow shaft are hard to reach with a straight wrench. The 90 degree angled jaw of this Swedish pattern pipe wrench grips pipes up to Ø 110 mm even when you can only come in from the side, and the 650 mm length supplies the leverage the job needs.

Advantages

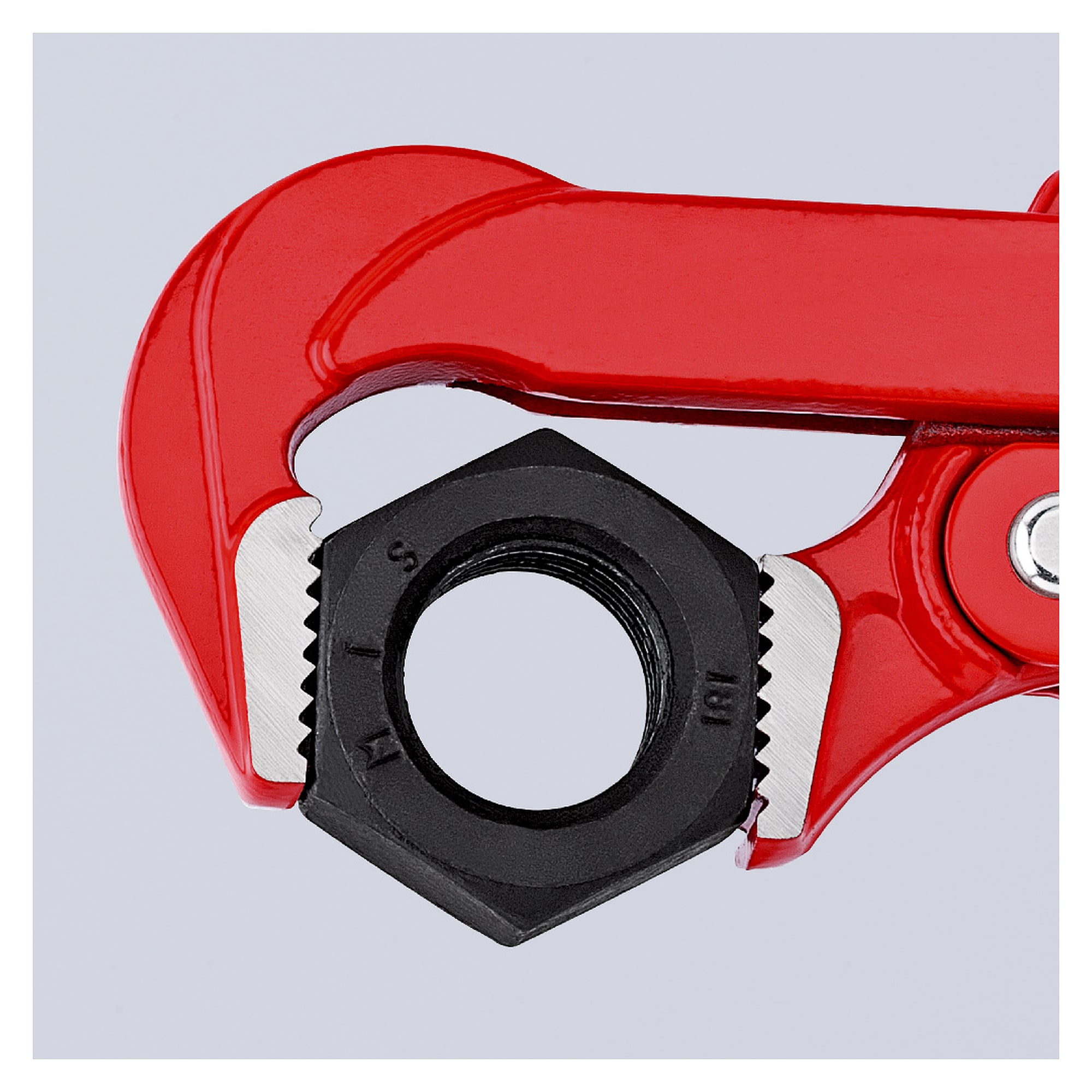

• Swedish pattern jaw angled at 90 degrees, so pipes routed close to a wall can still be gripped
• Teeth offset against the direction of rotation and additionally induction-hardened for a secure bite while tightening
• Gripping surfaces with specially hardened teeth, tooth hardness approx. 56 HRC, for a long service life
• Captive adjusting nut, jaw capacity set steplessly up to 110 mm
• I-beam handle design, high stiffness at 3,433 g of own weight
• Red powder-coated, jaws bright ground

Areas of application

Plumbing and heating installation, pipework and plant construction as well as maintenance. Wherever pipes, sockets and fittings up to 105 mm across flats have to be loosened, held or tightened.

Standards and compliance

The wrench conforms to DIN 5234. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply to this hand tool.
