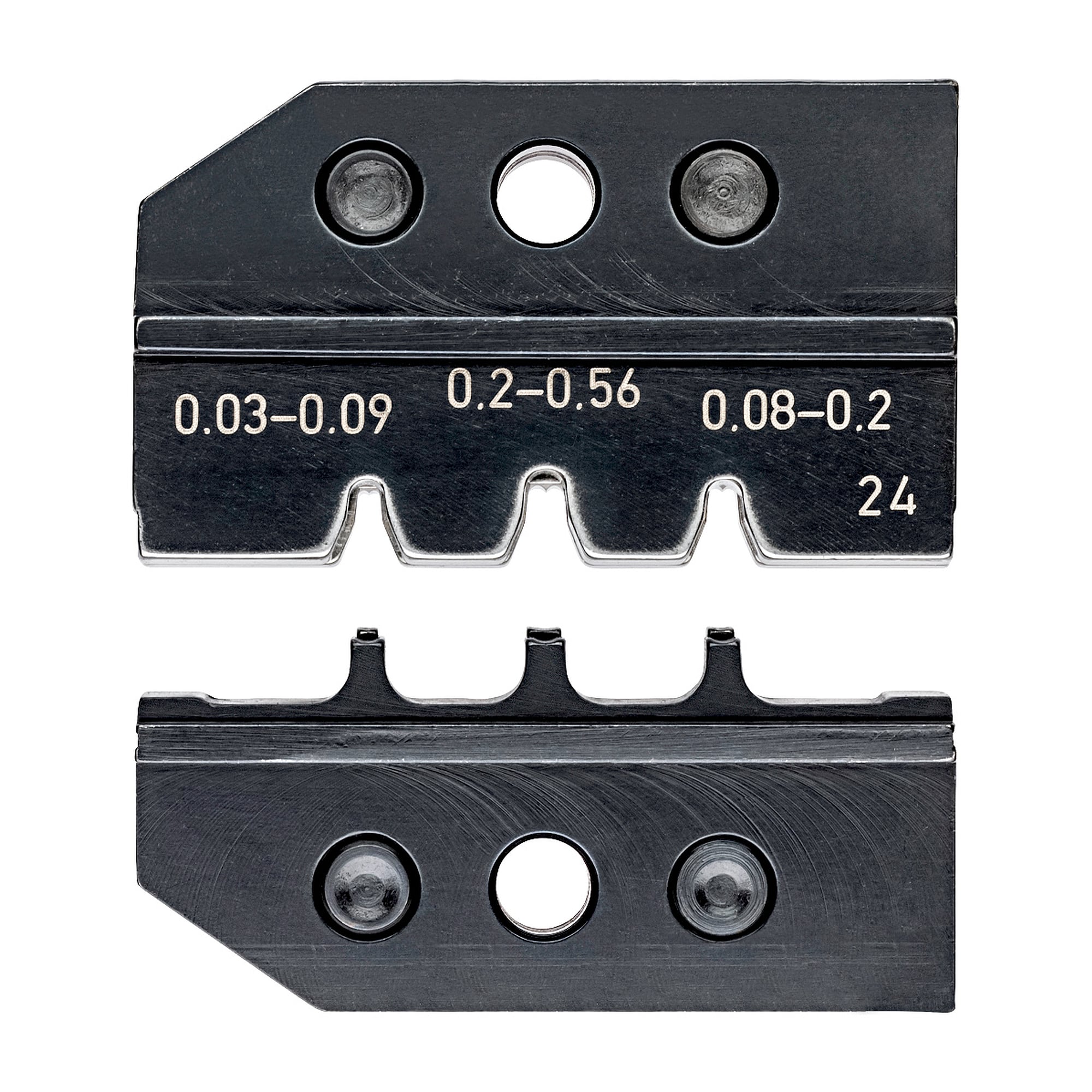

Crimping die for D-Sub connectors 0.03 - 0.56 mm², 3 nests - Knipex 97 49 24

D-Sub contacts at 0.03 to 0.56 mm² sit in the finest cross-section range, and there the shape of the nest decides the quality of the crimp. The 97 49 24 crimping die covers this range with 3 nests and turns a Knipex crimp system plier of the 97 43 xx range into a tool for D-Sub connectors.

Benefits

• Application for D-Sub, HD 20 and HDE connectors from 0.03 to 0.56 mm², corresponding to AWG 32 to 20.
• 3 nests in one die, so the whole cross-section range is covered without changing tools.
• Exchangeable die for the manual and electromechanical Knipex crimp system pliers of the 97 43 xx range, one tool body carries many contact systems.
• The optionally available locator 97 49 93 makes it easier to guide the contacts during crimping and holds the contact in the nest.
• Compact part measuring 50 x 12 mm at 41 g, with its own place in the case of the system pliers.

Technical data

Areas of use

Assembly of D-Sub connectors in control cabinet building, measuring and test engineering, industrial electronics and service. Equally suited to HD 20 and HDE contacts in the same cross-section range.

Standards and conformity

According to the manufacturer the crimping die contains no substances of very high concern under REACH. The RoHS directive does not apply to this product.
