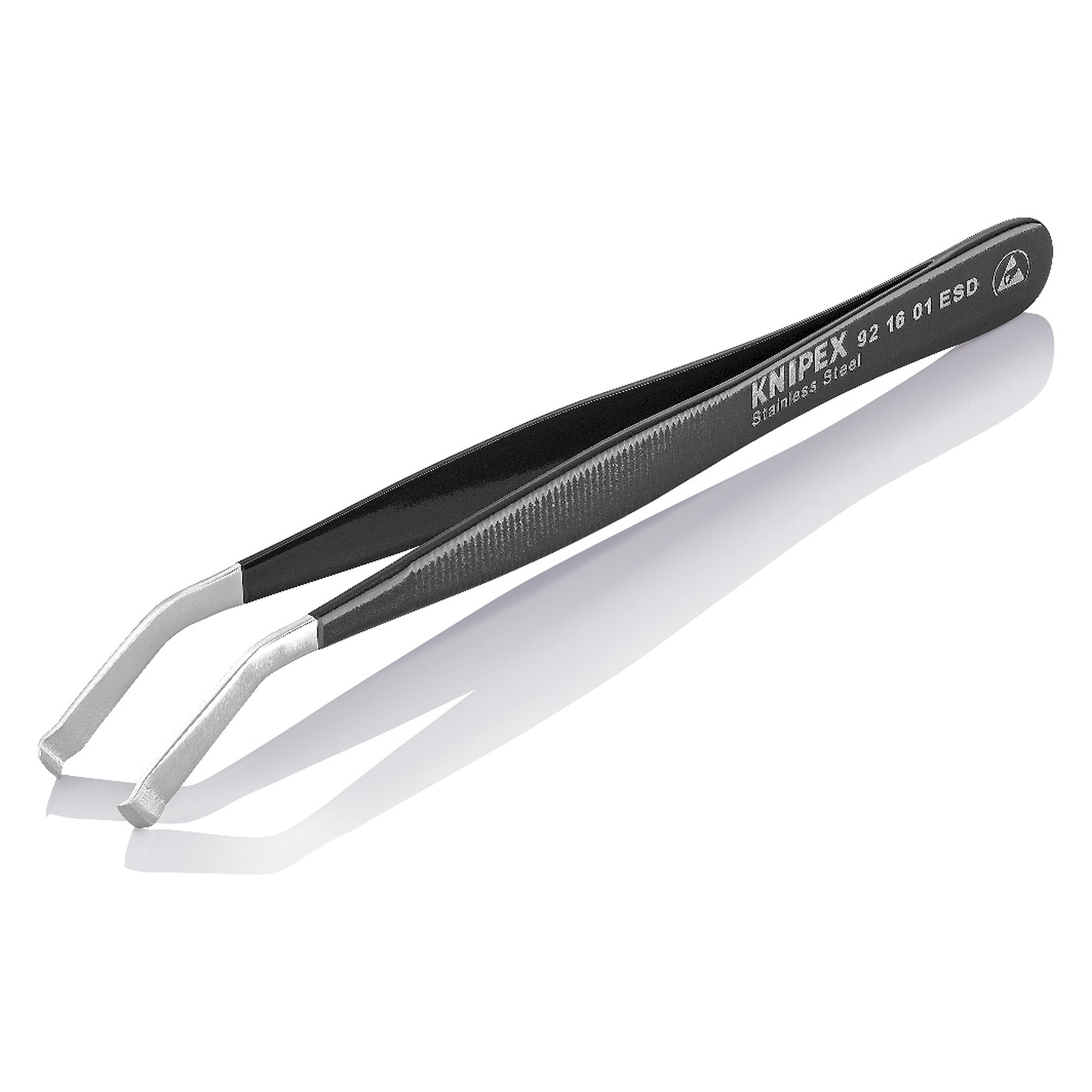

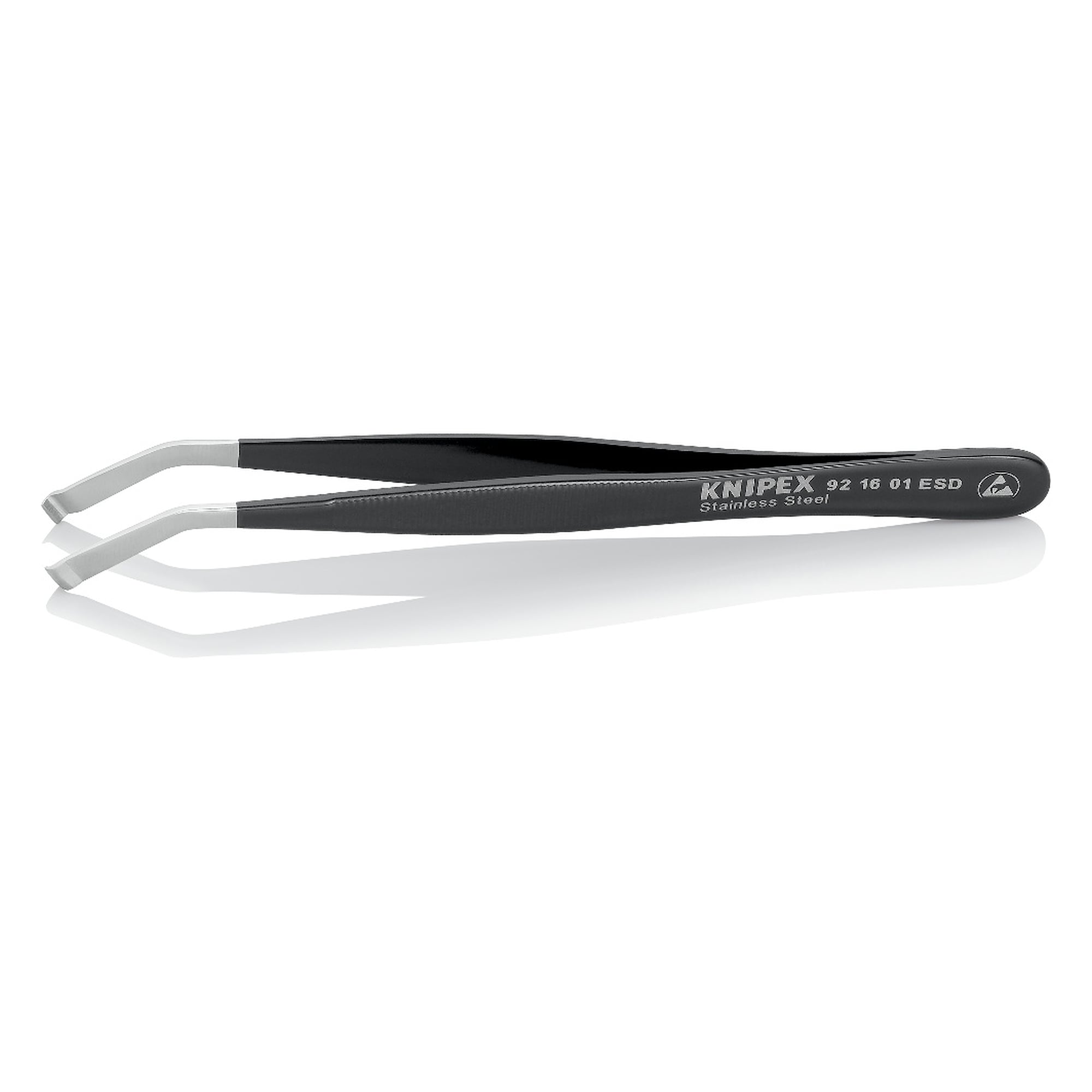

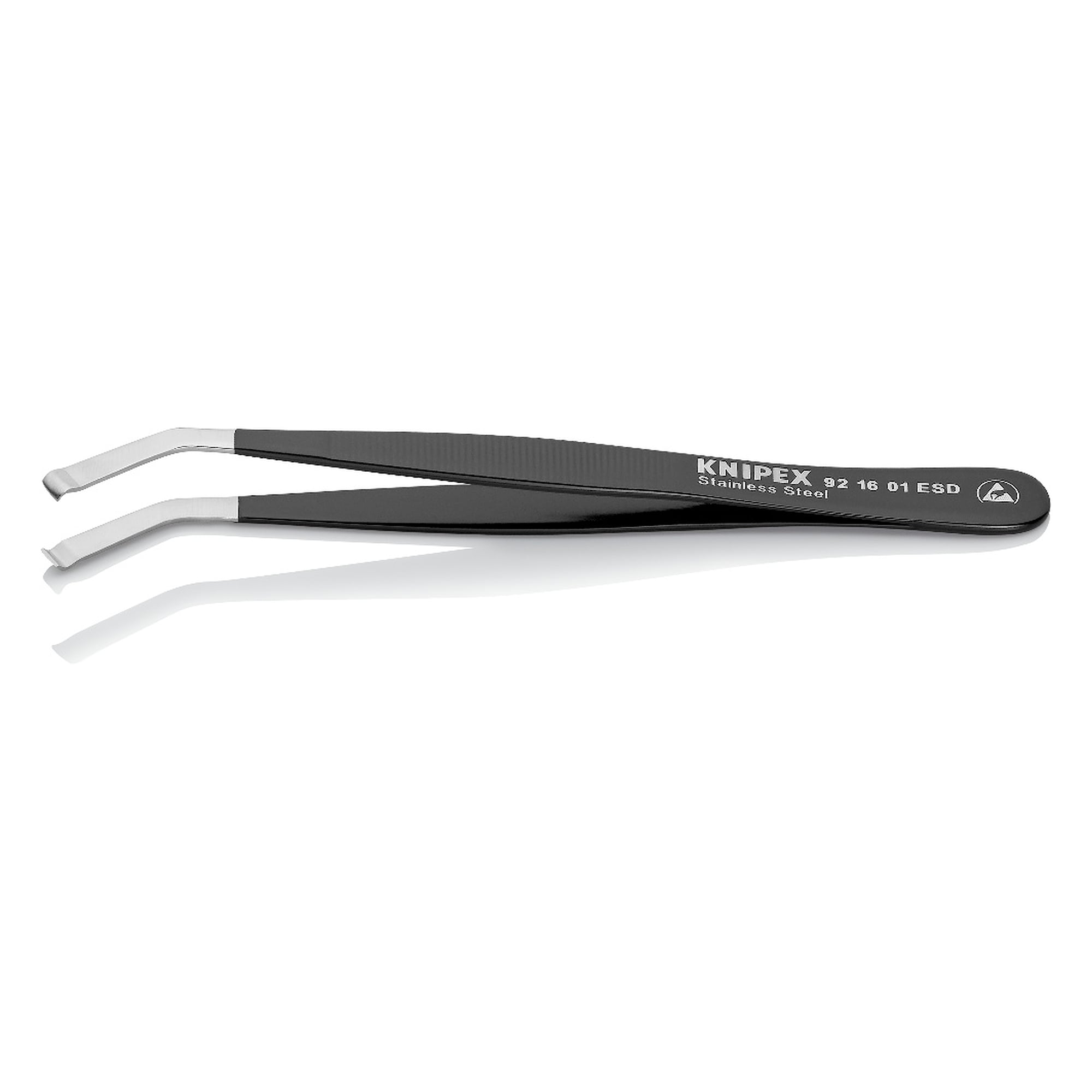

ESD positioning tweezers, angled 35 degrees, 1.5 mm tip width, dissipative stainless steel, 120 mm - Knipex 92 16 01 ESD

Inside an ESD protected area, tweezers must endanger the component neither mechanically nor electrostatically. The 92 16 01 ESD carries a tested black epoxy coating with a surface resistance between 10^3 and 10^9 ohms and places small parts safely in the grid with tips angled at 35 degrees and 1.5 mm wide.

Benefits

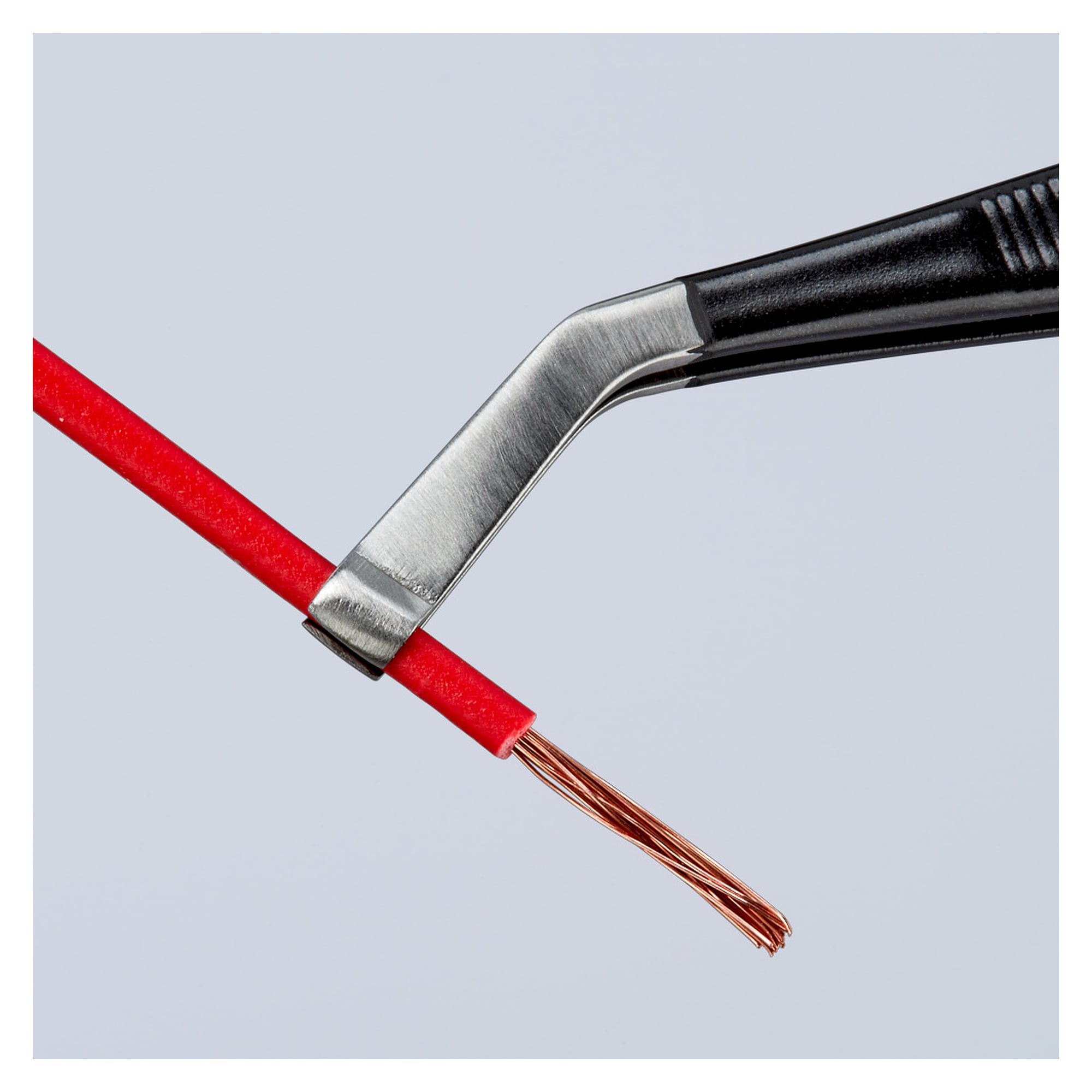

• Makes it easy to hold, insert and pull even the smallest elongated components.
• Dimensionally adapted gripping surfaces position sensitive rounded or cuboid components firmly and securely, tip width 1.5 mm (A) and 3.8 mm (B).
• Tips angled at 35 degrees keep the gripping point in view even when working flat over the board.
• Tested black epoxy resin coating with a surface resistance between 10^3 and 10^9 ohms for controlled compensation of potential differences between operator and component.
• For through-hole technology (THT) and pin-in-hole technology (PIH) assembly.
• Antimagnetic to avoid electromagnetic damage, stainless steel, corrosion-resistant with very good acid resistance.

Areas of use

Manual assembly and repair of boards in an EPA, test field and laboratory. The angled tip helps wherever components are set or pulled between neighbours that are already populated.

Standards and conformity

The manufacturer states DIN EN 61340-5-1 for use in EPA areas, the tweezers are ESD tested. According to the manufacturer they contain no substances of very high concern under REACH, and the RoHS directive does not apply. No VDE test is declared.
