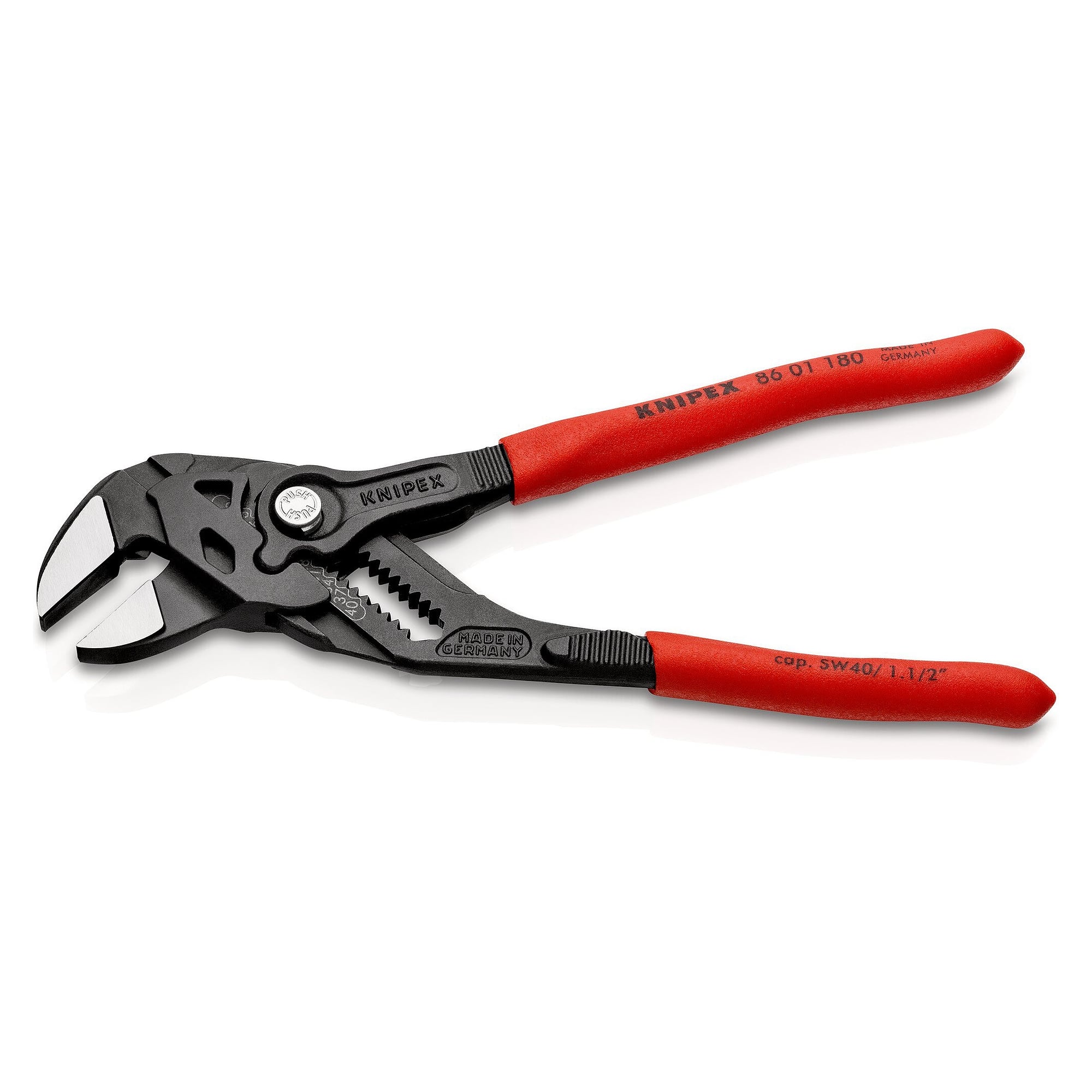

Pliers wrench with narrow smooth jaws, wrench sizes up to 40 mm, grey, 180 mm - Knipex 86 01 180 SB
Pliers and spanner in one tool: the parallel jaws grip nuts up to 40 mm without play and protect chrome-plated surfaces. Narrow jaws and a laser-marked scale make this 180 mm pliers wrench a good choice for tight assembly spots.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

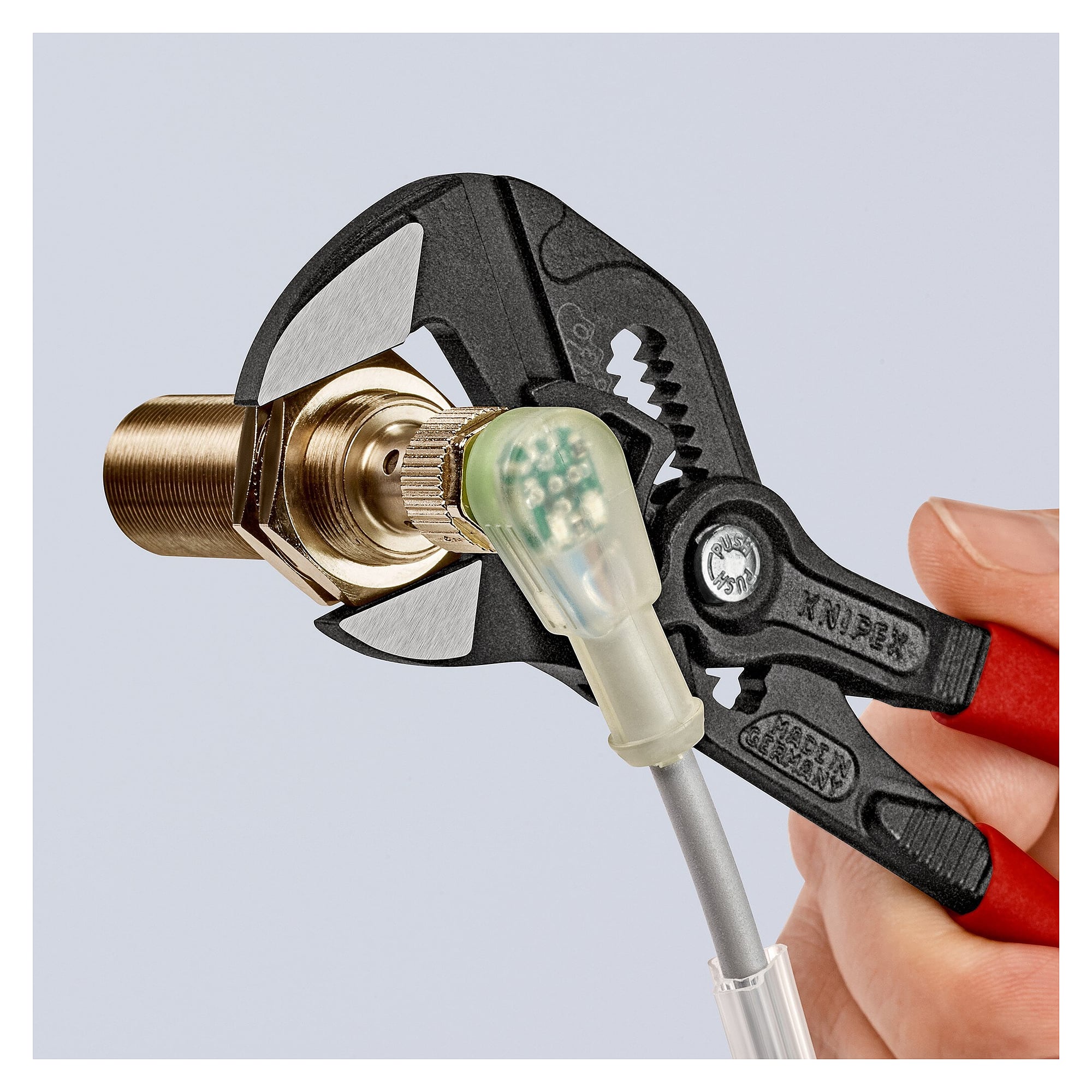

If you work on fittings and screw connections up to 40 mm across flats, this 180 mm pliers wrench replaces a whole set of spanners. The smooth jaws work directly on chrome, and the slim head reaches spots where an open-end spanner does not fit.
Key benefits
- Smooth, parallel-guided jaws grip every wrench size steplessly up to capacity with full-surface, backlash-free contact, so even chrome-plated fittings are not marked
- Replaces a set of spanners, metric and imperial
- Ratchet principle: the stroke between the jaws allows fast tightening and loosening without repositioning the tool
- Push-button adjustment directly on the workpiece, no unintended shifting of the jaws
- Narrow jaws for screwing tasks that need a slim tool, tip thickness 5 mm
- Two additional adjustment positions raise the capacity to 40 mm, with 10 % less weight and the same stability
- Laser-marked scale for presetting the wrench size before gripping
Applications

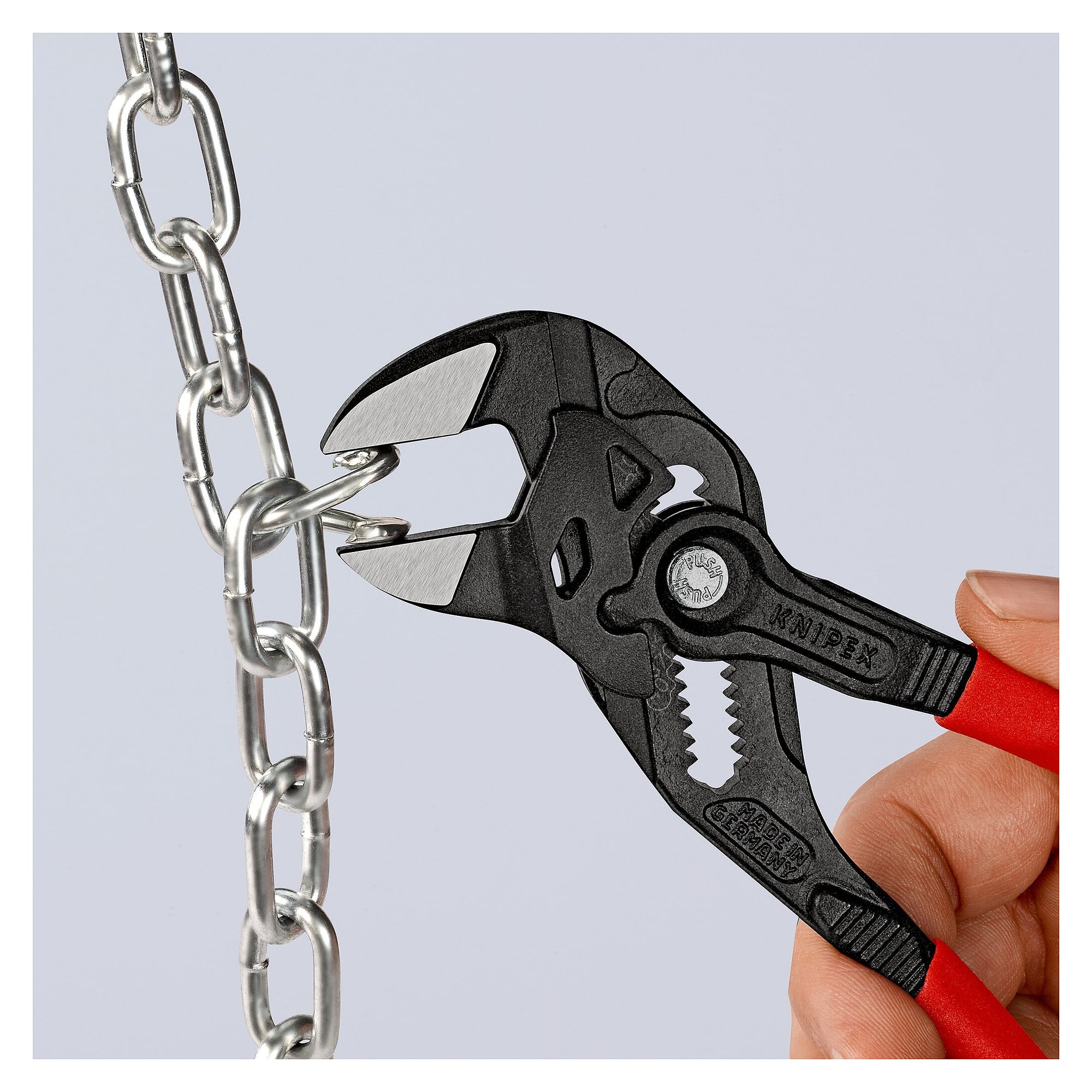

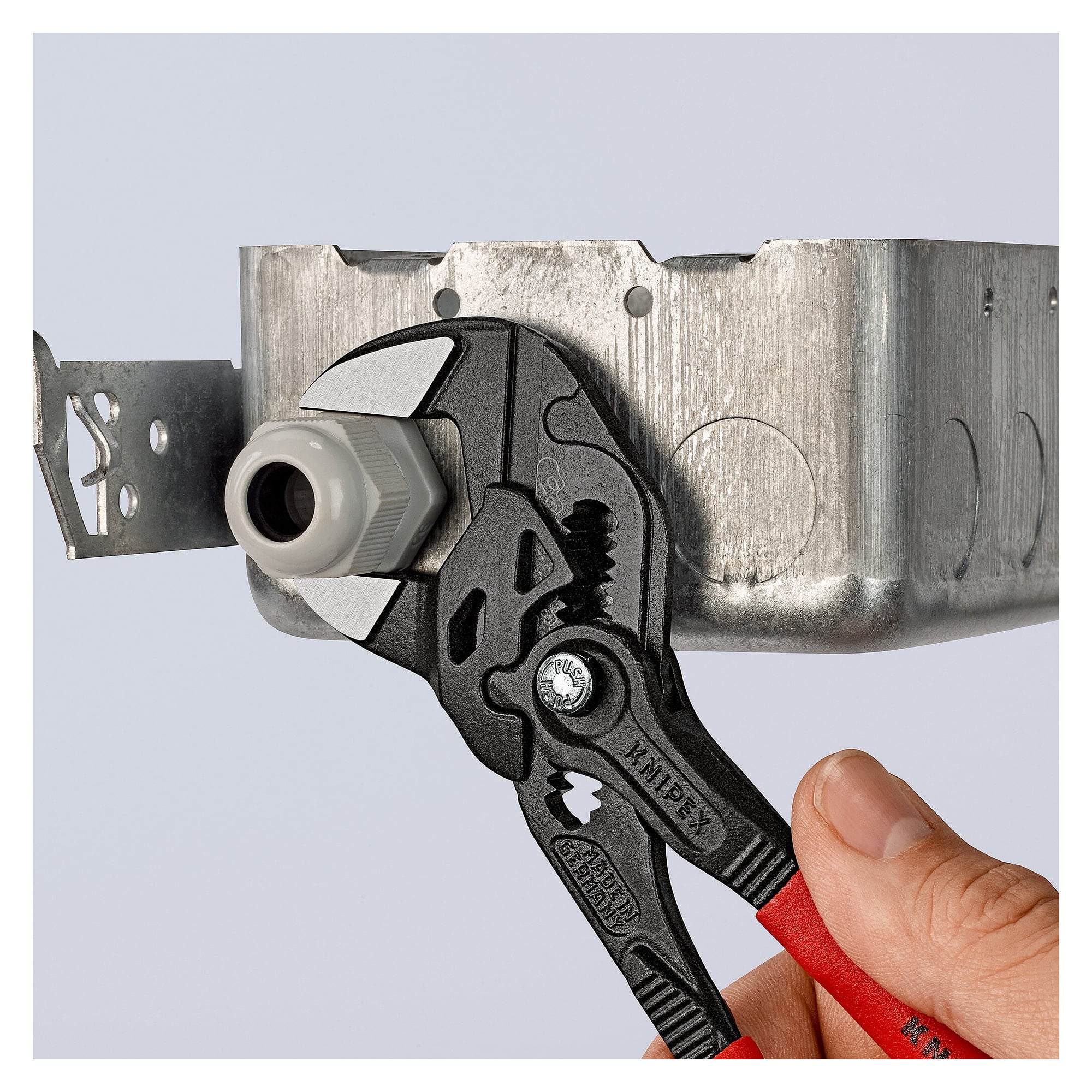

Plumbing and heating installation, fittings with finished surfaces, machine and plant engineering, maintenance. Also for gripping, holding, pressing and bending workpieces. Supplied individually on a blister card.
Technical data
| Manufacturer | Knipex |
|---|---|
| Pliers type | pliers wrench |
| Tool length | 180 mm |
| Capacity | nuts up to 1 1/2 in, steplessly up to 40 mm |
| Tip thickness | 5 mm |
| Joint design | box joint |
| Handles | plastic coated |
| Insulated | no |
| VDE | no |
| ESD safe | no |
| Net weight | 252 g |
| Item dimensions (L x W x H) | 251 x 85 x 20 mm |
| Package dimensions (L x W x H) | 253 x 115 x 92 mm |
| Packaging | blister card |
| Sales unit | 1 Stück |
| Content unit | 1 Stück |
| Weight | 0.254 kg |
| Manufacturer Nr. | 86 01 180 SB |
| HS-Code | 82041200 |
| GPSR manufacturer information | KNIPEX-Werk, Oberkamper Strasse 13, DE-42349 Wuppertal-Cronenberg, www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
