Solder fume extraction ZeroSmog Guard 2 200 m³/h for two workstations, 142 W - Weller FT91022699

Two soldering positions side by side need twice the extracted air of one. The ZeroSmog Guard 2 delivers 200 m³/h at 2250 Pa from a single housing and saves the second filter unit with its own set of filters. Power consumption is 142 W from 220 to 240 V.

Key benefits

• 200 m³/h of volume flow supply two hand soldering positions from one housing.

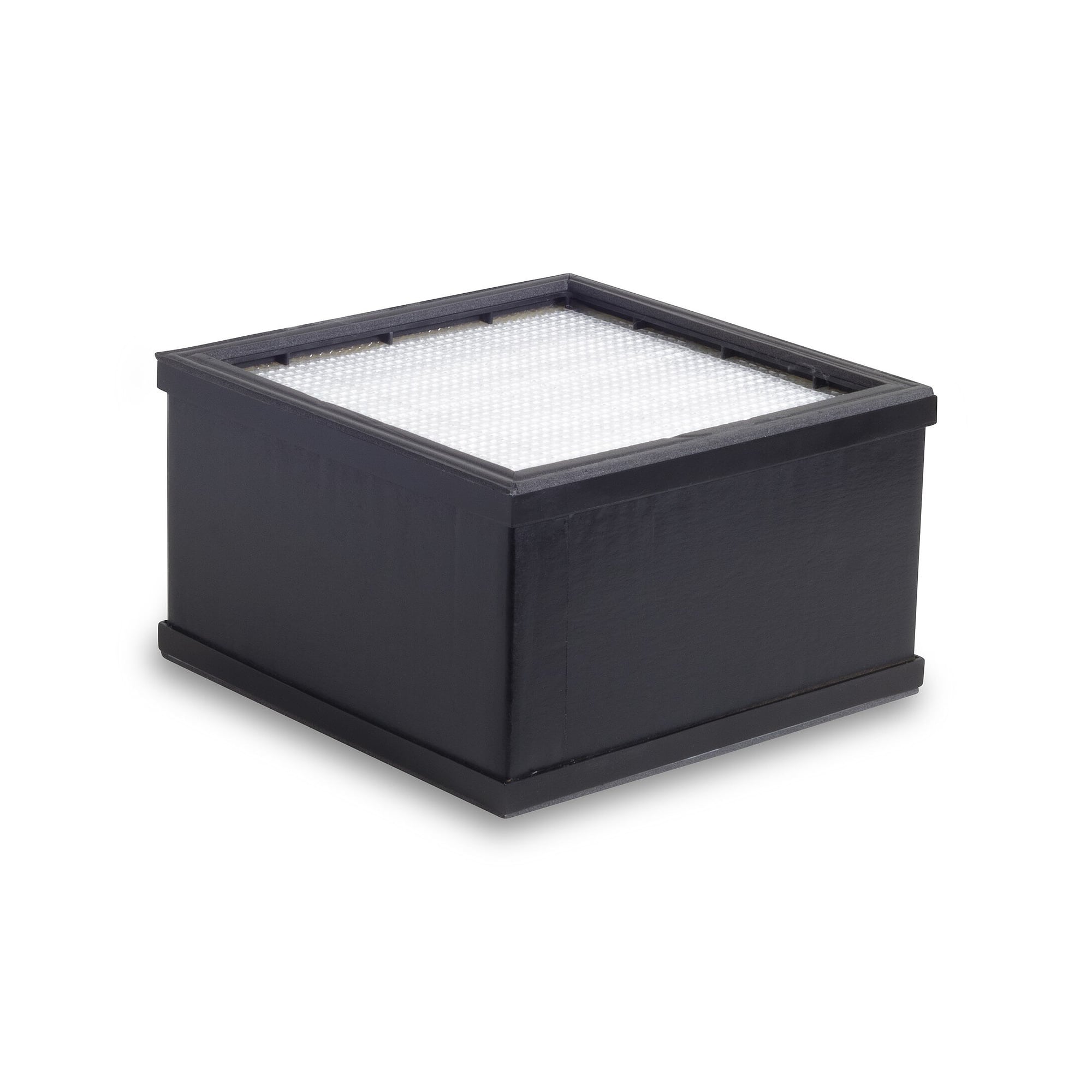

• Main filter with HEPA H13, activated carbon and potassium permanganate for particles and aggressive gases.
• 2250 Pa of vacuum keep capture stable on both channels.

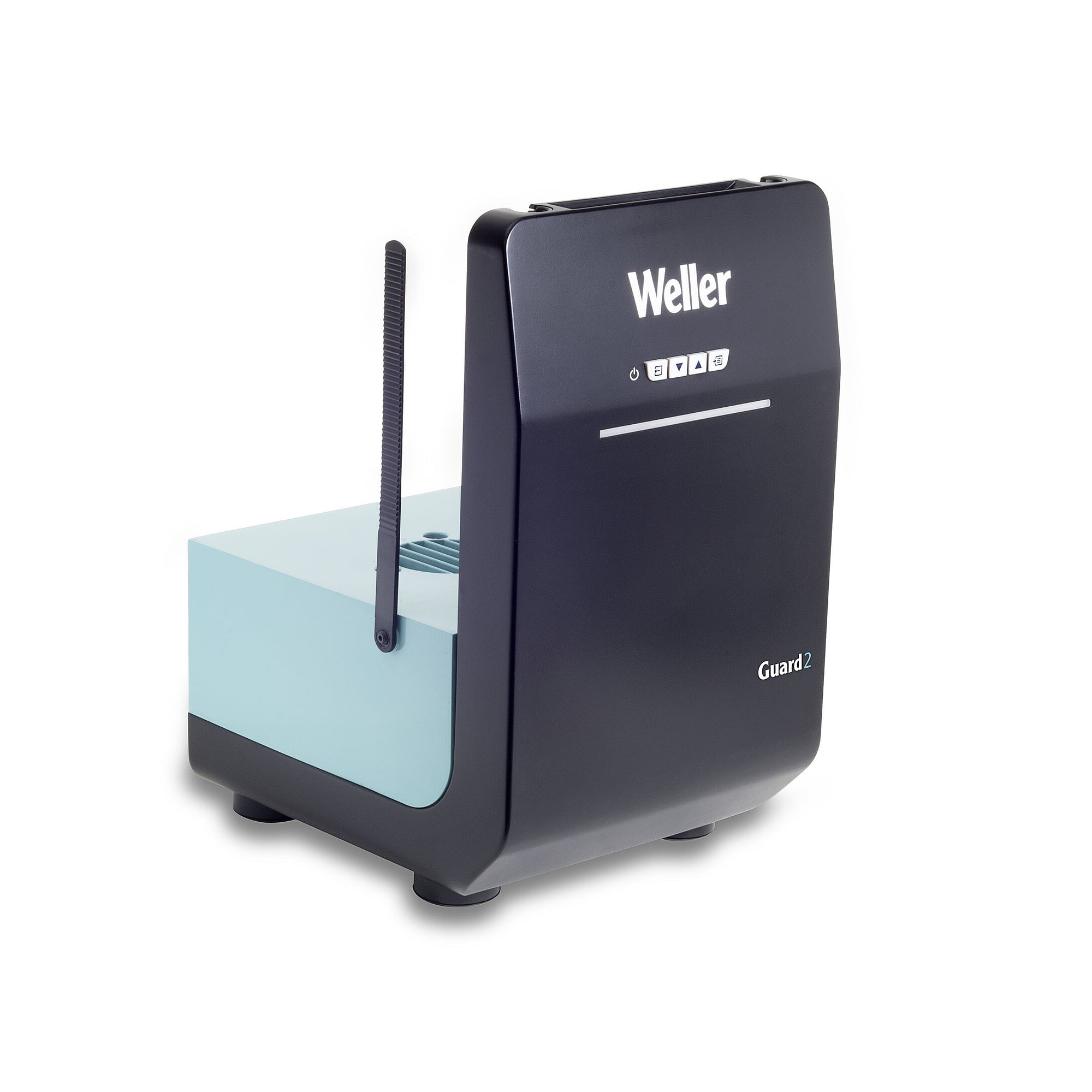

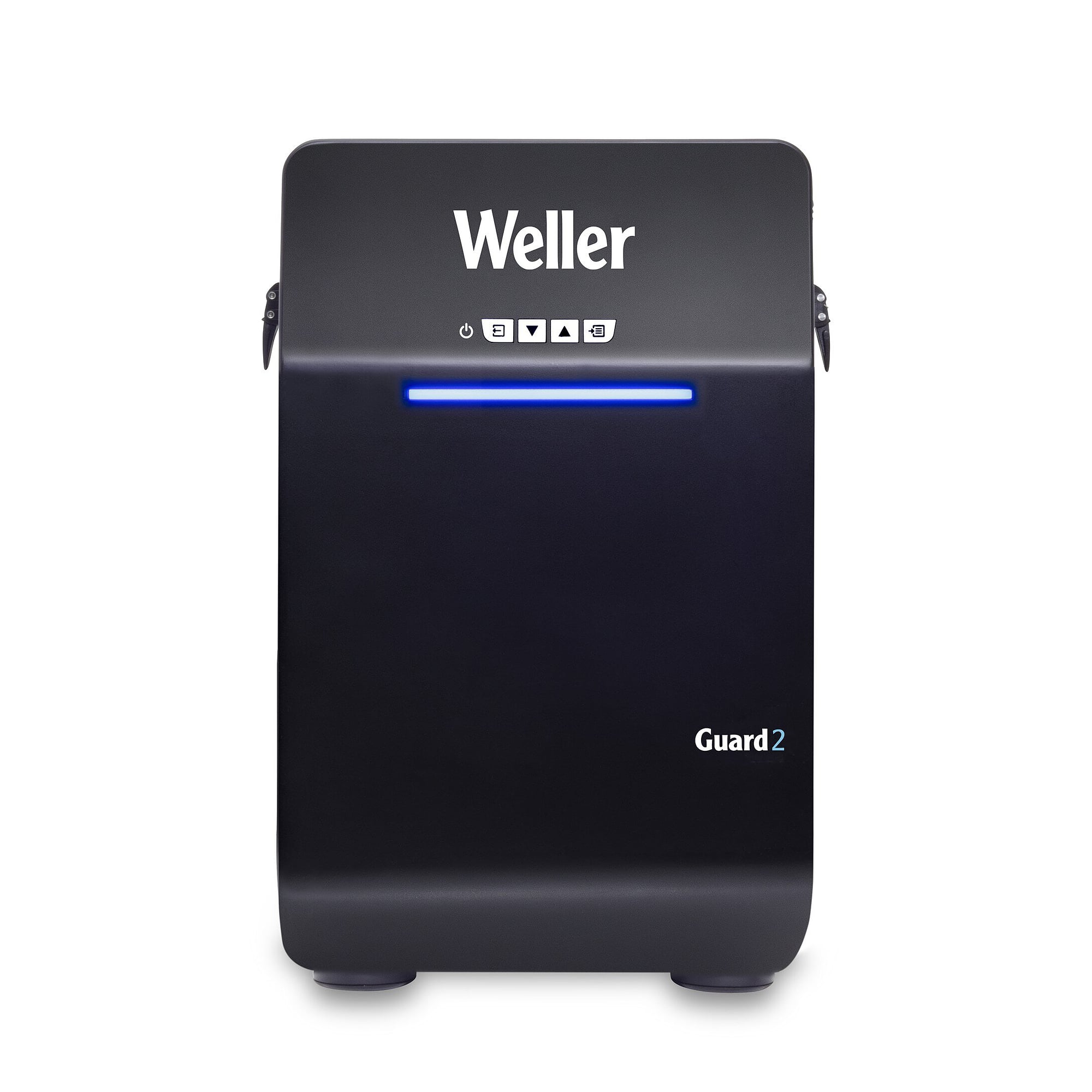

• Filter status indicator and light bar show operating state and the due filter change.
• Pre-filter and main filter change without tools, five ePM1-75 % pre-filters are included.
• ESD-safe design with a Weller Easy-Click 60 connection.

Technical data

Applications

Two adjacent hand soldering benches in electronics production, in repair and test areas or in the laboratory. Both positions run on one filter unit, which saves floor space and a second set of filters.

Connection and scope of delivery

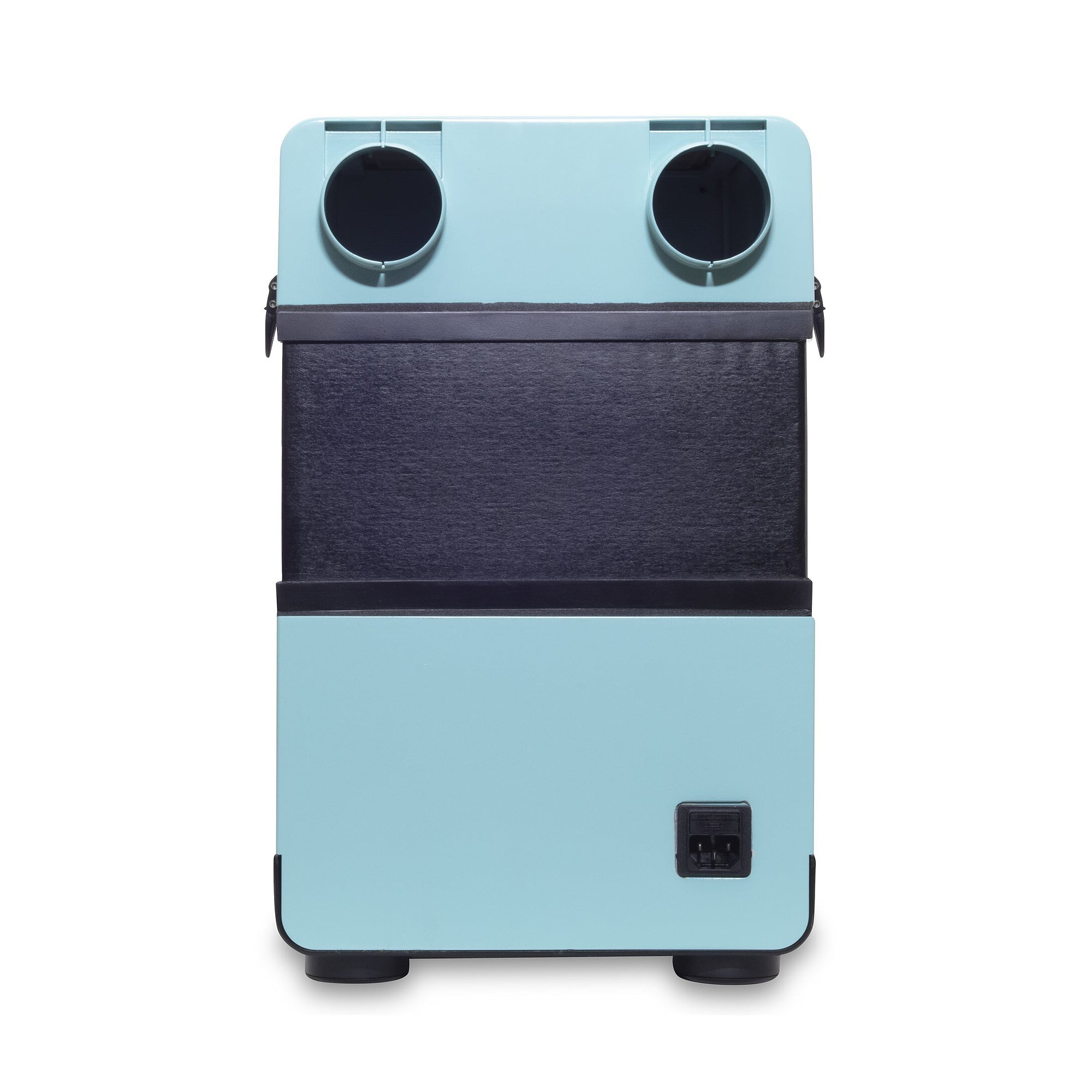

Both channels connect through Weller Easy-Click 60 with a 60 mm plug fitting. Extraction arms, nozzles and shut-off valves are not included and are chosen per workstation. Supplied are the 230 V filter unit, one main filter with HEPA H13, activated carbon and potassium permanganate plus five ePM1-75 % pre-filters.

Manufacturer and compliance

ESD-safe design for electronics workplaces according to the manufacturer's specification table. The manufacturer is WELLER Tools GmbH, Carl-Benz-Strasse 2, DE-74354 Besigheim, Germany.
