Festo pneumatic cylinder for precise linear motion and defined force in automation.
Round Cylinder ESNU-63-10-P-A - Festo 196385
FESTO Original product
Net price (excl. VAT)
€115.80
Item FES-196385
Manufacturer no. ESNU-63-10-P-A
Personal expert advice
Brand new Specialist dealer since 2009 Original product Worldwide shipping
Product data
Manufacturer no.ESNU-63-10-P-A
EAN4052568159399
Customs tariff number84123100
ConditionNew
Article
FES-196385
Frequently Bought Together
- This Item: €115.80

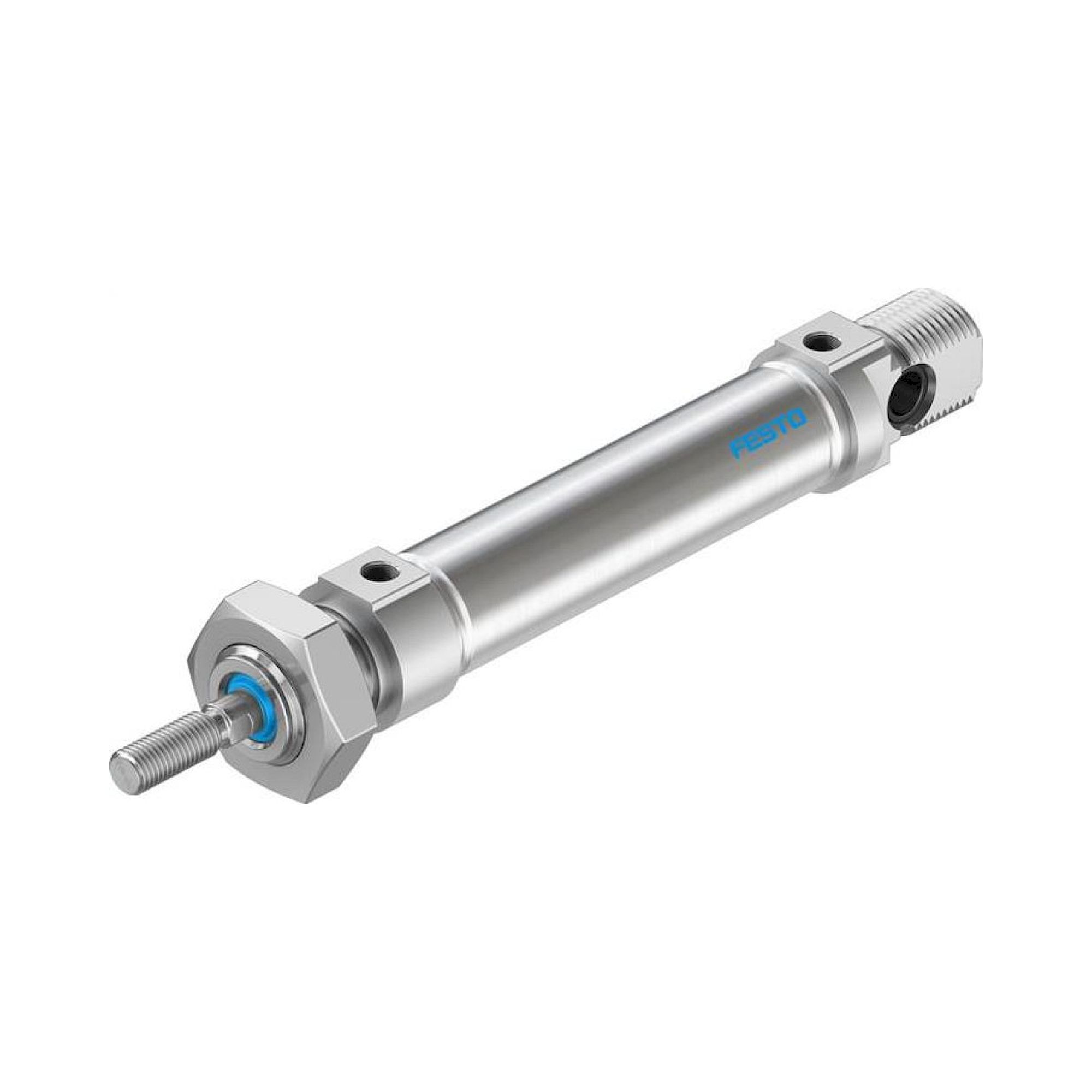

- Standards-Based Cylin DSNU-16-25-PPS-A - Festo 559263 €47.40
- Round Cylinder DSNU-50-125-P-A - Festo 196005 €96.34
Total price
Festo pneumatic cylinder for precise linear motion and defined force in automation. The key technical data of this genuine Festo article are listed below.
| Stroke [mm] | 10 |
| Piston diameter | 63 mm |
| Piston rod thread | M16x1,5 |
| Dampening | P: Elastic silencer rings / plates double-sided |
| installation position | arbitrary |
| Construction set up | Piston<br>piston rod<br>cylinder tube |
| Position detection | For proximity switch |
| Operating pressure [bar] | 1.2 to 10 |
| Principle of operation | Pressing<br>single action |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| ambient temperature [°C] | -20 to 80 |
| Theoretical force at 6 bar, flow [N] | 1.765,0 |
| Moving mass at 0 mm stroke [g] | 459,0 |
| Weight supplement per 10 mm stroke [g] | 44,0 |
| Base weight at 0 mm stroke [g] | 1.445,0 |
| Supplement moved mass per 10 mm stroke [g] | 25 |
| Fastening type | With Accessories |
| Pneumatic connection | G3/8 |
| Material information | RoHs compliant |
| Cover material | Aluminium wrought alloy |
| Seals material | NBR<br>TPE-U(PU) |
| Piston rod material | High-alloyed steel |
| Cylinder tube material | High-alloyed stainless steels |
| Spring return force for retracted piston rod [N] | 95 |
| Theoretical force at 6 bar, Return flow [N] | 95 |
| Moving mass [g] | 484 |
| Product weight [g] | 1.489 |
| Manufacturer Nr. | ESNU-63-10-P-A |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568159399 |
| Weight | 1.500000 |
| HS-Code | 84123100 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
| Bohrung (mm) | 63.000000 |
| Betriebsdruck max [bar] | 10.000000 |
| Pneumatischer Anschluss | G3/8 |
| Hub [mm] | 10.000000 |
