Festo SIEF-M30NB-NS-K-L (538322) Proximity Sensor
€8,591.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-538322
Manufacturer Nr.
SIEF-M30NB-NS-K-L
Proximity Sensor
Frequently Bought Together
-
This Item:
€8,591.00Excl. 19% VAT , excl. Shipping Cost
-

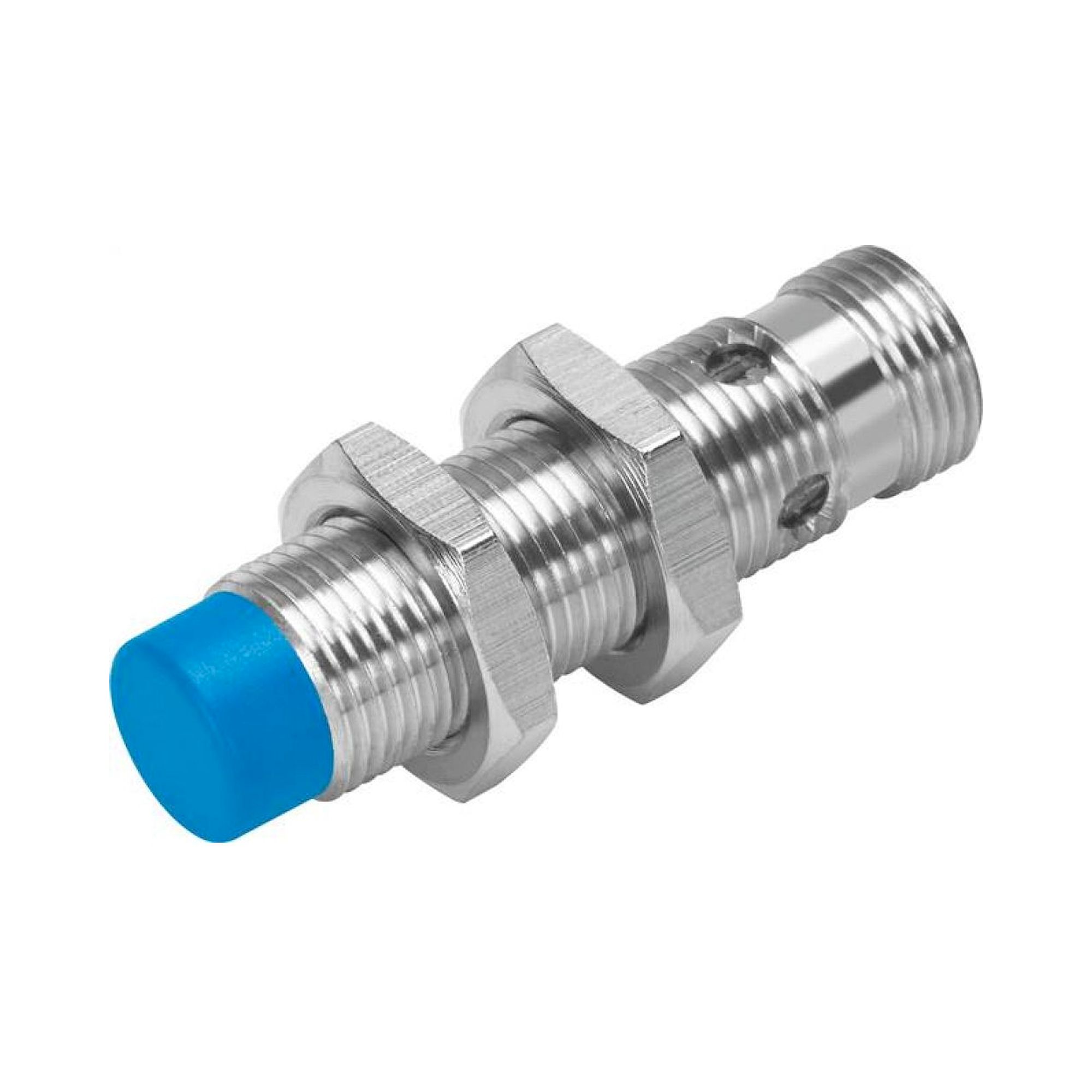

Festo SIEN-M12NB-PO-S-L (150415) Proximity Sensor
€5,278.00Excl. 19% VAT , excl. Shipping Cost
-

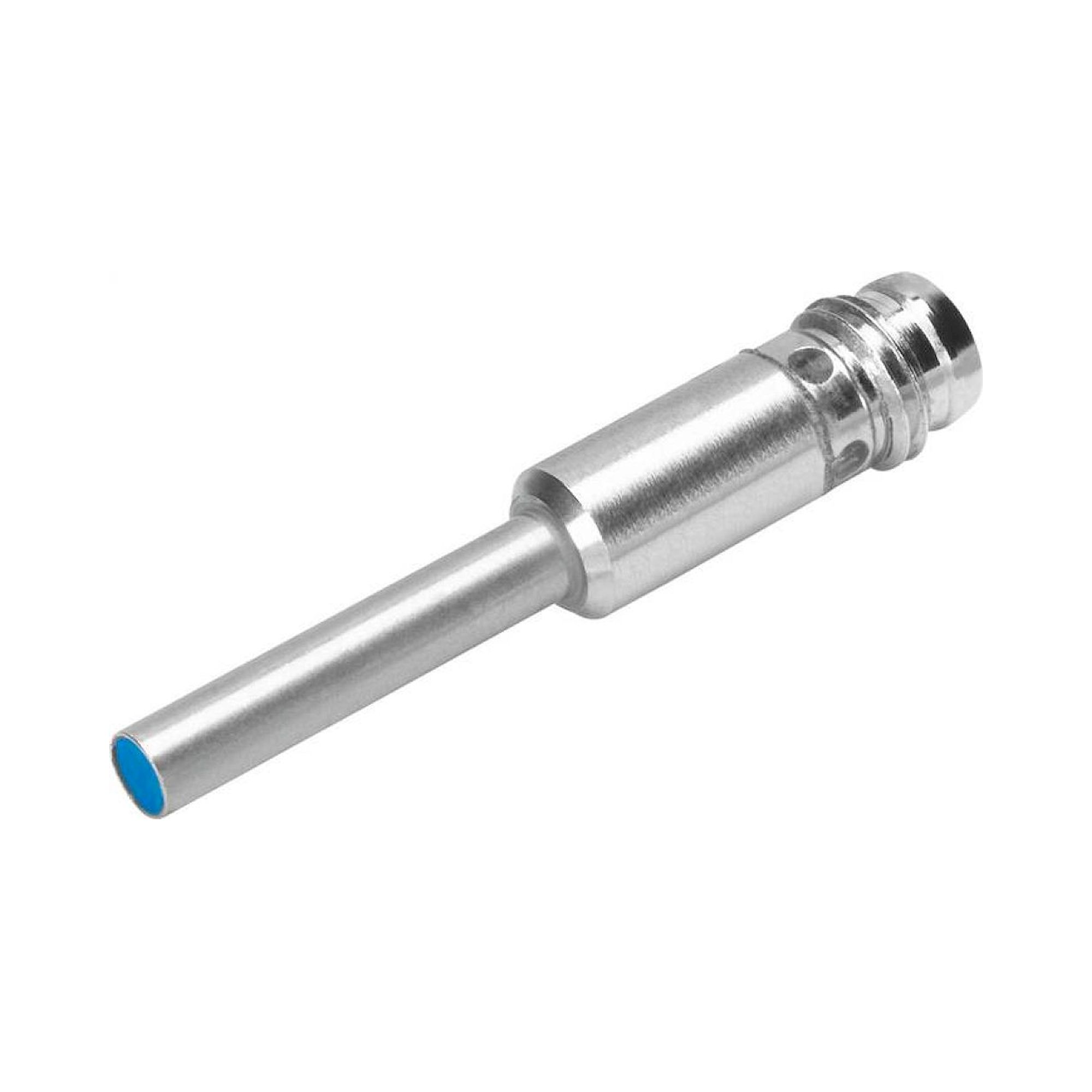

Festo SIEN-4B-PO-S-L (150367) Proximity Sensor
€694.00Excl. 19% VAT , excl. Shipping Cost
Total price
| Design | round |
| Complies to standard | EN 60947-5-2 |
| Permission | RCM mark c UL us - Listed (OL) |
| CE certificate (see declaration of conformity) | to EU EMC directive |
| Measurement principle | Inductive |
| Measurement switching distance [mm] | 20,0 |
| Secured safety distance [mm] | 16,20 |
| Reduction factors | aluminium = 1,0 stainless steel St 18/8 = 1,0 Copper = 1.0 brass = 1,0 Steel pc. 37 = 1.0 |
| ambient temperature [°C] | -30 to 85 |
| Repeatability [mm] | 0,40 |
| Control output | NPN |
| Switching element function | NO contact |
| Hysteresis [mm] | 0.6 to 3 |
| Max. switching frequency DC [Hz] | 1.500 |
| Max. output current [mA] | 200 |
| Voltage drop [V] | <= 1,8 V |
| Short circuit resistance | Cycling |
| Operating voltage range DC [V] | 10 to 30 |
| residual ripple | 10 % |
| Empty run current [mA] | <= 15 mA |
| Reverse polarity protection | for all electrical connections |
| Electrical connection | 3-wire cable |
| size | M30 |
| Fastening type | With locking nut |
| Torque [Nm] | 75 |
| Integration type | Part flush |
| Product weight [g] | 194,0 |
| Housing material | PBT brass Chrome plated |
| Switching status indicator | LED yellow |
| Protection category | IP67 |
| Noise immunity to magnetic fields | Magnetic direct and alternating field |
| Corrosion resistant class KBK | 2 - moderate corrosion stress |
| Material information | Copper and PTFE-free |
| Cable length [MTR] | 2,5 |
| Cable sleeve material | TPE-U(PUR) |
| Insulation sleeve material | PVC |
| Ambient temperature for moving cable placements [°C] | 0 to 80 |
| Manufacturer Nr. | SIEF-M30NB-NS-K-L |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568175887 |
| Weight | 0.190000 |
| HS-Code | 85365019 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
